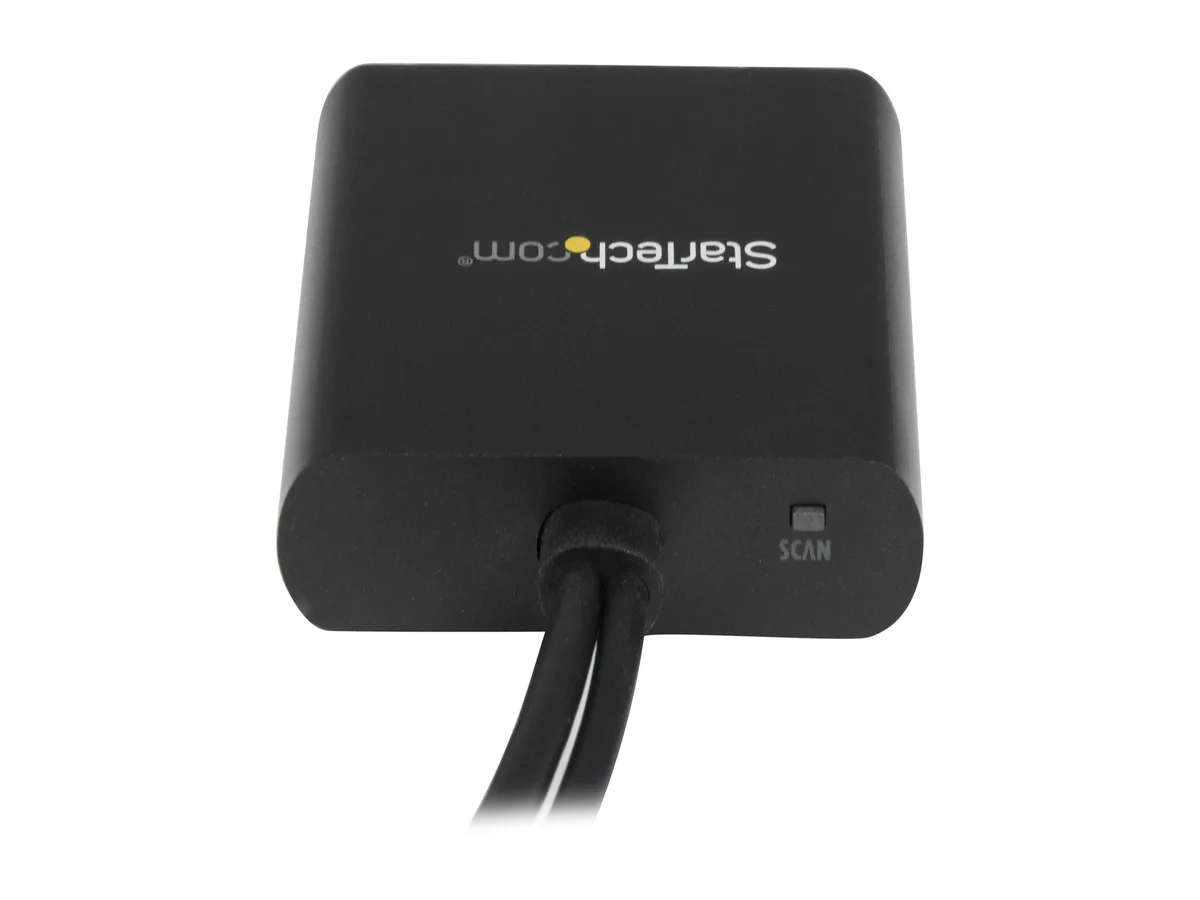

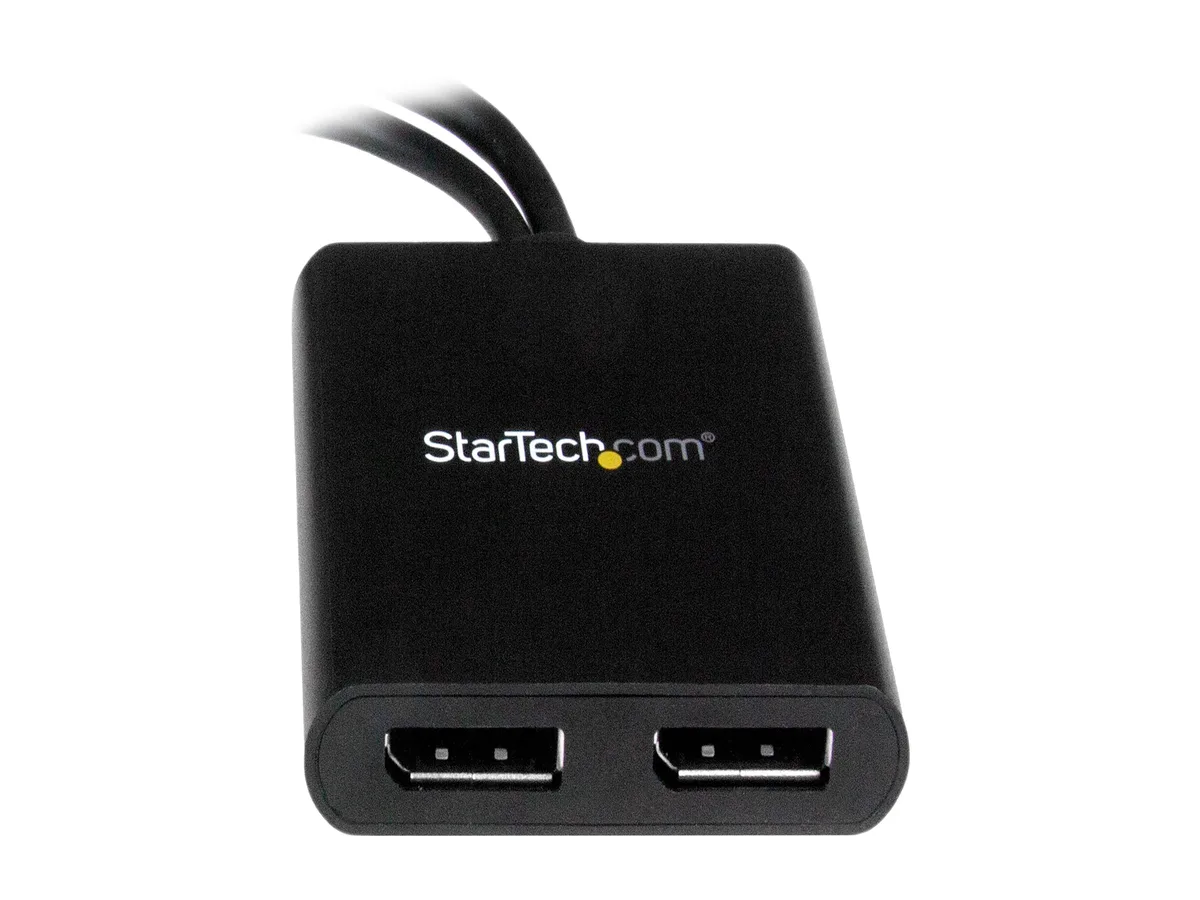

Small black rectangular hub with Mini DisplayPort male input and two full-size DisplayPort female outputs

STARTECH

STARTECH MSTMDP122DP Mini DisplayPort 1.2 to 2x DisplayPort MST Hub audio video converter

SKU CH-WEV0-7FQHC MPN MSTMDP122DP

Connects two DisplayPort monitors to one Mini DisplayPort 1.2 output at up to 3840x2160 @ 30hz

  • TypeMini DP to DP
  • ColorBlack
  • Cable LengthNo
  • SpecificationsMaximum Digital Resolutions: 3840x2160 @ 30hz Supported Reso

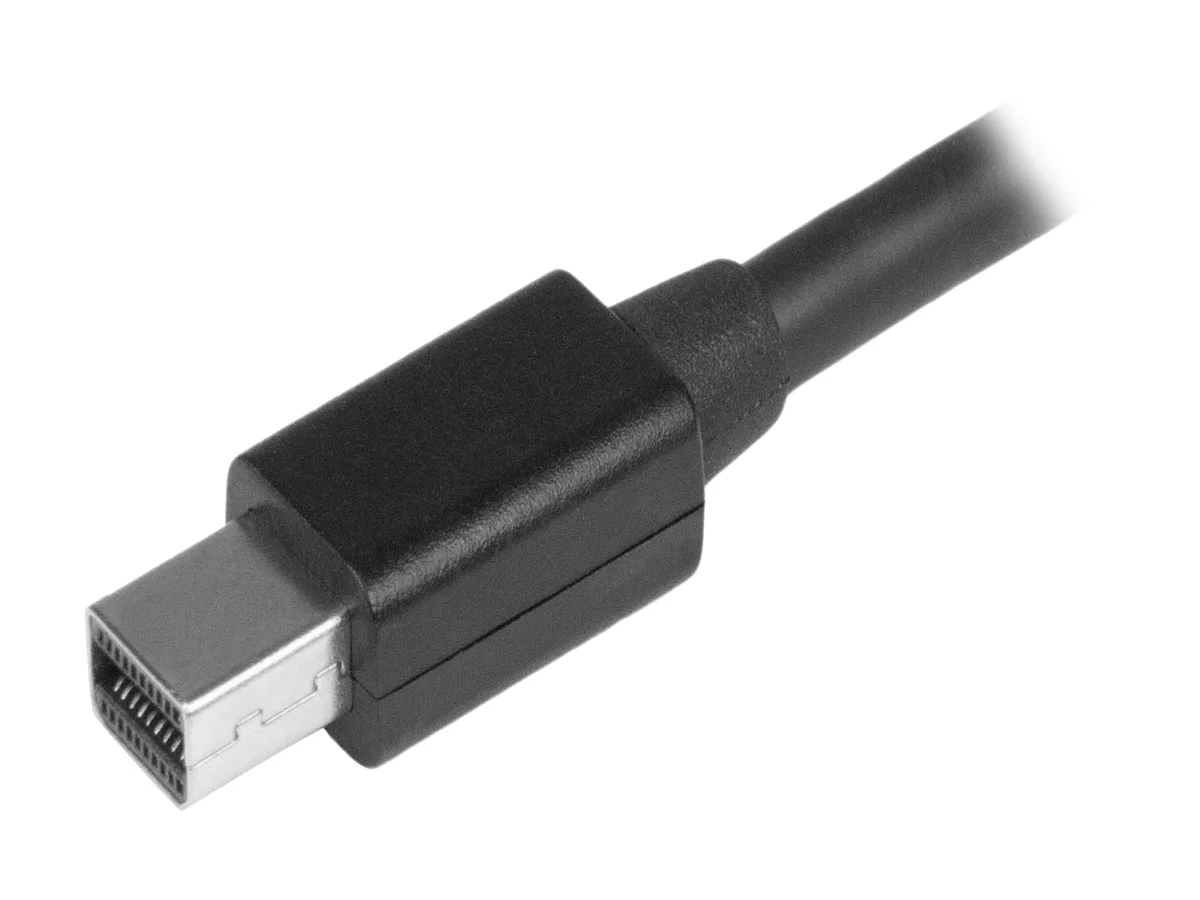

  • Connector A1 - Mini-DisplayPort (20 pin) Male Input
  • Connector B2 - DisplayPort (20 pin) Female Output

Output 2 Ports

Struck-through versions exist but are not stocked here.

Style Mini DisplayPort

  • Mini DisplayPort
  • DisplayPort

Struck-through versions exist but are not stocked here.

  • Connect two independent displays from one mDP 1.2 port for expanded workspace
  • Supports resolutions up to 3840 x 2160 at 30hz for sharp Ultra HD visuals
  • Works with Mini DisplayPort devices such as Lenovo ThinkPad and Microsoft Surface models
  • Audio pass-through included so sound travels to connected DisplayPort monitors
  • Compact 0.6 x 2.30 x 2.40 inch hub weighs only 0.13 lb for easy portability

Connect Two Displays from One mDP 1.2 Port

This hub splits a single Mini DisplayPort 1.2 output into two independent DisplayPort connections. It suits professionals who need a dual-monitor workstation from a laptop or compact desktop with limited video outputs. The adapter supports audio pass-through and works with devices such as Microsoft Surface Pro 2 and 3 or AMD Eyefinity graphics cards.

Bandwidth Limits Resolution to 4K at 30 Hz

Multi-Stream Transport over the 1.2 link shares total bandwidth across both outputs. The maximum supported mode is 3840 x 2160 at 30 Hz per display. Lower resolutions including 2560 x 1600, 2560 x 1440 and 1920 x 1200 are also available. Higher refresh rates or 4K at 60 Hz exceed the interface capacity and are not supported.

Requires Host GPU with MST Capability

The hub only functions when the source Mini DisplayPort 1.2 port implements Multi-Stream Transport. Systems whose GPU or firmware lacks MST will mirror rather than extend the desktop. Buyers whose hardware does not expose MST cannot achieve independent displays with this adapter.

Highlights

  • Connect two independent displays from one mDP 1.2 port for expanded workspace
  • Supports resolutions up to 3840 x 2160 at 30hz for sharp Ultra HD visuals
  • Works with Mini DisplayPort devices such as Lenovo ThinkPad and Microsoft Surface models
  • Audio pass-through included so sound travels to connected DisplayPort monitors
  • Compact 0.6 x 2.30 x 2.40 inch hub weighs only 0.13 lb for easy portability

Specifications

BrandStarTech.com
ModelMSTMDP122DP
TypeMini DP to DP
ColorBlack
Cable LengthNo
SpecificationsMaximum Digital Resolutions: 3840x2160 @ 30hz
Supported Resolutions
1024x768
1280x720 (High-definition 720p)
1920x1080 (High-definition 1080p)
1920x1200
2560x1440
2560x1600
3840 x 2160 (Ultra HD 4K) @30hz
Wide Screen Supported: Yes
Connector A1 - Mini-DisplayPort (20 pin) Male Input
Connector B2 - DisplayPort (20 pin) Female Output
AudioYes
FeaturesUse this adapter to connect two independent displays to a single mDP 1.2 port - Works with mDP devices such as models of Lenovo Think Pad and Microsoft Surface - Compatible with DP projectors and monitors - Resolutions up to 4K - Mini DisplayPort to DisplayPort multi monitor Hub / Mini DisplayPort splitter / mDP daisy chain hub / Video splitter / Triple head multi stream hub / mDP MST Hub / MST adapter - Increase your productivity by docking computer with a multi monitor workstation
Dimensions0.6" x 2.30" x 2.40"
Weight0.13 lb.
Package Contents1 - 2-port mDP to DP MST Hub
1 - Quick install guide
Shipping weight0.14 kg
Package size170 × 140 × 30 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I pick a different model if I need three monitors instead of two?

This MST hub provides two DisplayPort outputs from one Mini DisplayPort 1.2 input; adding a third display would require a separate hub or a device with more ports.

What does the 3840x2160 at 30hz spec mean when I plug in two 4K screens?

Each connected monitor can run up to 3840x2160 at 30 Hz; the hub splits the Mini DisplayPort 1.2 bandwidth across both outputs.

Does the Mini DisplayPort 1.2 connection limit the refresh rate on 1440p or 1080p monitors?

The hub supports 2560x1440 and 1920x1080 at their native timings within the Mini DisplayPort 1.2 bandwidth budget.
