Compact industrial switch in silver aluminium housing with eight RJ45 ports and terminal block power inputs

STARTECH

STARTECH IESC1G80UP 8 Port Gigabit PoE+ Network Switch

SKU CH-1D11-C46KK MPN IESC1G80UP

Unmanaged eight-port Gigabit switch delivers up to 30 W PoE+ per port with redundant 48–56 V DC inputs and a 200 W power budget

  • FormatDesktop
  • Network Management TypeUnmanaged
  • Primary Ports8 x RJ45
  • Primary Port Speed10/100/1000Mbps
  • Jumbo Frames9KB
  • Buffer Memory128KB

Primary Port 8 Port

  • Powers cameras and access points with up to 30W per port via PoE+
  • Operates reliably from -40°C to 75°C in hardened industrial environments
  • Dual 48-56VDC terminal block inputs deliver redundant power for high availability
  • Unmanaged 8-port Gigabit switch with 128KB buffer and 9KB jumbo frame support
  • IP30 aluminium housing rated for vibration, shock and free-fall with 500,000+ hrs MTBF

Industrial 8 Port Gigabit PoE+ Switch

The StarTech.com IESC1G80UP is an unmanaged desktop switch with eight RJ45 ports that deliver up to 30W of PoE+ power per port. It suits installers who need to power IP cameras, wireless access points or VoIP phones over Cat 5e or Cat 6 cable in industrial environments. The rugged IP-30 aluminium housing operates from -40°C to 75°C and supports DIN-rail or wall mounting.

PoE+ Power Budget and Redundant Inputs

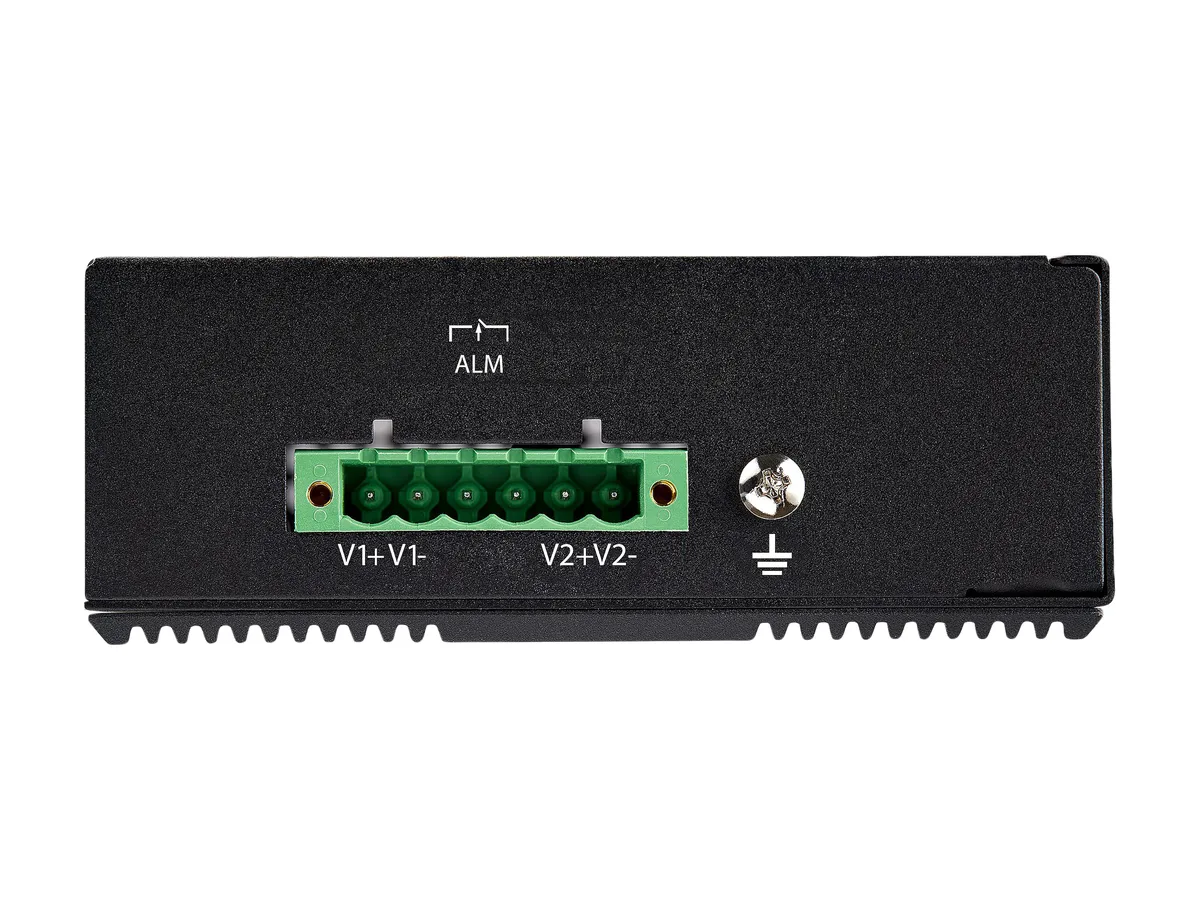

The switch provides a total PoE power budget of 200W across all eight ports while drawing a maximum of 206W. Dual terminal-block inputs accept 48-56VDC for redundant power, and an error alarm relay signals a failure. Jumbo frames up to 9KB and a 128KB buffer handle bursty traffic, but the unmanaged design offers no VLAN, QoS or remote configuration.

30W Per-Port PoE+ Limit

Each port complies with IEEE 802.3af and IEEE 802.3at, capping output at 30W. Devices that require higher power such as PTZ cameras with heaters or 802.3bt Class 5-8 endpoints cannot be powered from this switch. Buyers needing more than 30W per port or a managed feature set should select a different model.

Highlights

  • Powers cameras and access points with up to 30W per port via PoE+
  • Operates reliably from -40°C to 75°C in hardened industrial environments
  • Dual 48-56VDC terminal block inputs deliver redundant power for high availability
  • Unmanaged 8-port Gigabit switch with 128KB buffer and 9KB jumbo frame support
  • IP30 aluminium housing rated for vibration, shock and free-fall with 500,000+ hrs MTBF

Specifications

BrandStarTech.com
ModelIESC1G80UP
FormatDesktop
Network Management TypeUnmanaged
Primary Ports8 x RJ45
Primary Port Speed10/100/1000Mbps
Jumbo Frames9KB
Buffer Memory128KB
PoE30W PoE+

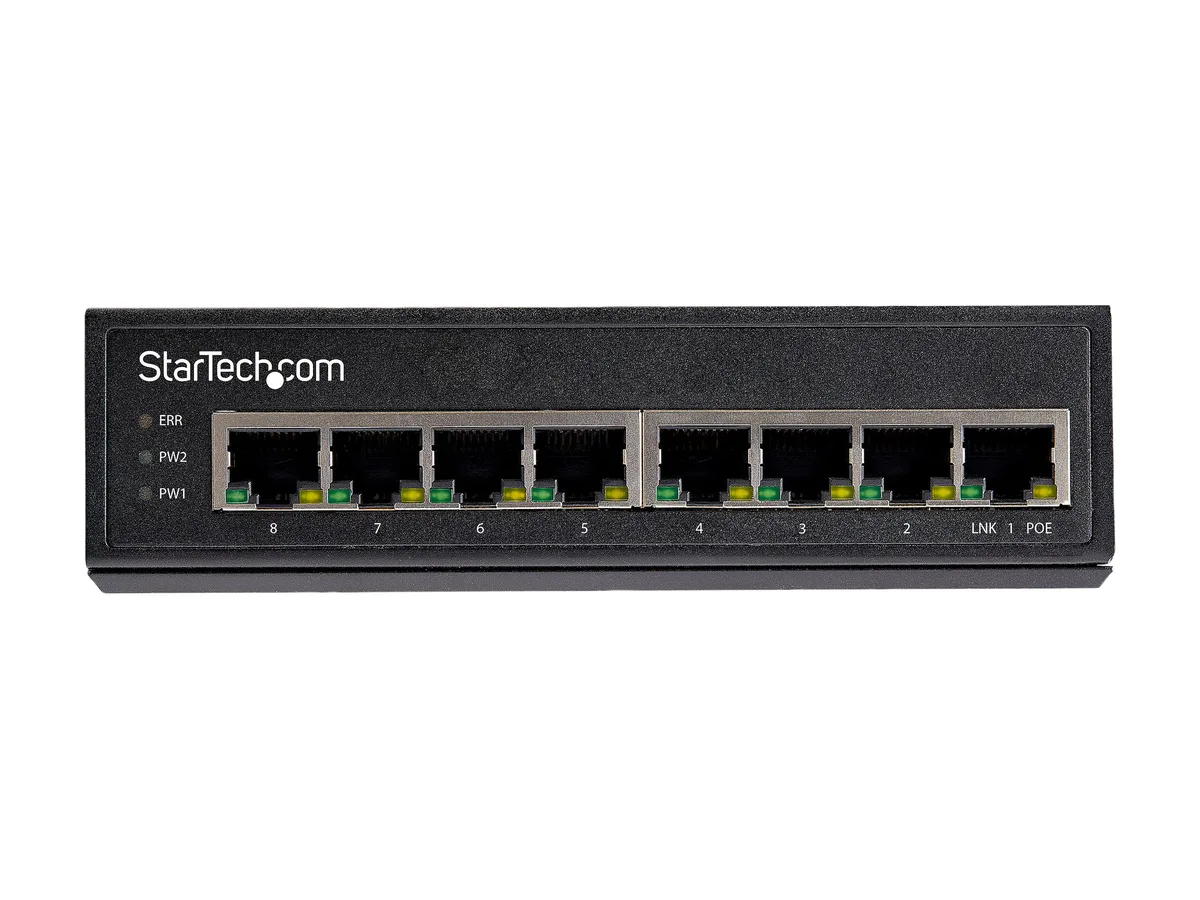

LEDs2 - LED Indicators: PW1, PW2
1 - LED Indicators: RLY
8 - LED Indicators: Link / Active, PoE
PowerPower Consumption (In Watts): Max. 206W

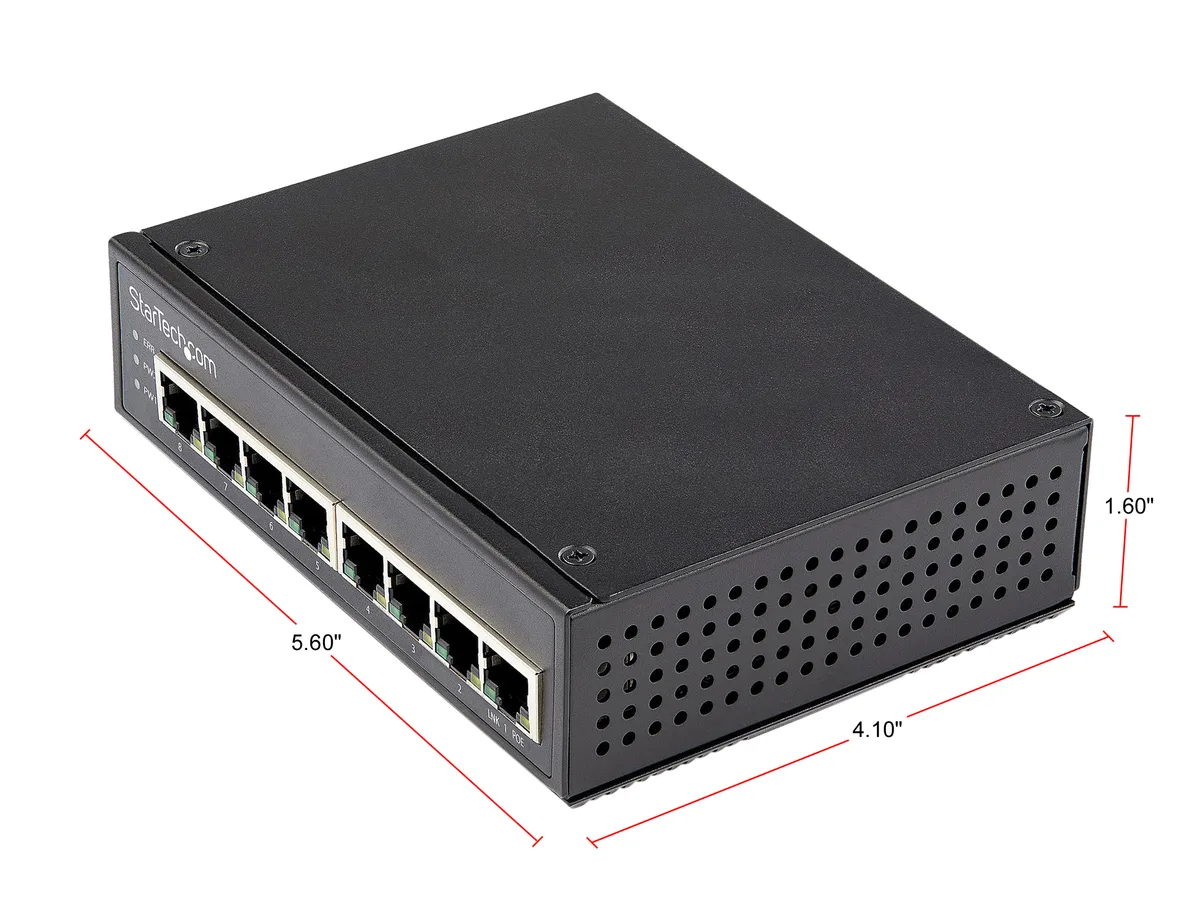

Dimensions1.60" x 4.10" x 5.60"
Weight1.18 lbs.
TemperatureOperating Temperature: -40°C to 75°C
Storage Temperature: -40°C to 85°C
Humidity5 to 95% (non-condensing)
Package ContentsIndustrial Grade Ethernet Switch
Terminal Block
Mounting Hardware Kit
Quick-Start Guide
Shipping weight0.78 kg
Package size211 × 162 × 64 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I choose the 30W PoE+ version or a lower-power PoE model for my cameras and access points?

The IESC1G80UP delivers up to 30W per port under IEEE 802.3at PoE+, so it powers cameras and access points that need more than the 15W baseline PoE limit.

What does the 200W power budget mean when all eight ports are active?

The 200W budget lets you run every port at full 30W PoE+ simultaneously, with headroom for the switch’s own 206W maximum consumption.

How does the dual 48-56VDC terminal-block input affect deployment in an industrial cabinet?

Redundant DC inputs let you feed two independent power sources through the terminal block, so a single supply failure will not take the switch offline.
