Compact metal box with five RJ45 ports and LED indicators

STARTECH

STARTECH IESC1G50UP 5-port Gigabit PoE+ network switch 30W

SKU CH-0A3P-7D644 MPN IESC1G50UP

Industrial 5-port Gigabit PoE+ switch delivers 30 W per port and operates from -40 °C to 75 °C

  • FormatDesktop
  • StandardsIEEE 802.3 10/100/1000BASE-T IEEE 802.3at PoE Plus CSMA/CD I
  • Network Management TypeUnmanaged
  • Primary Ports5 x RJ45
  • Primary Port Speed10/100/1000Mbps
  • Jumbo Frames9KB

Primary Port 5 Port

  • Powers cameras and access points with 30W per PoE+ port
  • Delivers 200W total power budget for multiple devices
  • Operates reliably from -40°C to 75°C in harsh environments
  • Mounts on DIN rail or wall for flexible industrial installation
  • Runs unmanaged with redundant power inputs for continuous uptime

Industrial 5-port Gigabit PoE+ switch

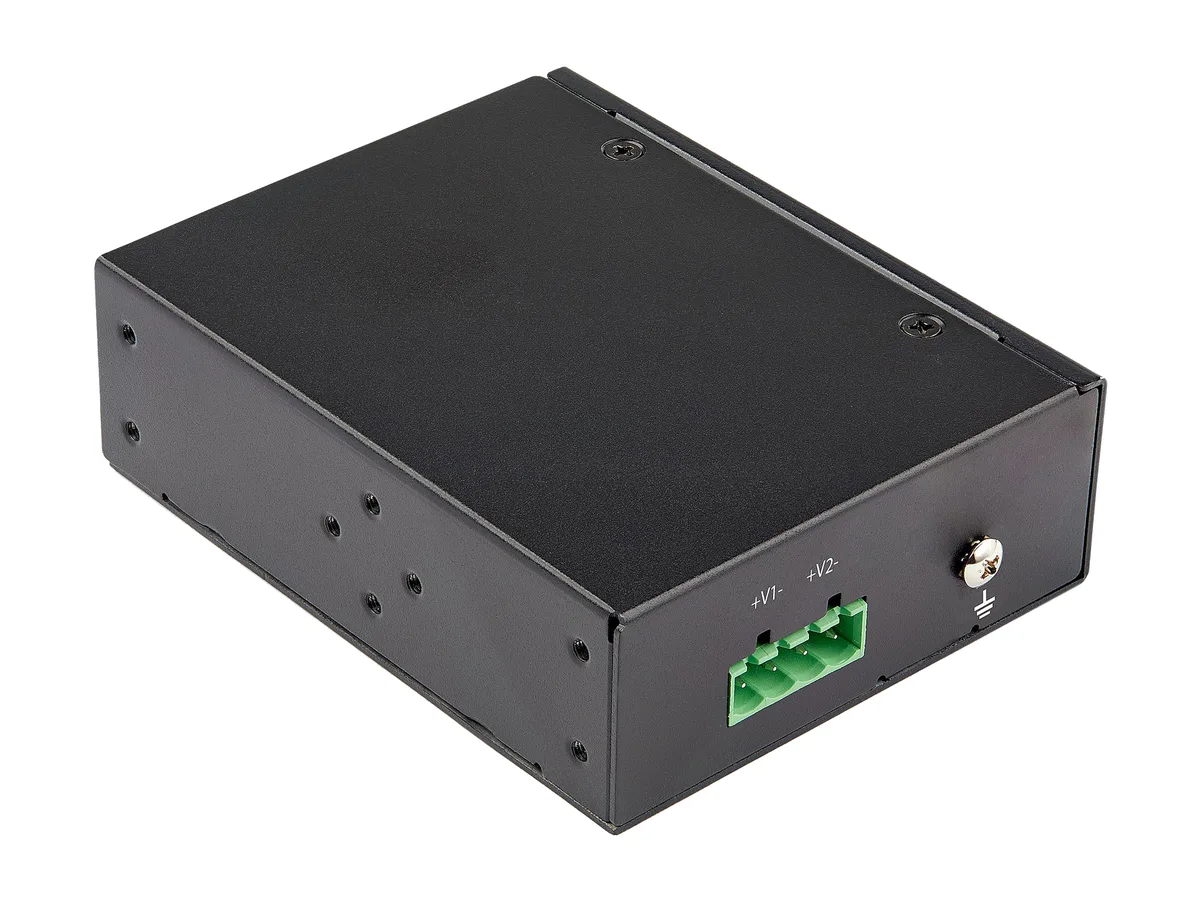

The StarTech.com IESC1G50UP is an unmanaged desktop switch with five RJ45 ports that each deliver up to 30W of PoE+ power. It targets installers who need to run IP cameras or wireless access points in harsh environments without a separate power supply. The hardened enclosure operates from -40°C to 75°C and mounts on DIN rail or wall brackets. Redundant terminal-block inputs keep the link alive if one feed fails.

Sustained-load behaviour

Each port can supply the full 30W continuously while the switch passes 1000Mbps traffic, and the total PoE budget reaches 200W across all five ports. IEEE 802.3x flow control and back-pressure prevent frame loss when buffers fill during prolonged bursts. The 9KB jumbo-frame limit reduces per-packet overhead on long video streams. Maximum system draw is 126W, so the redundant inputs must be sized accordingly.

Practical limits of the Gigabit and PoE+ interfaces

Copper links are restricted to 100 metres per segment at 1000BASE-T, and PoE+ power drops off toward that distance. The 30W per-port ceiling is fixed by the IEEE 802.3at standard; devices needing more must use a midspan injector or a higher-standard switch. Unmanaged operation means no VLANs, QoS or remote monitoring — configuration is purely plug-and-play. Storage temperature extends to 85°C for cold-spare staging.

Highlights

  • Powers cameras and access points with 30W per PoE+ port
  • Delivers 200W total power budget for multiple devices
  • Operates reliably from -40°C to 75°C in harsh environments
  • Mounts on DIN rail or wall for flexible industrial installation
  • Runs unmanaged with redundant power inputs for continuous uptime

Specifications

BrandStarTech.com
ModelIESC1G50UP
FormatDesktop
StandardsIEEE 802.3 10/100/1000BASE-T
IEEE 802.3at PoE Plus
CSMA/CD
IEEE 802.3x Flow Control and Back Pressure
Network Management TypeUnmanaged
Primary Ports5 x RJ45
Primary Port Speed10/100/1000Mbps
Jumbo Frames9KB
PoE30W PoE+

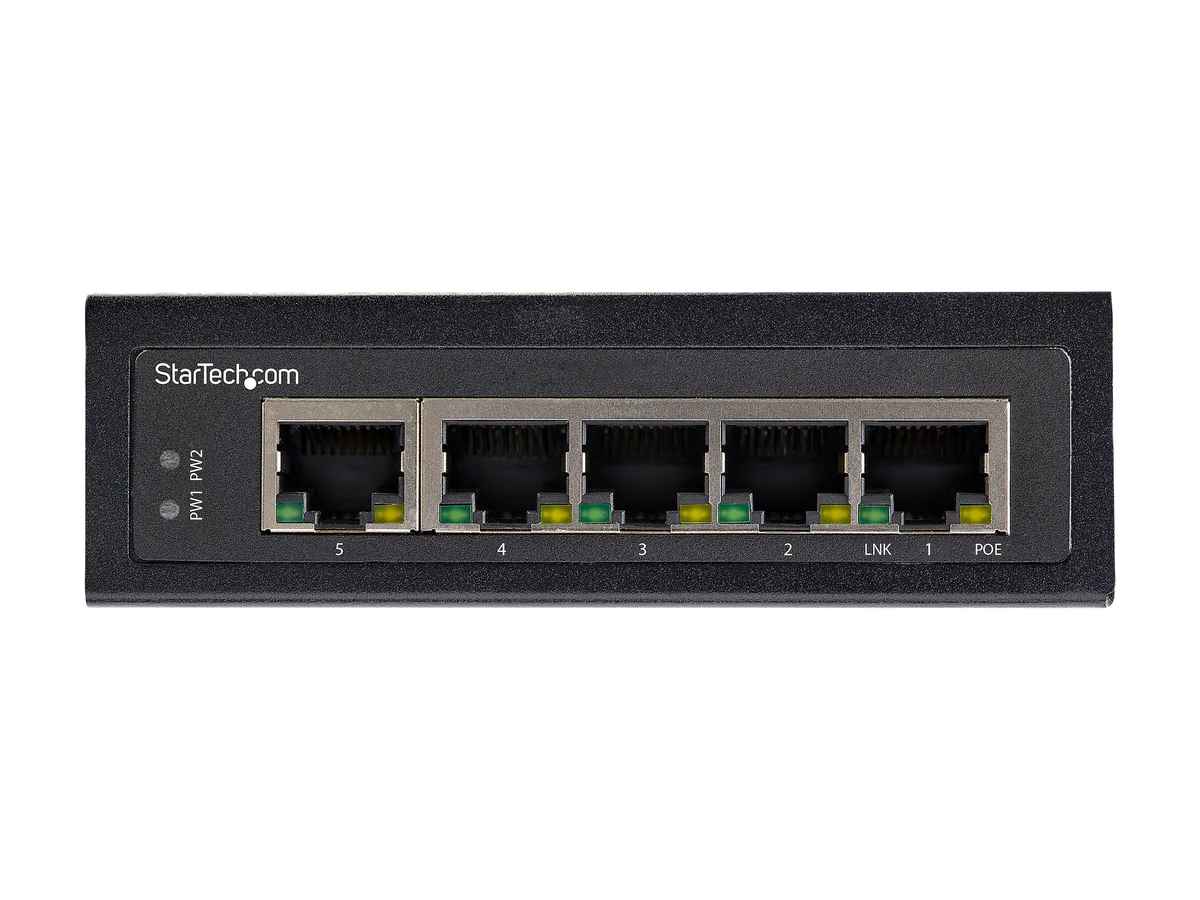

LEDs4 - LED Indicators: PoE
5 - LED Indicators: Link / Active
2 - LED Indicators: V1, V2 Power
PowerPower Consumption (In Watts): Max. 126W

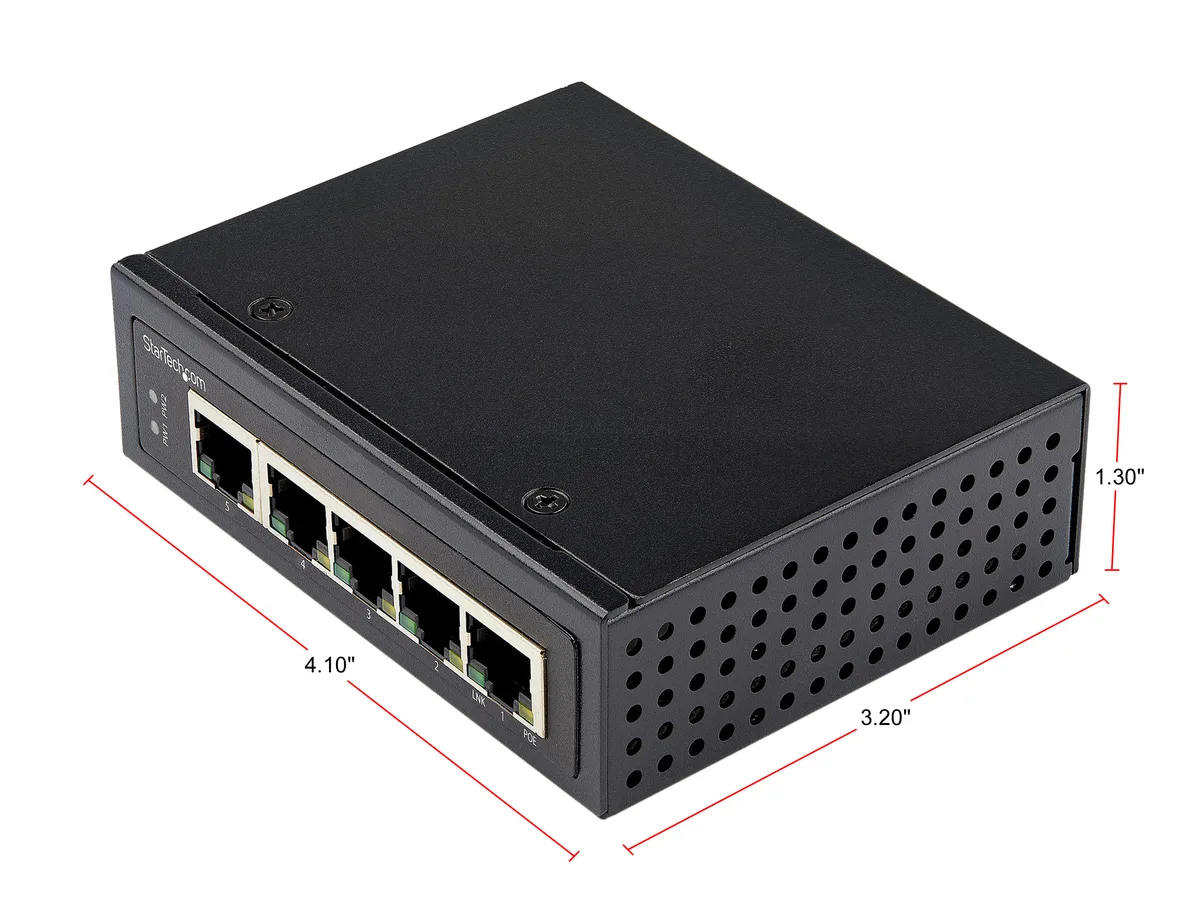

Dimensions1.30" x 3.20" x 4.10"
Weight0.33 lb.
TemperatureOperating Temperature: -40°C to 75°C
Storage Temperature: -40°C to 85°C
Humidity5 to 95% (non-condensing)
Package ContentsIndustrial Grade Ethernet Switch
Terminal Block
Mounting Hardware Kit
Quick-Start Guide
Shipping weight0.40 kg
Package size211 × 162 × 64 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much heat and power draw should I expect from the IESC1G50UP running 24/7 at full PoE load?

The switch draws a maximum of 126 W and operates from -40 °C to 75 °C with no fan, so heat output scales with the PoE load you actually use.

What power sources must I already have to run this switch?

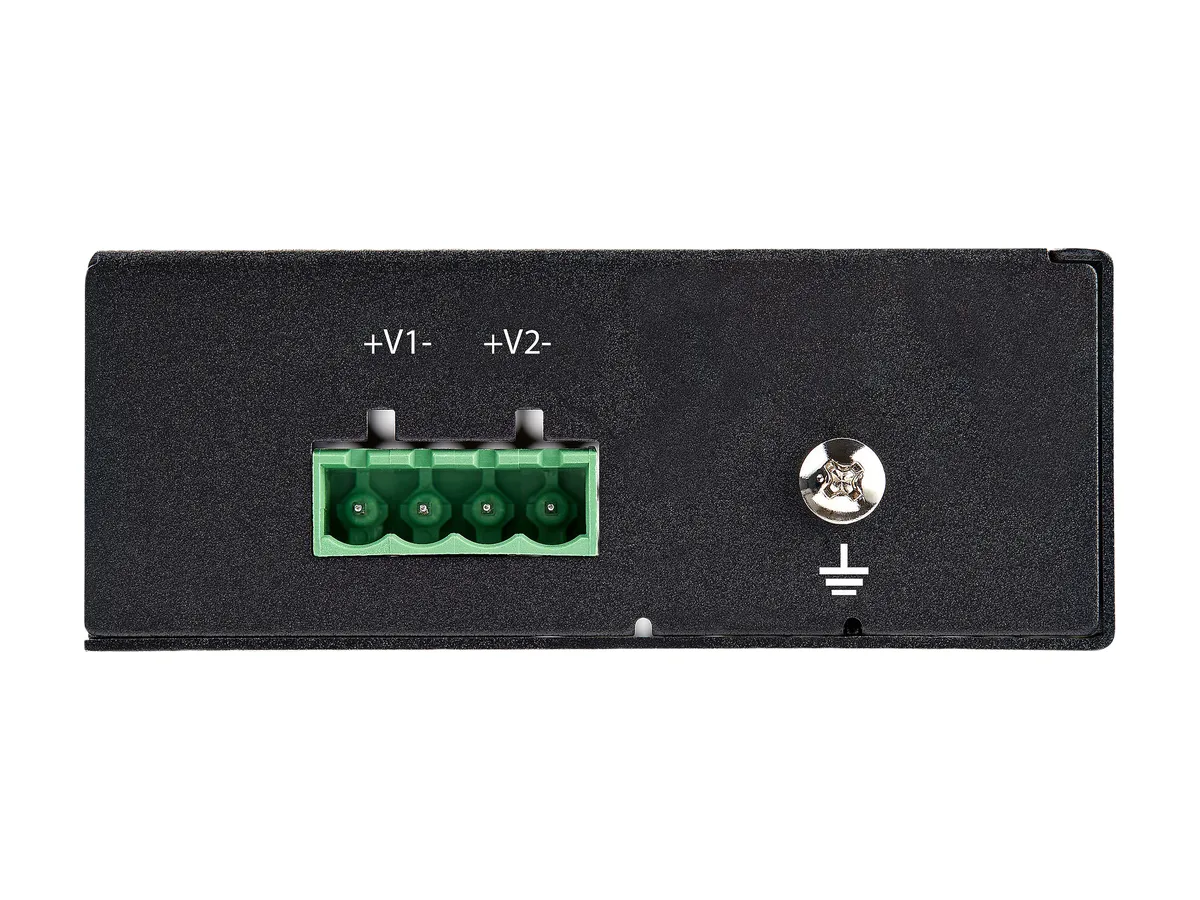

It requires two independent DC inputs wired to the V1 and V2 terminal blocks; the package includes the terminal block and mounting hardware but no power supplies.

Will my older 10/100 Mbps IP cameras and access points work on the five RJ45 ports?

Yes, each port auto-negotiates 10, 100 or 1000 Mbps and supports IEEE 802.3af/at PoE+, so legacy Fast Ethernet devices power up and pass data normally.
