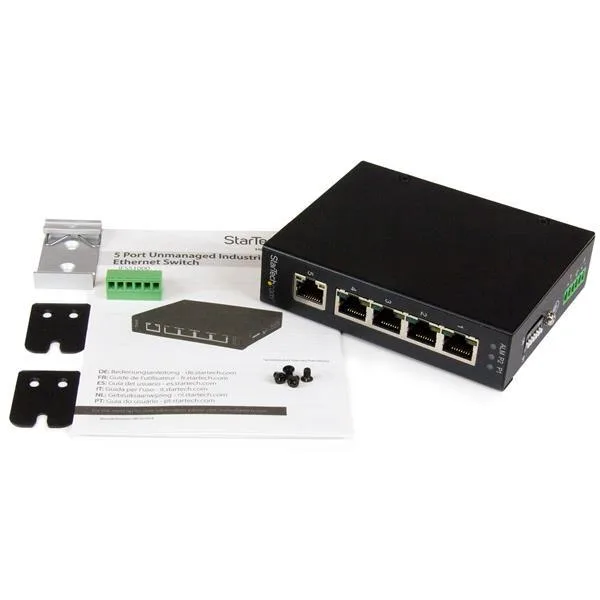

Compact metal box with five RJ45 ports and DIN rail clip

STARTECH

STARTECH IES51000 5-port unmanaged industrial Gigabit network switch

SKU CH-RP74-6CB8E MPN IES51000

Industrial 5-port Gigabit unmanaged switch with IP30 metal housing, DIN-rail and wall mounting, redundant 12-58V DC inputs and -40°C to 75°C operation

  • Switch Typeunmanaged
  • FormatRail-mountable Wall Mountable
  • StandardsLayer Supported: 2 Networking Standards: IEEE 802.3af IEEE 8
  • Network MediaMedia Type Supported: Twisted Pair Ethernet Technology: Giga
  • Uplink InterfaceTotal Number of Network Ports: 5 Token Ring Port: No LRE Por
  • ProtocolsTCP/IP

Class 10/100/1000Base-T

  • Five Gigabit ports connect industrial devices at 10/100/1000 Mbps
  • IP30 metal enclosure mounts on DIN rail or wall for rugged installs
  • Redundant 12-58V DC terminal blocks with alarm relay keep the network running
  • Operates from -40°C to 75°C for harsh environments
  • Auto-negotiation, auto-MDIX and 9K jumbo frames simplify deployment

Industrial 5-port Gigabit switch

The StarTech.com IES51000 is an unmanaged Layer 2 switch with five 10/100/1000Base-T RJ-45 ports. It mounts on a DIN rail or a wall using the supplied brackets and clip. A rugged IP30-rated metal enclosure protects the circuitry in harsh environments. Redundant dual 12-58V DC terminal-block inputs with an alarm relay keep the network running if one supply fails.

Suited for factory floors and outdoor cabinets

This switch serves installers who need simple plug-and-play connectivity across an extended -40°C to 75°C temperature range. Overcurrent and reverse-polarity protection guards against wiring faults. Auto-negotiation and auto-MDIX on every port remove the need for manual configuration. Buyers who require PoE power delivery, managed features such as VLANs or SNMP, or fibre uplink ports should consider other products.

DC power input range

The unit accepts two independent DC sources from 12 V to 58 V through screw-terminal blocks, drawing up to 62 W total. No AC adapter is included in the package. Verify that your site power infrastructure can provide the required voltage and wattage before ordering.

Highlights

  • Five Gigabit ports connect industrial devices at 10/100/1000 Mbps
  • IP30 metal enclosure mounts on DIN rail or wall for rugged installs
  • Redundant 12-58V DC terminal blocks with alarm relay keep the network running
  • Operates from -40°C to 75°C for harsh environments
  • Auto-negotiation, auto-MDIX and 9K jumbo frames simplify deployment

Specifications

BrandStarTech.com
ModelIES51000
Switch Typeunmanaged
FormatRail-mountable
Wall Mountable
StandardsLayer Supported:
2
Networking Standards:
IEEE 802.3af
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3x
IEEE 802.3
Network MediaMedia Type Supported:
Twisted Pair
Ethernet Technology:
Gigabit Ethernet
Network Technology:
10/100/1000Base-T
Uplink InterfaceTotal Number of Network Ports:
5
Token Ring Port:
No
LRE Port:
No
Uplink Port:
No
Bypass:
No
Modular:
No
Management Port:
No
USB:
No
Stack Port:
No
Number of Network (RJ-45) Ports:
5
Network (RJ-45):
Yes
Port/Expansion Slot Details:
5 x Gigabit Ethernet Network
ProtocolsTCP/IP
PowerPoE (RJ-45) Port:
No
Power Source:
Power Adapter
Power Consumption:
62 W
DimensionsHeight:
1.1"
Width:
3.5"
Depth:
4.4"
WeightWeight (Approximate):
11.60 oz
CertificationCertifications & Standards:
CE
FCC
IEEE Standards:
802.3
802.3u
802.3ab
802.1p
802.3az
802.3ad
Package Contents5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable
2 x Wall-Mount Brackets
1 x DIN-Rail Clip
4 x Screws
1 x Terminal Block
1 x Instruction Manual
Shipping weight0.52 kg
Package size178 × 140 × 81 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What mounting hardware is included for the DIN rail and wall-mount options?

The package includes one DIN-rail clip, two wall-mount brackets and four screws for securing the IP30-rated metal enclosure.

How do I connect the redundant DC power inputs on the terminal block?

Wire each 12–58 V DC source into the two terminal-block inputs; the switch has overcurrent and reverse-polarity protection on both feeds.

Which component should I monitor for replacement in high-temperature environments?

The internal alarm relay is the only field-serviceable part; it signals power-supply faults before the switch reaches its 75 °C operating limit.
