Black USB to serial adapter with two DB9 ports

STARTECH

STARTECH ICUSB2324852 2 Port USB Converter RS232 RS422 RS485

SKU CH-7Y3R-HPW3F MPN ICUSB2324852

Connects two RS-232, RS-422 or RS-485 serial devices to a USB 2.0 port with COM port retention

  • ColorBlack
  • Cable LengthNo
  • Changer TypeUSB to DB9 (RS-232)
  • SpecificationsColor: Gray Humidity: 5% to 95% RH Interface/Bridge: USB 2.0
  • Connector A1x USB 2.0 Type B female
  • Connector B1x DB-9 male
  • Two serial ports connect RS-232 RS-422 RS-485 devices via USB 2.0
  • COM port retention preserves settings after reboot or cable reconnection
  • Industrial operating range from 0 °C to 55 °C and 5 % to 95 % humidity

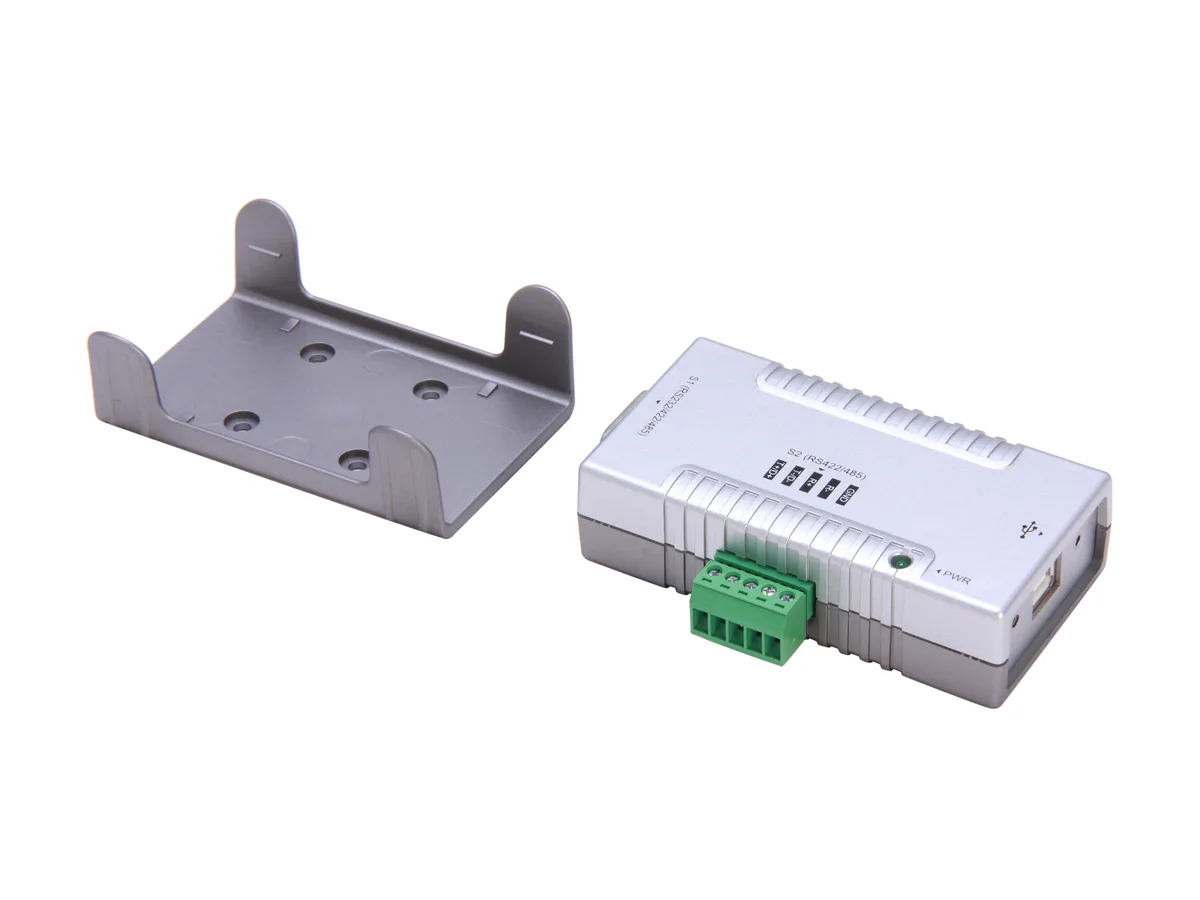

  • Wall-mountable design suits rack or panel installations in tight spaces
  • FTDI chipset supports up to 921.6 Kbps for reliable high-speed serial communication

Two-Port USB Serial Adapter

The ICUSB2324852 is a USB 2.0 converter that provides two DB-9 male ports for RS-232, RS-422 and RS-485 devices. It uses an FTDI chipset and supports COM port retention so settings persist across reboots. The unit is wall-mountable and draws power from the USB bus.

Industrial and Legacy Equipment Integration

Engineers maintaining factory automation, building-management or laboratory instruments will appreciate the 921.6Kbps maximum baud rate and broad protocol coverage. Buyers who require more than two serial connections or need isolation, surge protection or a different connector type should consider other solutions.

921.6Kbps Maximum Baud Rate

The adapter sustains up to 921.6Kbps across its two ports, which determines whether timing-sensitive equipment will communicate reliably. Verify that your serial devices operate within this limit before purchase.

Highlights

  • Two serial ports connect RS-232 RS-422 RS-485 devices via USB 2.0
  • COM port retention preserves settings after reboot or cable reconnection
  • Industrial operating range from 0 °C to 55 °C and 5 % to 95 % humidity
  • Wall-mountable design suits rack or panel installations in tight spaces
  • FTDI chipset supports up to 921.6 Kbps for reliable high-speed serial communication

Specifications

BrandStarTech.com
ModelICUSB2324852
ColorBlack
Cable LengthNo
Changer TypeUSB to DB9 (RS-232)
SpecificationsColor: Gray
Humidity: 5% to 95% RH
Interface/Bridge: USB 2.0
Number of Ports: 2
Operating Temperature: 0°C to 55°C (32°F to 131°F)
Storage Temperature: -20°C to 85°C (-4°F to 185°F)
Max Baud Rate: 921.6Kbps
Data Bits: 7, 8
Stop Bits: 1 and 2
Parity: Odd, Even, Mark, Space, and None
Flow Control: Xon/Xoff, Hardware, and None
LED Indicators: 1 - Red - Power LED
Bus Type: USB 2.0
Connector Types: 1 - DB9 Male
Connector Types: 1 - Terminal Block
Connector Types: 1 - USB B Female
Power Adapter Included: Optional
Output Voltage: 5 DC
Output Current: 385mA
Center Tip Polarity: Positive
Plug
Connector A1x USB 2.0 Type B female
Connector B1x DB-9 male
Weight0.6
Shipping weight0.27 kg
Package size208 × 142 × 41 mm

Questions about this item

What mounting options does the wall-mountable ICUSB2324852 adapter provide for installation?

The ICUSB2324852 is designed as a wall-mountable unit, allowing it to be secured to a flat surface for permanent installation in industrial or office environments.

How is the ICUSB2324852 connected to the host computer and what driver step is required?

Connect the USB 2.0 Type B female port to the computer using a USB cable, then install the FTDI driver so the operating system creates the virtual COM ports for the two DB-9 male connectors.

What operating temperature range should be maintained for the ICUSB2324852 to avoid early replacement?

Keep the adapter between 0°C and 55°C (32°F to 131°F) during operation; exceeding this range can shorten the lifespan of the internal bridge and serial transceiver components.
