STARTECH
STARTECH ICUSB23208FD 8-port USB 2.0 to RS232 converter
Adds eight RS232 serial ports through one USB 2.0 connection with 921.6 Kbps per port in a rack-mountable metal chassis
- ColorBlack
- Cable Length35.4" (900mm)
- Changer TypeUSB to DB9 (RS-232)
- SpecificationsBus Type: USB 2.0 Interface: Serial Data Bits: 7, 8 FIFO: 25
- Connector A1x USB 2.0 Type B female
- Connector B8x DB-9 male
- Add eight serial ports through one USB 2.0 connection
- Each port delivers 921.6 Kbps baud rate
- FTDI chipset retains COM port assignments after reboot
- All-metal chassis mounts in rack or on DIN rail
- Operating range spans -40°C to 85°C
Eight RS232 ports via USB 2.0

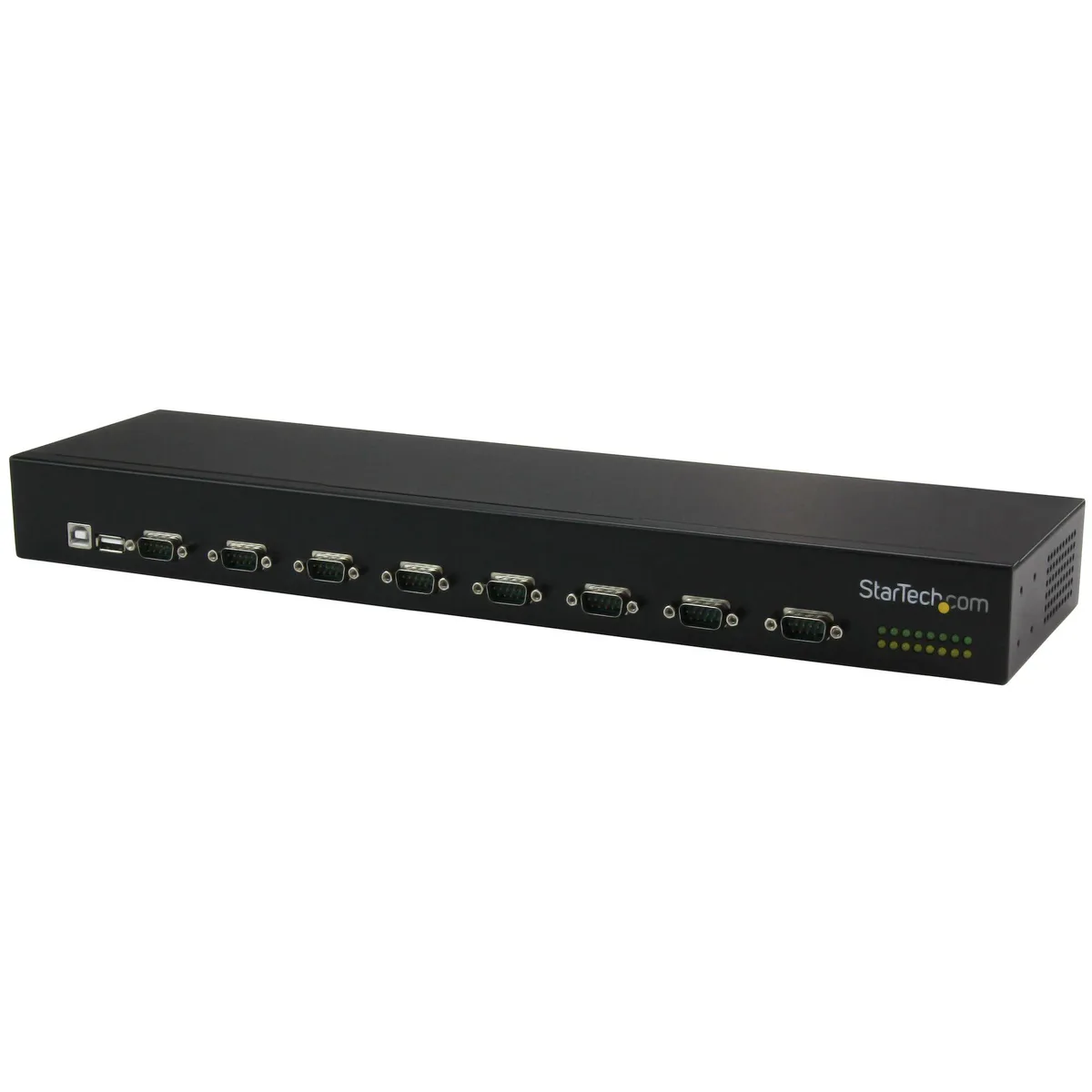

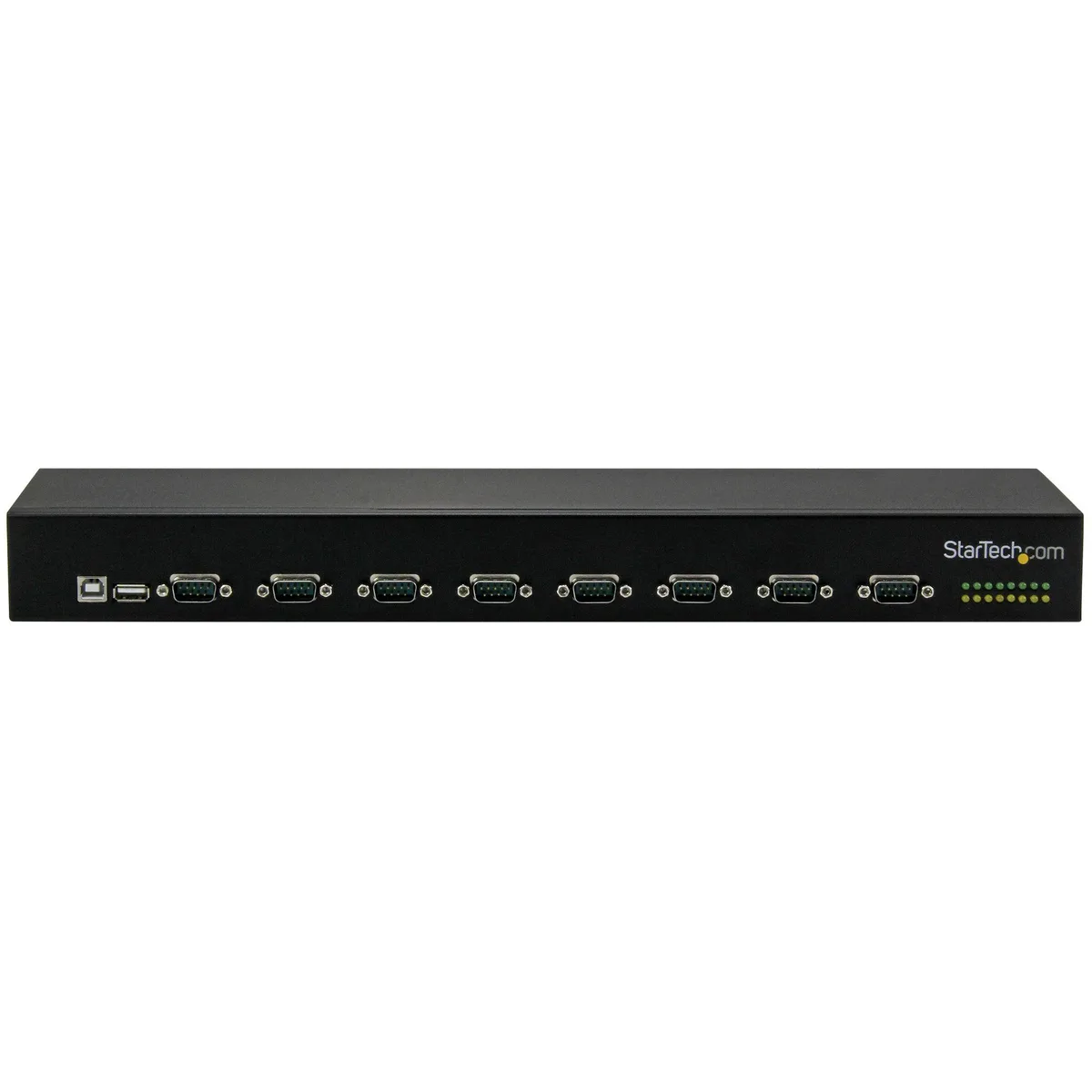

The StarTech ICUSB23208FD converts a single USB 2.0 Type B connection into eight DB-9 male serial ports. Each port supports RS-232 communication at up to 921.6 Kbps using an FTDI chipset with COM port retention. The hub is housed in an all-metal chassis rated for an extended operating temperature range of -40°C to 85°C (-40°F to 185°F). A 900 mm USB cable and universal power adapter are included.
Industrial automation
Engineers maintaining PLCs, CNC machines, or serial instrumentation gain eight reliable COM ports from one USB host without driver conflicts. IT teams managing headless servers or network switches obtain console access at scale. Users needing only one or two ports, or those requiring USB 3.x throughput, should consider simpler adapters.
FTDI chipset with COM port retention
The FTDI controller preserves port assignments across reboots, eliminating the re-enumeration issues common with generic silicon. This behaviour is the decisive factor for unattended industrial deployments where consistent device naming is mandatory.
Highlights
- Add eight serial ports through one USB 2.0 connection
- Each port delivers 921.6 Kbps baud rate
- FTDI chipset retains COM port assignments after reboot
- All-metal chassis mounts in rack or on DIN rail
- Operating range spans -40°C to 85°C
Specifications
| Brand | StarTech.com |
|---|---|
| Model | ICUSB23208FD |
| Color | Black |
| Cable Length | 35.4" (900mm) |
| Changer Type | USB to DB9 (RS-232) |
| Specifications | Bus Type: USB 2.0 Interface: Serial Data Bits: 7, 8 FIFO: 256 Bytes Max Baud Rate: 921.6 Kbps Maximum Data Transfer Rate: 480 Mbps Parity: Odd, Even, Mark, Space, None Serial Protocol: RS-232 Stop Bits: 1, 2 LED Indicators: 8 x Data Transmit, 8 x Data Receive Center Tip Polarity: Positive Input Current: 1.5 A Input Voltage: 100 ~ 240 AC Output Current: 3 A Output Voltage: 12 DC Plug Type: B Power Consumption: 36 W Max. Humidity: 20 - 80% RH (Non-condensing) |
| Connector A | 1x USB 2.0 Type B female |
| Connector B | 8x DB-9 male |
| Cable Jakcet Type | Aluminum |
| Features | Gain eight RS232 serial port interfaces through a single USB port Connect multiple hubs together through daisy chain functionality 921.6Kbps baud rate per port Rack-mountable design with durable all-metal chassis Extended operating temperature range: -40 to 85 degree C (-40 to 185 degree F) 256-byte transmit, 128-byte receive FIFO COM port retention |
| Dimensions | 1.80" x 4.70" x 16.90" |
| Weight | 48.20 oz. |
| Package Contents | 1 x 8-port USB to RS232 hub 1 x USB 2.0 cable 2 x rack-mounting brackets 8 x rack-mounting screws 2 x DIN-rail mounting brackets 4 x DIN-rail mounting screws 4 x washers 4 x nuts 1 x universal power adapter (NA/JP, UK, EU, AU) 1 x driver CD 1 x terminal block plug 1 x quick-start guide |
| Shipping weight | 2.16 kg |
| Package size | 457 × 406 × 356 mm |
