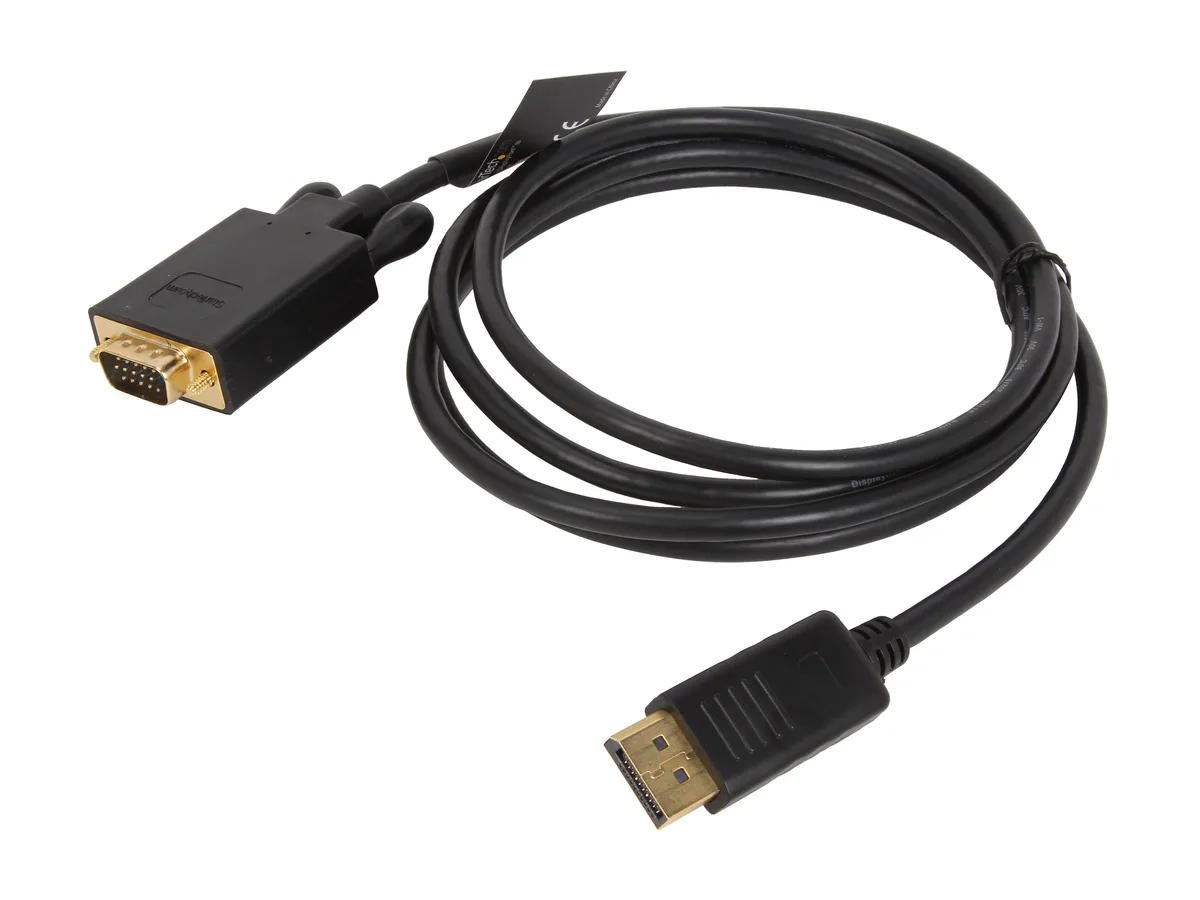

Black 6 ft DisplayPort to VGA active cable with latching 20 pin DP plug and 15 pin VGA plug

STARTECH

STARTECH DP2VGAMM6B 6 ft DisplayPort to VGA active cable 1920x1200 black

SKU CH-RGWN-CP7TP MPN DP2VGAMM6B

A 6 ft active cable converts a DisplayPort source to a VGA display at up to 1920 x 1200 resolution

  • TypeDisplayPort to VGA
  • ColorBlack
  • Length6 ft.
  • Cable Length6 ft.
  • Connector Number2
  • Connector DetailDisplayPort (20 pin) Latching to VGA (15 pin; High Density D
  • Connect a DisplayPort PC to a VGA display with a 6 ft cable
  • Supports video resolutions up to 1920 x 1200
  • Active converter with Analogix 9832 chipset for reliable signal conversion
  • Latching 20-pin DisplayPort to 15-pin VGA male connectors ensure secure fit
  • Add a second display to your PC using the DisplayPort output

Product identity

The StarTech DP2VGAMM6B is a six-foot active cable that converts a DisplayPort output to a VGA input. It is intended for users who need to connect a modern DP-equipped desktop or laptop to a legacy VGA monitor or projector without a separate adapter block.

Signal performance

The integrated Analogix 9832 chipset actively translates the digital signal, supporting video resolutions up to 1920 by 1200. The cable draws operating power directly from the DisplayPort source, so no external supply is required, and the latching 20-pin connector remains secure during normal use.

Cable convenience

The single male-to-male assembly replaces a separate adapter plus cable, reducing clutter at the workstation. Audio is not carried, so a separate audio path is needed for sound. The fixed six-foot length suits typical desk-to-display distances but cannot be extended or shortened.

Highlights

  • Connect a DisplayPort PC to a VGA display with a 6 ft cable
  • Supports video resolutions up to 1920 x 1200
  • Active converter with Analogix 9832 chipset for reliable signal conversion
  • Latching 20-pin DisplayPort to 15-pin VGA male connectors ensure secure fit
  • Add a second display to your PC using the DisplayPort output

Specifications

BrandStarTech.com
ModelDP2VGAMM6B
TypeDisplayPort to VGA
ColorBlack
Length6 ft.
Cable Length6 ft.
Connector Number2
Connector DetailDisplayPort (20 pin) Latching to VGA (15 pin; High Density D-Sub)
Terminal GenderMale to Male
SpecificationsAudio: No
Chipset ID: ANALOGIX 9832
Converter Type: Active
FeaturesConnect a DisplayPort-equipped PC to a VGA monitor/projector, with a 6ft cable
Compatible with DP enabled Desktop and laptop computers such as Lenovo ThinkCentre M72z, and VGA monitors and projectors
Supports video resolutions up to 1920x1200
DisplayPort to VGA Adapter Cable / DP to VGA Converter / DisplayPort to VGA monitor or projector
Connect your PC directly to your display with a built-in adapter
Increase work space by using your DP port to add an additional display to your PC
Shipping weight0.12 kg
Package size210 × 192 × 18 mm

Questions about this item

How do I connect the 20-pin latching DisplayPort plug and the 15-pin VGA plug correctly?

Insert the DisplayPort end into the PC until the latch clicks, then screw the VGA end into the monitor or projector; the latch must be squeezed to release it.

Will the built-in ANALOGIX 9832 active converter need firmware updates or external power later?

No firmware updates are required and the converter draws all power from the DisplayPort connection, so no separate supply is needed.

At 1920x1200 resolution, what is the first limitation I will hit during long sessions?

The cable is rated for 1920x1200 maximum resolution; sustained use at that resolution is the limit, with no higher refresh rates or resolutions supported.
