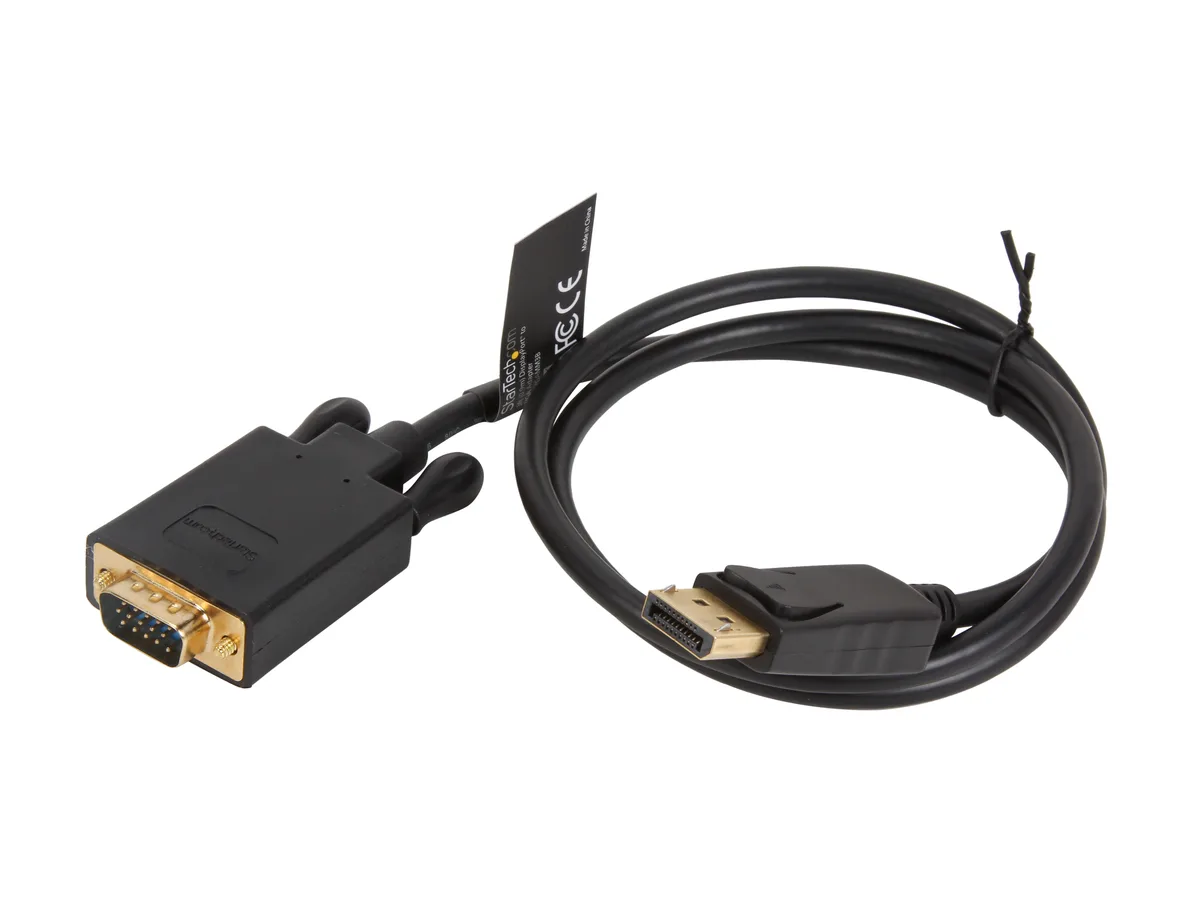

Black DisplayPort to VGA adapter cable, 3 ft, male-to-male connectors

STARTECH

STARTECH DP2VGAMM3B displayport cable 3 ft active 1920 x 1200 black

SKU CH-TYXH-57DVX MPN DP2VGAMM3B

Connect a DisplayPort PC to a VGA monitor or projector using this active 3 ft male-to-male cable supporting up to 1920 x 1200 resolution

  • TypeDisplayPort to VGA
  • ColorBlack
  • Length3 ft.
  • Cable Length3 ft.
  • Connector Number2
  • Connector DetailDisplayPort (20 pin) Latching to VGA (15 pin; High Density D

Cable Length 3 ft. - Standard

  • Connect a DisplayPort PC to a VGA monitor or projector with a short 3 ft cable
  • Active conversion supports video resolutions up to 1920 x 1200
  • Latching 20-pin DisplayPort to 15-pin VGA male connectors ensure a secure link
  • Analoguex 9832 chipset enables compatibility with DP desktops and laptops like EliteBook Revolve 810
  • Compact 3 ft length keeps workstation installations tidy and precise

Active DisplayPort to VGA adapter cable

This active adapter cable connects a DisplayPort-equipped PC to a VGA monitor or projector. The 3 ft length suits compact desk layouts and office multi-display setups. It supports video resolutions up to 1920 x 1200 and uses an Analogix 9832 chipset. No audio signal is transmitted through the connection.

Check your source port and display input

Verify that the computer provides a standard 20 pin DisplayPort output with latching mechanism. The target display must accept a 15 pin high-density D-Sub VGA input. Because the cable is active it does not require a DisplayPort++ dual-mode source. Ensure the 3 ft reach matches the distance between your devices before ordering.

Low power draw with no fan noise

The active converter draws power directly from the DisplayPort source and operates without a fan. In normal office use driving a 1920 x 1200 display the cable runs cool and silent. Power consumption remains minimal and does not require an external supply. The short fixed cable reduces clutter and potential signal loss.

Highlights

  • Connect a DisplayPort PC to a VGA monitor or projector with a short 3 ft cable
  • Active conversion supports video resolutions up to 1920 x 1200
  • Latching 20-pin DisplayPort to 15-pin VGA male connectors ensure a secure link
  • Analoguex 9832 chipset enables compatibility with DP desktops and laptops like EliteBook Revolve 810
  • Compact 3 ft length keeps workstation installations tidy and precise

Specifications

BrandStarTech.com
ModelDP2VGAMM3B
TypeDisplayPort to VGA
ColorBlack
Length3 ft.
Cable Length3 ft.
Connector Number2
Connector DetailDisplayPort (20 pin) Latching to VGA (15 pin; High Density D-Sub)
Terminal GenderMale to Male
SpecificationsAudio: No
Chipset ID: ANALOGIX 9832
Converter Type: Active
FeaturesConnect a DisplayPort-equipped PC to a nearby VGA monitor/Projector, with a short 3 foot cable
Compatible with DP enabled Desktop & laptop computers such as EliteBook Revolve 810, and VGA monitors and projectors
Supports video resolutions up to 1920x1200
DisplayPort to VGA Adapter Cable / DP to VGA Converter
Use a short 3ft cable for a tidy and precise workstation installation
Add an additonal display to your computer system for office applications like MS Office or video conferencing
Shipping weight0.09 kg
Package size198 × 130 × 3 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the cable include both the DisplayPort and VGA connectors, or do I need a separate adapter?

The cable has a 20-pin latching DisplayPort male connector on one end and a 15-pin high-density D-Sub VGA male connector on the other, so no separate adapter is required.

Which resolution should I expect when connecting a 1920 x 1200 monitor?

The active converter chipset supports video resolutions up to 1920 x 1200, matching the monitor's native resolution exactly.

Will the 3 ft length reach from a laptop port to a monitor on the same desk?

At 3 ft the cable is designed for a tidy workstation install where the DisplayPort source and VGA display sit close together on the same surface.
