STARTECH

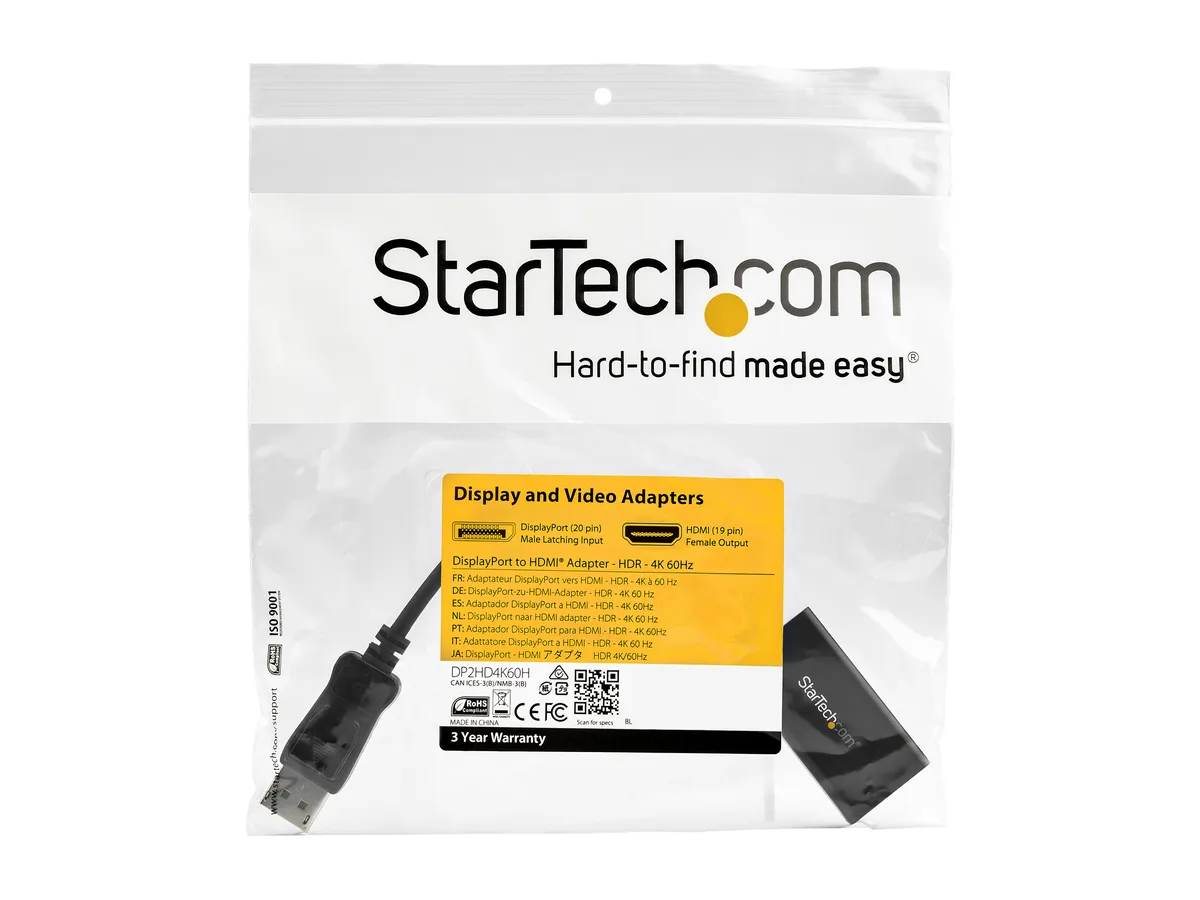

STARTECH DP2HD4K60H audio video converter DisplayPort to HDMI 4K 60Hz HDR active 7.7 in black
Connects a DisplayPort source to an HDMI display at 4K 60 Hz with HDR using an active 7.7 in adapter
- TypeDP to HDMI
- Changer TypeDisplayPort to HDMI
- ColorBlack
- Cable Length7.7 in
- SpecificationsActive or Passive Adapter: Active Adapter Style: Adapters Au

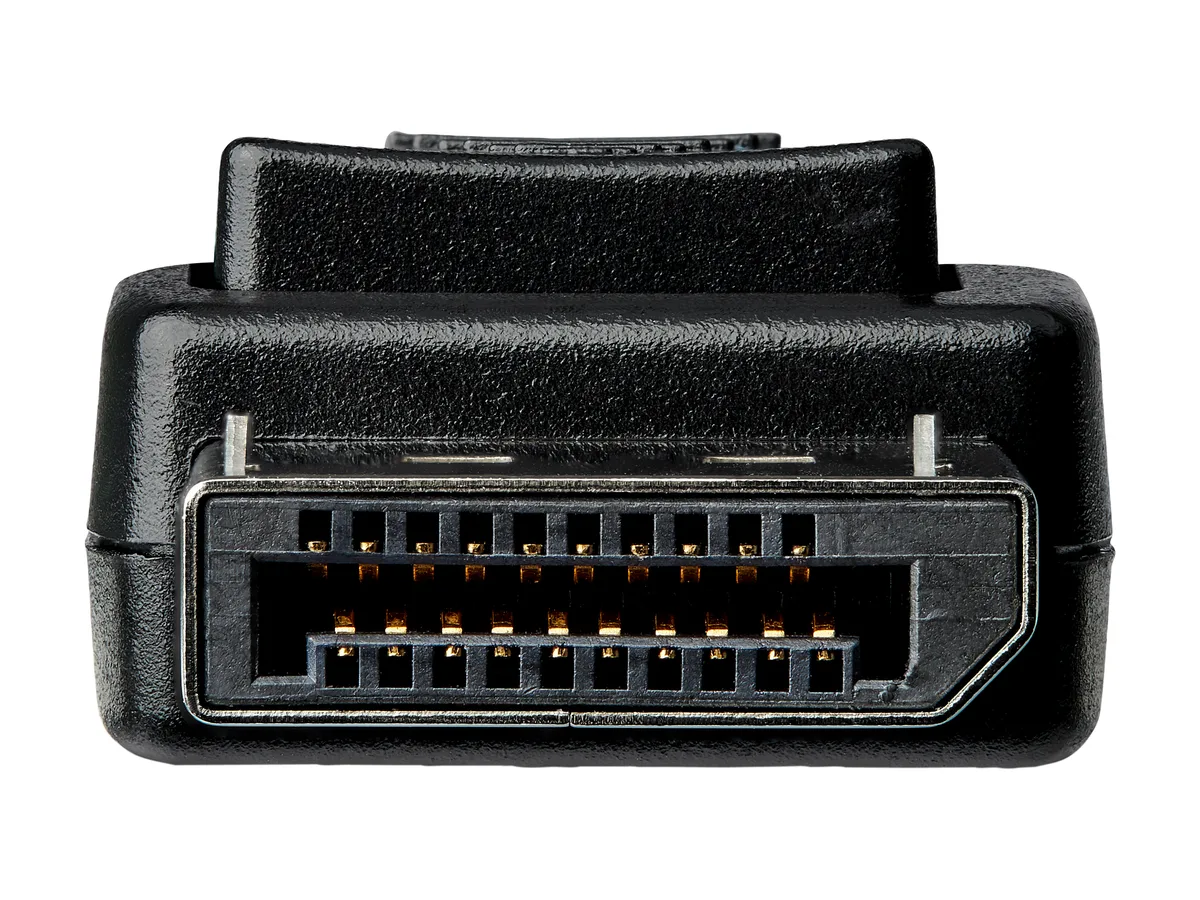

- Connector A1 x DisplayPort (20 pin) Latching Male Input
- HDR support expands contrast and colour accuracy for vivid visuals
- Active adapter drives UHD 4K at 60 Hz on the HDMI output
- Latching 20-pin DisplayPort input secures the source connection
- EMI shielding cage protects signal integrity against interference
- Compact 7.7 in length suits travel and BYOD setups
Active DisplayPort to HDMI Adapter
The StarTech DP2HD4K60H is an active converter that connects a DisplayPort source to an HDMI display. It suits users who need to link a laptop or desktop with a DP output to a monitor, projector or TV that only accepts HDMI input. The 7.7 in cable length keeps the setup compact for travel or permanent desk use.
HDMI 2.0b Bandwidth and Cable Constraints
The adapter operates within the HDMI 2.0b specification, limiting output to 4K at 60 Hz with HDR support. It requires both the source and the display to meet the relevant specifications for full performance. The unit is not compatible with cables that use RedMere technology, so standard passive HDMI cables must be used for the output connection.
Active MegaChips MCDP2900 Conversion
The built-in MegaChips MCDP2900 chipset actively converts the DisplayPort signal to HDMI rather than relying on a passive pin rearrangement. This allows the adapter to work with graphics outputs that do not natively emit an HDMI-compatible signal. Buyers whose source already provides a native HDMI signal do not need this active conversion.
Highlights
- HDR support expands contrast and colour accuracy for vivid visuals
- Active adapter drives UHD 4K at 60 Hz on the HDMI output
- Latching 20-pin DisplayPort input secures the source connection
- EMI shielding cage protects signal integrity against interference
- Compact 7.7 in length suits travel and BYOD setups
Specifications
| Brand | StarTech.com |
|---|---|
| Model | DP2HD4K60H |
| Type | DP to HDMI |
| Changer Type | DisplayPort to HDMI |
| Color | Black |
| Cable Length | 7.7 in |
| Specifications | Active or Passive Adapter: Active Adapter Style: Adapters Audio: Yes AV Input: DisplayPort AV Output: HDMI Chipset ID: MegaChips - MCDP2900 Industry Standards: DPCP (DisplayPort Content Protection) HDCP 2.2 (High Definition Content Protection) DisplayPort 1.4 HDMI 2.0b Audio Specifications: 7.1 surround sound Maximum Digital Resolutions: 4096 X 2160 @ 24Hz 3840 X 2160 @ 60Hz Supported Resolutions: 4096 X 2160 @ 24Hz 3840 X 2160 @ 60Hz Lower resolutions and refresh rates may also be supported Video Revision: HDMI 2.0b Wide Screen Supported: Yes |
| Connector A | 1 x DisplayPort (20 pin) Latching Male Input |
| Connector B | 1 x HDMI (19 pin) Female Output |
| Audio | Yes |
| Features | Astonishing picture quality with support for UHD video resolutions up to 4K 60Hz Supports HDR for expanded contrast ratio and color accuracy Features an electromagnetic interference (EMI) shielding cage to ensure reliable and consistent audio-video signal Maximum portability with a compact, lightweight design Hassle-free setup with an active DisplayPort conversion |
| Dimensions | 9.90" x 2.20" x 0.40" |
| Weight | 1.10 oz. |
| Disclaimer | Note: This video adapter is not compatible with cables that use RedMere technology. In order to achieve maximum performance of this product, both the source and destination devices must support the appropriate specifications |
| Shipping weight | 0.05 kg |
| Package size | 314 × 218 × 20 mm |
Questions about this item
Is the 7.7 in cable length fixed or can I use a different length?
The adapter has a fixed 7.7 in cable with a 20 pin DisplayPort male input and a 19 pin HDMI female output.
Will I actually get 4K 60Hz HDR on my monitor with this adapter?
The adapter supports UHD 4K 60Hz and HDR via its MegaChips MCDP2900 chipset when both source and display support those specifications.
What HDMI version does the HDCP 2.2 support limit me to?
The adapter works with HDMI 2.0b equipment and is backward compatible with earlier versions while supporting HDCP 2.2 content protection.
