STARTECH DP14MM1M 1m DisplayPort 1.4 cable 8K 60Hz HDR HBR3 32.4Gbps 34 AWG male-male
A VESA-certified DisplayPort 1.4 cable delivers 8K at 60 Hz with HDR and 32.4 Gbps bandwidth
- TypeDisplayPort Cable
- ColorBlack
- Length3.3 ft.
- Cable Length3.28 ft. (1m)
- Connector DetailDisplayPort 1.4 Cable
- Terminal GenderMale to Male
- VESA certified DisplayPort 1.4 cable ensures reliable 8K 60Hz video
- 4 Gbps HBR3 bandwidth supports HDR and 4:4:4 chroma for vivid colour

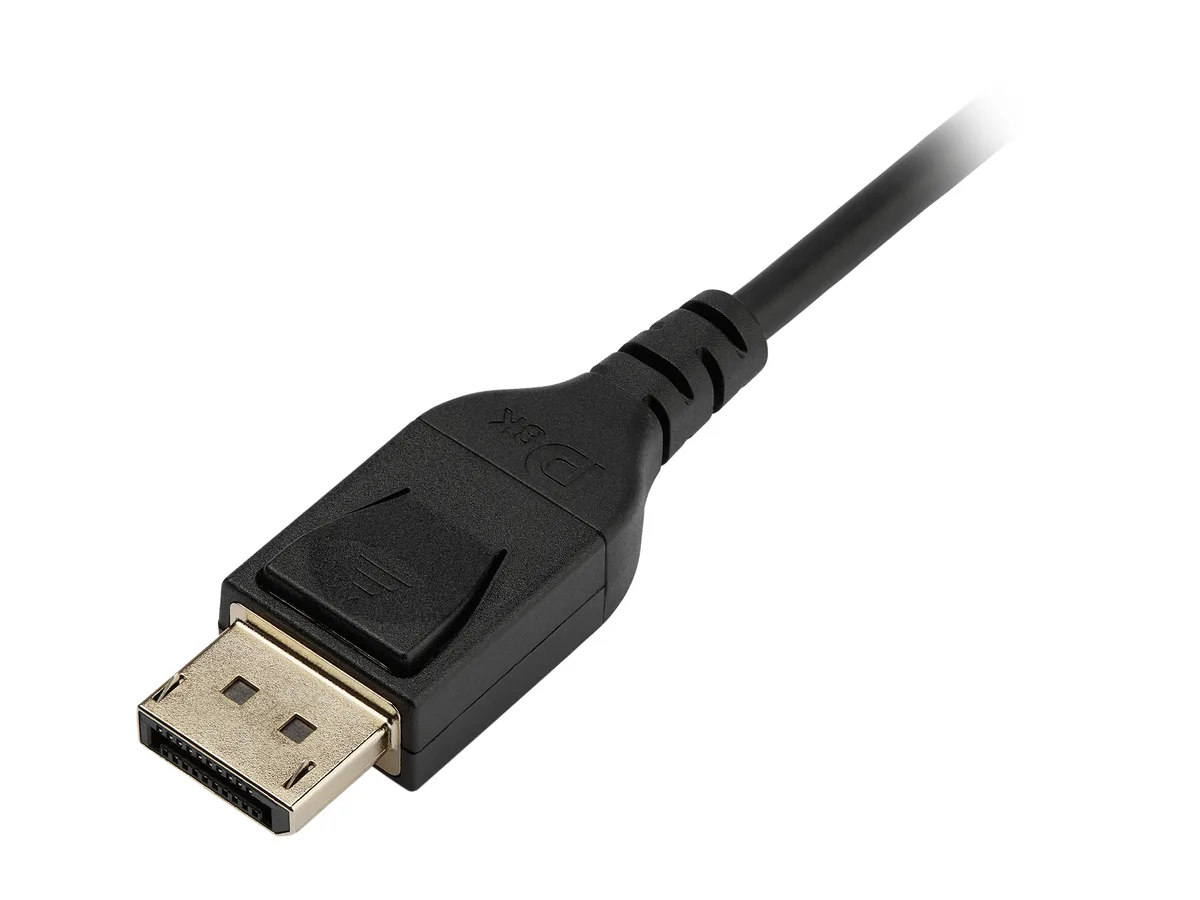

- Gold plated connectors resist tarnish for lasting signal integrity
- Slim 34 AWG PVC jacketed cable installs easily in tight spaces
- Backward compatible with DP 1.1 and 1.2 devices for flexible upgrades
VESA Certified DisplayPort 1.4 Cable
This one-metre cable carries the VESA DisplayPort 1.4 certification and supports 8K resolution at 60 Hz with HDR. It provides 32.4 Gbps bandwidth using HBR3 signalling and DSC 1.2 compression. The male-to-male connectors are gold plated and the cable is rated VW-1 for fire resistance.
Slim 34 AWG Construction with Shielding
A PVC jacket protects the 34 AWG conductors while keeping the cable flexible for tight routing. The shielding combines aluminium-mylar foil with a braid layer to reduce interference across the 19 conductors. Gold-plated contacts resist tarnish during repeated insertions.
Backward Compatible with DP 1.1 and 1.2
The cable works with existing DisplayPort 1.1 and 1.2 sources, supporting 1080p and 4K signals while remaining ready for 8K devices. It handles 4K at 120 Hz and carries 32-channel audio alongside video. Professional workstations using Radeon Pro WX or W5500 graphics can use this cable without adapters.
Highlights
- VESA certified DisplayPort 1.4 cable ensures reliable 8K 60Hz video
- 4 Gbps HBR3 bandwidth supports HDR and 4:4:4 chroma for vivid colour
- Gold plated connectors resist tarnish for lasting signal integrity
- Slim 34 AWG PVC jacketed cable installs easily in tight spaces
- Backward compatible with DP 1.1 and 1.2 devices for flexible upgrades
Specifications
| Brand | StarTech.com |
|---|---|
| Model | DP14MM1M |
| Type | DisplayPort Cable |
| Color | Black |
| Length | 3.3 ft. |
| Cable Length | 3.28 ft. (1m) |
| Connector Detail | DisplayPort 1.4 Cable |
| Terminal Gender | Male to Male |
| Specifications | Cable Jacket Type: PVC - Polyvinyl Chloride Cable Shield Type: Aluminum-Mylar Foil with Braid Connector Plating: Gold Fire Rating: VW-1 Rated Number of Conductors: 19 |
| Features | Deliver high-quality connections with a VESA certified DisplayPort cable Experience crisp DisplayPort video with resolutions of up to 8K@60Hz using this 8K DisplayPort cable Enjoy higher contrast ratios and vivid colors with HDR support Install this flexible 34 AWG DP monitor cable with minimal clutter, or bring it with you for offsite assignments |
| Shipping weight | 0.07 kg |
| Package size | 221 × 130 × 19 mm |
Questions about this item
How do I install the DP14MM1M cable and what is the common mistake?
Plug each male DisplayPort 1.4 connector firmly until the latch clicks; the step people miss is not pressing the release button when unplugging, which can damage the 19‑conductor gold‑plated terminals.
What maintenance or replacement will this cable need later?
The PVC jacket and aluminum‑Mylar foil with braid shield are passive; no scheduled maintenance is required, but replace the cable if the connectors show bent pins, the jacket cracks, or signal drop‑outs appear at 8K 60 Hz.
What limit appears first under sustained 8K 60 Hz HDR use?
The 32.4 Gbps HBR3 bandwidth ceiling is the first hard limit; DSC 1.2 compression allows 8K 60 Hz 4:4:4 within that ceiling, but any higher resolution or refresh rate would exceed the cable’s certified capacity.
