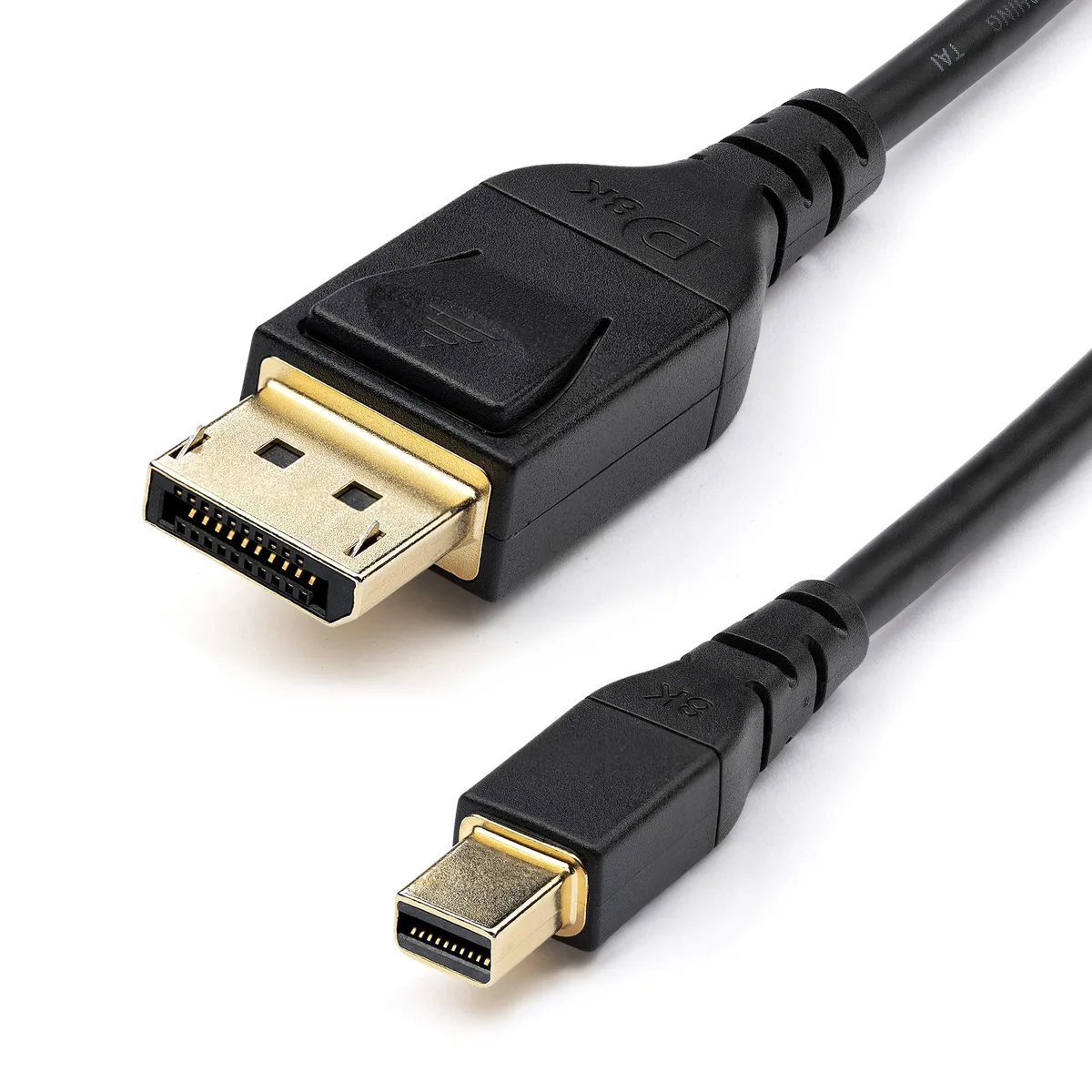

Black Mini DisplayPort to DisplayPort cable, 1m, slim 34 AWG jacket, gold connectors

STARTECH

STARTECH DP14MDPMM1MB Mini DisplayPort to DisplayPort 1.4 cable 1m 34 AWG

SKU CH-TJK3-C1QYS MPN DP14MDPMM1MB

Connects a Mini DisplayPort source to a DisplayPort 1.4 display at 8K 60 Hz or 4K 120 Hz with HDR and 32.4 Gbps bandwidth

  • TypeMini DisplayPort to DisplayPort
  • ColorBlack
  • Cable Length3.3 ft.
  • Connector Number2
  • Connect From1 x Mini DisplayPort Male
  • Connect To1 x DisplayPort Male
  • VESA certified 32.4 Gbps bandwidth enables 8K 60 Hz or 4K 120 Hz with DSC 1.2
  • HDR meta transport and HDCP 2.2 deliver protected high dynamic range content
  • Gold plated connectors resist oxidisation for long term signal reliability
  • Slim 4.5 mm 34 AWG cable with strain relief reduces bend stress in tight spaces
  • Aluminium Mylar foil and braid shielding plus internal wire manager maintain signal integrity

Professional display link

This VESA certified Mini DisplayPort 1.4 cable connects workstation graphics cards to high resolution monitors with 32.4 Gbps bandwidth. It supports 8K 60 Hz or 4K 120 Hz with DSC 1.2 and carries HDR metadata plus 32 channel audio. The 1 metre length suits desktop workstations and compact creative setups.

Slim shielded construction

A 4.5 mm diameter 34 AWG cable uses aluminium Mylar foil with braid shielding and 19 internal conductors managed by an internal wire manager for signal integrity. Gold plated 20 pin connectors resist oxidation while moulded strain relief absorbs bend stress at both ends. The slim profile routes easily behind dense I/O panels without blocking adjacent ports.

Passive thermal profile

As a passive copper cable it generates no heat and adds no acoustic noise to the system. Operation is rated from 0 °C to 50 °C with humidity tolerance up to 85 % RH. Power draw is limited to the DisplayPort source capabilities required for the linked resolution and audio streams.

Highlights

  • VESA certified 32.4 Gbps bandwidth enables 8K 60 Hz or 4K 120 Hz with DSC 1.2
  • HDR meta transport and HDCP 2.2 deliver protected high dynamic range content
  • Gold plated connectors resist oxidisation for long term signal reliability
  • Slim 4.5 mm 34 AWG cable with strain relief reduces bend stress in tight spaces
  • Aluminium Mylar foil and braid shielding plus internal wire manager maintain signal integrity

Specifications

BrandStarTech.com
ModelDP14MDPMM1MB
TypeMini DisplayPort to DisplayPort
ColorBlack
Cable Length3.3 ft.
Connector Number2
Connect From1 x Mini DisplayPort Male
Connect To1 x DisplayPort Male
Terminal GenderMale to Male
Wire Gauge34 AWG
Specifications1 - Connector A: Mini-DisplayPort (20 pin)
1 - Connector B: DisplayPort (20 pin)
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Storage Temperature: 0°C to 50°C (32°F to 122°F)
Humidity: 0%RH ~ 85%RH
Number of Conductors: 19
Connector Plating: Gold
Cable Jacket Material: PVC - Polyvinyl Chloride
Cable Shield Material: Aluminum-Mylar Foil with Braid
ShieldingYes
FeaturesMDP to DisplayPort 1.4 CABLE: 3.3ft (1m) VESA Certified with 32.4Gbps bandwidth; 8K 60Hz (7680 x 4320) w/ DSC, 4K 120Hz (3840 x 2160), HDR meta transport, HBR3, 32 ch audio, MST monitor daisy-chain, FEC error control; Works with DisplayHDR certified Monitors.
RELIABLE: Built with internal wire manager to ensure signal integrity; Al-Mylar foil with Braid and metal connector sub-structure provide EMI shielding; Latching connector on DP end to prevent accidental disconnection.
DURABLE: PVC jacket of this slim (outer diameter: 4.5mm) video cable (34 AWG) absorbs stress of frequent bends
Shipping weight0.08 kg
Package size220 × 200 × 20 mm

Questions about this item

What bandwidth does the DisplayPort 1.4 interface cap at on this cable?

The cable is VESA certified for 32.4Gbps bandwidth, supporting 8K 60Hz or 4K 120Hz with DSC 1.2.

What connector sizes and cable diameter must clear the port and routing path?

It has a Mini DisplayPort 20-pin male on one end, a full-size DisplayPort 20-pin male on the other, and a slim 4.5mm outer diameter.

How do you seat the connectors correctly, and what mistake damages the pins?

Align the notched side of each 20-pin plug with the port key, push straight in until the latch clicks, and never force it at an angle.
