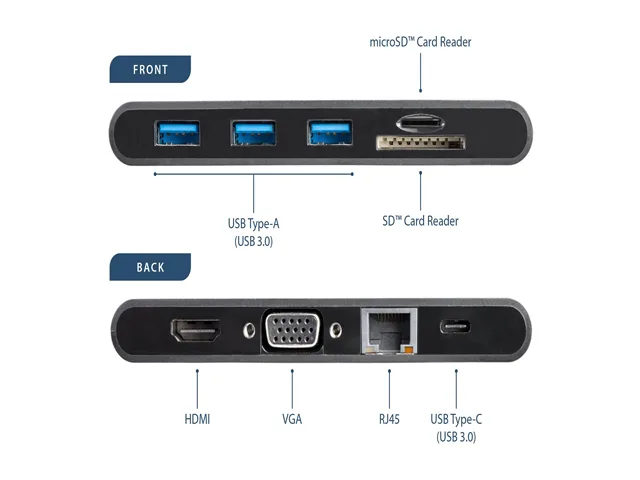

Black rectangular USB-C multiport adapter with short integrated cable, HDMI, VGA, three USB-A, RJ-45, SD and microSD slots

STARTECH

STARTECH DKT30CHVSCPD USB-C multiport adapter with HDMI VGA 3x USB 3.0 SD microSD GbE PD 3.0 85W

SKU CH-K5ND-AM3B9 MPN DKT30CHVSCPD

Adds 4K HDMI or VGA video, three USB 3.0 ports, SD and microSD readers, and gigabit Ethernet through one USB-C port with 85W power delivery

  • TypeUSB-C Multiport Adapter with HDMI and VGA
  • ColorBlack
  • Cable Length4.6"
  • Specifications4K Support: Yes Bus Type: USB-C Chipset ID: VIA/VLI - VL102
  • Output Connector1 x HDMI Female 1 x VGA (15 pin, High Density D-Sub) Female
  • FeaturesExpand the connectivity of your MacBook Pro or Windows USB-C
  • Connect to a 4K HDMI or VGA monitor
  • Add three USB 3.0 ports with fast-charge support
  • Read SD and microSD cards directly
  • Gigabit Ethernet for wired network access
  • Power laptop and adapter together up to 85W

Connectivity hub for USB-C laptops

The DKT30CHVSCPD adds an HDMI port, a VGA port, three USB 3.0 Type-A ports, SD and microSD card slots, and a Gigabit Ethernet jack through a single USB-C connection. It is aimed at professionals who need legacy video outputs and wired networking on modern ultraportables. Power Delivery 3.0 passes up to 85W to the host laptop while the adapter is in use.

Sustained multi-port operation

The aluminium enclosure acts as a heatsink for the VL817 and PS8338B controllers during continuous 4K video output and simultaneous data transfer across three SuperSpeed ports. The Realtek RTL8153 Ethernet controller maintains link stability under load without throttling. The 4.6-inch tether keeps the adapter close to the chassis, reducing cable strain on the host port during extended sessions.

Plug-in deployment with port checks

No driver installation is required on macOS or Windows for video, data, Ethernet or card-reader functions. The adapter draws operating power from the host USB-C port, so the laptop port must support DP Alt Mode and PD 3.0; otherwise video and charging will not activate. The fixed 4.6-inch cable limits placement flexibility on desks with recessed ports.

Highlights

  • Connect to a 4K HDMI or VGA monitor
  • Add three USB 3.0 ports with fast-charge support
  • Read SD and microSD cards directly
  • Gigabit Ethernet for wired network access
  • Power laptop and adapter together up to 85W

Specifications

BrandStarTech.com
ModelDKT30CHVSCPD
TypeUSB-C Multiport Adapter with HDMI and VGA
ColorBlack
Cable Length4.6"
Specifications4K Support: Yes
Bus Type: USB-C
Chipset ID:
VIA/VLI - VL102
VIA/VLI - VL817
Parade - PS8338B
Parade - PS176
Analogix - ANX9833
ALCOR MICRO - AU84612
Realtek - RTL8153
Fast-Charge Port(s): Yes
Industry Standards:
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB 3.0 - Backward compatible with USB 2.0 and 1.1
Audio Specifications: The HDMI port supports audio output
Compatible Networks: 10/100/1000 Mbps
Auto MDIX: Yes
Full Duplex Support: Yes
Maximum Resolutions:
1920 x 1200p @ 60Hz (VGA)
3840 x 2160p (HDMI) @ 30Hz
Lower resolutions are also supported. For example, if the max is 3840 x 2160p (
Output Connector1 x HDMI Female
1 x VGA (15 pin, High Density D-Sub) Female
3 x USB 3.0 A (Fast-Charge, 9 pin, SuperSpeed) Female
1 x RJ-45 Female
1 x SD / MMC Female
1 x microSD Female
1 x USB-C (24 pin) USB Power Delivery only Female
1 x USB Type-C (24 pin) USB 3.0 Male
FeaturesExpand the connectivity of your MacBook Pro or Windows USB-C laptop, by connecting to a 4K HDMI or VGA
Power the adapter and your laptop at the same time, using your laptop’s USB-C based power adapter (supports USB Power Delivery 3.0)
Utilize both the SD and microSD card readers at the same time
Use any of the three USB 3.0 ports to fast-charge your phone or tablet or connect peripherals
Ensure reliable wired network access through the Gigabit Ethernet RJ45 port
Dimensions4.80" x 2.80" x 0.60"
Weight3.10 oz
Package Quantity1 x multiport adapter
1 x User manual
DisclaimerNote:
Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 3.0 and DP Alt Mode.
The adapter can connect to a host laptop’s USB-C port that doesn’t support USB Power Delivery 3.0. However, if your laptop’s USB-C port supports USB Power Delivery 2.0, it will still support PD pass-through, but it will not support Fast Role Swap. If you laptop's USB-C port does not support Power Delivery, then it will not support PD pass-through.
A 4K-capable display is required to achieve 3840 x 2160p resolution (4K i
Shipping weight0.15 kg
Package size170 × 142 × 30 mm

Questions about this item

How warm does the 4.6 inch adapter get when the 85 W PD 3.0 pass-through and all three USB 3.0 ports are active all day?

The compact aluminium housing dissipates heat from the VL817 and RTL8153 controllers; under full 85 W pass-through and peripheral load it becomes warm but stays within normal operating limits.

Which laptop port must my machine provide so the HDMI, VGA, GbE and card readers all function through this single adapter?

Your host USB-C port must support both USB Power Delivery 3.0 and DisplayPort Alternate Mode; without DP Alt Mode the video outputs will not activate.

Will the HDMI and VGA outputs work simultaneously with a legacy 1080p monitor on the VGA side?

Yes — the ANX9833 controller drives 4K HDMI and analogue VGA at the same time, so an older 1080p display on the VGA port works alongside a 4K screen on HDMI.
