StarTech.com RI-Shimeyao-2855 2-Set 1U Rack Mount Rails 16-29 Inch 120-44 lb

Universal 1U rack rails for 4-post cabinets

This pair of 1U universal rack-mount rails fits standard four-post server racks and cabinets. They accept most 1U servers and network appliances, giving technicians a secure mounting platform for routine maintenance and deployment tasks. The black powder-coated steel finish suits professional IT environments.

Adjustable depth with variable load rating

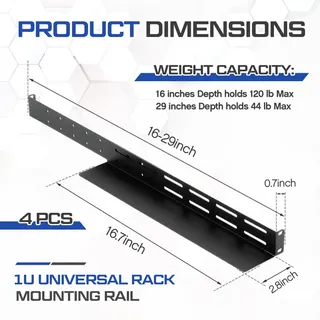

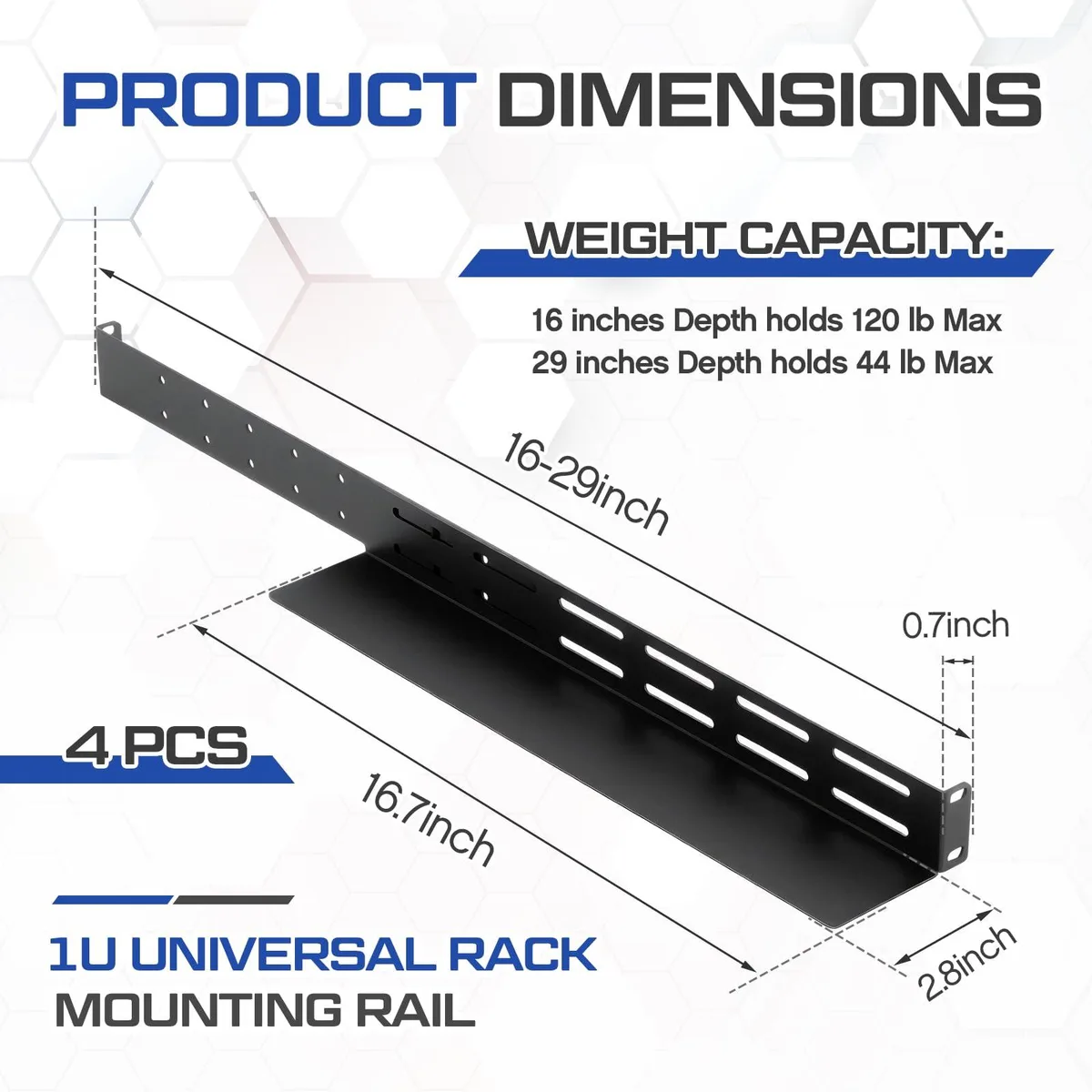

The rails telescope from 16 to 29 inches, accommodating shallow and deep enclosures alike. At the minimum 16-inch depth they support up to 120 lb, while at the full 29-inch extension the capacity is 44 lb, so heavier gear must be mounted closer to the front posts. The 42U rack-height context does not limit the rail's own 1U profile.

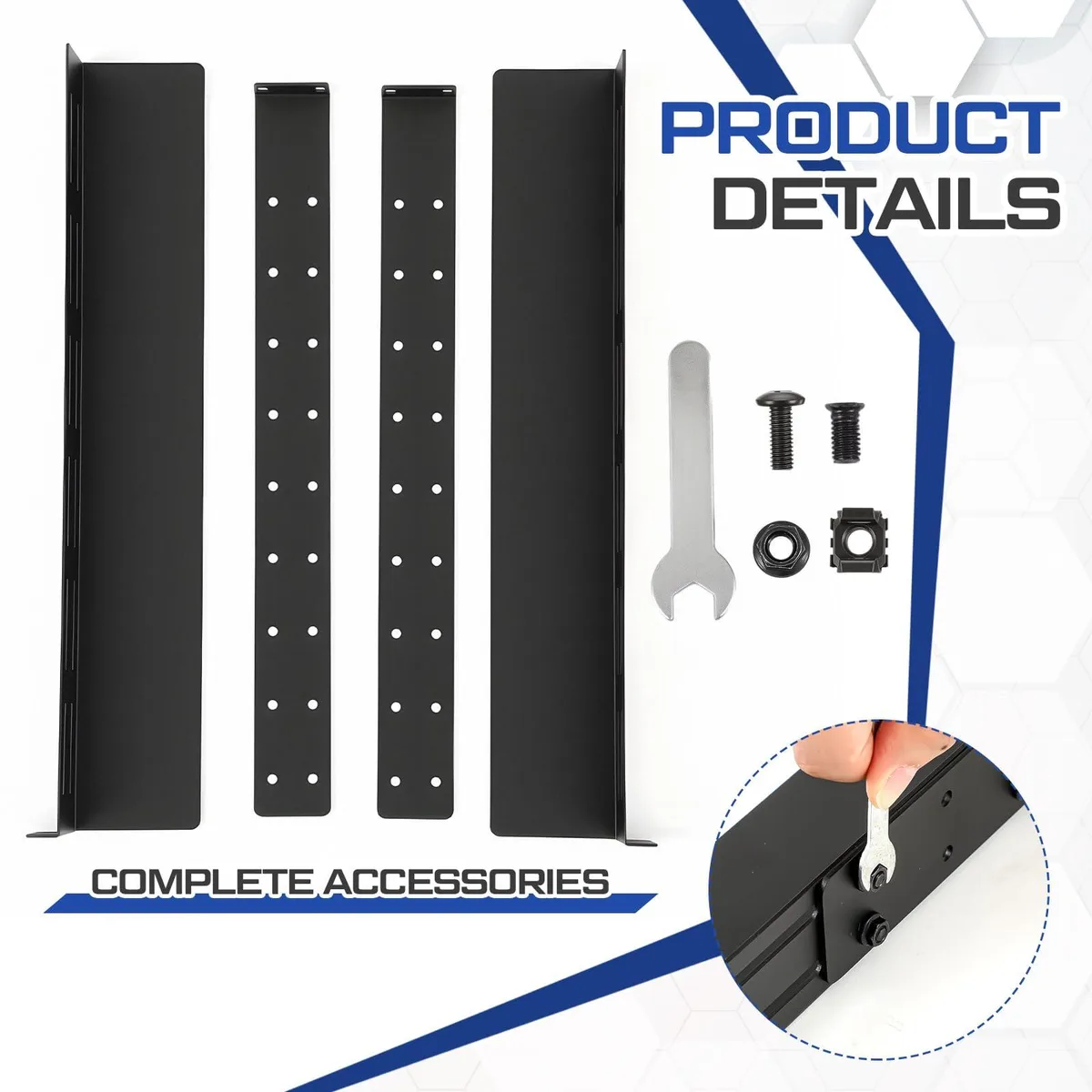

Carbon steel build with included hardware

Each rail measures 16.93 x 5.51 x 2.17 inches and weighs 7.79 lb, constructed from carbon steel with rounded edges for safer handling. Mounting screws are supplied, so no separate fastener kit is required. Installers needing deeper than 29 inches or a higher extended-depth load rating will need a different rail solution.
