StarTech.com 4U150 4U 19in Wall Mount Server Rack 125lb

4U Wall-Mount Rack for 19in Equipment

The StarTech.com 4U150 is a 4U vertical wall-mount bracket built to EIA-310 19in rack standards. It holds up to 125 pounds of standard 19in network gear such as patch panels, switches, routers, UPS units and power conditioners. The unit ships fully assembled and folds flat for compact transport, unfolding in seconds without tools. It suits installers who need a compact, heavy-duty mounting point for core networking hardware in space-constrained rooms.

Verify Wall Structure and Clearance

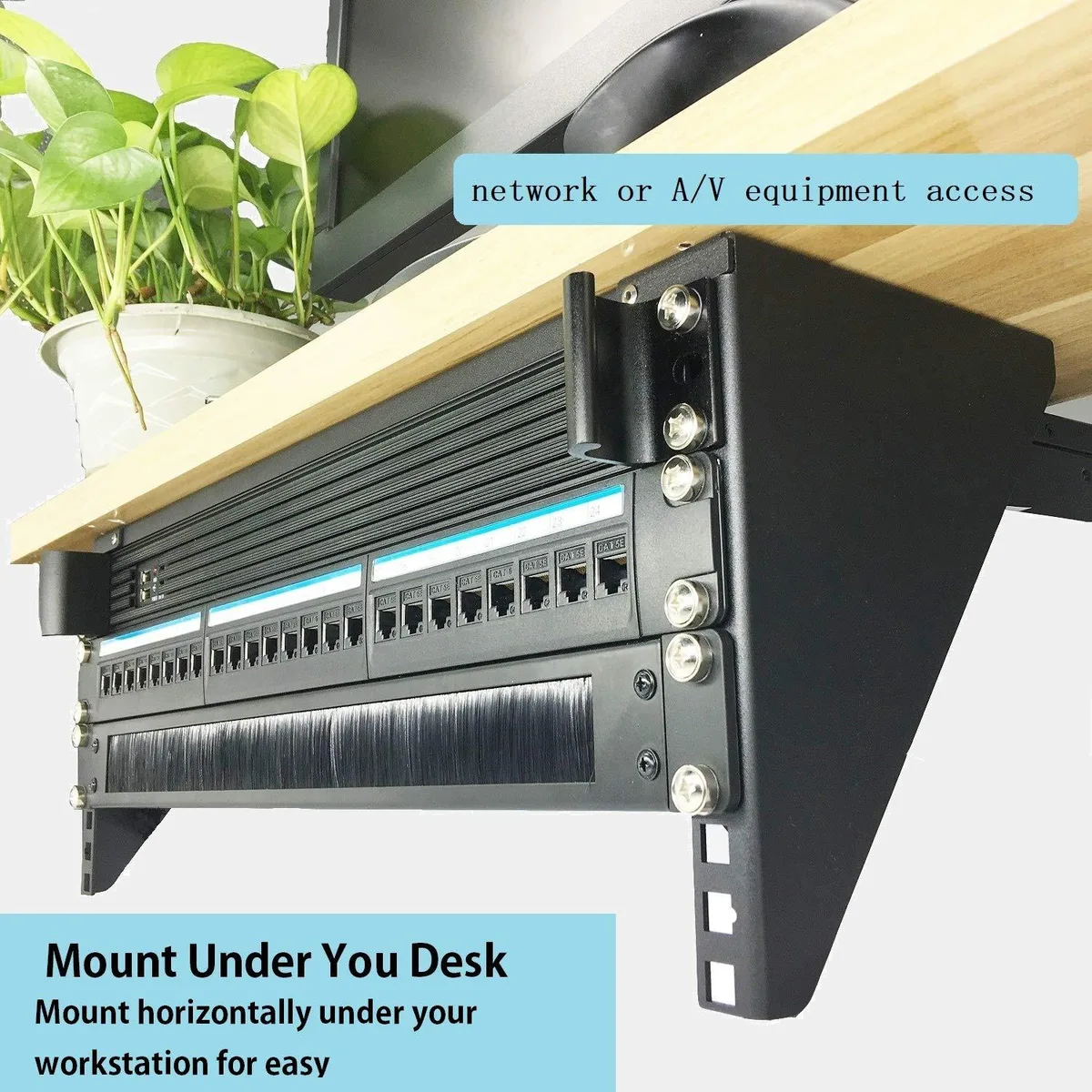

Confirm the mounting surface can support the combined weight of the rack plus 125 pounds of installed equipment using appropriate anchors for studs, concrete or masonry. Measure at least 19.29 inches of clear width, 7.56 inches of depth projection and 5.9 inches of vertical height for the folded unit, plus additional depth for cable bend radius and equipment overhang. Ensure the chosen orientation — vertical on a wall or horizontal under a desk — leaves adequate airflow around active devices and access to front-panel ports.

Integrates with Standard 19in Gear and Cage Hardware

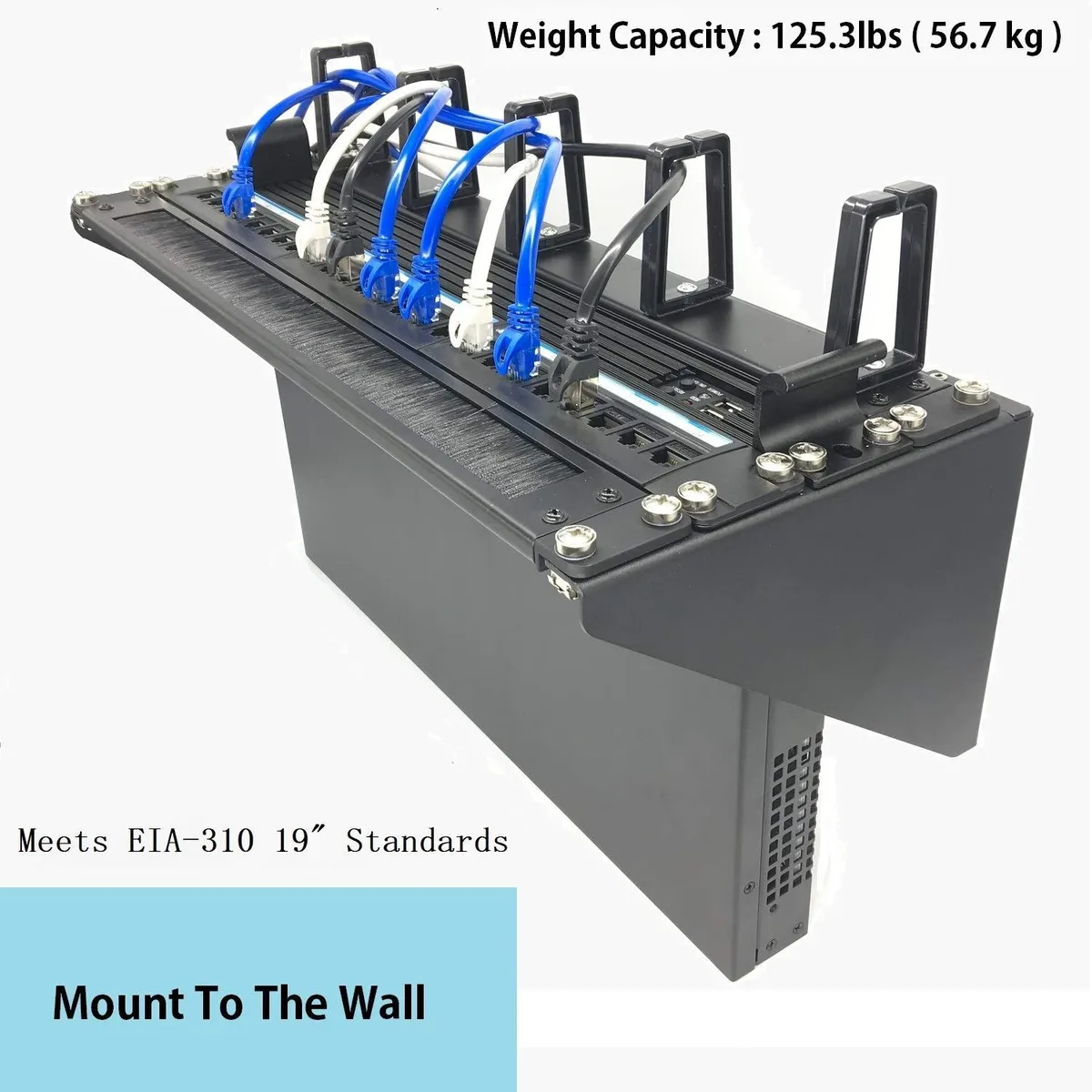

The rack accepts any EIA-310 compliant 19in device and includes a full set of cage screws and nuts for quick equipment mounting. A built-in horizontal bubble level simplifies alignment during the four-step installation. The folding frame reduces packaging volume and freight cost while arriving ready to deploy. It frees up floor space by moving rack-mount hardware to vertical wall surfaces or horizontal under-desk locations, keeping cable runs short and equipment accessible for maintenance.
