Black steel 1U cantilever shelf with vented surface, 12 inch depth for 19 inch rack

StarTech.com 1U Vented Cantilever Shelf 12" Deep 19" Rack Black

SKU CH-N4ND-C2S1H

A 1U vented steel shelf mounts in 19-inch racks, holds up to 30 lbs and maximises airflow for non-rackmount gear

  • Rack Units42U
  • MaterialSteel
  • Specification12 inch, Alloy Steel, Rack Mount, 12 L x 19 W x 1.75 H inche
  • FeaturesRack Mount / Alloy Steel / Server / true / 12 inch
  • Industry Standard12 inch
  • Unit Dimension12 in x 19 in x 1.75 in
  • Ventilated steel design keeps equipment cool with 12 inch depth
  • Fits any standard 19 inch rack using M6 screws and cage nuts
  • Adjustable lip orientation secures gear or allows easy access
  • Cold-rolled steel construction supports 30 lb maximum load capacity
  • 1U profile adds only 1.75 inch height to the rack

StarTech.com 1U Cantilever Shelf 12" Deep

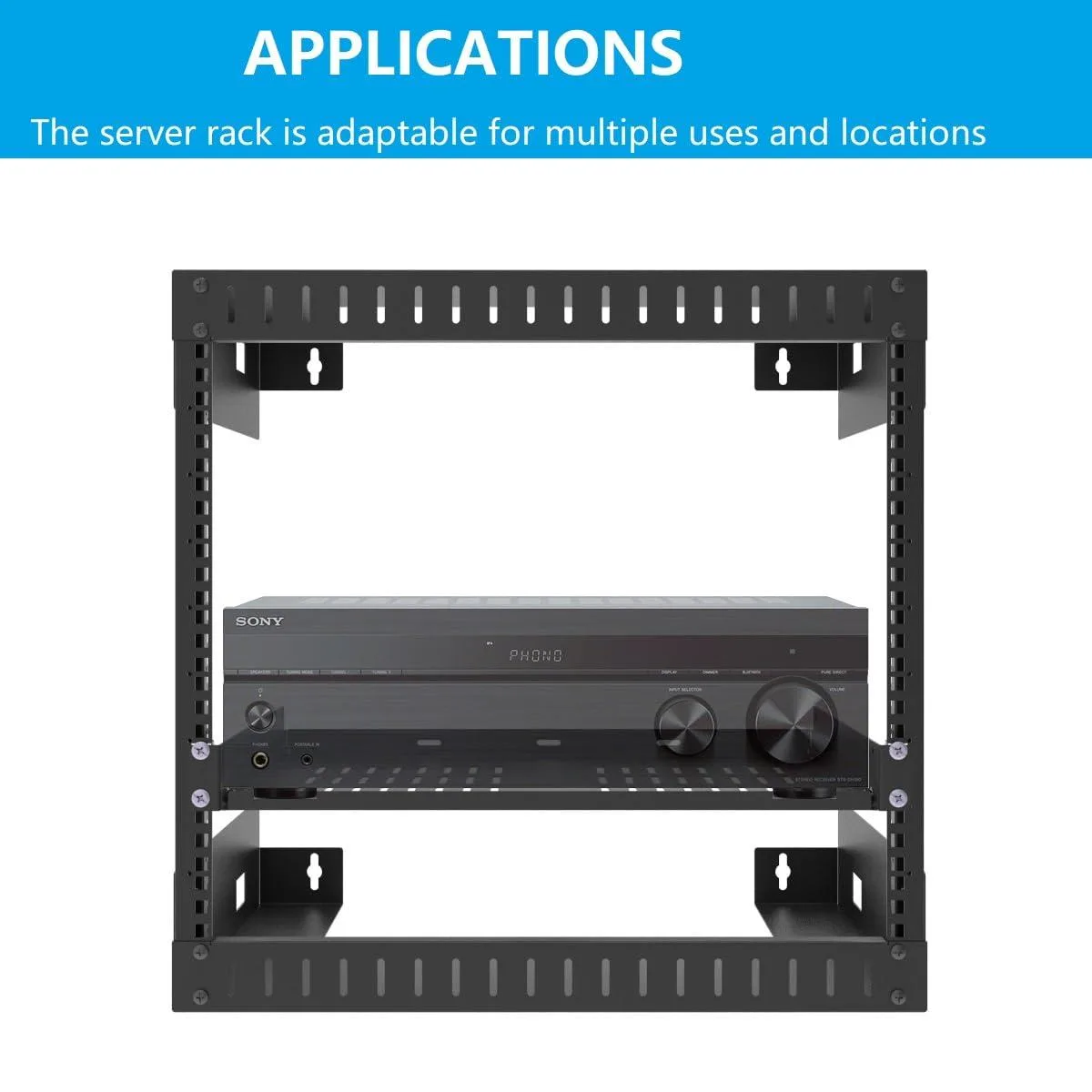

This 1U vented cantilever shelf mounts in standard 19-inch server racks and cabinets. It provides a 12-inch deep tray for non-rackmount IT, AV, or network equipment. The unit is made from cold-rolled steel with a black powder-coated finish. It ships disassembled with all mounting hardware included.

Suits installers needing a shallow vented shelf

The 30 lb load rating limits use to lighter devices such as switches, modems, or small appliances. Heavier servers or UPS units exceed the rated capacity and should use a fixed or four-post shelf instead. The cantilever design also requires adequate front clearance for the protruding tray.

1U height and 30 lb capacity define the fit

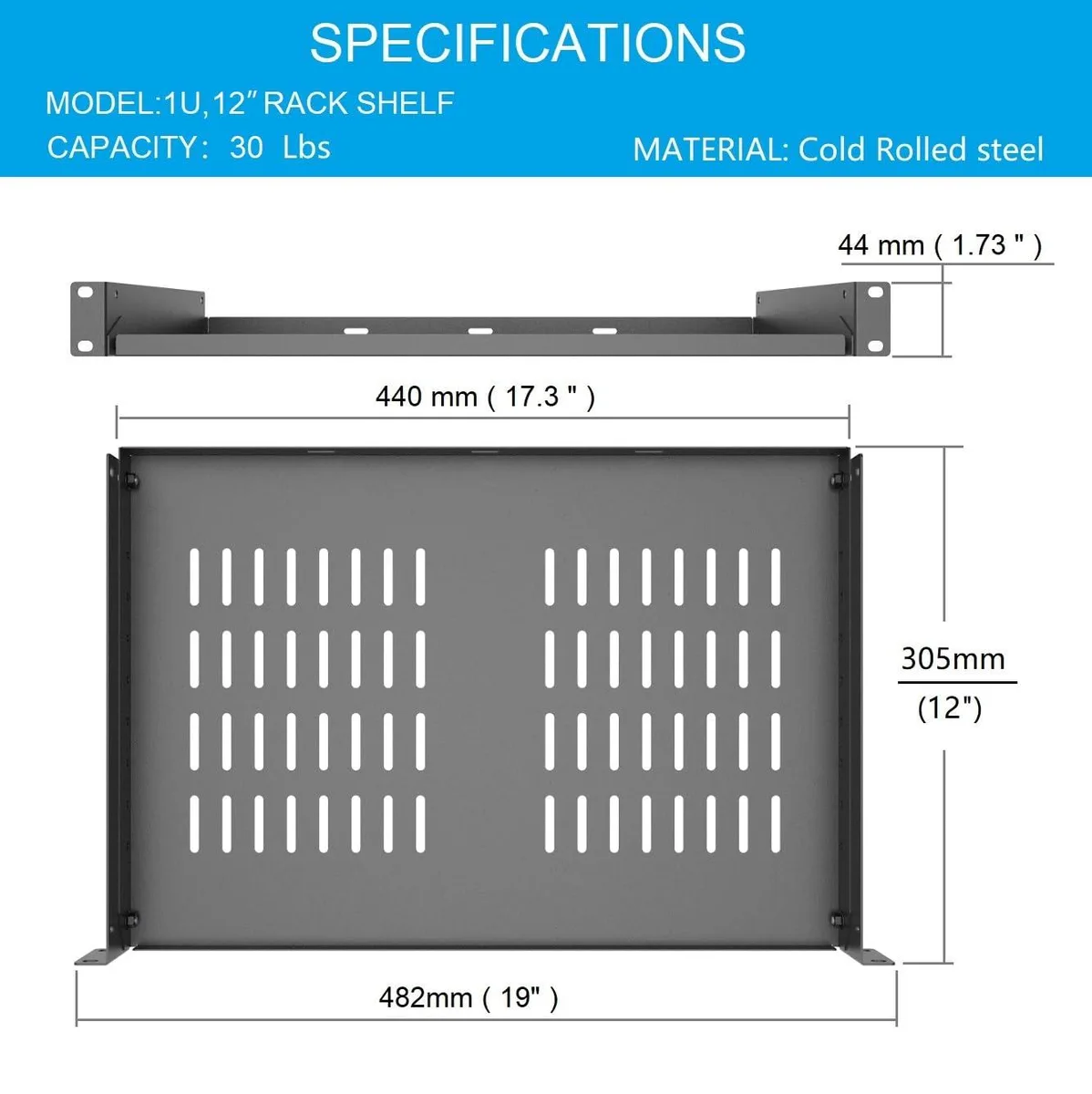

The shelf occupies a single 1U rack space (1.75 inches high) and supports up to 30 lbs. Usable tray area measures 17.2 inches wide by 11.9 inches deep. The lip can be oriented up or down to suit the installation.

Highlights

  • Ventilated steel design keeps equipment cool with 12 inch depth
  • Fits any standard 19 inch rack using M6 screws and cage nuts
  • Adjustable lip orientation secures gear or allows easy access
  • Cold-rolled steel construction supports 30 lb maximum load capacity
  • 1U profile adds only 1.75 inch height to the rack

Specifications

BrandStarTech.com
Rack Units42U
MaterialSteel
Specification12 inch, Alloy Steel, Rack Mount, 12 L x 19 W x 1.75 H inches
FeaturesRack Mount / Alloy Steel / Server / true / 12 inch
Industry Standard12 inch
Unit Dimension12 in x 19 in x 1.75 in
Unit Weight1.58 kilograms
Shipping Dimension3.3 cm x 33.2 cm x 44.7 cm
Shipping Weight1.58 kilograms

Questions about this item

Will the 12" deep cantilever tray clear the rear cable managers on my existing 19" rack?

The tray extends 12 inches from the front posts and the usable depth is 11.9 inches, leaving room behind for most vertical cable managers.

How can I confirm the shelf is level and secure once the side brackets are bolted on?

After tightening the M6 screws and cage nuts, the 1U high tray should sit flush with the rack units and show no front-to-back wobble when pressed.

Which mounting hardware is included and what must I supply for a 19" square-hole rack?

The box contains assembly screws for the brackets plus M6 screws and cage nuts; you only need a screwdriver and the rack itself.
