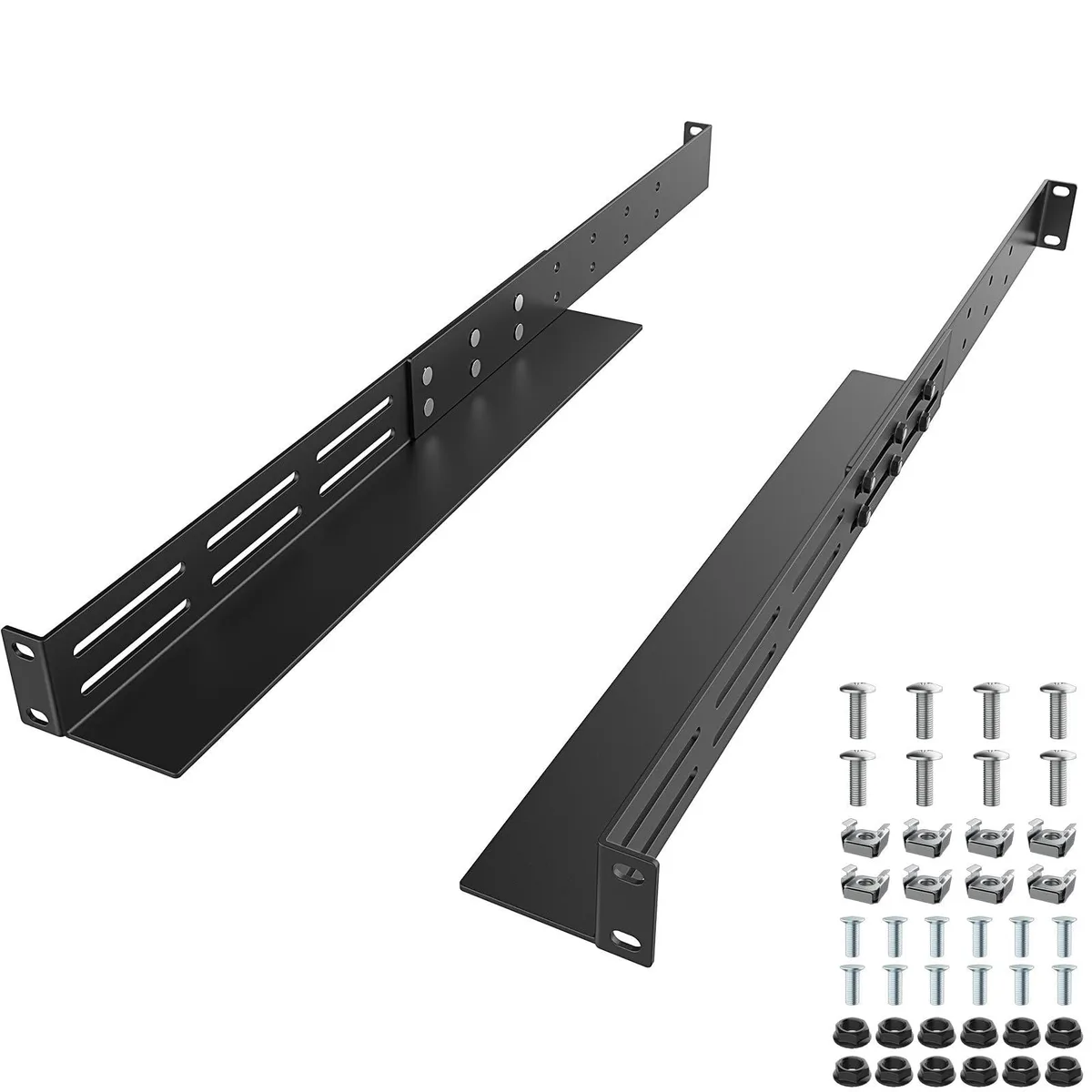

Pair of black steel 1U rack rails adjustable from 16 to 30 inches depth

StarTech.com 1U Universal Rack Mount Rails 16"-30" Adjustable Depth

SKU CH-RQ4G-7QJH1

One pair of 1U steel rails adjusts from 16 to 30 inches deep and supports 130 lb in standard 19-inch, 42U cabinets

  • Rack Units42U
  • ColorBlack
  • MaterialSteel
  • Specification1 Pack, Metal, Rack Mount, 17 L x 2.1 W x 4.1 H inches
  • FeaturesRack Mount / Metal / No / CPU / true / 3 Month / 1 Pack / Bl
  • Industry Standard1 Pack
  • Supports 130 lb loads with cold-rolled steel construction
  • Adjustable 16 to 30 inch depth fits varied rack spaces
  • Open vented frame improves airflow around installed equipment
  • Compatible with standard 19 inch EIA-310 4-post racks
  • 1U height adds minimal vertical space in 42U cabinets

Universal 1U rack rails for 4-post cabinets

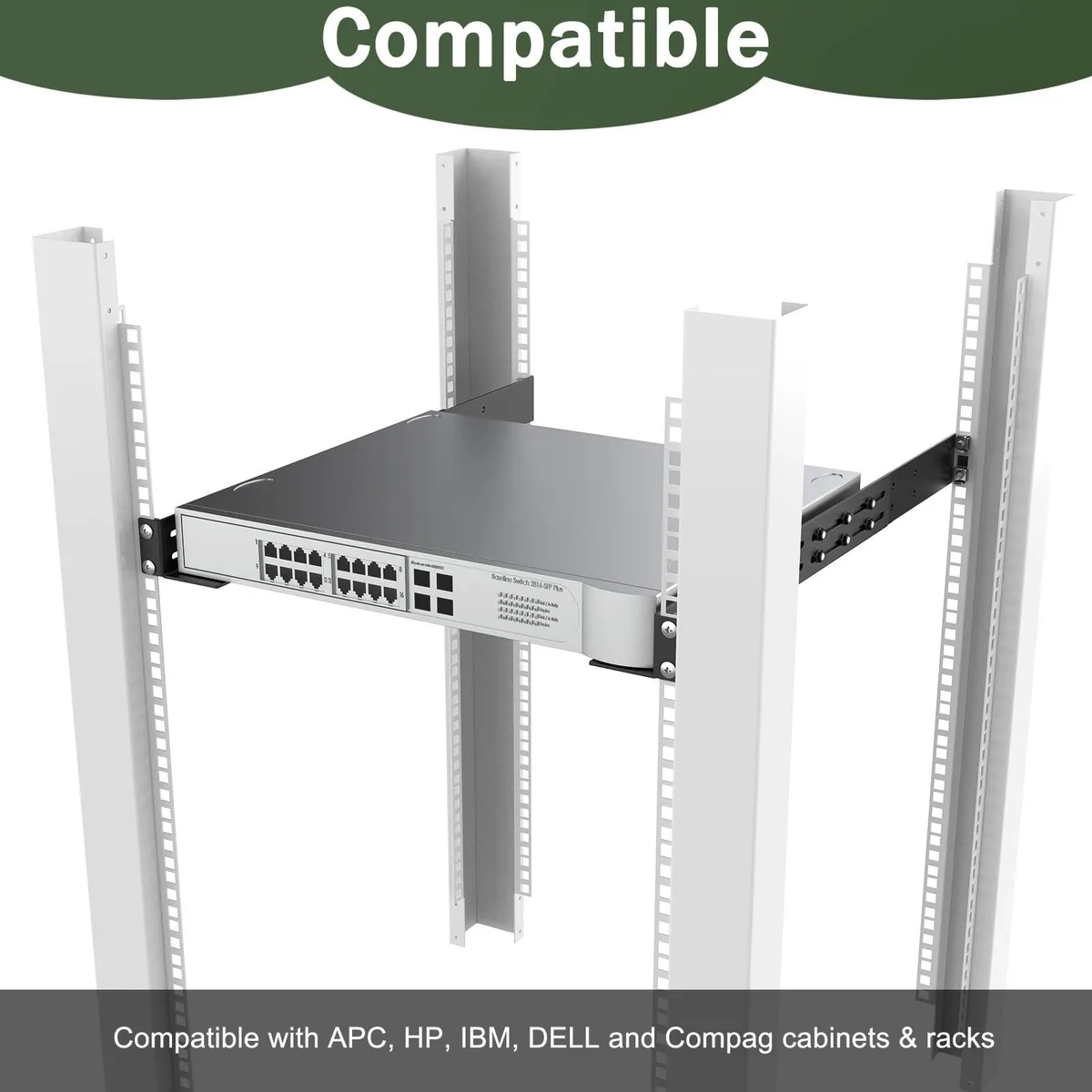

These 1U rails mount in standard 19-inch 4-post racks and cabinets. They accept network gear, servers or other 19-inch equipment that needs sliding support. The cold-rolled steel construction carries up to 130 pounds per pair. Installers working with APC, HP, IBM, Dell or Compaq cabinets will find them compatible.

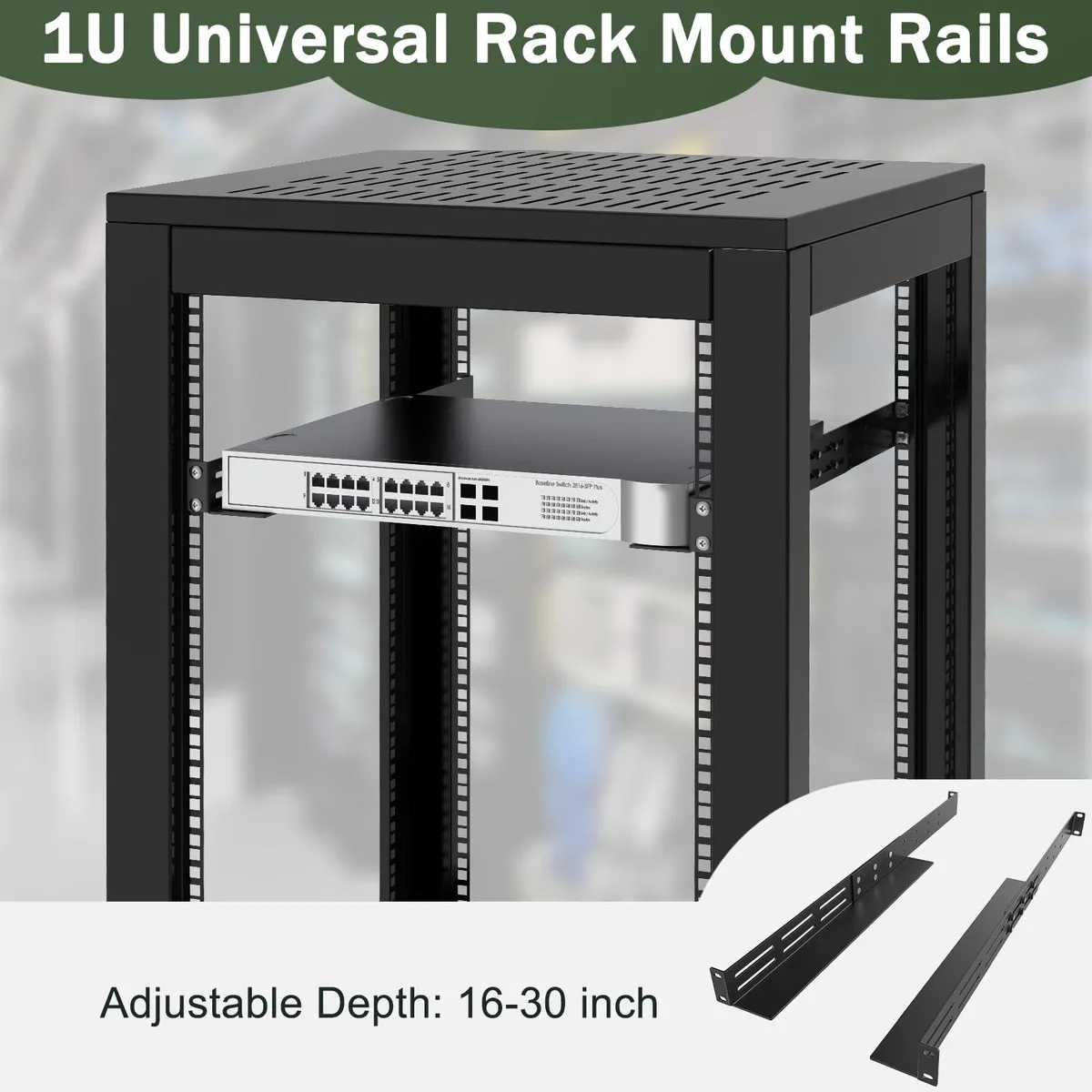

Adjustable depth range 16 to 30 inches

The rails telescope from 16 inches to 30 inches so they fit cabinets of different depths. This single specification decides whether the rails reach the rear posts in your rack. Measure the front-to-rear post distance before ordering; if it falls outside the 16-to-30-inch window these rails will not span the gap.

Tool-less or bolt-on mounting with ventilation

The open-frame vented shelves let air flow around installed equipment without restricting cooling. Mounting holes follow the EIA-310 pattern so the rails bolt directly to standard square or threaded rack posts. The main installation issue is confirming the post spacing matches the adjustable range; otherwise the rails cannot be secured at both ends.

Highlights

  • Supports 130 lb loads with cold-rolled steel construction
  • Adjustable 16 to 30 inch depth fits varied rack spaces
  • Open vented frame improves airflow around installed equipment
  • Compatible with standard 19 inch EIA-310 4-post racks
  • 1U height adds minimal vertical space in 42U cabinets

Specifications

BrandStarTech.com
Rack Units42U
ColorBlack
MaterialSteel
Specification1 Pack, Metal, Rack Mount, 17 L x 2.1 W x 4.1 H inches
FeaturesRack Mount / Metal / No / CPU / true / 3 Month / 1 Pack / Black
Industry Standard1 Pack
Unit Dimension17 in x 2.1 in x 4.1 in
Shipping Dimension5.4864 cm x 20.0152 cm x 43.6118 cm
Shipping Weight1.438 kilograms

Questions about this item

How much weight can the 1U rails actually hold once they are bolted into a 42U cabinet?

The cold-rolled steel rails are rated for up to 130 pounds, so a fully loaded 1U server or network appliance stays secure in a standard 19-inch 4-post rack.

What does the EIA/ECA-310 compliance mean for day-to-day mounting?

It guarantees the hole pattern and 19-inch spacing match APC, HP, IBM, Dell and Compaq cabinets, letting the rails slide in without drilling or adapters.

Will the 16-to-30-inch adjustment range clear the rear cable managers on a deep cabinet?

Yes, the rails telescope from 16 inches to 30 inches, giving enough travel to clear rear cable troughs while keeping the 1U shelf level and vented for airflow.
