Pair of silver metal server rack rails with multiple mounting holes

StarTech.com 1U Server Rack Rails 17–27.9" 110 lbs

SKU CH-FJ53-41JGN

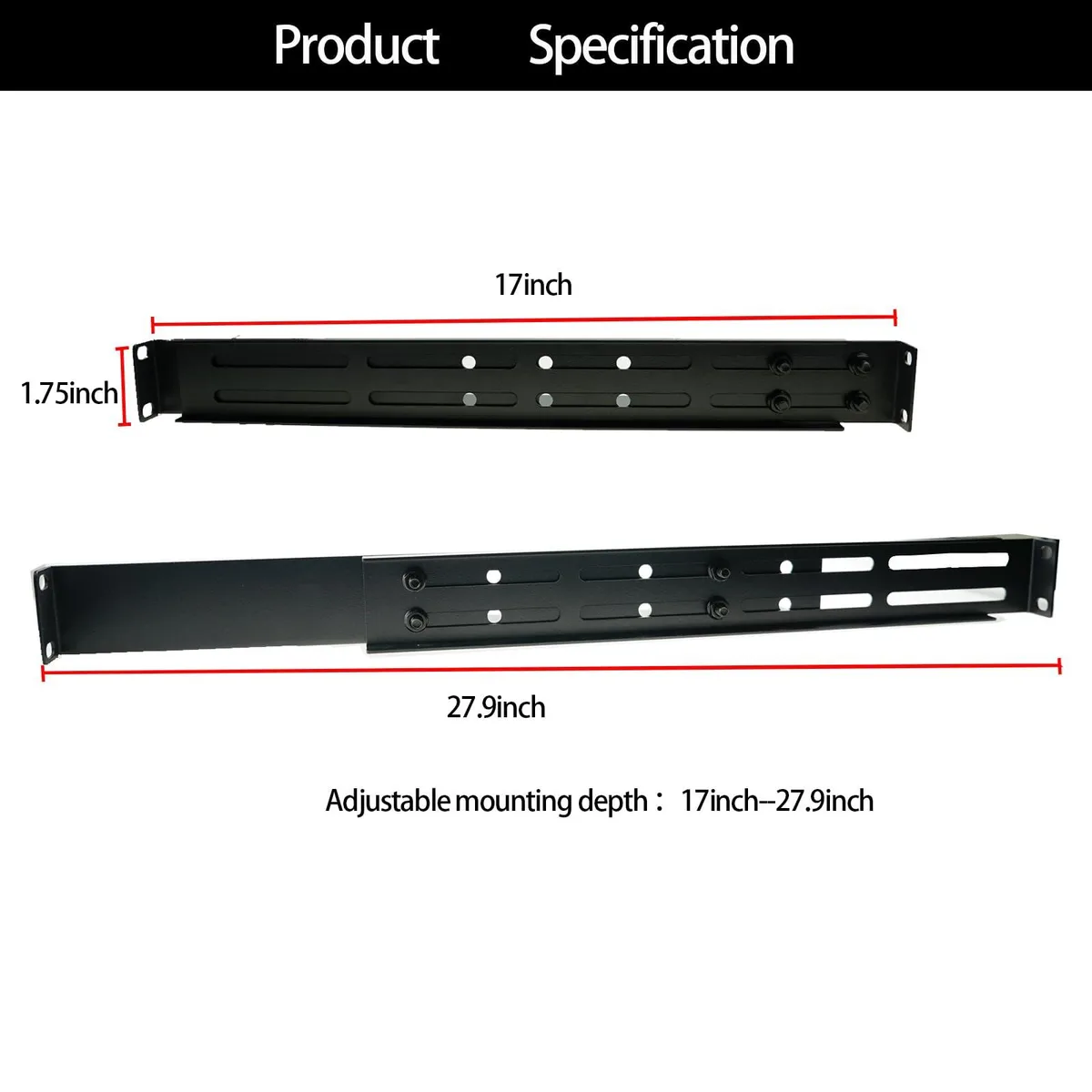

Adjustable 1U rails mount servers in four-post racks from 17 to 27.9 inches deep and support 110 lbs

  • Rack Units42U
  • SpecificationDepth: 17" to 27.9", Rack Mount
  • FeaturesRack Mount / Extended ATX / Server / true / 3 years warranty
  • Industry StandardDepth: 17" to 27.9"
  • Unit DimensionDepth: 17" to 27.9"
  • Unit Weight1.692 kilograms
  • Adjustable 17 to 27.9 inch depth fits varied rack sizes
  • 110 lbs capacity secures heavy server equipment
  • 16 gauge cold rolled steel construction resists corrosion
  • Universal fit for Dell HP IBM Compaq APC servers

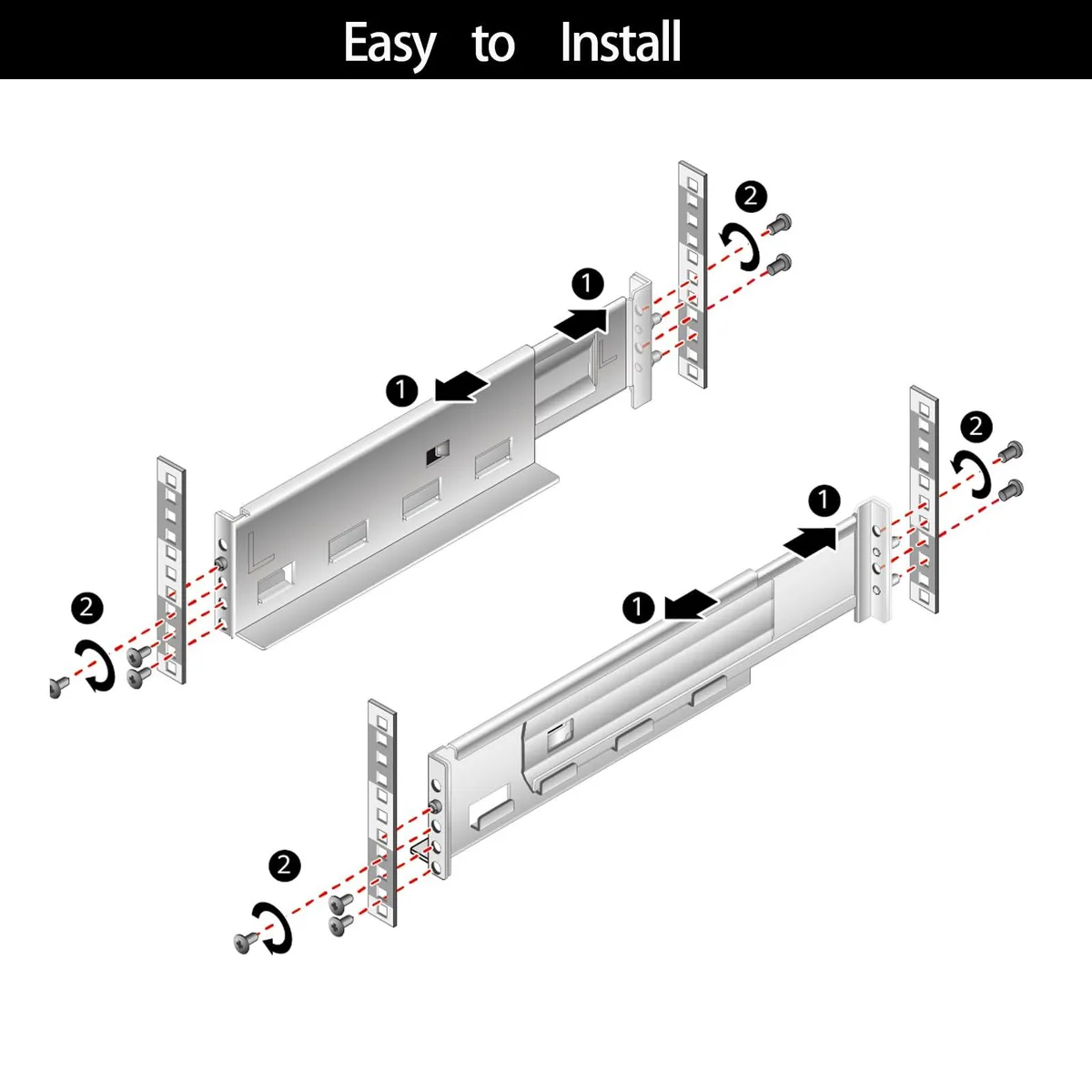

  • Includes hardware for straightforward 4 post rack installation

Universal 1U server rack rails

These 1U server rack rails fit 4-post racks and adjust from 17" to 27.9" in depth. They are constructed from 16 gauge cold rolled steel with a powder coated finish. The set supports equipment up to 110 lbs and includes all mounting hardware. They are designed for universal compatibility with Dell, Compaq, HP, IBM and APC servers.

Check rack depth and post spacing

Verify that your 4-post rack provides a mounting depth between 17" and 27.9" to match the rail adjustment range. Ensure the rack uses standard square or threaded mounting holes compatible with the included hardware. Confirm the total weight of the server or device does not exceed the 110 lbs load rating of the rails.

Replaces fixed or shallow rails

These rails replace fixed-depth rails that cannot accommodate varying server chassis lengths. They also upgrade from lighter-duty rails rated below 110 lbs when heavier equipment is installed. The adjustable design is worth it when consolidating mixed-brand hardware into a single 42U rack standard.

Highlights

  • Adjustable 17 to 27.9 inch depth fits varied rack sizes
  • 110 lbs capacity secures heavy server equipment
  • 16 gauge cold rolled steel construction resists corrosion
  • Universal fit for Dell HP IBM Compaq APC servers
  • Includes hardware for straightforward 4 post rack installation

Specifications

BrandStarTech.com
Rack Units42U
SpecificationDepth: 17" to 27.9", Rack Mount
FeaturesRack Mount / Extended ATX / Server / true / 3 years warranty / Depth: 17" to 27.9"
Industry StandardDepth: 17" to 27.9"
Unit DimensionDepth: 17" to 27.9"
Unit Weight1.692 kilograms
Shipping Dimension5.9944 cm x 10.2108 cm x 42.0116 cm
Shipping Weight1.692 kilograms

Questions about this item

Does the box include the mounting hardware or do I need to buy screws separately?

The rail sets come with all necessary hardware for installation into a 4-post server rack, so no separate screw purchase is required.

My rack depth is 27.9 inches — is that the maximum these rails can extend to?

Yes, the adjustable depth range is 17 to 27.9 inches, so a 27.9 inch deep rack is at the maximum supported extension.

Will a server weighing 110 lbs be safely supported on these rails?

The rails are rated for a 110 lbs weight capacity, so a server at that exact weight is within the specified load limit.
