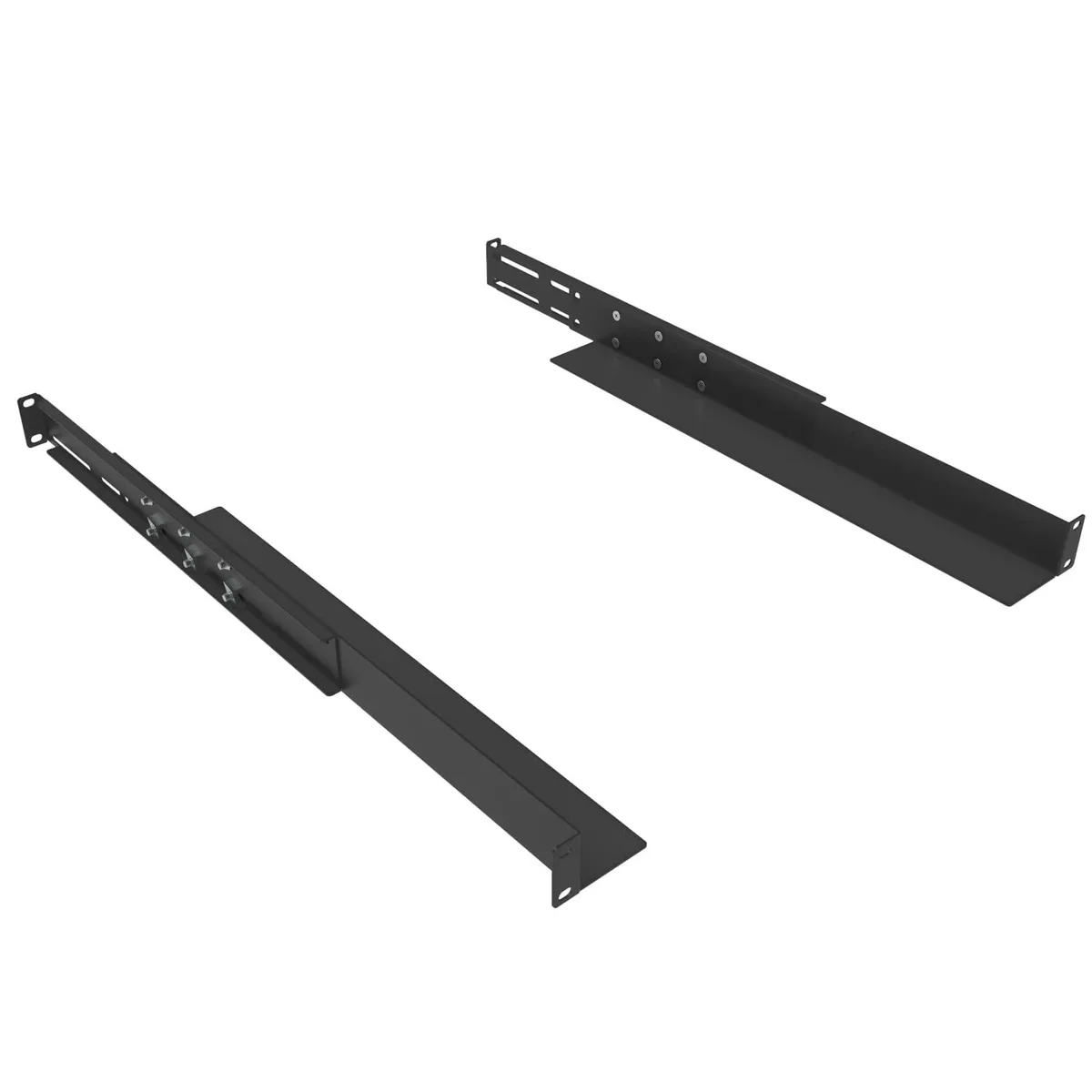

Black steel 1U rack shelf rails adjustable 16 to 33 inches depth

StarTech.com 1U 4-Post Rack Shelf Rails 16-33" 110 lbs

SKU CH-EMWB-00AMV

A 1U steel rail pair adjusts from 16 to 33 inches deep and supports 110 lbs in 19, 23 or 30 inch racks

  • Rack Units42U
  • ColorBlack
  • MaterialSteel
  • Specification1U, Alloy Steel, Wall Mount, Under Desk, 83.8 L x 7.2 W x 4.
  • FeaturesWall Mount, Under Desk / Alloy Steel / With Cover / Server /
  • Industry Standard1U
  • Adjustable 16-33" depth fits 19", 23", 30" racks
  • 110 lb capacity at 16" depth on four-post racks
  • Cold-rolled steel with powder coat resists wear
  • 1U profile uses minimal rack space

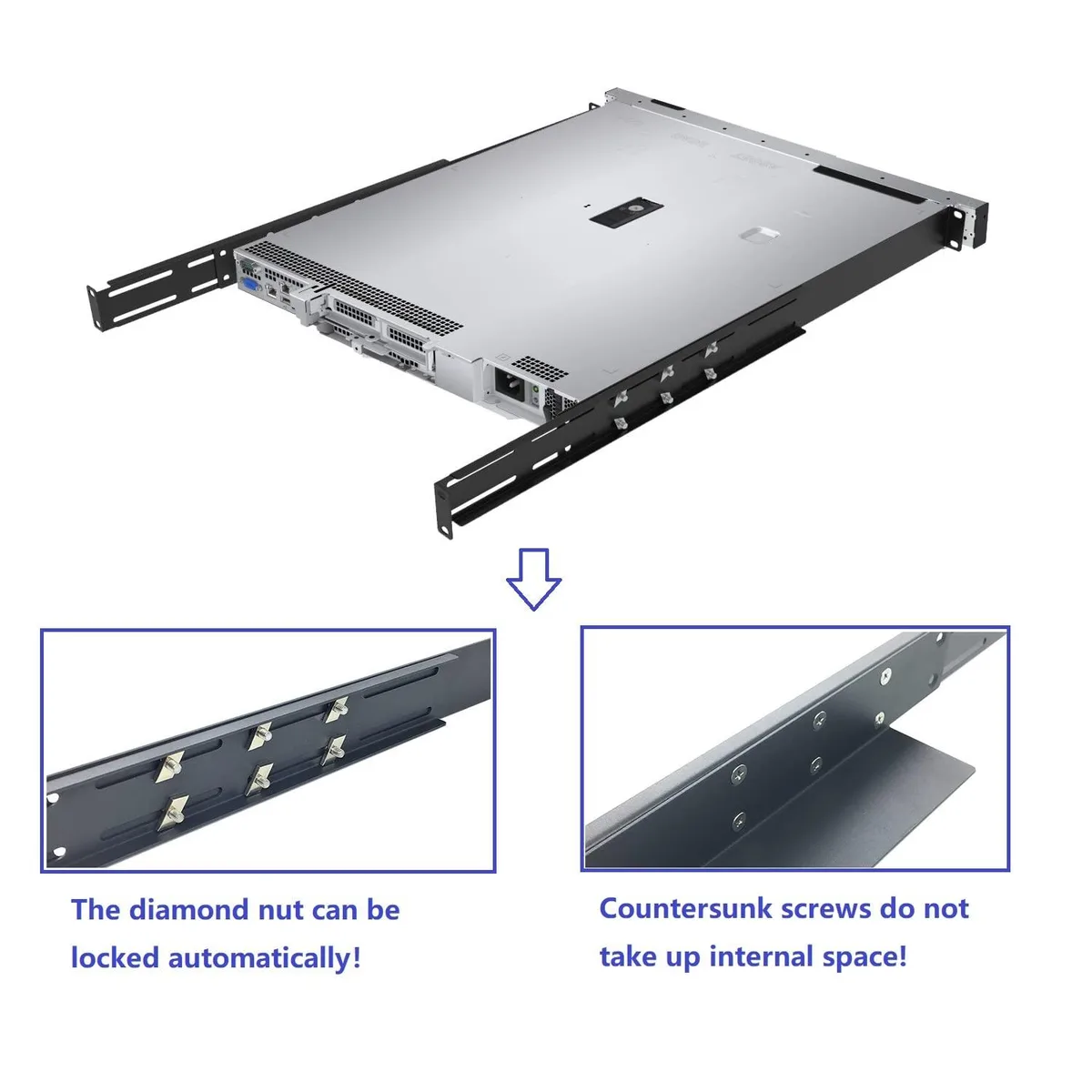

  • Includes eight M6 screw and cage-nut sets

1U 4-Post Rack Shelf Rails

These 1U rails install in a standard 42U rack to create a sliding shelf for servers and network gear. The set fits 19-inch, 23-inch and 30-inch cabinets and suits administrators who need a sturdy, adjustable platform for rack-mounted equipment. Each pair includes eight sets of M6 screws and cage nuts for immediate installation.

Adjustable 16-to-33-inch depth

The rails telescope from 16 inches to 33 inches, replacing fixed-depth trays that limit hardware choices. The jump is worth it when your rack depth varies between cabinets or when you plan to move heavier servers between enclosures without buying new rails. Cold-rolled steel with powder coating supports up to 110 lbs at the shortest 16-inch setting.

Check rack post spacing and thread type

Verify that your four-post rack or cabinet accepts the 16-to-33-inch range and that the vertical posts use square holes for the supplied M6 cage nuts. The rails occupy 1U of height (1.75 inches) and measure 2.83 inches wide, so confirm clearance between adjacent devices. No cover or shelf surface is included with the rails.

Highlights

  • Adjustable 16-33" depth fits 19", 23", 30" racks
  • 110 lb capacity at 16" depth on four-post racks
  • Cold-rolled steel with powder coat resists wear
  • 1U profile uses minimal rack space
  • Includes eight M6 screw and cage-nut sets

Specifications

BrandStarTech.com
Rack Units42U
ColorBlack
MaterialSteel
Specification1U, Alloy Steel, Wall Mount, Under Desk, 83.8 L x 7.2 W x 4.4 H centimeters
FeaturesWall Mount, Under Desk / Alloy Steel / With Cover / Server / true / 1 / 1U / Black
Industry Standard1U
Included Accessoryfalse
Unit Dimension83.8 cm x 7.2 cm x 4.4 cm
Unit Weight1.701 kilograms
Shipping Dimension6.35 cm x 9.525 cm x 53.975 cm
Shipping Weight1.701 kilograms

Questions about this item

What rack depths do the 16-33 inch adjustable rails fit?

The rails adjust from 16 to 33 inches deep and fit 19, 23 and 30 inch wide racks or cabinets.

Which hardware is included for mounting the rails to the rack posts?

Eight sets of M6 screws and cage nuts are supplied for securing the rails to the four posts.

How much weight can the shelf rails support over time?

The cold-rolled steel rails are rated for 110 lbs when installed in a four-post rack at the 16-inch depth setting.
