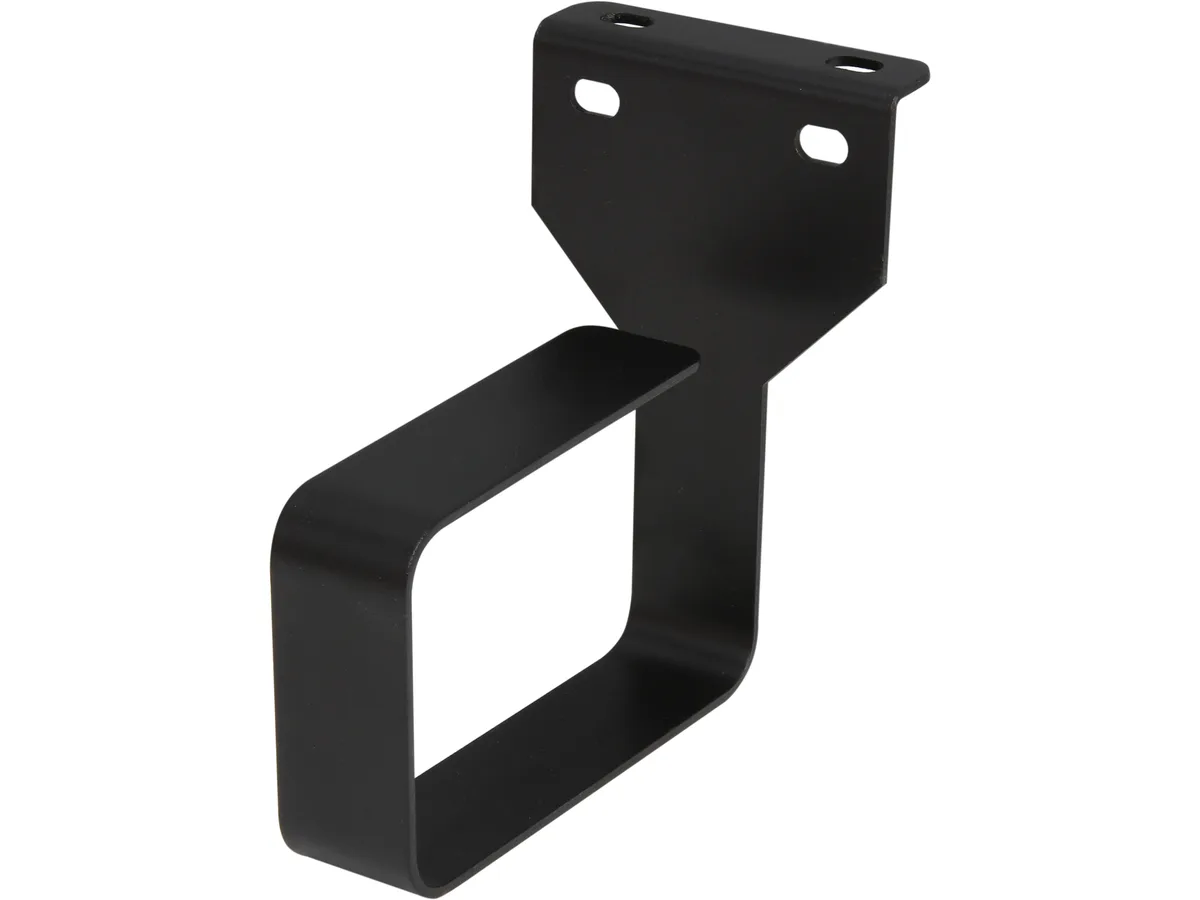

Black steel D-ring hook with right-angled bracket for 19 inch rack cable management

STARTECH

STARTECH CMHOOKMW Multi-Directional D-Ring Hook 2.4x3.9in

SKU CH-0H0W-5VPCZ

A 1U steel D-ring hook that mounts on standard 19" racks with a right-angled bracket, letting cables face in or out for tidy strain relief

  • TypeCable Management
  • ColorBlack
  • SpecificationsIndustry Standards: EIA RS310-D U Height: 1U Enclosure Thick
  • FeaturesRoute cables neatly through your rack with an easy-to-instal

Style 2.4 x 3.9in - Multi-Directional

  • Neat cable routing with multi-directional D-ring hook
  • Internal or external facing for flexible strain relief
  • Fits standard 19 inch 2-post or 4-post racks
  • Sturdy steel construction with right-angled bracket
  • EIA RS310-D compliant 1U rackmount design

Cable Management Hook for 19" Racks

The StarTech CMHOOKMW is a steel D-ring hook that mounts vertically on standard 19-inch two-post or four-post racks. It provides a simple anchor point for routing patch cords, power leads or fibre runs inside server rooms and network cabinets. The right-angled bracket lets the ring face inward or outward to suit the cable path.

Passive Steel Construction

The hook is formed from 0.1 in thick steel and adds no active cooling, fans or power draw to the rack. It operates silently and requires no electrical connection, so it does not affect thermal budgets or UPS loading. The black finish matches typical rack hardware.

1U High with Two Mounting Hole Sets

The bracket occupies a single rack unit and measures 2.5 in high by 4 in wide, with a 2.4 x 3.9 in D-ring aperture. Two sets of mounting holes give flexible vertical positioning on EIA RS310-D compliant rails. The unit weighs 6.1 oz.

Highlights

  • Neat cable routing with multi-directional D-ring hook
  • Internal or external facing for flexible strain relief
  • Fits standard 19 inch 2-post or 4-post racks
  • Sturdy steel construction with right-angled bracket
  • EIA RS310-D compliant 1U rackmount design

Specifications

BrandStarTech.com
ModelCMHOOKMW
TypeCable Management
ColorBlack
SpecificationsIndustry Standards: EIA RS310-D
U Height: 1U
Enclosure Thickness: 0.1 in [2 mm]
Enclosure Type: Steel
External Height: 2.5 in [64 mm]
External Width: 4 in [102 mm]
Product Weight: 6.1 oz [173 g]
FeaturesRoute cables neatly through your rack with an easy-to-install cable management ring
Face the D-ring internally or externally to the rack, with a right-angled mounting bracket
Increase the longevity of your server and networking equipment interfaces by providing cable strain relief

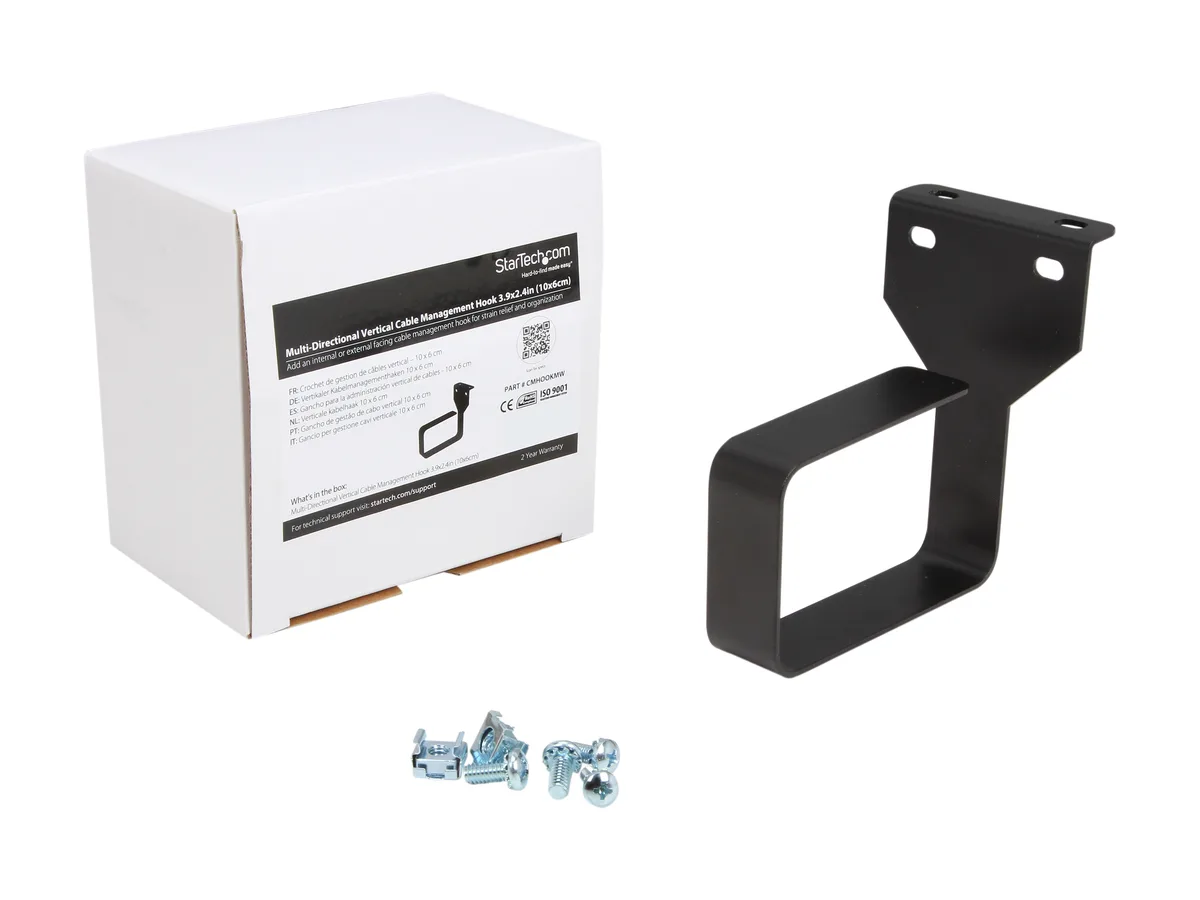

Package Content
1 - Vertical Cable Management Hook
2 - 10/32 Screws
2 - 12/24 Screws
2 - 24/24 Cage Nuts
Shipping weight0.26 kg
Package size130 × 122 × 81 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I mount the CMHOOKMW hook to a 19-inch rack and which orientation step is often missed?

Fasten the right-angled bracket using the two sets of mounting holes; the bracket lets you face the D-ring internally or externally, and installers often forget to choose the orientation before tightening the screws.

What part of the CMHOOKMW will need checking or replacement after extended use?

The black steel D-ring and 0.1 in thick bracket can be inspected for bent metal or worn powder coat; no consumable components are present.

What physical limit appears first when the CMHOOKMW is fully loaded with cables in a 1U space?

The 2.4 by 3.9 in D-ring opening and 2.5 in overall height restrict the cable bundle volume before the 19-inch rack mounting points reach any load limit.
