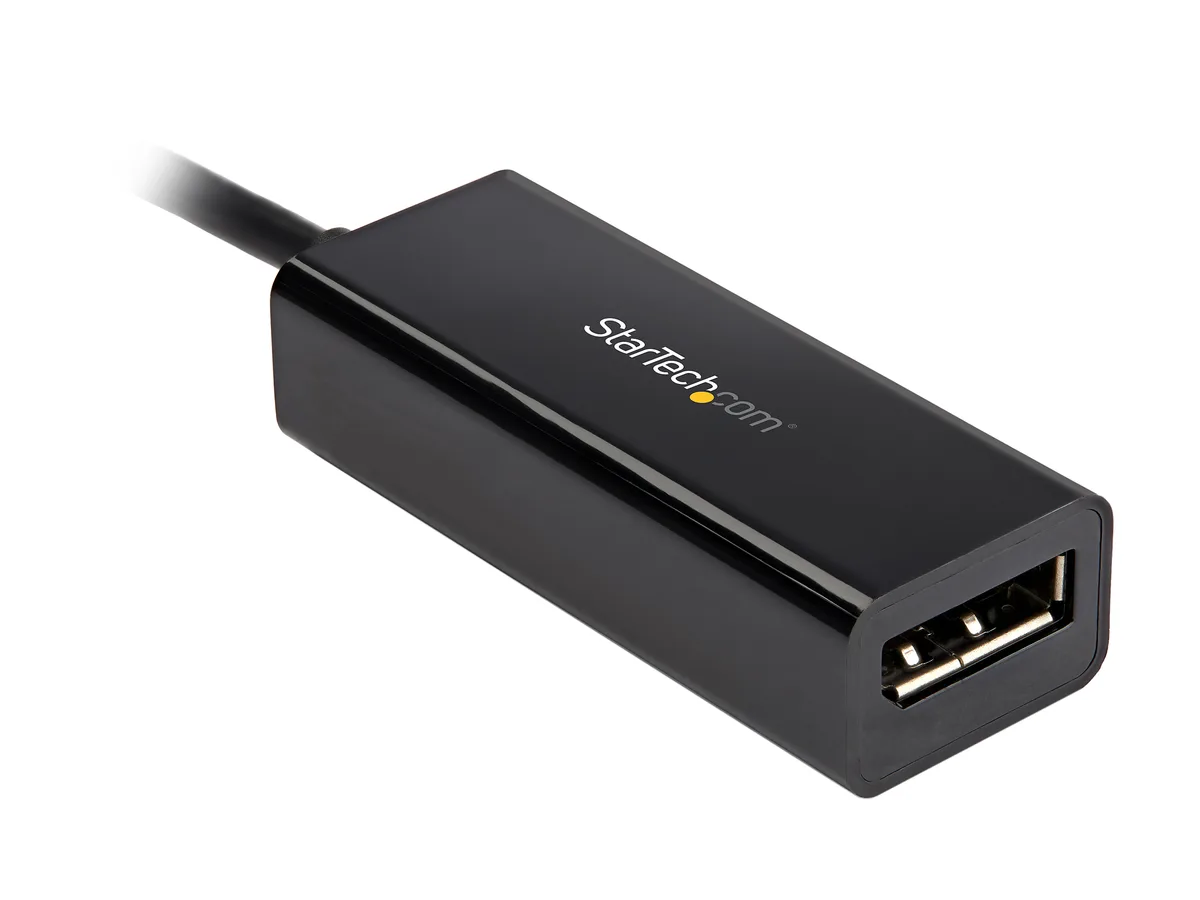

Black USB-C male to DisplayPort female adapter, short cable, compact dongle form factor

STARTECH

STARTECH CDP2DP14B USB-C to DisplayPort Adapter 8K 60Hz HBR3 Thunderbolt 3

SKU CH-R9JR-HACZ8 MPN CDP2DP14B

Connects a USB-C device to a DisplayPort monitor at up to 7680 x 4320 resolution and 60 Hz with HDR support

  • TypeUSB-C to DisplayPort Adapters
  • Changer TypeUSB-C to DP
  • ColorBlack
  • Cable Length0.9 in
  • SpecificationsAudio Specifications: DisplayPort - 7.1 Channel Audio Bandwi
  • Thunderbolt 3Thunderbolt 3 Compatible
  • 8K 60 Hz video via HBR3 32.4 Gbps bandwidth
  • Thunderbolt 3 compatible USB-C input for broad device support
  • HDR enabled for expanded contrast and color accuracy
  • DisplayPort 1.4 output drives 7680 x 4320 resolution
  • 1 channel audio pass-through over DisplayPort

Target device and resolution support

This USB-C to DisplayPort adapter connects a USB-C or Thunderbolt 3 host to a DisplayPort monitor at up to 7680 x 4320 resolution at 60 Hz. It is suited for users who need 8K output from a laptop, tablet or desktop with a DisplayPort Alt Mode port.

Bandwidth and feature enablement

HBR3 bandwidth of 32.4 Gbps carries 8K 60 Hz, HDR and 7.1 channel audio through the DisplayPort 1.4 link. The adapter itself requires no driver installation and draws power from the host port.

Host port and cable length checks

Verify that your USB-C port supports DisplayPort Alt Mode and that the host GPU can drive the desired resolution. The adapter’s 0.9 in cable stub means the DisplayPort cable run to the monitor must not exceed 6.6 ft for reliable 8K signal integrity.

Highlights

  • 8K 60 Hz video via HBR3 32.4 Gbps bandwidth
  • Thunderbolt 3 compatible USB-C input for broad device support
  • HDR enabled for expanded contrast and color accuracy
  • DisplayPort 1.4 output drives 7680 x 4320 resolution
  • 1 channel audio pass-through over DisplayPort

Specifications

BrandStarTech.com
ModelCDP2DP14B
TypeUSB-C to DisplayPort Adapters
Changer TypeUSB-C to DP
ColorBlack
Cable Length0.9 in
SpecificationsAudio Specifications: DisplayPort - 7.1 Channel Audio
Bandwidth: HBR3
Maximum Cable Distance To Display: 6.6 ft [2 m]
Maximum Digital Resolutions: 7680 x 4320 (8K) at 60Hz
Supported Resolutions:
1024x768
1280x720 (High-definition 720p)
1920x1080 (High-definition 1080p)
1920x1200
2560x1440
2560x1600
3840x2160 (Ultra HD 4K)
4096x2160 (DCI 4K)
7680x4320 (Ultra HD 8K)
Video Revision: DisplayPort 1.4
Wide Screen Supported: Yes

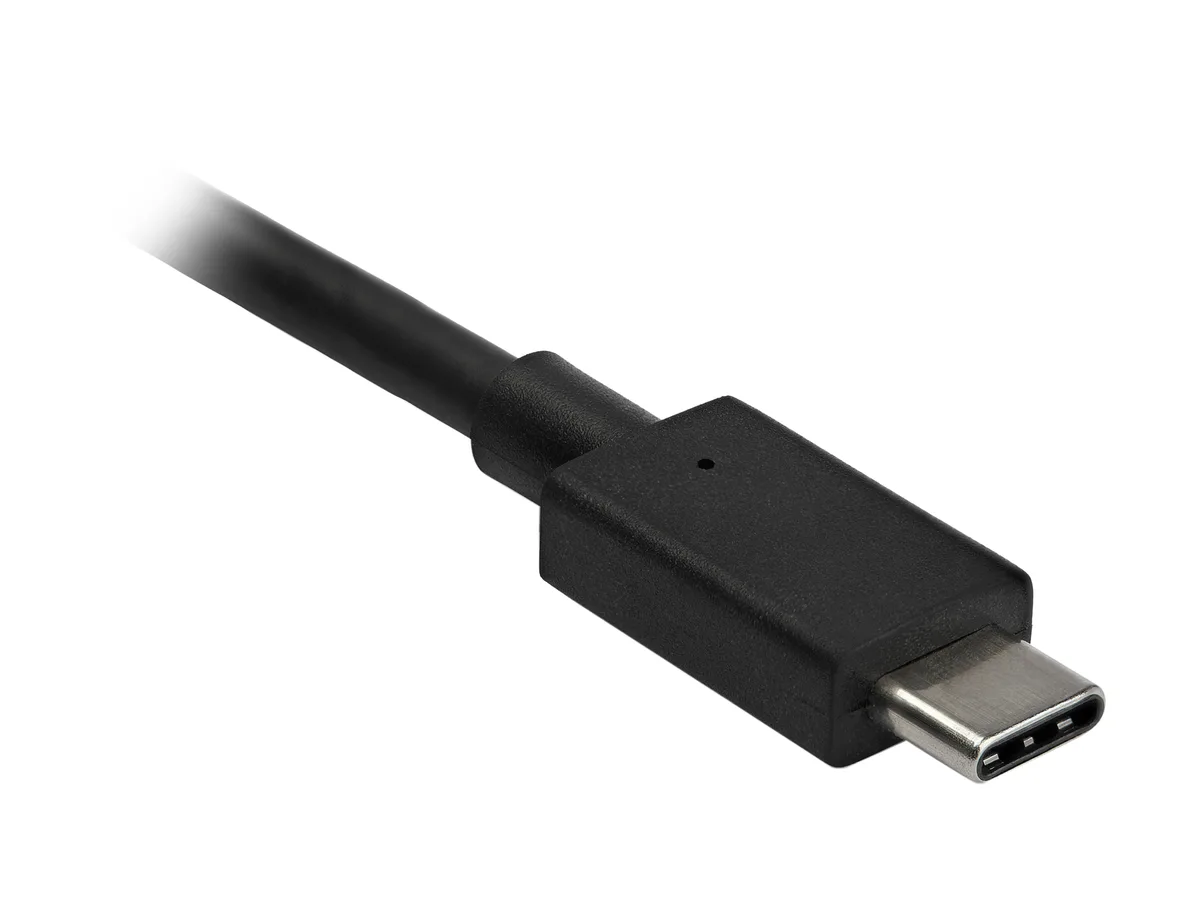

Connector A: 1 x USB-C (24 pin) DisplayPort Alt Mode Male Input
Connector B: 1 x DisplayPort (20 pin) Female Output
Thunderbolt 3Thunderbolt 3 Compatible
Output ConnectorDisplayPort (20 pin) Female Output
FeaturesHigh Bit Rate 3 (HBR3) capabilities, providing bandwidths up to 32.4Gbps
Cutting-edge video quality with support for UHD video resolutions up to 8K 30Hz
Supports HDR for expanded contrast ratio and color accuracy
Optimize your visual experience with the next generation of display technology
Make the perfect connection with a DisplayPort 1.4 adapter that works with any USB 3.1 Type-C enabled device including the 2018 iPad Pro
Package Contents1 x USB-C to DisplayPort Adapter
Shipping weight0.05 kg
Package size220 × 200 × 25 mm

Questions about this item

Does the USB-C connector or the DisplayPort output wear out first with daily plugging?

The adapter has a 24-pin USB-C male input and a 20-pin DisplayPort female output; both are solid-state with no moving contacts, so neither side has a defined wear-out cycle.

What bandwidth ceiling caps sustained 8K 60Hz throughput?

HBR3 limits the link to 32.4Gbps, which is the maximum bandwidth this adapter can sustain for 7680 x 4320 at 60Hz.

Does the dongle get hot or draw extra power during all-day 8K output?

The unit is bus-powered from the USB-C port and has no active cooling; it runs at the host's supplied power with no separate thermal rating provided.
