STARTECH

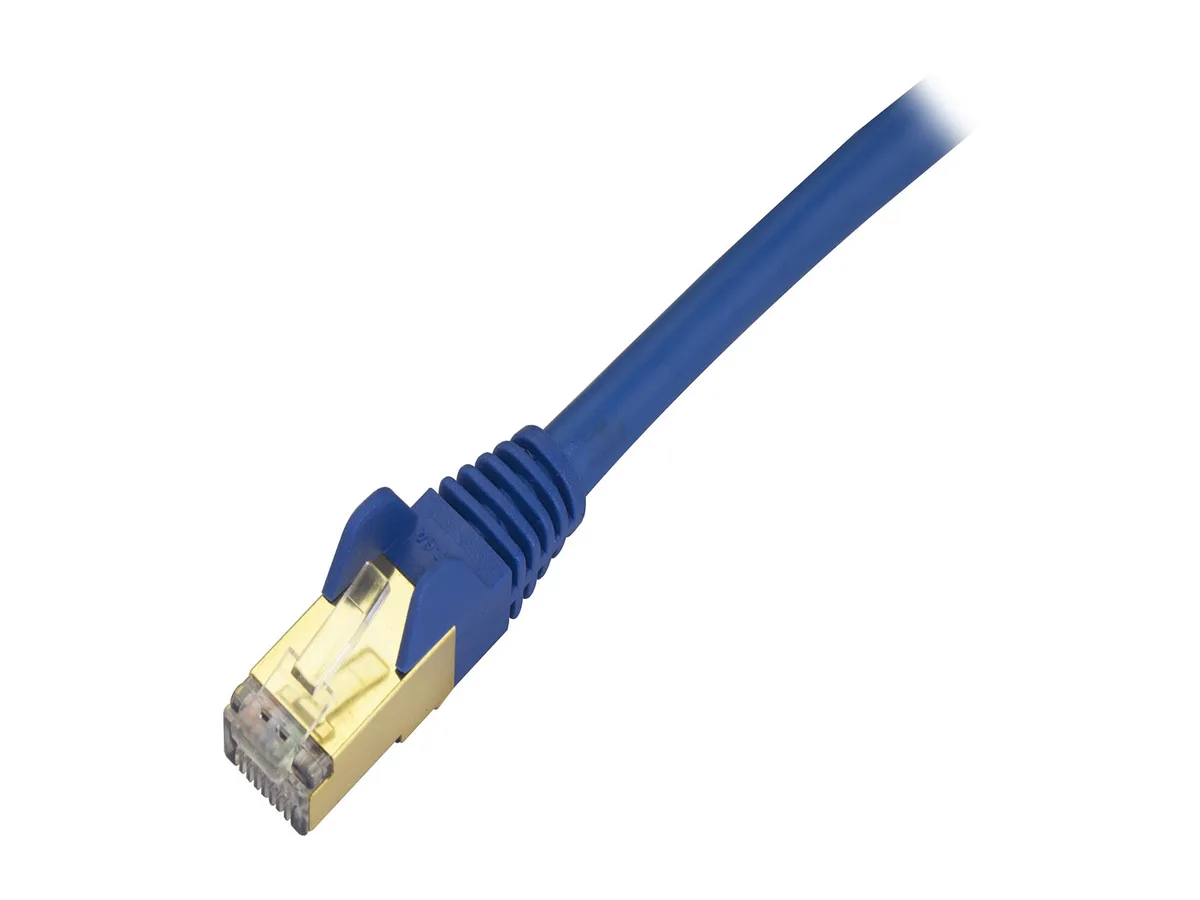

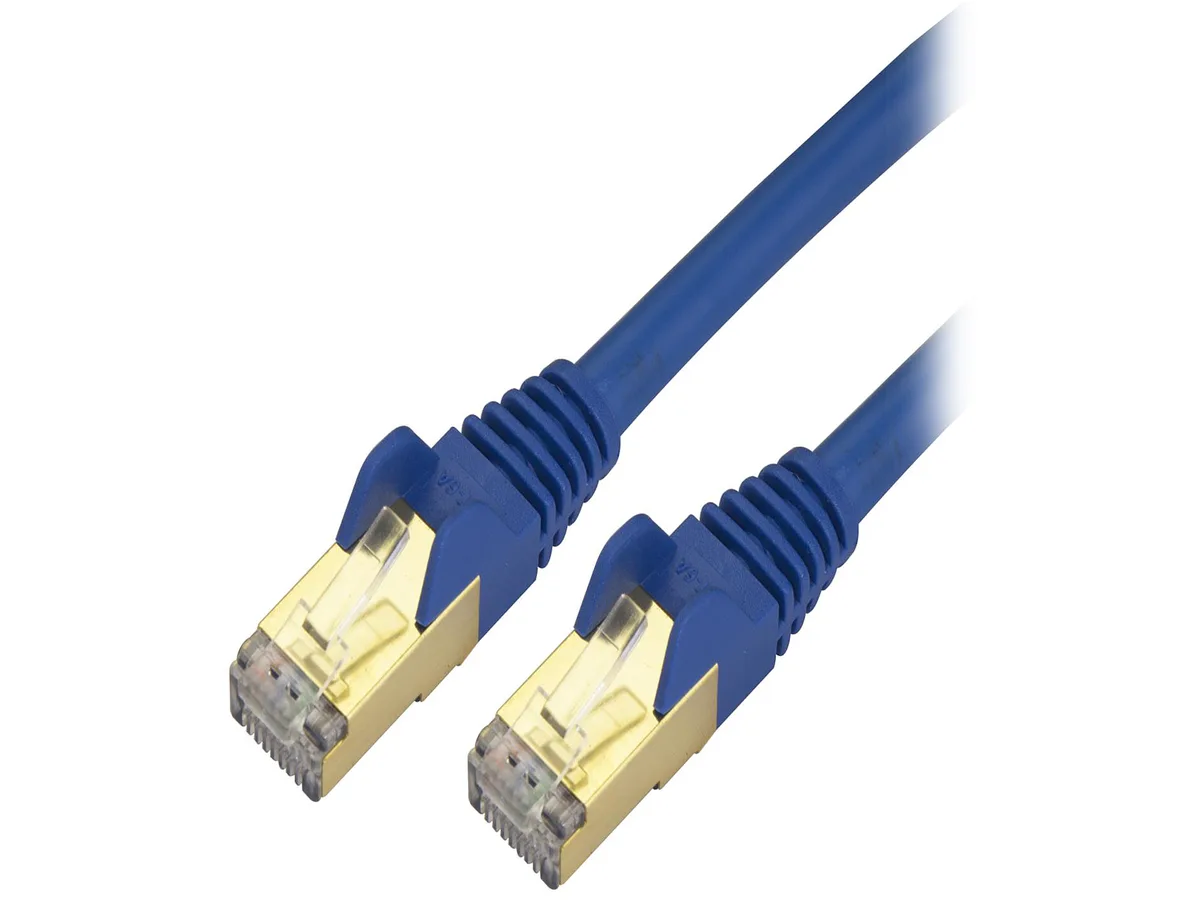

STARTECH C6ASPAT2BL Cat6a Shielded Snagless Patch Cable 2 ft Blue network ethernet cable
A 2 ft shielded Cat6a patch cable with snagless RJ45 connectors for 10 Gigabit Ethernet links
- TypeConsumer Electronics
- Cat6A
- Connector ARJ45
- Connector BRJ45
- Length2 ft.
- ColorBlue
- Delivers 10 Gb connections free of EMI/RFI noise
- Shielded with aluminum-polyester foil to block interference
- Snagless RJ45 connectors protect tabs during installation
- 26 AWG stranded copper conductors rated UL E132276-A
- CMG fire-rated jacket suits general-purpose installations
Cat6a Shielded 2 ft Cable
This StarTech.com Cat6a patch cable provides a 2 ft shielded link for 10 Gigabit Ethernet connections. It uses RJ45 connectors on both ends and a blue PVC jacket rated CMG for general-purpose runs. The construction suits workstations, switches or patch panels needing a short, certified drop.
Shielded Foil & Snagless Design
An aluminum-polyester foil wrap blocks EMI and RFI noise that can degrade high-speed signals. Snagless boots protect the RJ45 locking tabs during insertion and removal. The cable uses 26 AWG stranded 100 percent copper conductors with a UL listing E132276.
100 W PoE & ANSI/TIA-568-D Compliance
The assembly supports 100 W Power over Ethernet for devices such as wireless access points or cameras. It is tested to ANSI/TIA-568-D Category 6 requirements for reliable 10 Gbps throughput. Buyers needing longer runs or a different jacket rating should select another length or specification.
Highlights
- Delivers 10 Gb connections free of EMI/RFI noise
- Shielded with aluminum-polyester foil to block interference
- Snagless RJ45 connectors protect tabs during installation
- 26 AWG stranded copper conductors rated UL E132276-A
- CMG fire-rated jacket suits general-purpose installations
Specifications
| Brand | StarTech.com |
|---|---|
| Model | C6ASPAT2BL |
| Type | Consumer Electronics |
| Cat | 6A |
| Connector A | RJ45 |
| Connector B | RJ45 |
| Length | 2 ft. |
| Color | Blue |
| Shielded | Aluminum-polyester foil |
| Features | Deliver high-performance 10 Gigabit network connections, free of noise and EMI / RFI interference Hardware Cable Jacket Type: PVC - Polyvinyl Chloride Cable Type: Shielded Snag-less Fire Rating: CMG Rated (General Purpose) Number of Conductors: 4 Pair STP Performance Cable Rating: CAT6a - 10 Gbit/s Physical Characteristics Conductor Type: Stranded Copper Wire Gauge: 26 AWG |
| Shipping weight | 0.07 kg |
| Package size | 220 × 200 × 10 mm |
Questions about this item
How do I connect the snagless RJ45 plugs on this 2 ft Cat6a shielded cable without damaging the latch?
Press the snagless boot down while inserting each RJ45 connector into the port until it clicks; the boot protects the latch from catching on adjacent cables during removal.
What should I check on the aluminum-polyester foil shield and CMG-rated PVC jacket over time?
Inspect the foil shield for kinks and the CMG-rated PVC jacket for cracks after any tight bends; replace the cord if the shield is creased or the jacket splits.
What limits the 10 Gigabit throughput on this 26 AWG stranded copper cable during sustained 100 W PoE use?
The 26 AWG stranded conductors set the current-carrying limit; sustained 100 W PoE can heat the cores, so keep runs short and avoid bundling tightly with other power cables.
