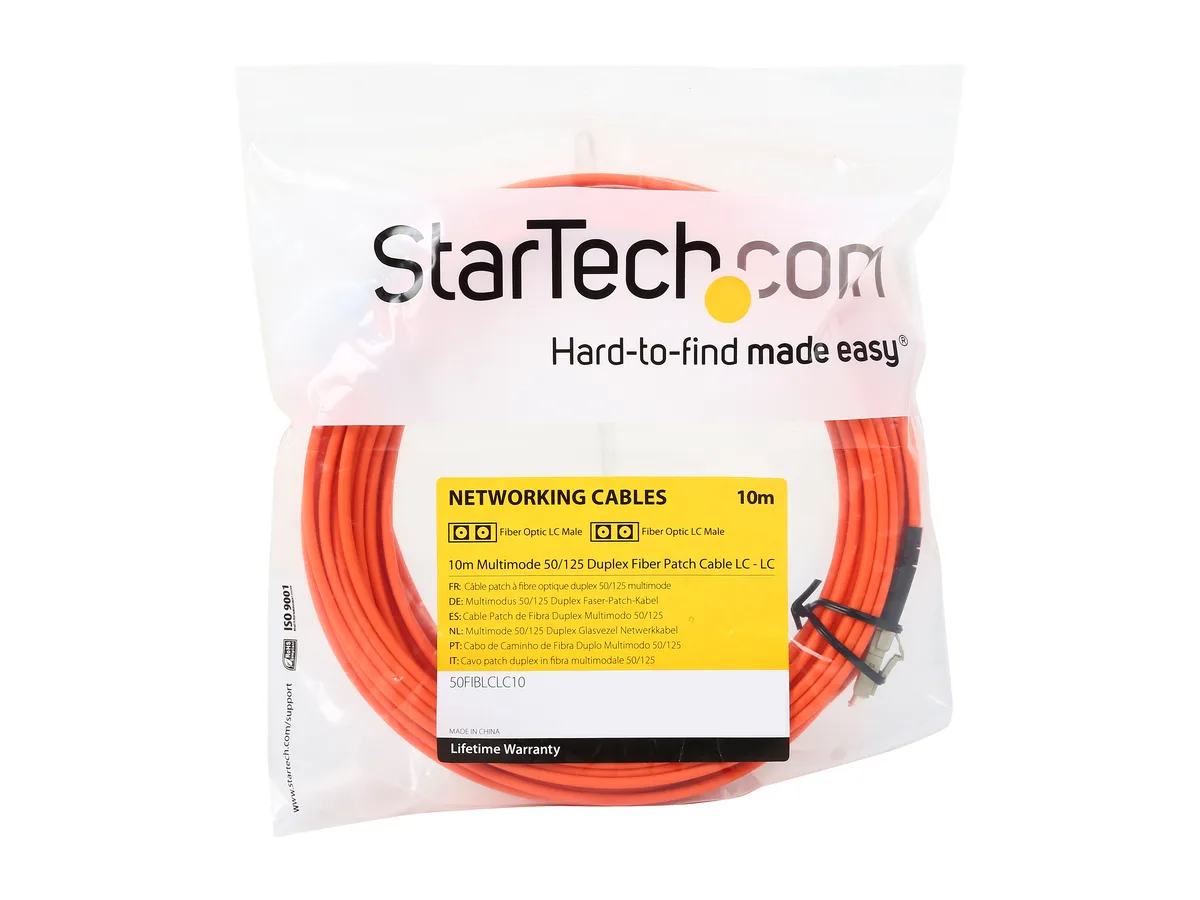

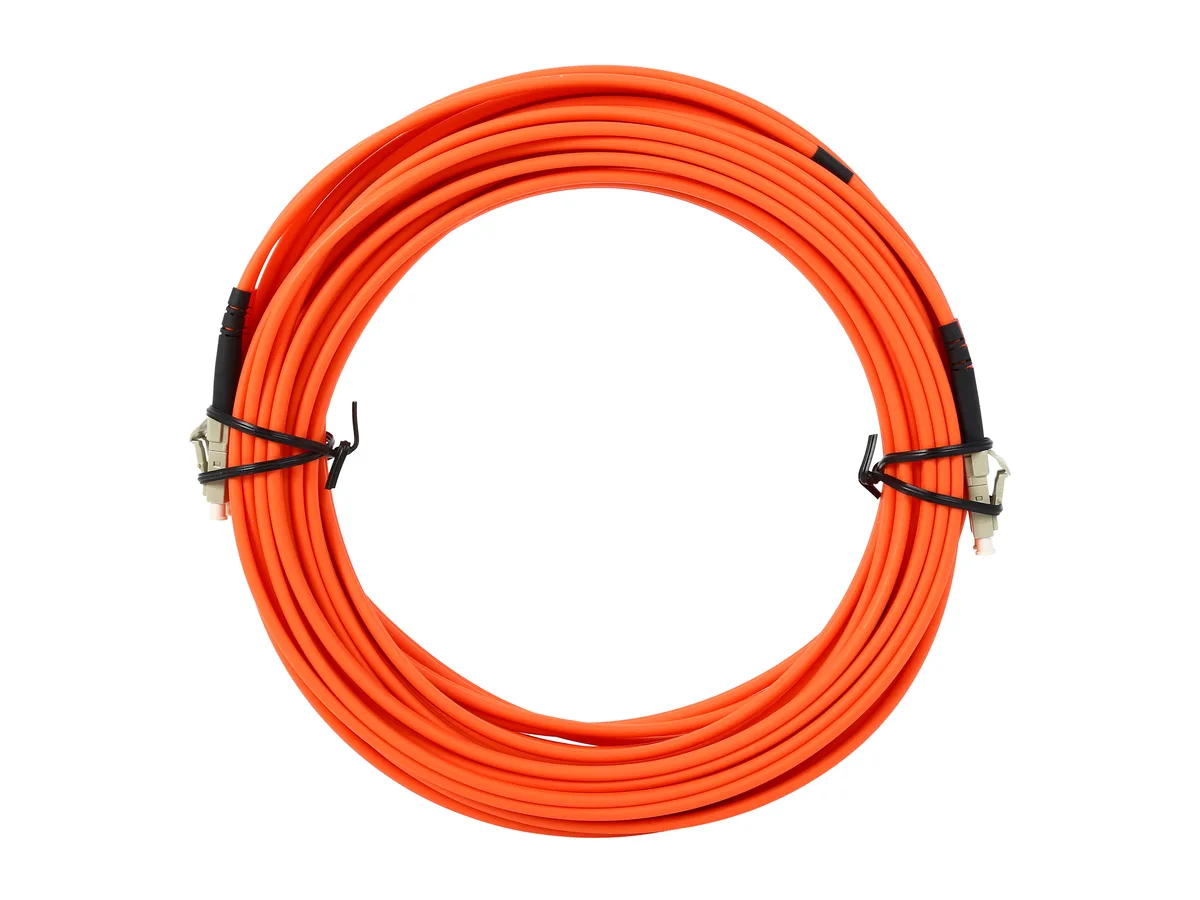

Orange duplex fibre patch cable with LC connectors on both ends, 10 metre length

STARTECH

STARTECH 50FIBLCLC10 fibre optic cable 10 m LC duplex OM2 50/125 orange

SKU CH-PZV1-1C2VR MPN 50FIBLCLC10

Ten-metre duplex multimode fibre patch cable with LC connectors, OM2 50/125 micron core and LSZH jacket for high-speed network links

  • TypeCable Connectors
  • ColorOrange
  • Length32.8 ft.
  • Connector Number2
  • Terminal GenderMale to Male
  • SpecificationsConnector A: 2 - Fiber Optic LC Male Connector B: 2 - Fiber

Length 30' LC-LC

Struck-through versions exist but are not stocked here.

  • Connect network devices at high speed using LSZH-rated cable
  • 10 metre duplex multimode fibre with LC male connectors both ends
  • 50/125 micron OM2 fibre rated for 500 MHz bandwidth
  • Low-smoke zero-halogen jacket reduces toxic fumes in fire
  • Immune to electrical interference for reliable data transmission

10 m LC duplex OM2 patch cable

This 10 metre duplex multimode cable connects network equipment using LC connectors at both ends. The 50/125 micron fibre core supports OM2 bandwidth requirements for short-reach links. An orange LSZH jacket reduces smoke and halogen emissions in enclosed spaces. The assembly is immune to electrical interference along its full length.

Suited for multimode links up to 10 m

Installers building campus or data-centre segments with LC transceivers will find the correct polishing and geometry here. Buyers who need single-mode reach or a different connector type such as SC or MTP should select another cable. The fixed 10 metre length also rules out runs that require shorter or longer pre-terminated assemblies.

OM2 50/125 µm 500 MHz·km bandwidth

This single figure determines whether the link meets the loss budget for the intended data rate at the operating wavelength. Match it against the transceiver specification before purchase.

Highlights

  • Connect network devices at high speed using LSZH-rated cable
  • 10 metre duplex multimode fibre with LC male connectors both ends
  • 50/125 micron OM2 fibre rated for 500 MHz bandwidth
  • Low-smoke zero-halogen jacket reduces toxic fumes in fire
  • Immune to electrical interference for reliable data transmission

Specifications

BrandStarTech.com
Model50FIBLCLC10
TypeCable Connectors
ColorOrange
Length32.8 ft.
Connector Number2
Terminal GenderMale to Male
SpecificationsConnector A: 2 - Fiber Optic LC Male
Connector B: 2 - Fiber Optic LC Male
Cable Type: Duplex Multimode
Fiber Size : 50/125 micron
FeaturesConnect fiber network devices for high-speed transfers with LSZH rated cable
10 meter Duplex Fiber Cable / LC to LC / Multimode Patch Cable / 10m Multimode 50/125 Duplex Fiber Optic Cable LC to LC
OM2 (50/125) 500MHz multimode fiber
LSZH (Low-Smoke, Zero-Halogen) cable jacket
Immune to electricty interference
Ideal solution for data applications requiring high speed data transmission
Shipping weight0.15 kg
Package size192 × 179 × 44 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What bandwidth does the OM2 50/125 micron multimode fibre provide?

The cable uses OM2 multimode fibre with a 500 MHz·km bandwidth rating at 50/125 micron core/cladding size.

What physical space and connectors are required to install this 10 m duplex patch cable?

Each end has two LC male connectors in a duplex clip, so the patch panel or transceiver must accept standard LC duplex ports.

How is the LSZH jacket handled during installation, and what common mistake should be avoided?

Route the orange LSZH jacket without sharp bends or excessive tension; the step often missed is cleaning both LC ferrule end-faces before mating.
