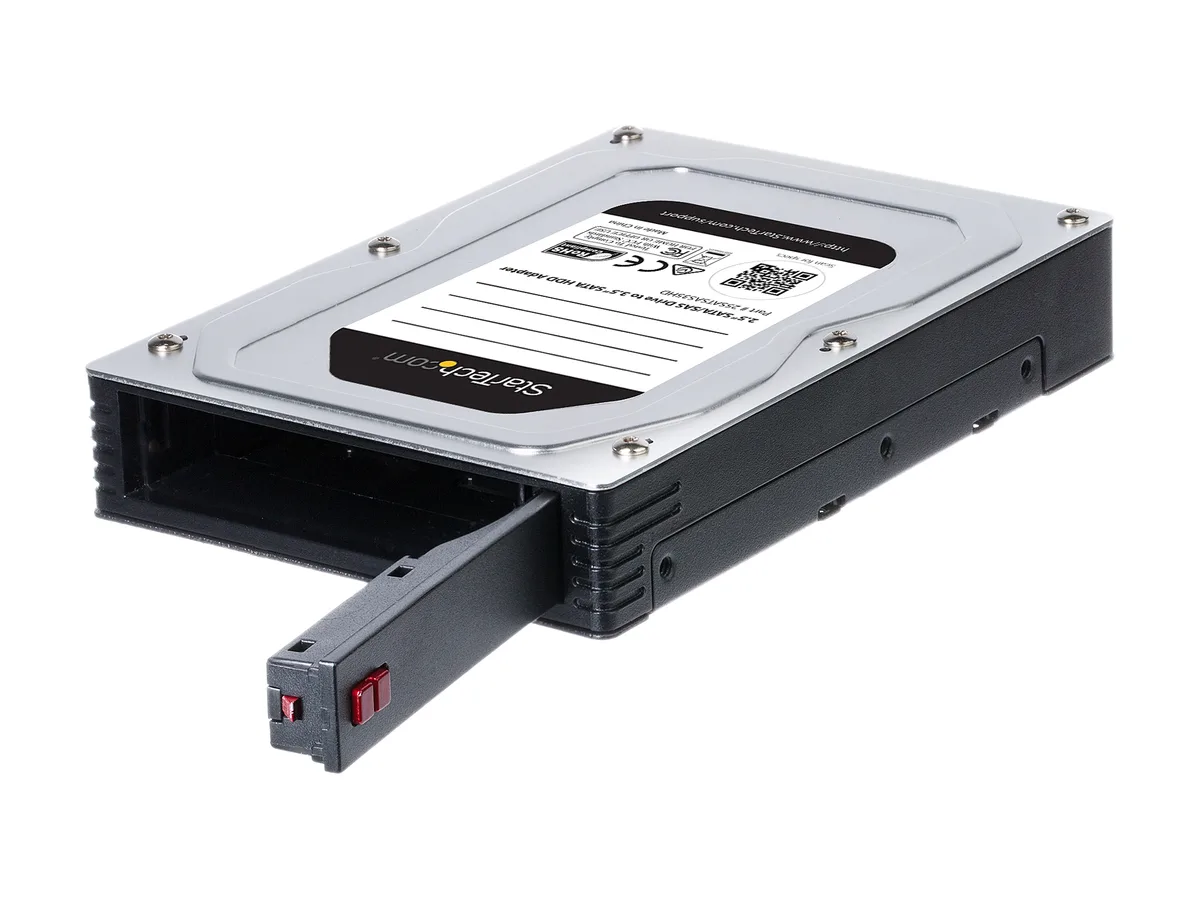

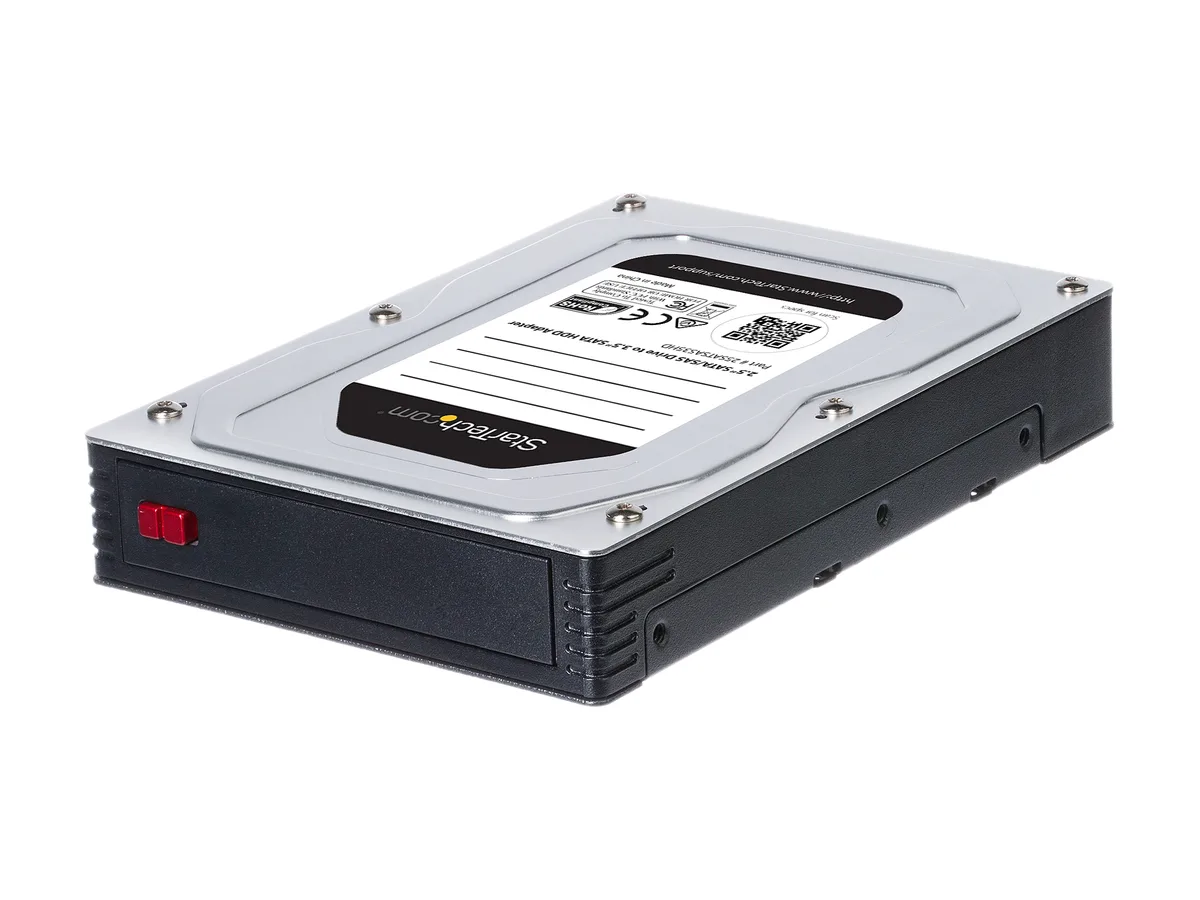

Silver and black metal tray adapter holding a 2.5 inch drive in a 3.5 inch bay form factor

STARTECH

STARTECH 25SATSAS35HD 2.5" to 3.5" SATA SAS HDD accessory

SKU CH-NR2X-SW2TP MPN 25SATSAS35HD

Mounts a 2.5" SATA or SAS drive into a 3.5" bay with tool-less installation and support for heights up to 15 mm

  • ColorSilver & Black
  • Mobile Rack Drives Support1 x 2.5" Drive to 3.5" Bay
  • Mobile Rack InterfaceSATA I/II/III/SAS
  • Protection CaseSingle Drive
  • Compatible Products2.5"
  • SpecificationsCompatible Drive Types: SAS & SATA Drive Installation: Remov
  • Fits 2.5" SATA or SAS drives up to 15 mm into any 3.5" bay
  • Tool-less drive installation lets you swap 2.5" SSDs or HDDs in seconds
  • Supports SATA I/II/III up to 6.0 Gbps for full SSD performance
  • Handles SAS revision I/II at 3.0/6.0 Gbps for enterprise drives
  • Includes mounting hardware for secure internal 3.5" bay installation

2.5 to 3.5 SATA SAS Adapter

The StarTech 25SATSAS35HD converts a 2.5in SATA or SAS drive into a 3.5in form factor so it fits a standard desktop bay or external enclosure. It suits builders and IT staff who need to reuse laptop or enterprise drives in a tower chassis without a dedicated 2.5in mount.

Capacity and Headroom

The adapter accepts one 2.5in HDD or SSD up to 15mm in height, covering 7mm, 9.5mm and 12.5mm models. It supports SATA I, II and III at up to 6.0Gbps and SAS revision I and II at 3.0 and 6.0Gbps, so the drive interface does not become a bottleneck.

Thermals Noise and Power

No fan is included; cooling relies on the host chassis airflow passing over the metal frame. The passive design adds no audible noise and draws no power of its own, leaving the drive's own thermal profile unchanged in normal use.

Highlights

  • Fits 2.5" SATA or SAS drives up to 15 mm into any 3.5" bay
  • Tool-less drive installation lets you swap 2.5" SSDs or HDDs in seconds
  • Supports SATA I/II/III up to 6.0 Gbps for full SSD performance
  • Handles SAS revision I/II at 3.0/6.0 Gbps for enterprise drives
  • Includes mounting hardware for secure internal 3.5" bay installation

Specifications

BrandStarTech.com
Model25SATSAS35HD
ColorSilver & Black
Mobile Rack Drives Support1 x 2.5" Drive to 3.5" Bay
Mobile Rack InterfaceSATA I/II/III/SAS
Protection CaseSingle Drive
Compatible Products2.5"
SpecificationsCompatible Drive Types: SAS & SATA
Drive Installation: Removable
Drive Size: 2.5in & 3.5in
Fan(s): No
Interface : SATA / SAS
Number of 2.5 inch bays: 1
Number of Drives: 1
Supported Drive Height(s): 7mm / 9.5mm / 12.5mm / 15mm
4Kn Support: Yes
Hot Swap Capability: Yes
S.M.A.R.T. Support: Yes
TRIM Support: Yes
Type and Rate: SATA/SAS 6 Gbps
Connectors:
Drive Connectors: 1 x SFF-8482 (29 pin, Data & Power, Internal SAS) Receptacle
Host Connectors: 1 x 22 pin SATA / SAS Data + Power (7 + 15 pin) Receptacle
FeaturesSupports 2.5" form factor drives up to 15 mm in height
Installs into an internal or external 3.5" drive bay; uses standard mounting holes for internal installs
Tool-less 2.5" drive installation
Supports SATA I, II and III (up to 6Gbps) and SAS I and II (up to 6Gbps)
Note: Although mobile racks can enable a Serial Attached SCSI (SAS) drive to connect using a standard Serial ATA (SATA) connector, the drive controller must be SAS compatible to properly support SAS drives. SAS controllers can work with SAS and SATA drives, but most SAS drives will only work with a SAS controller.
Package Contents1 x hard drive adapter
1 x set of mounting hardware
1 x quick-start guide
Shipping weight0.50 kg
Package size160 × 112 × 35 mm

Questions about this item

Will my 2.5" SATA III SSD fit in this adapter alongside the existing 3.5" drives in my server?

Yes, the adapter accepts 2.5" SATA and SAS drives up to 15 mm in height and installs in any standard internal or external 3.5" bay using the included mounting hardware.

How can I verify the adapter is passing data at the full 6.0 Gbps rate after installation?

Check the drive's reported link speed in your OS disk utility or BIOS; it should show SATA III or SAS 6.0 Gbps when a compatible drive is seated in the tool-less tray.

Does the package include the screws and cables needed to mount and connect the adapter in a 3.5" bay?

The box contains the adapter, a set of mounting screws for the 3.5" bay, and a quick-start guide; you will need to supply your own SATA or SAS data and power cables.
