Black open-frame steel bracket with two mSATA slots and a 2.5in SATA connector

STARTECH

STARTECH 25SAT22MSAT dual mSATA to 2.5" SATA RAID adapter

SKU CH-M3FF-T1V8A MPN 25SAT22MSAT

Converts two full-size mSATA SSDs into a single 2.5″ SATA drive with RAID 0, 1, JBOD or BIG modes via a JMicron JMS562 controller

  • ColorBlack
  • Conversion TraymSATA Drive to 2.5" Drive
  • Compatible Products2.5"
  • SpecificationsDrive Installation: Fixed Drive Type: mSATA (Mini SATA) Inte
  • FeaturesDual full size mSATA SSD bays Supports RAID0, RAID1, JBOD, B
  • Dual mSATA SSDs fit one 2.5" bay
  • Hardware RAID 0, 1, JBOD, BIG supported
  • JMicron JMS562 chipset enables 6 Gbps throughput
  • Open-frame steel bracket secures drives firmly
  • Works with SATA I, II, III controllers

Dual mSATA RAID adapter

The StarTech 25SAT22MSAT installs two full-size mSATA SSDs inside a single 2.5-inch SATA drive bay. A JMicron JMS562 controller presents the pair to the host through one SATA data and power connector. Hardware RAID 0, RAID 1, JBOD and BIG spanning modes are selectable on the board.

For RAID or spanning with mSATA drives

Builders who want to combine two mSATA SSDs into one larger or redundant volume without using PCIe slots will find this adapter fits a standard 2.5-inch bay. It does not expose the drives as separate SATA devices, so systems that require independent drive recognition should consider a different approach.

JMicron JMS562 RAID controller

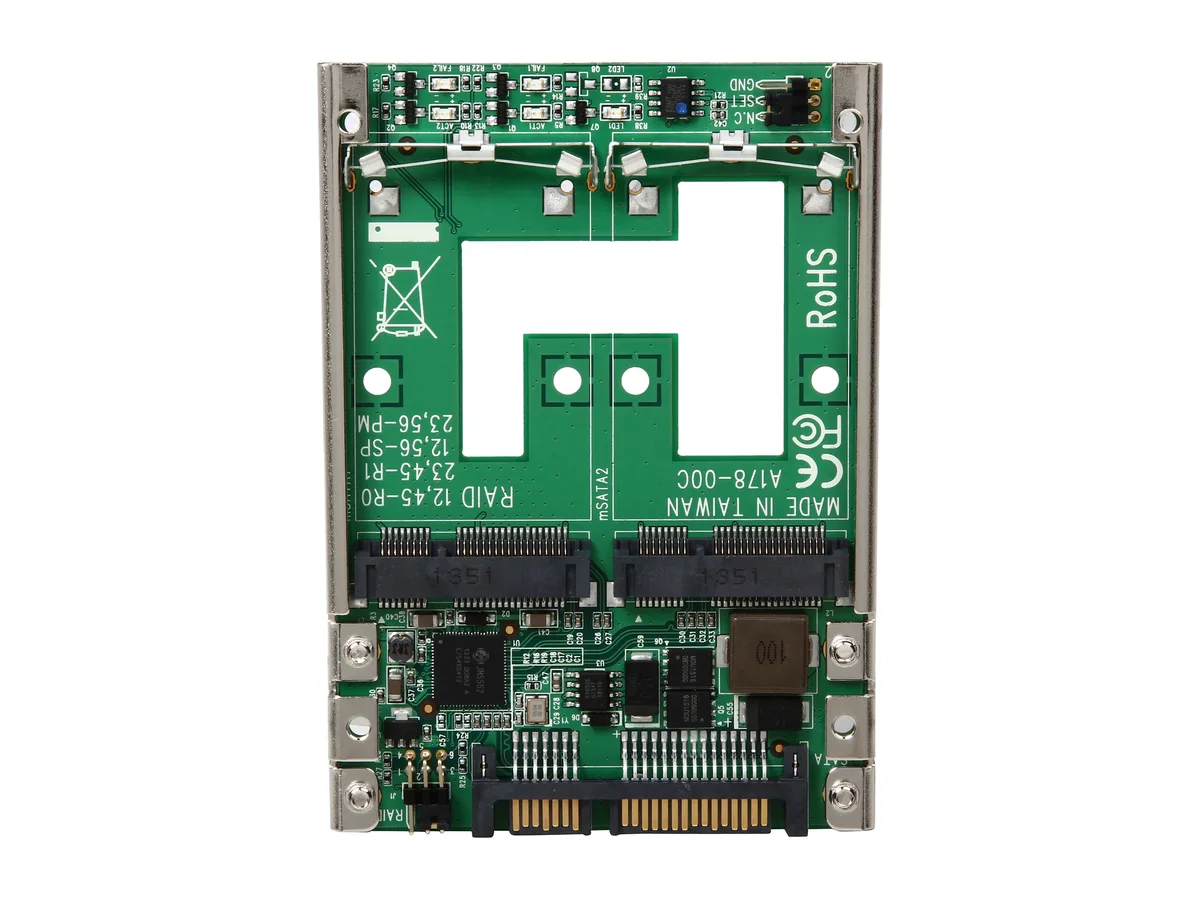

The onboard chipset manages all RAID functions and the SATA III 6 Gbps link to the motherboard. RAID level is set via jumpers on the adapter, and the chosen mode determines whether capacity, speed or mirroring takes priority.

Highlights

  • Dual mSATA SSDs fit one 2.5" bay
  • Hardware RAID 0, 1, JBOD, BIG supported
  • JMicron JMS562 chipset enables 6 Gbps throughput
  • Open-frame steel bracket secures drives firmly
  • Works with SATA I, II, III controllers

Specifications

BrandStarTech.com
Model25SAT22MSAT
ColorBlack
Conversion TraymSATA Drive to 2.5" Drive
Compatible Products2.5"
SpecificationsDrive Installation: Fixed
Drive Type: mSATA (Mini SATA)
Interface : SATA
Number of Drives: 2
Chipset ID: JMicron JMS562
Drive Connectors: 2 - mSATA (52 pin; Mini SATA) Receptacle
Host Connectors: 1 - SATA Data & Power Combo (7+15 pin) Receptacle
Maximum Data Transfer Rate : 6 Gbps
Port Multiplier: Yes
RAID: Yes
Supported RAID Modes:
- BIG (Spanning or Concatenation)
- JBOD - (Just a Bunch of Disks)
- RAID 0 (Striped Disks)
- RAID 1 (Mirrored Disks)
Type and Rate: SATA III (6 Gbps)
FeaturesDual full size mSATA SSD bays
Supports RAID0, RAID1, JBOD, BIG
Open-frame steel mounting bracket
2.5in SATA form factor housing
Compatible with SATA revision I/II/III (1.5/3.0/6.0 Gbps) drives and controllers
Shipping weight0.11 kg
Package size170 × 140 × 33 mm

Questions about this item

Which two mSATA SSDs do I need to populate the dual 52-pin receptacles?

Any two full-size mSATA SSDs with a 52-pin Mini SATA edge connector will fit the dual receptacles on the adapter.

Will the JMicron JMS562 RAID controller work with my existing SATA II host controller?

Yes, the adapter is compatible with SATA revision I, II and III controllers running at 1.5, 3.0 or 6.0 Gbps.

How can I verify the RAID array is healthy after I configure RAID 0, RAID 1, JBOD or BIG?

The array will appear as a single 2.5-inch SATA drive in your OS; use the OS disk utility or the controller BIOS to confirm the chosen RAID mode and capacity.
