Black 1U horizontal rack PDU with 16 NEMA 5-15 outlets and front LED meter

STARTECH

STARTECH 16NM8-RACK-MOUNT-PDU 1U 16-Outlet Horizontal Metered PDU 125V 15A 8ft

SKU CH-7A0M-KWEXD MPN 16NM8-RACK-MOUNT-PDU

1U horizontal metered PDU with 16 NEMA 5-15R outlets, real-time load display and surge protection for 19-inch racks

  • TypePower Distribution Units
  • Rack Size1U
  • StyleHorizontal
  • Front Panel LEDs1 - Surge Protection LED Green: Protection is present Off: N
  • Package Includes1 - Metered PDU 1 - Quick-Start Guide
  • Input Voltage120V

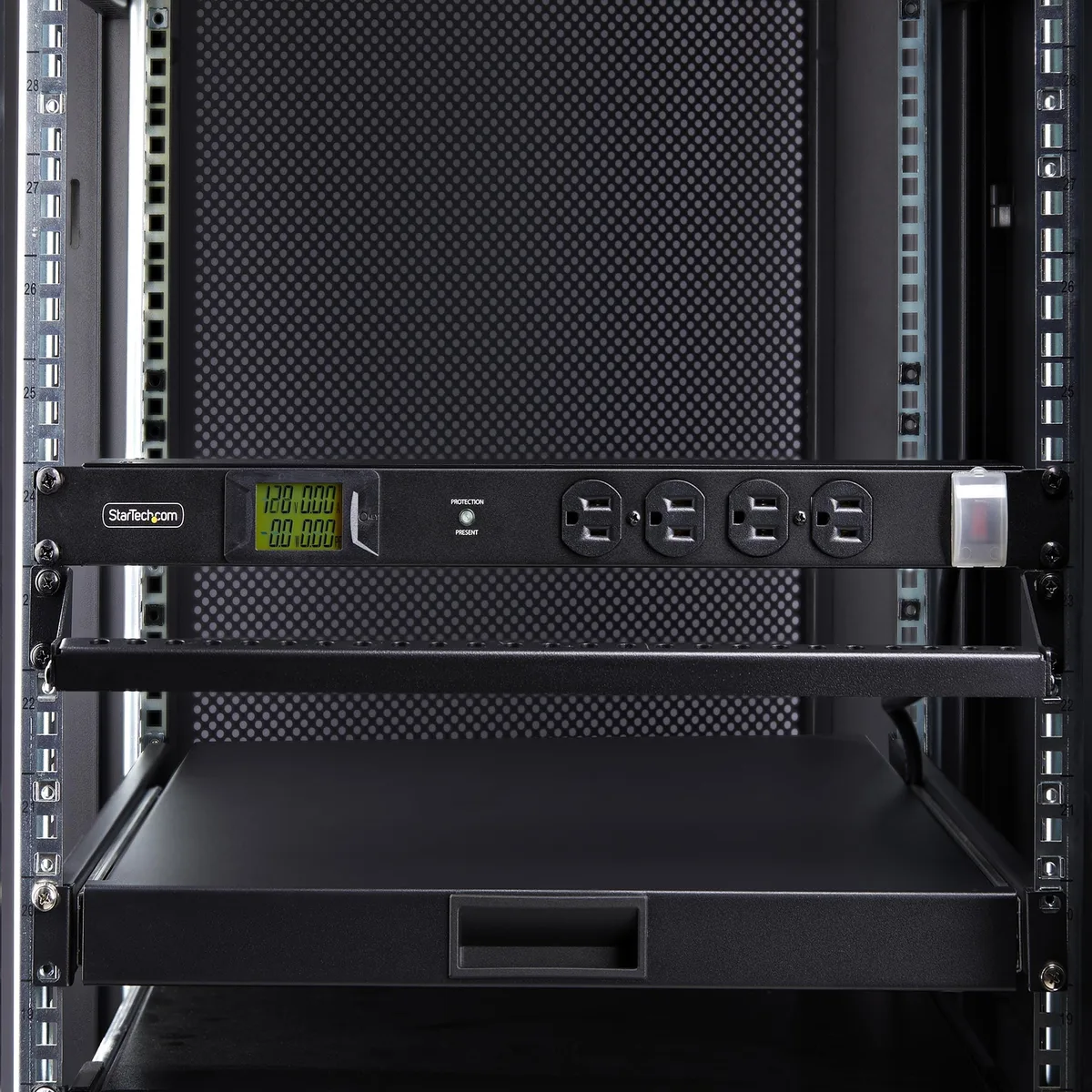

  • Real-time power monitoring with large display showing voltage, current, wattage and power factor
  • Surge protection with self-tripping MOV design and LED status indicator for equipment safety
  • 16 NEMA 5-15R outlets in 1U horizontal form factor for dense rack deployments
  • 8ft NEMA 5-15P input cord with 15A circuit breaker for reliable power delivery
  • Cold-rolled steel construction meets EIA-310-D standard for 19-inch rack compatibility

1U 16-Outlet Metered PDU

The StarTech 16NM8-RACK-MOUNT-PDU is a 1U horizontal rackmount power distribution unit with sixteen NEMA 5-15R outlets. It provides metered monitoring of voltage, current, wattage and power factor for IT equipment in 19-inch server racks. The unit includes an 8 ft NEMA 5-15P input cord and a built-in 15A circuit breaker. It suits administrators who need real-time load visibility on a single rack strip.

1500 VA Load Capacity and Derated Input

The PDU supports a load capacity of 1500 VA with a maximum input current of 15A and a regulatory derated input of 12A. The metered display shows real-time power parameters so operators can balance circuits before the breaker trips. It handles typical server and networking gear within the 120V nominal supply range. Installations that exceed the derated 12A continuous limit will need additional distribution units.

Cold-Rolled Steel Build and EIA-310 Mounting

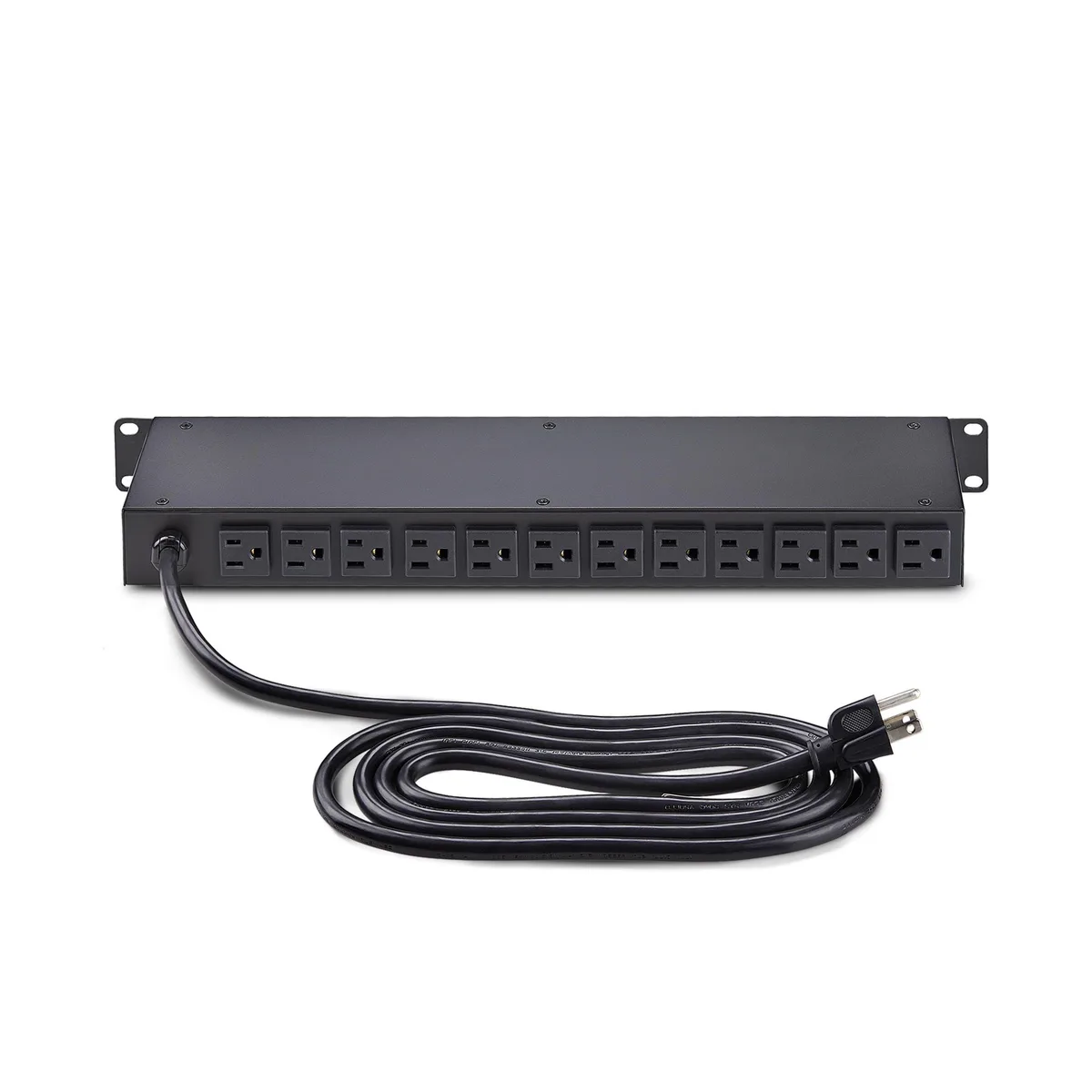

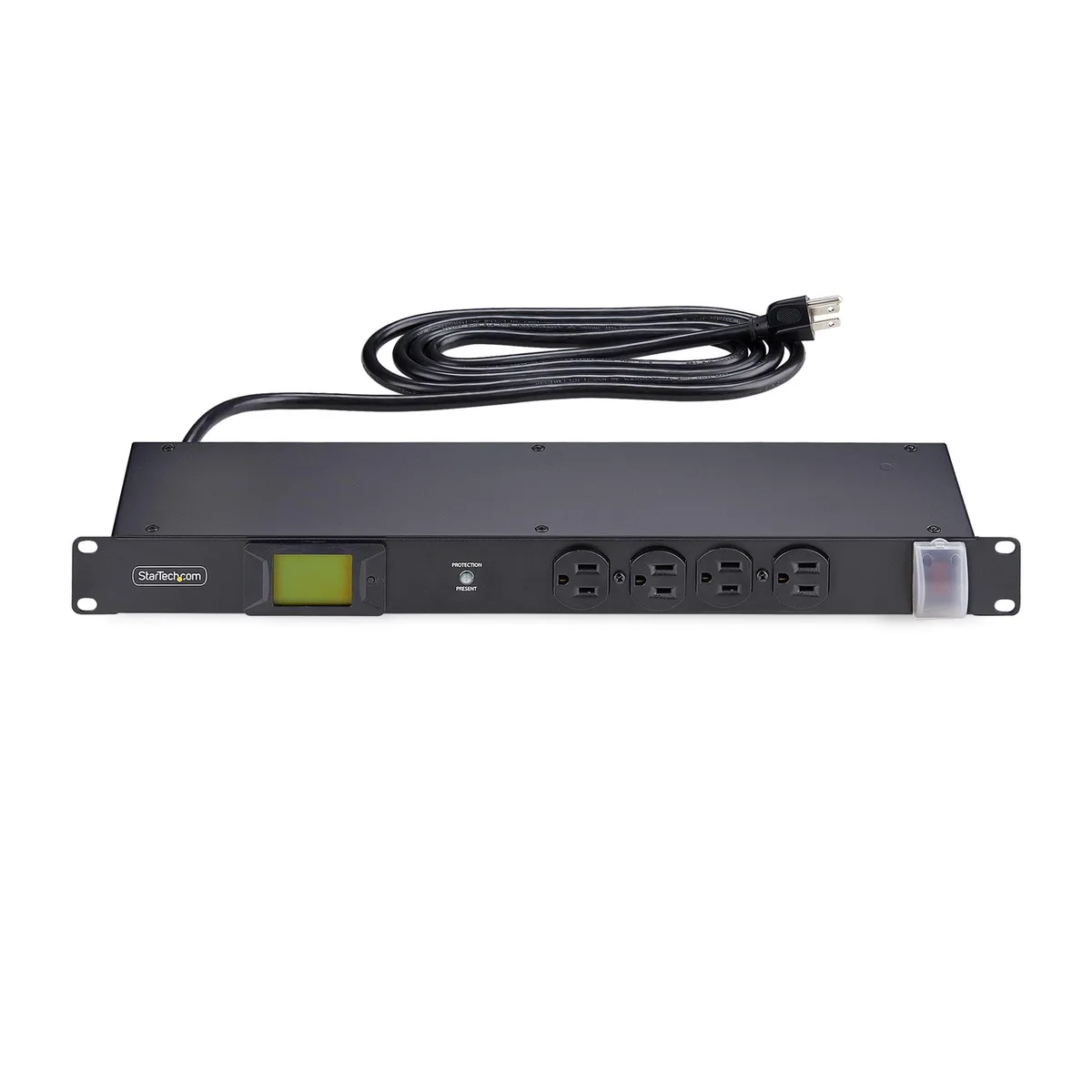

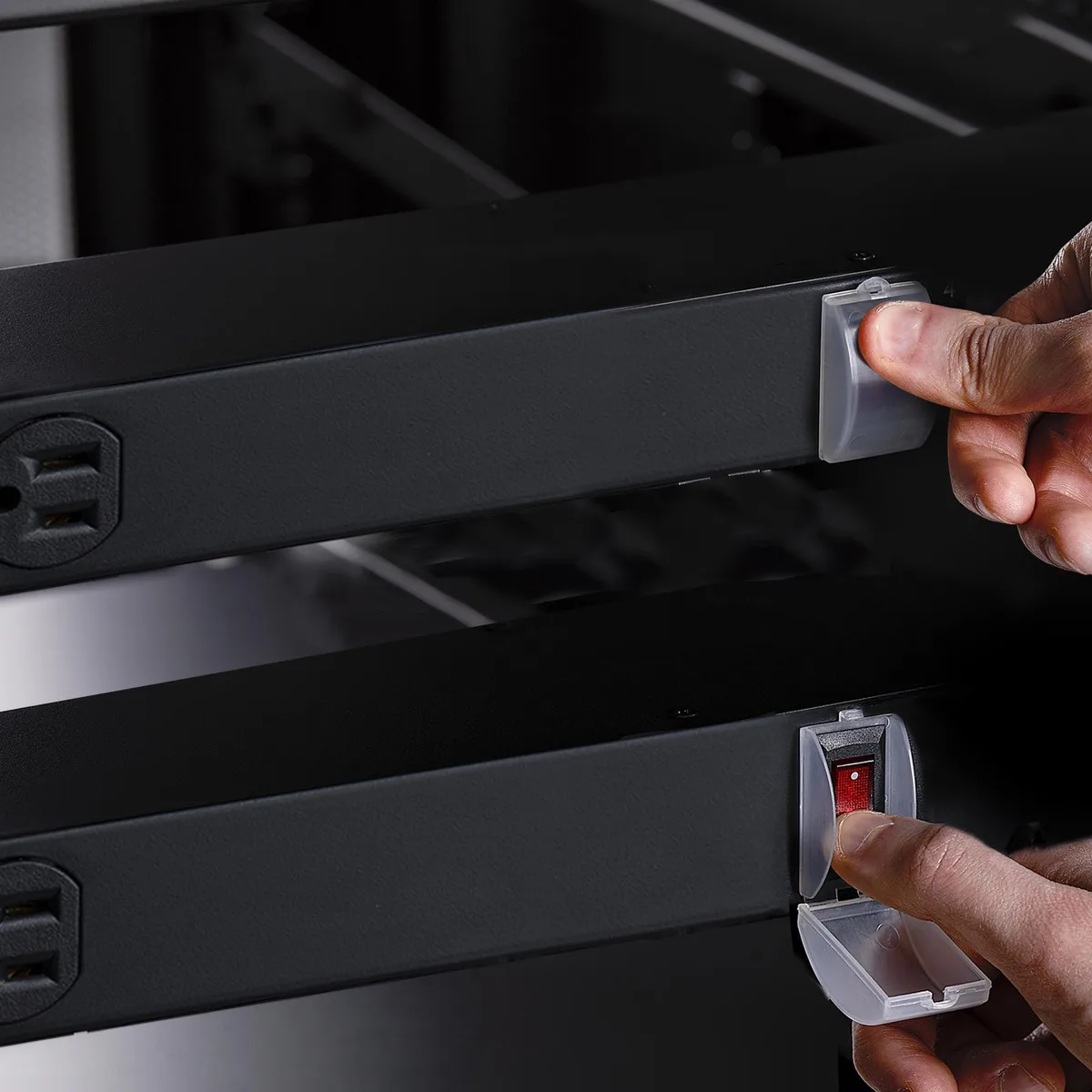

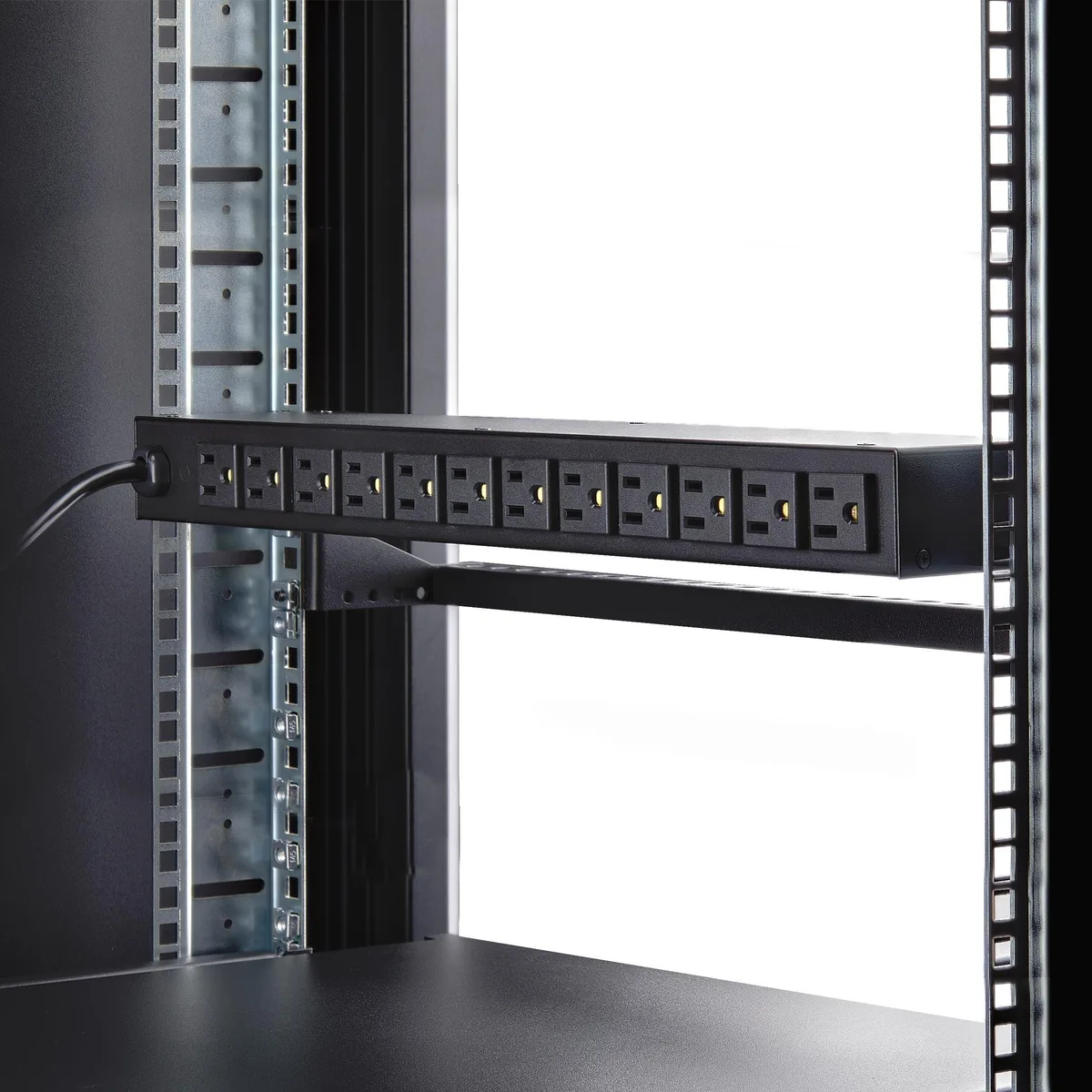

The housing uses cold-rolled steel with a textured black finish for durability in rack environments. It mounts horizontally in EIA-310-D compliant 19-inch racks at least 4 in deep, with twelve rear outlets and four front outlets for flexible cable routing. A surge protection LED indicates MOV status, and a safety cover prevents accidental breaker resets. The unit operates from 0°C to 40°C and stores from -10°C to 50°C.

Highlights

  • Real-time power monitoring with large display showing voltage, current, wattage and power factor
  • Surge protection with self-tripping MOV design and LED status indicator for equipment safety
  • 16 NEMA 5-15R outlets in 1U horizontal form factor for dense rack deployments
  • 8ft NEMA 5-15P input cord with 15A circuit breaker for reliable power delivery
  • Cold-rolled steel construction meets EIA-310-D standard for 19-inch rack compatibility

Specifications

BrandStarTech.com
Model16NM8-RACK-MOUNT-PDU
TypePower Distribution Units
Rack Size1U
StyleHorizontal
Front Panel LEDs1 - Surge Protection LED
Green: Protection is present
Off: No protection
Package Includes1 - Metered PDU
1 - Quick-Start Guide
Input Voltage120V
Maximum Input Current15A
Regulatory Derated Input Current12A
Input Connector(s)1 - NEMA 5-15 Power (North America)
Cord Length8 ft
Output VoltageNominal Output Voltage: 120V
Maximum Output Voltage: 125V
Output Connector(s)16 - NEMA 5-15 Power (North America)
Operating Environment0°C to 40°C (32°F to 104°F)
Storage Temperature-10°C to 50°C (14°F to 122°F)
FeaturesIndustry Standards:
EIA-310-D
UL 60950-1
UL1449 VPT 500V
Number of Power Outlets: 16
Rack-Mountable: Yes
Load Capacity: 1500 VA
Color: Black
Material: Steel
Dimensions1.7'' x 18.9'' x 3.9''
Weight4.4 lbs.
Shipping weight2.36 kg
Package size556 × 191 × 79 mm

Questions about this item

Will the 1U horizontal form factor fit my existing EIA-310-D 19-inch rack that is 10.1 cm deep?

Yes, the 1U horizontal design mounts in any EIA-310-D compliant 19-inch rack or cabinet with a depth of 10.1 cm or greater.

How can I verify the PDU is protecting my equipment after installation?

Check the front-panel surge-protection LED; a green light confirms active protection, while an unlit LED means the MOV circuit has tripped and protection is no longer present.

Does the package include mounting hardware or only the PDU and guide?

The box contains the metered PDU with its attached 2.4 m NEMA 5-15P cord and a quick-start guide; mounting screws or brackets are not included and must be sourced separately.
