Black 1U horizontal rackmount PDU with 14 NEMA 5-15 outlets and digital meter display

STARTECH

STARTECH 1415B8H-RACK-PDU-SP 14-Outlet 1U Rackmount PDU

SKU CH-S2B1-ZMFTS MPN 1415B8H-RACK-PDU-SP

1U horizontal rack PDU with 14 NEMA 5-15 outlets and a 7.9 ft input cord for 120 V server cabinets

  • TypePower Distribution Units
  • Rack Size1U
  • StyleHorizontal
  • Package Includes1 - Rack-Mount PDU 2 - Mounting Brackets (Pre-Installed) 4 -
  • Input Voltage120V
  • Maximum Input Current15A
  • 14 outlets power multiple devices from one strip
  • Real-time metering shows voltage, current, wattage and power factor
  • Surge protection with self-tripping MOV cuts power instantly
  • 1U horizontal design fits 19-inch EIA-310 racks 4 inches or deeper
  • 9 ft NEMA 5-15P cord reaches distant power sources

14-outlet 1U rack PDU

This 1U horizontal power distribution unit provides 14 NEMA 5-15R outlets for 120V equipment in standard 19-inch racks. It accepts a single NEMA 5-15P input plug on a 7.9 ft cord and supports a 15A maximum input current with a 12A regulatory derated limit. The unit delivers a 1500 VA load capacity for servers, switches and test gear.

Cold-rolled steel build with pre-installed brackets

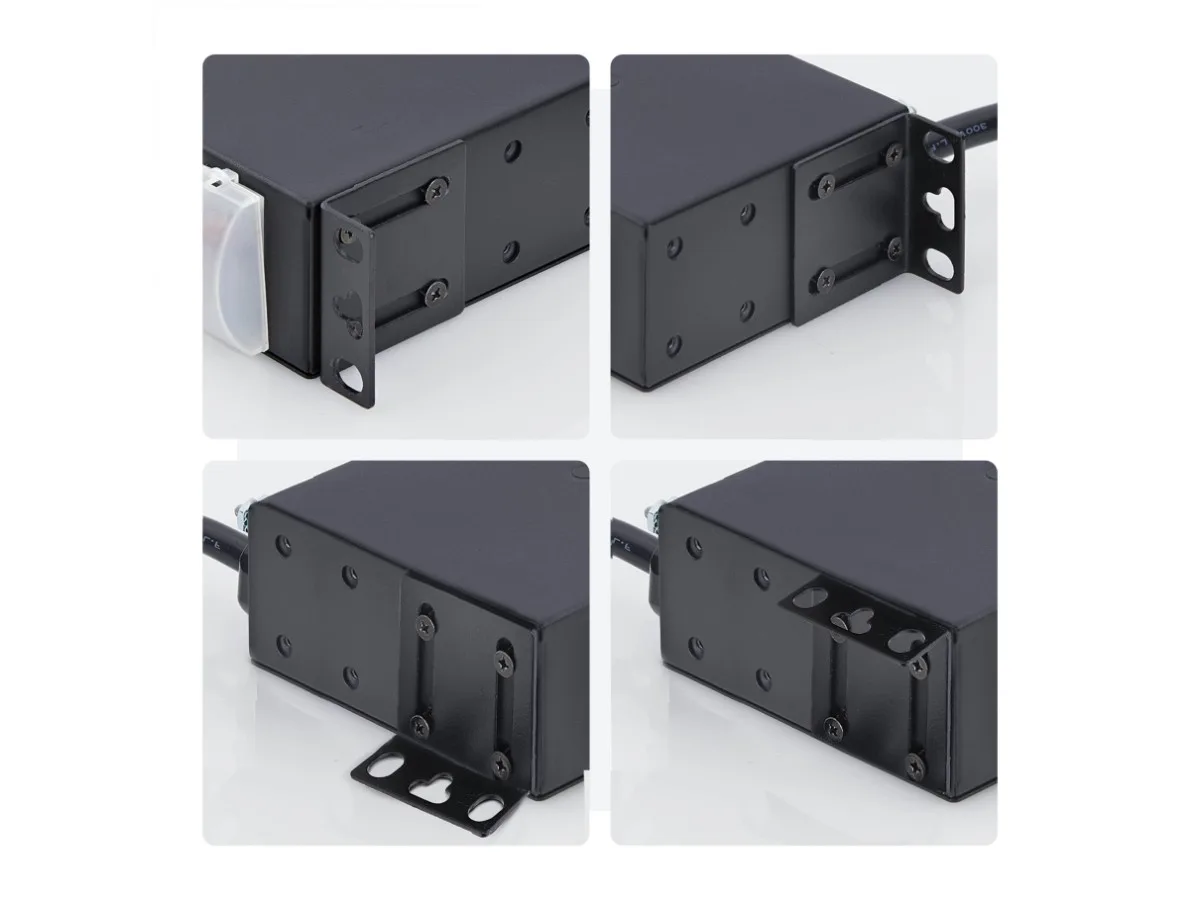

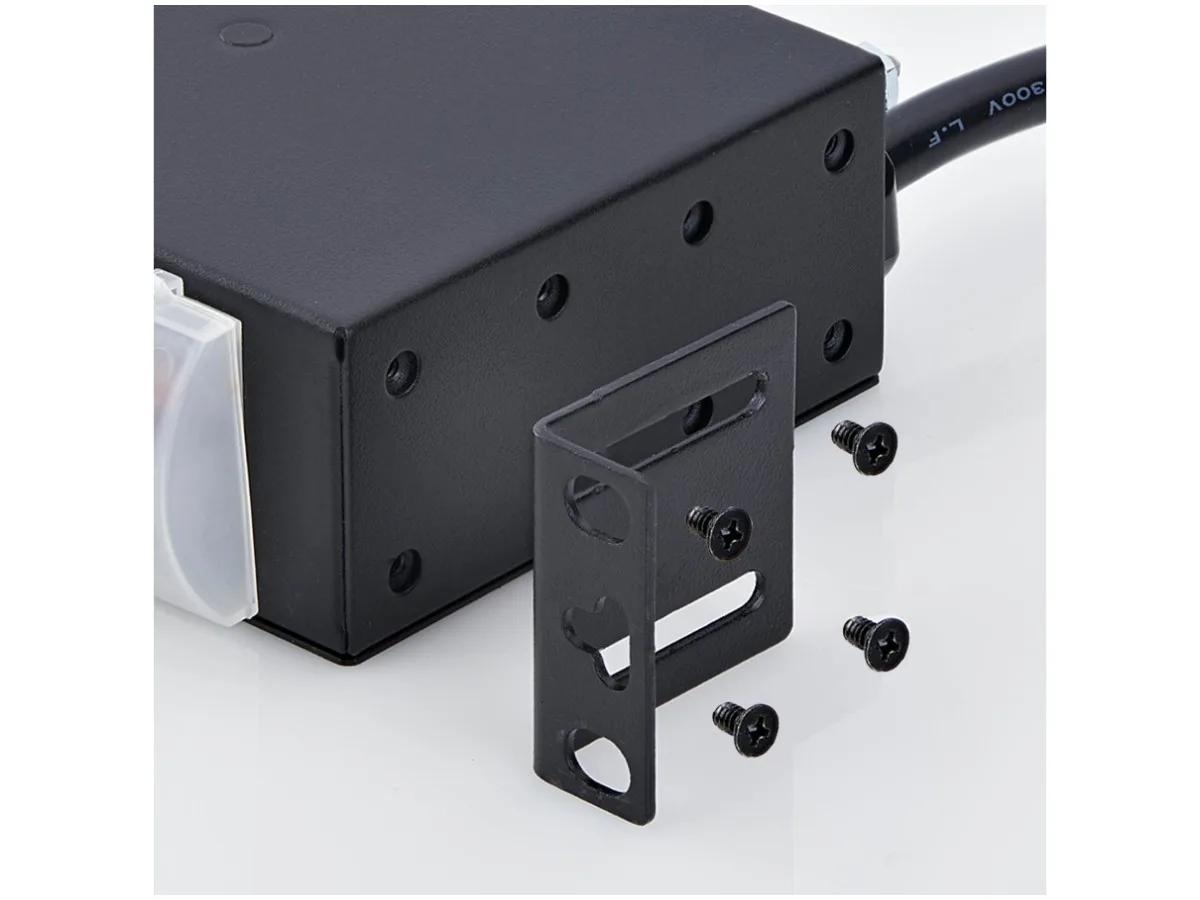

The chassis is made of cold-rolled steel with a textured black finish for durability in server rooms and data centres. Pre-installed mounting brackets and included M5 cage nuts and screws allow immediate installation in EIA-310 compliant racks that are 10.1 cm or deeper. Twelve outlets face the rear and four face the front for flexible cable routing.

Metered display and surge protection included

A large-font metered display shows real-time voltage, current, wattage and power factor so operators can monitor load health at a glance. Self-tripping MOV surge protection with a mechanical trigger cuts power instantly during transients, while a resettable 15A breaker and safety cover prevent accidental resets. This replaces basic unmetered strips when visibility and hardware protection are required.

Highlights

  • 14 outlets power multiple devices from one strip
  • Real-time metering shows voltage, current, wattage and power factor
  • Surge protection with self-tripping MOV cuts power instantly
  • 1U horizontal design fits 19-inch EIA-310 racks 4 inches or deeper
  • 9 ft NEMA 5-15P cord reaches distant power sources

Specifications

BrandStarTech.com
Model1415B8H-RACK-PDU-SP
TypePower Distribution Units
Rack Size1U
StyleHorizontal
Package Includes1 - Rack-Mount PDU
2 - Mounting Brackets (Pre-Installed)
4 - M5 Cage Nuts
4 - M5x12mm Rack Screws
1 - Product Documentation
Input Voltage120V
Maximum Input Current15A
Regulatory Derated Input Current12A
Input Connector(s)1 - NEMA 5-15 Power (North America)
Cord Length7.9 ft
Output VoltageNominal Output Voltage: 120V
Maximum Output Voltage: 125V
Output Connector(s)14 - NEMA 5-15 Power (North America)
FeaturesIndustry Standards:
UL 1363
EIA/ECA-310-E
Number of Power Outlets: 14
Rack-Mountable: Yes
Load Capacity: 1500 VA
Color: Black
Material: Steel
Dimensions1.7'' x 18.2'' x 3.7''
Weight3.57 lbs.
Shipping weight2.59 kg
Package size551 × 185 × 79 mm

Questions about this item

What input standard does the NEMA 5-15 plug use and what continuous current does the 12 A derating cap?

The NEMA 5-15 input plug follows the North American 120 V standard and the regulatory derating limits continuous draw to 12 A, so the 15 A breaker only handles short peaks.

What rack depth and hardware are required to mount the 1.7-inch high steel chassis?

The 1U horizontal PDU fits EIA-310 19-inch racks at least 10.1 cm deep and ships with pre-installed brackets, four M5 cage nuts and four M5x12 mm screws.

How is the 7.9 ft cord routed during installation and what step prevents accidental breaker resets?

Route the 2.4 m NEMA 5-15P cord to the source, secure the PDU with the supplied hardware, then close the safety cover over the 15 A breaker so it cannot be reset by mistake.
