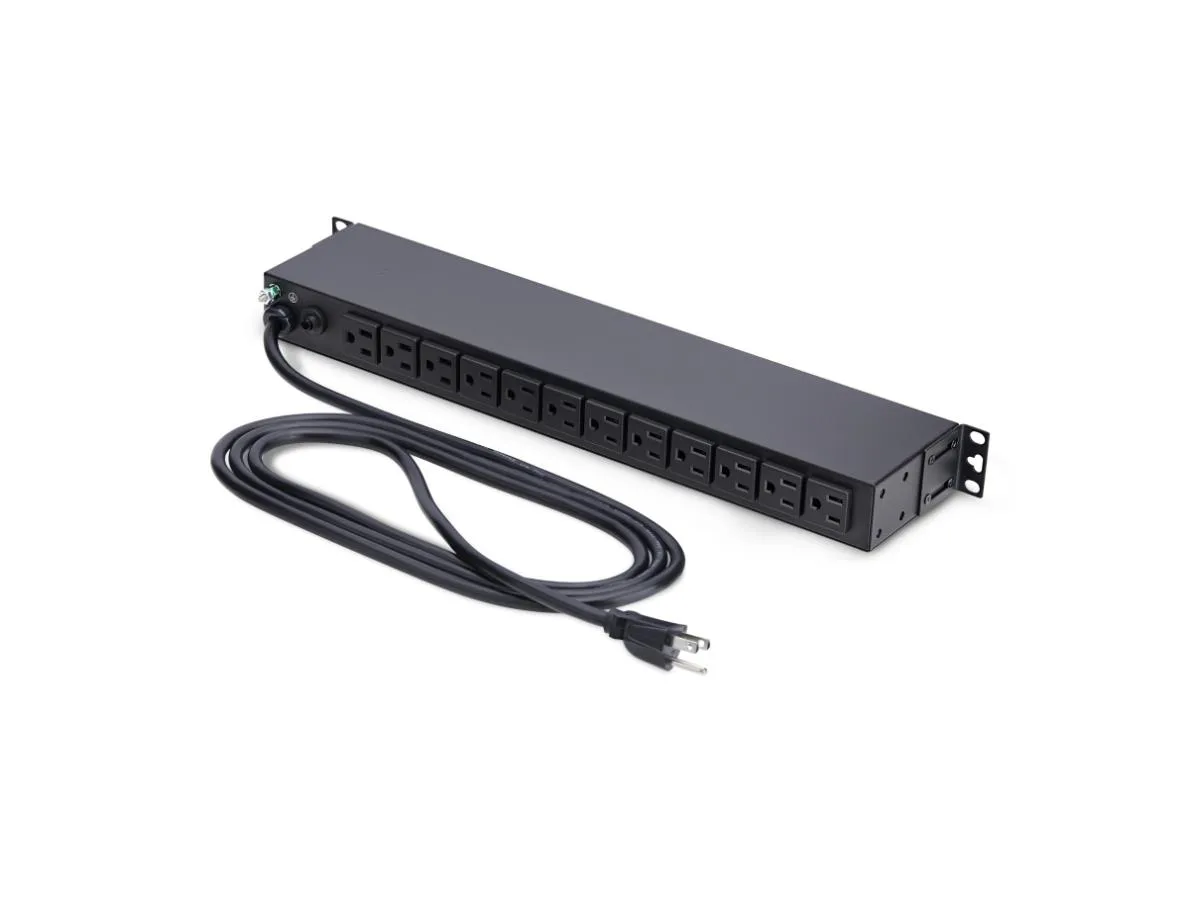

Black steel 1U horizontal rackmount PDU with 13 NEMA 5-15 outlets and 8ft cord

STARTECH

STARTECH 1315B8H-RACK-PDU 13-Outlet 1U Rackmount PDU

SKU CH-425Q-E3NHM MPN 1315B8H-RACK-PDU

A 1U rackmount power distribution unit supplying 120 V to 13 NEMA 5-15 outlets with a resettable 15 A breaker and an 8 ft cord

  • TypePower Distribution Units
  • Rack Size1U
  • StyleHorizontal
  • Package Includes1 - Rack-Mount PDU 2 - Mounting Brackets (Pre-Installed) 4 -
  • Input Voltage120V
  • Maximum Input Current15A
  • Distributes 120V power to 13 devices with 1500 VA load capacity
  • 1U horizontal steel chassis fits EIA-310 19-inch racks 4.3 inches deep or more
  • Front-facing outlet plus 12 rear ports keep cable routing clean and accessible
  • 8 ft NEMA 5-15 input cord reaches distant AC sources without extension leads
  • Resettable 15A circuit breaker protects connected equipment from overloads

Centralised 13-Outlet Rack Power

This 1U horizontal power distribution unit supplies 120 V to thirteen NEMA 5-15 outlets from a single 15 A input. It is built for small to mid-sized IT rooms, offices and business racks that need organised, code-compliant power delivery without extra bulk.

Sustained Load Behaviour

A user-resettable 15 A breaker protects every connected device during continuous operation, while the regulatory derated limit of 12 A ensures safe margins on extended runs. The 1500 VA load capacity remains stable across the full outlet count without thermal throttling.

Steel Build and Mounting Flexibility

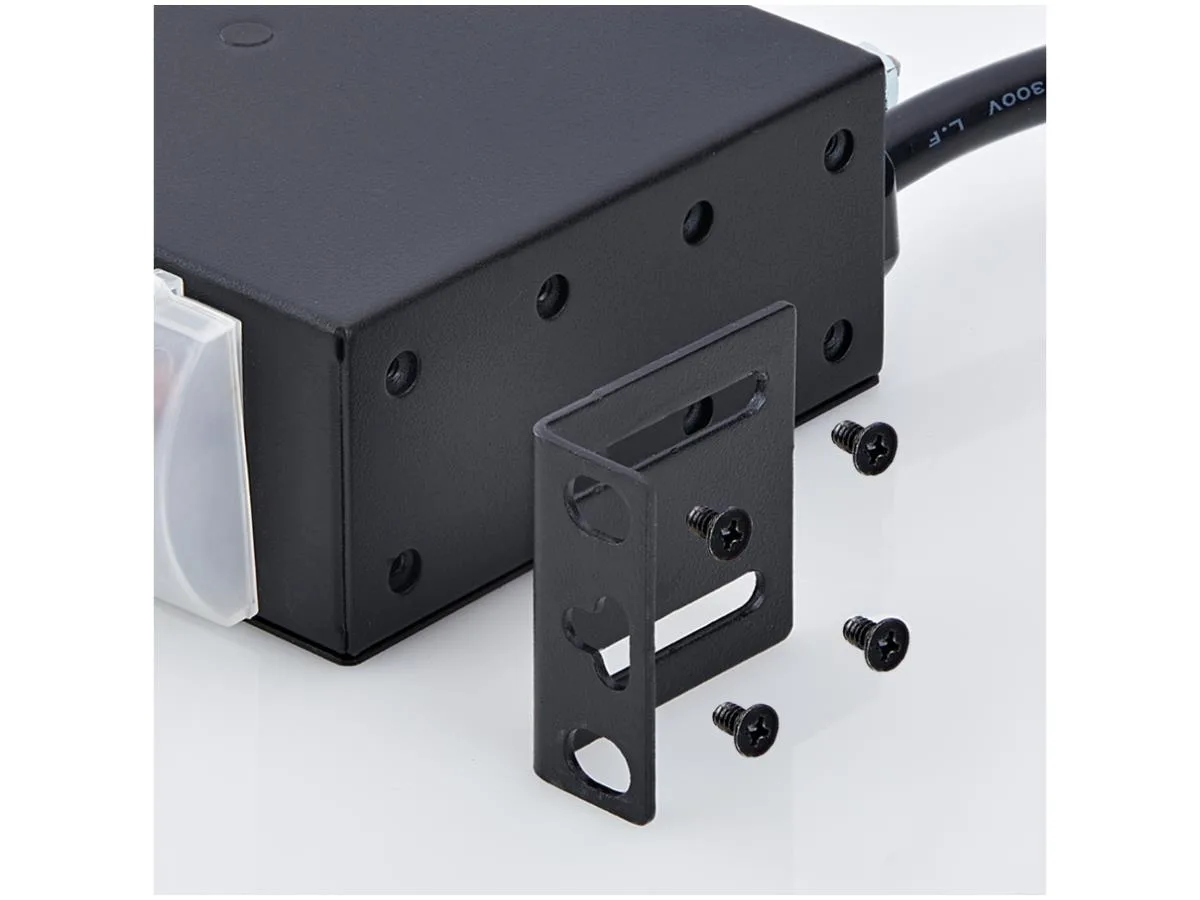

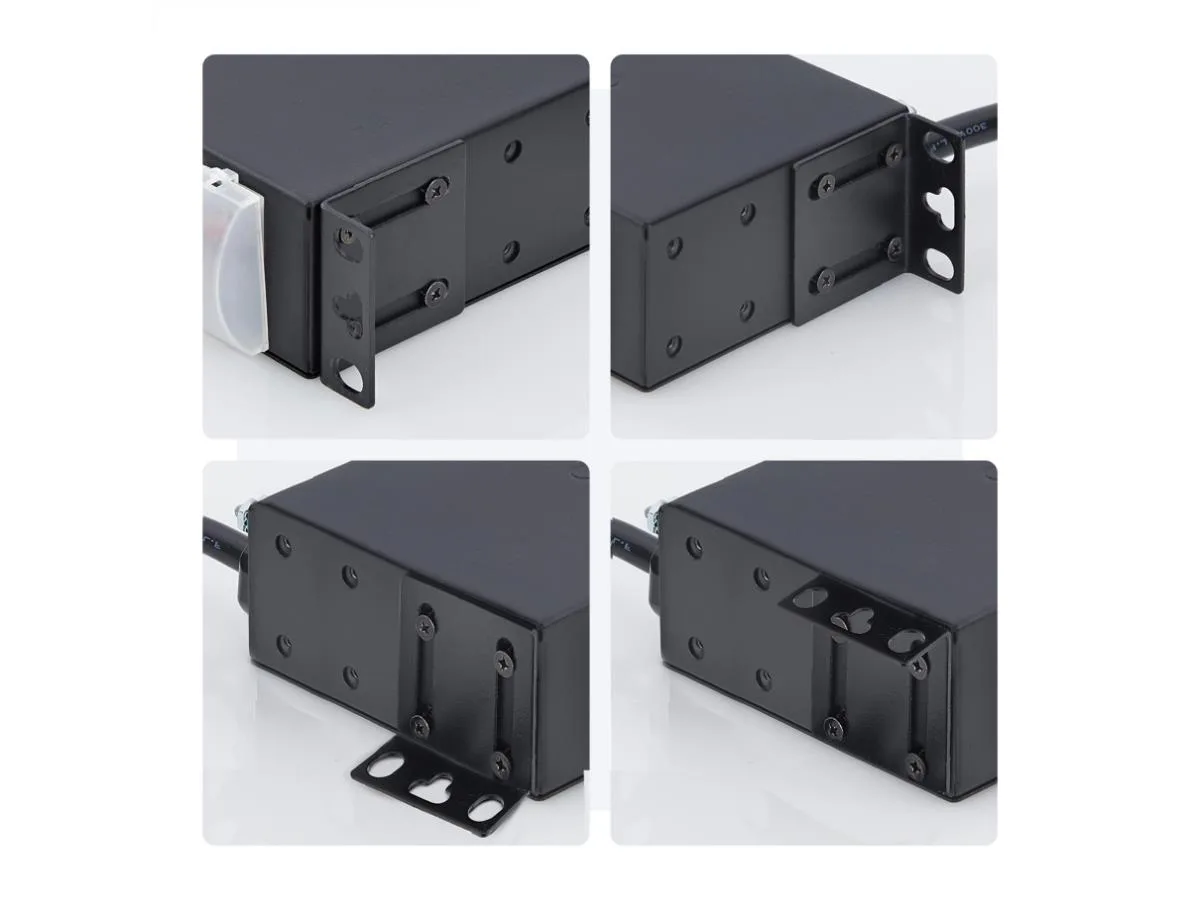

Rugged SPCC steel with a powder-coated finish resists wear in daily rack use. Pre-installed four-way brackets allow horizontal or vertical mounting on any EIA-310 19-inch cabinet deeper than 10.1 cm, and the 2.4 m cord reaches distant wall sockets cleanly.

Highlights

  • Distributes 120V power to 13 devices with 1500 VA load capacity
  • 1U horizontal steel chassis fits EIA-310 19-inch racks 4.3 inches deep or more
  • Front-facing outlet plus 12 rear ports keep cable routing clean and accessible
  • 8 ft NEMA 5-15 input cord reaches distant AC sources without extension leads
  • Resettable 15A circuit breaker protects connected equipment from overloads

Specifications

BrandStarTech.com
Model1315B8H-RACK-PDU
TypePower Distribution Units
Rack Size1U
StyleHorizontal
Package Includes1 - Rack-Mount PDU
2 - Mounting Brackets (Pre-Installed)
4 - M5 Cage Nuts
4 - M5x12mm Rack Screws
4 - Plastic Washers
4 - Metal Washers
1 - Product Documentation
Input Voltage120V
Maximum Input Current15A
Regulatory Derated Input Current12A
Input Connector(s)1 - NEMA 5-15 Power (North America)
Cord Length8 ft
Output VoltageNominal Output Voltage: 120V
Maximum Output Voltage: 125V
Output Connector(s)13 - NEMA 5-15 Power (North America)
FeaturesIndustry Standards:
UL 1363
EIA/ECA-310-E
Number of Power Outlets: 13
Rack-Mountable: Yes
Load Capacity: 1500 VA
Color: Black
Material: Steel
Dimensions1.7'' x 18.8'' x 4.3''
Weight3.73 lbs.
Shipping weight2.18 kg
Package size516 × 236 × 51 mm

Questions about this item

Does the 15 A circuit breaker trip often when the PDU runs at its 1500 VA load capacity all day?

The user-resettable 15 A breaker only trips if the combined draw exceeds 15 A; at the rated 1500 VA load the unit operates within its 12 A derated limit, so nuisance tripping is unlikely.

What rack hardware must I already have to mount this 1U horizontal PDU?

You need a standard EIA-310 19-inch rack or cabinet at least 10.1 cm deep; the package supplies four M5 cage nuts, four M5×12 mm screws and washers for installation.

Can I plug legacy NEMA 5-15 devices into the 12 rear-facing outlets while keeping the front port free for temporary gear?

Yes, all 13 outlets are NEMA 5-15; the 12 rear ports handle permanent connections and the single front port remains accessible for short-term devices.
