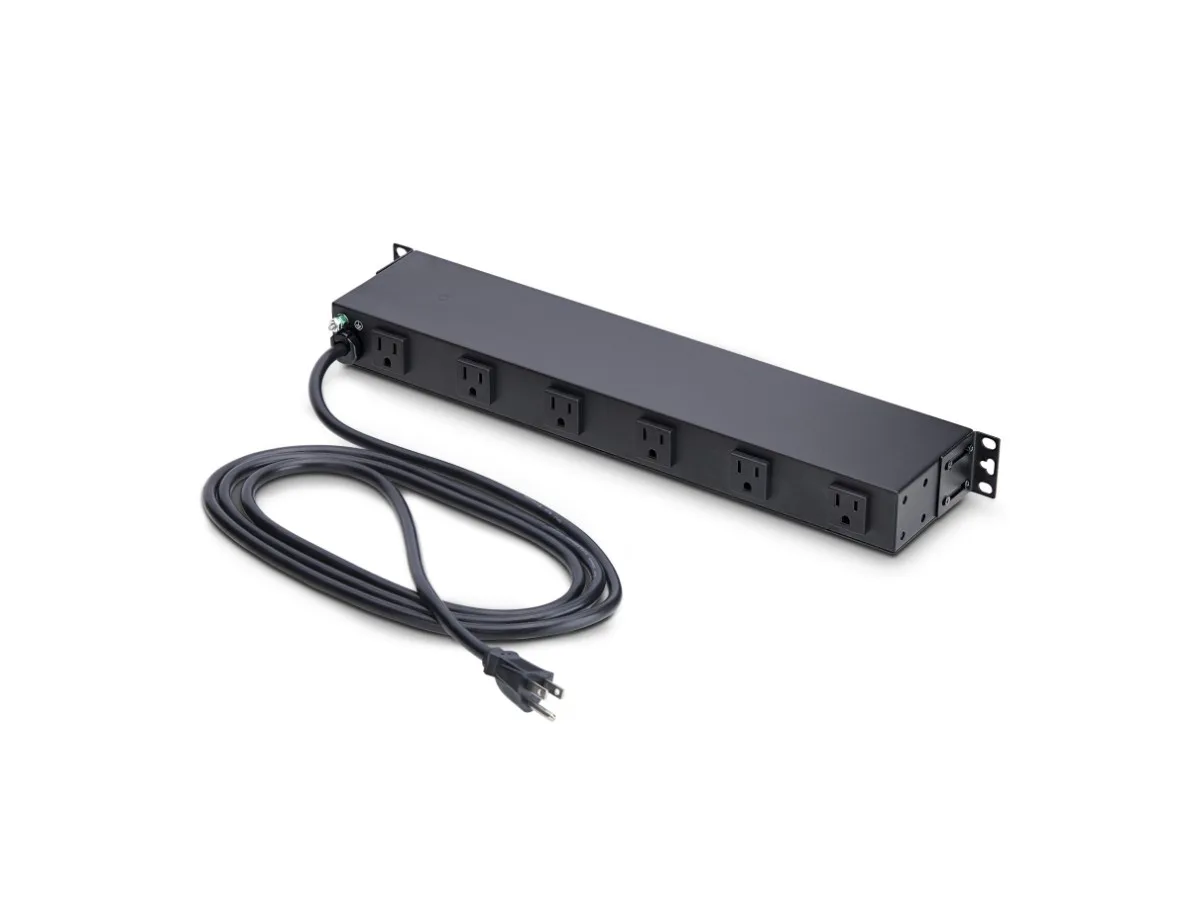

Black 1U steel rackmount PDU with twelve right-angle NEMA 5-15 outlets and illuminated power switch

STARTECH

STARTECH 1215B8H-RACK-PDU-RA 12-Outlet 1U Rackmount PDU

SKU CH-3AWM-E0VQ7 MPN 1215B8H-RACK-PDU-RA

A 1U rackmount power strip supplies 120V to twelve right-angle NEMA 5-15 outlets with a 7.9 ft cord and a 15A circuit breaker

  • TypePower Distribution Units
  • Rack Size1U
  • StyleHorizontal
  • Front Panel LEDs1 - Power switch LED: Illuminates red when unit is powered O
  • Package Includes1 - Rack-Mount PDU 2 - Mounting Brackets (Pre-Installed) 4 -
  • Input Voltage120V
  • Centralized 120V power for 12 devices in a single 1U rack unit
  • Right-angle NEMA 5-15 outlets prevent bulky adapters from blocking adjacent plugs
  • 9 ft input cord reaches distant AC outlets without extension leads
  • User-resettable 15A breaker protects connected equipment from overload events
  • Horizontal or vertical mounting on EIA-310 19" racks with included brackets

Rack Power for 12 Devices

This 1U horizontal PDU distributes 120V power to twelve NEMA 5-15 outlets from a single 15A input. It suits small to mid-sized IT environments, offices and businesses that need organized rack-mounted distribution without extra complexity.

Passive Cooling with 15A Protection

The steel enclosure uses convection airflow so it adds no fan noise to the rack. A user-resettable 15A circuit breaker protects connected equipment from overloads while the illuminated switch cover prevents accidental power-off during maintenance.

Right-Angle Outlets and Four-Way Mounting

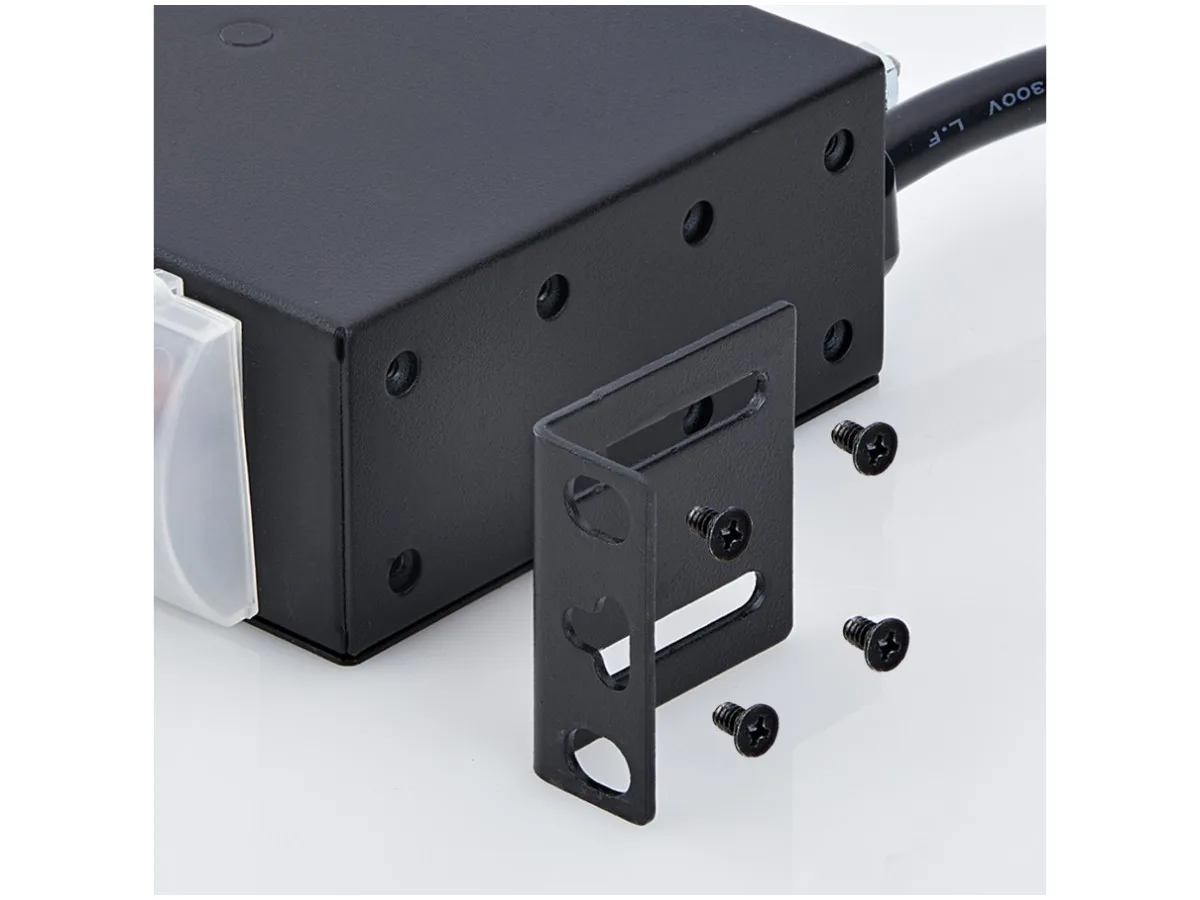

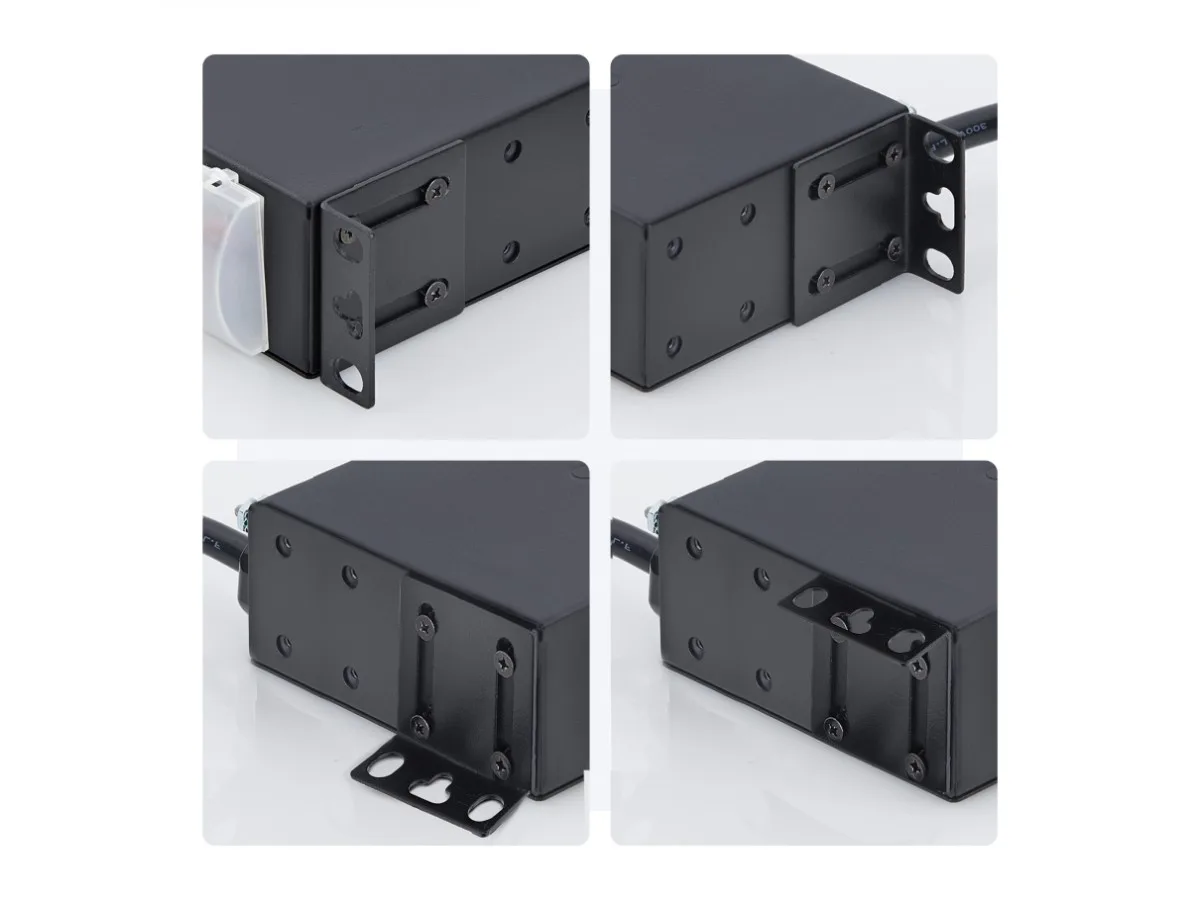

Right-angle NEMA 5-15 sockets stop bulky adapters from blocking neighbours and ease cable routing along the rack side. Pre-installed brackets with included M5 hardware allow horizontal or vertical installation on EIA-310 19-inch racks deeper than 10.1cm.

Highlights

  • Centralized 120V power for 12 devices in a single 1U rack unit
  • Right-angle NEMA 5-15 outlets prevent bulky adapters from blocking adjacent plugs
  • 9 ft input cord reaches distant AC outlets without extension leads
  • User-resettable 15A breaker protects connected equipment from overload events
  • Horizontal or vertical mounting on EIA-310 19" racks with included brackets

Specifications

BrandStarTech.com
Model1215B8H-RACK-PDU-RA
TypePower Distribution Units
Rack Size1U
StyleHorizontal
Front Panel LEDs1 - Power switch LED: Illuminates red when unit is powered ON
Package Includes1 - Rack-Mount PDU
2 - Mounting Brackets (Pre-Installed)
4 - M5 Cage Nuts
4 - M5x12mm Rack Screws
4 - Plastic Washers
4 - Metal Washers
1 - Product Documentation
Input Voltage120V
Maximum Input Current15A
Regulatory Derated Input Current12A
Input Connector(s)1 - NEMA 5-15 Power (North America)
Cord Length7.9 ft
Output Voltage120V
Output Connector(s)12 - NEMA 5-15 Power (North America)
FeaturesIndustry Standards:
UL 1363
EIA/ECA-310-E
Load Capacity: 1500 VA
Color: Black
Material: Steel
Plug Type: NEMA 5-15 Power (North America) Plug
Number of Power Outlets: 12
Rack-Mountable: Yes
Dimensions1.7'' x 18.8'' x 3.7''
Weight3.57 lbs.
Shipping weight2.13 kg
Package size516 × 236 × 51 mm

Questions about this item

How do I install the 1U PDU in a 19-inch rack and which step is most often missed?

Use the pre-installed four-way brackets with the four M5 cage nuts, M5x12mm screws, plastic washers, and metal washers; the step most often missed is fitting both the plastic and metal washers on each screw for a secure mount.

What maintenance or replacement will the 12-outlet PDU need over time?

The user-resettable 15A circuit breaker handles overload protection; if it trips repeatedly, the breaker itself may need replacement, but no other consumable parts are required.

What is the first limit reached under sustained load on this 120V PDU?

The regulatory derated input current of 12A is the first limit; continuous draw above 12A will trip the 15A breaker even though the plug and cord are rated for 15A.
