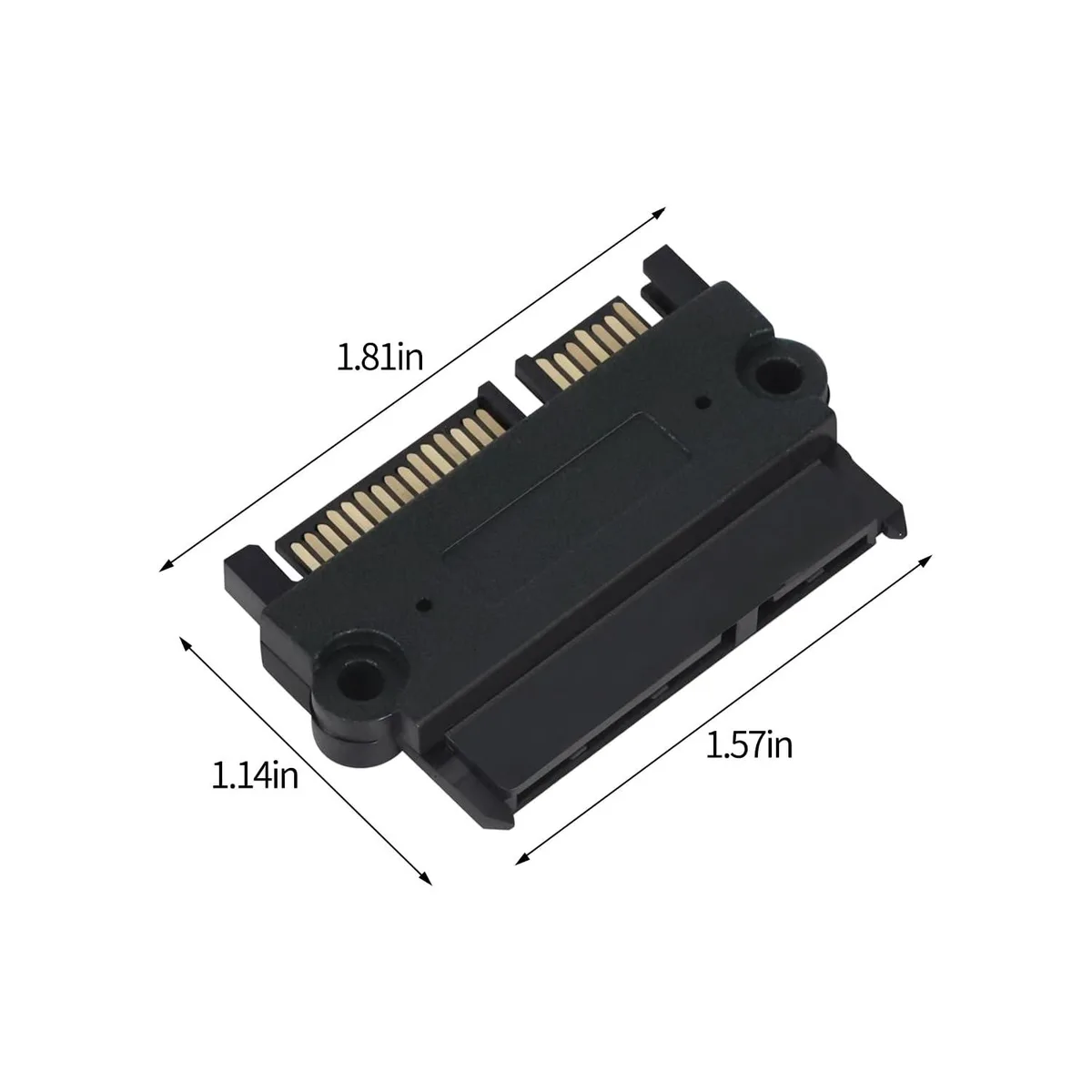

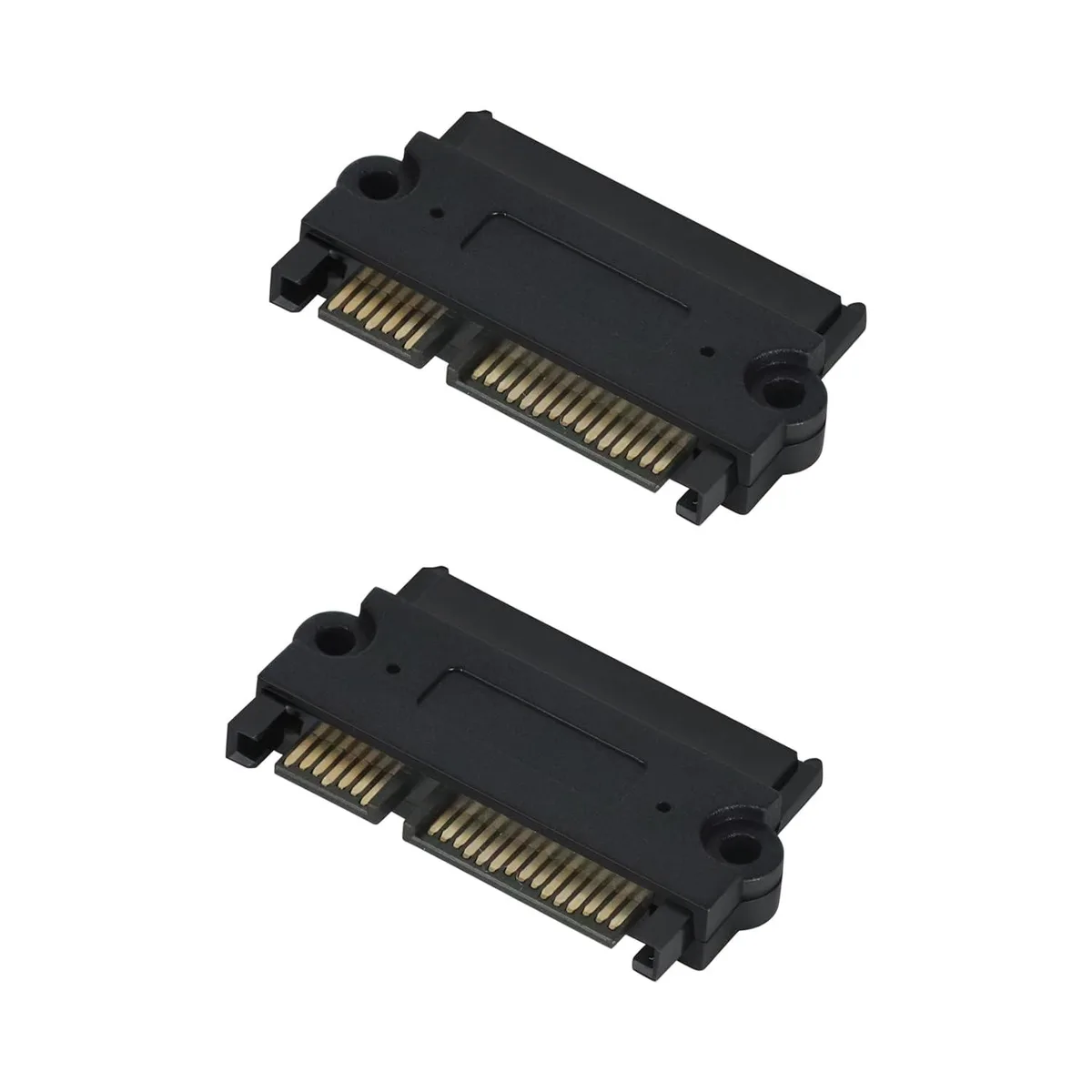

Two black SATA 22 pin male to female adapters

SoNNeT 2 Pack SATA 22 Pin Male to Female Adapter

SKU CH-537Z-WX642

Two-pack SATA 22-pin male-to-female extenders protect 2.5 and 3.5-inch drives and select 1.8-inch SSDs

  • ColorBlack
  • Changer TypeSATA
  • SpecificationsHDD, 2, WYTUDTE, SSD
  • Connector AHDD
  • Connector BHDD
  • Connector StyleStandard
  • Protects original drive ports from wear with male-to-female extension
  • Gold-plated copper contacts ensure reliable data and power transfer

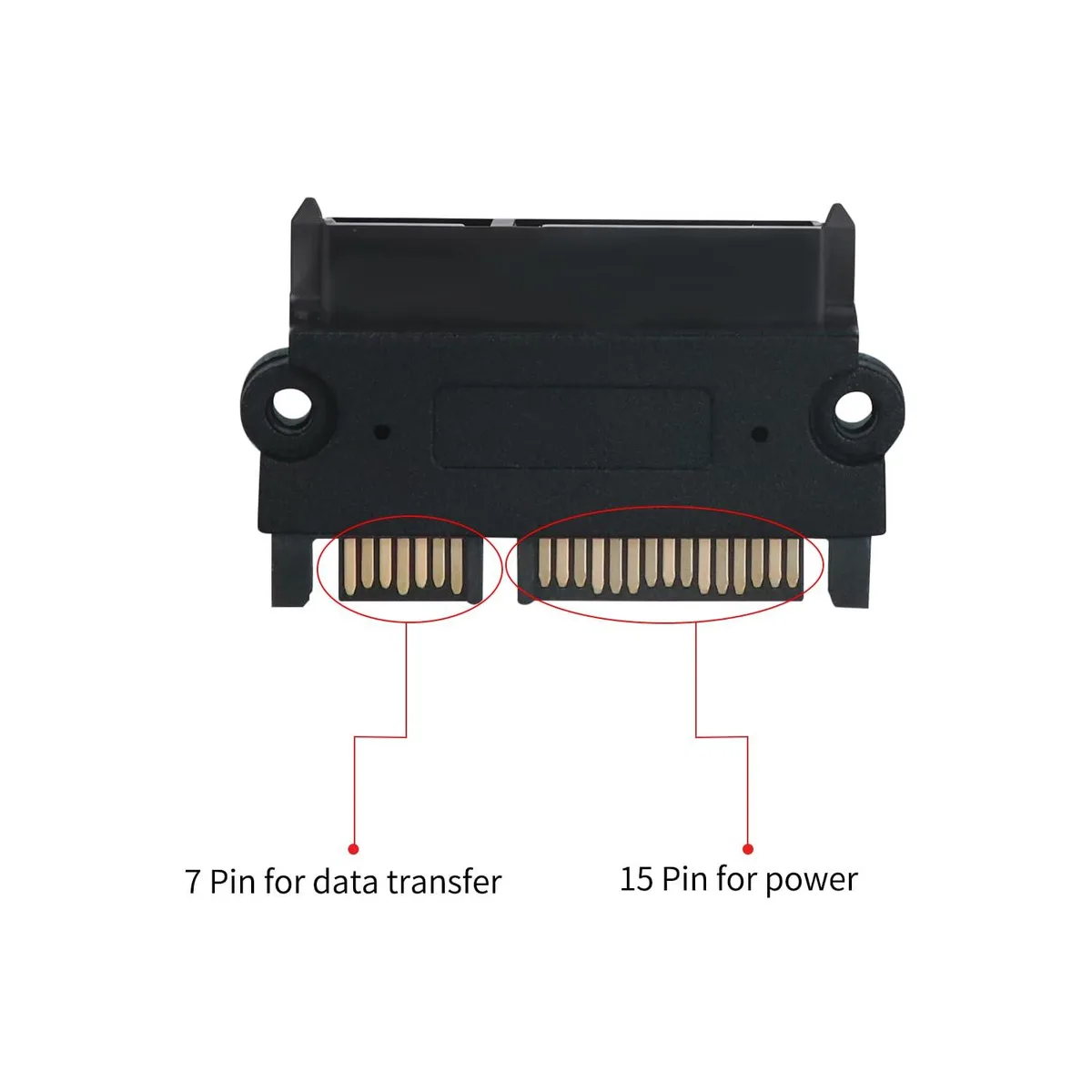

  • 22-pin design combines 15-pin power and 7-pin data in one connector
  • Supports 2.5 and 3.5 inch HDDs plus 1.8 inch SSDs and optical drives
  • Includes two adapters for multiple drive connections

Two-pack SATA 22-pin adapter

This two-pack provides SATA 22-pin male-to-female extenders designed for 2.5-inch and 3.5-inch hard drives, 2.5-inch SSDs and some 1.8-inch SSDs. The connectors combine a 15-pin power segment with a 7-pin data segment in a single moulded housing. Gold-plated copper contacts aim to maintain reliable signal integrity. Each adapter protects the drive's native port from repeated insertion cycles.

Extends reach inside tight builds

The female end accepts the drive's standard SATA connector while the male end plugs into a motherboard, backplane or controller port. PVC moulding adds strain relief where the cable meets the connector body. No additional drivers or configuration are required; the link is passive and transparent to the host. Builders gain extra clearance when routing cables around large coolers or in compact chassis.

Handles standard SATA drives up to 3.5-inch

The adapter carries both power and data for drives within the SATA specification, including optical drives with a 13-pin interface. It does not convert SAS to SATA or SATA to SAS, so SAS-only backplanes and controllers remain incompatible. Buyers needing SAS connectivity or more than two extension points will require a different solution.

Highlights

  • Protects original drive ports from wear with male-to-female extension
  • Gold-plated copper contacts ensure reliable data and power transfer
  • 22-pin design combines 15-pin power and 7-pin data in one connector
  • Supports 2.5 and 3.5 inch HDDs plus 1.8 inch SSDs and optical drives
  • Includes two adapters for multiple drive connections

Specifications

BrandSoNNeT
ColorBlack
Changer TypeSATA
SpecificationsHDD, 2, WYTUDTE, SSD
Connector AHDD
Connector BHDD
Connector StyleStandard
FeaturesHDD, SSD, 2, WYTUDTE

Questions about this item

How many pins does the 22-pin SATA connector combine for data and power?

The connector combines a 7-pin data segment with a 15-pin power segment for a total of 22 pins.

Does the PVC-moulded, gold-plated adapter generate noticeable heat or noise during continuous operation?

The passive adapter has no active components, so it produces no audible noise and negligible heat under sustained use.

Which drives can I connect directly with this male-to-female extender without extra cables?

It fits 2.5-inch and 3.5-inch SATA HDDs, 2.5-inch SATA SSDs and some 1.8-inch SSDs, plus SATA optical drives.
