Small desktop firewall appliance in dark metal finish with front panel ports and indicators

SonicWall

SonicWall TZ480 firewall appliance 03-SSC-6973 Total Secure 1Y APSS

SKU CH-1ZV4-KC7XC MPN 03-SSC-6973

Desktop firewall with eight 1 GbE ports, two 5G SFP slots, 4 Gbps inspection throughput and a one-year Total Secure protection bundle

  • TypeWired
  • Form FactorDesktop
  • StandardsTCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHC
  • ProtocolsBGP, OSPF, RIPv1/v2, static routes, policy-based routing
  • SecurityDeep Packet inspection services: Gateway Anti-Virus, Anti-Sp
  • System MemoryOptional: Up to 512 Gb

Hardware TZ480

Option Total Secure (Appliance + 1Y APSS)

  • Industry-validated security effectiveness for small organisations
  • 4 Gbps firewall inspection throughput for high-speed traffic
  • 8 x 1GbE RJ45 and 2 x 5G/2.5G/1G SFP ports for flexible connectivity
  • Advanced Protection Security Suite with gateway anti-virus, IPS and TLS decryption
  • Centralised cloud management via Network Security Manager with zero-touch deployment

Target deployment

The SonicWall TZ480 is a desktop firewall appliance built for small organisations and distributed enterprises that run SD-Branch sites. It ships with a one-year Advanced Protection Security Suite licence covering gateway anti-virus, anti-spyware, intrusion prevention, TLS decryption and reputation-based content filtering.

Pre-installation checks

Verify that your rack or desk space accommodates a desktop form factor and that the 100-240 VAC power source matches local mains. Confirm the eight 1 GbE copper ports and two 5G/2.5G/1G SFP slots align with your existing switch uplinks and WAN circuits. Ensure SonicOS 8 is compatible with current management workflows and that optional storage expansion up to 512 Gb is planned if logging retention needs grow.

Upgrade perspective

The unit replaces older desktop firewalls that lack 2.2 Gbps threat-prevention throughput, 1,200,000 concurrent connections or Secure SD-WAN capability. The performance jump is worth it when branch offices need Zero-Touch Deployment, centralised Network Security Manager control and integrated Wi-Fi 6 firewall management without adding separate controllers.

Highlights

  • Industry-validated security effectiveness for small organisations
  • 4 Gbps firewall inspection throughput for high-speed traffic
  • 8 x 1GbE RJ45 and 2 x 5G/2.5G/1G SFP ports for flexible connectivity
  • Advanced Protection Security Suite with gateway anti-virus, IPS and TLS decryption
  • Centralised cloud management via Network Security Manager with zero-touch deployment

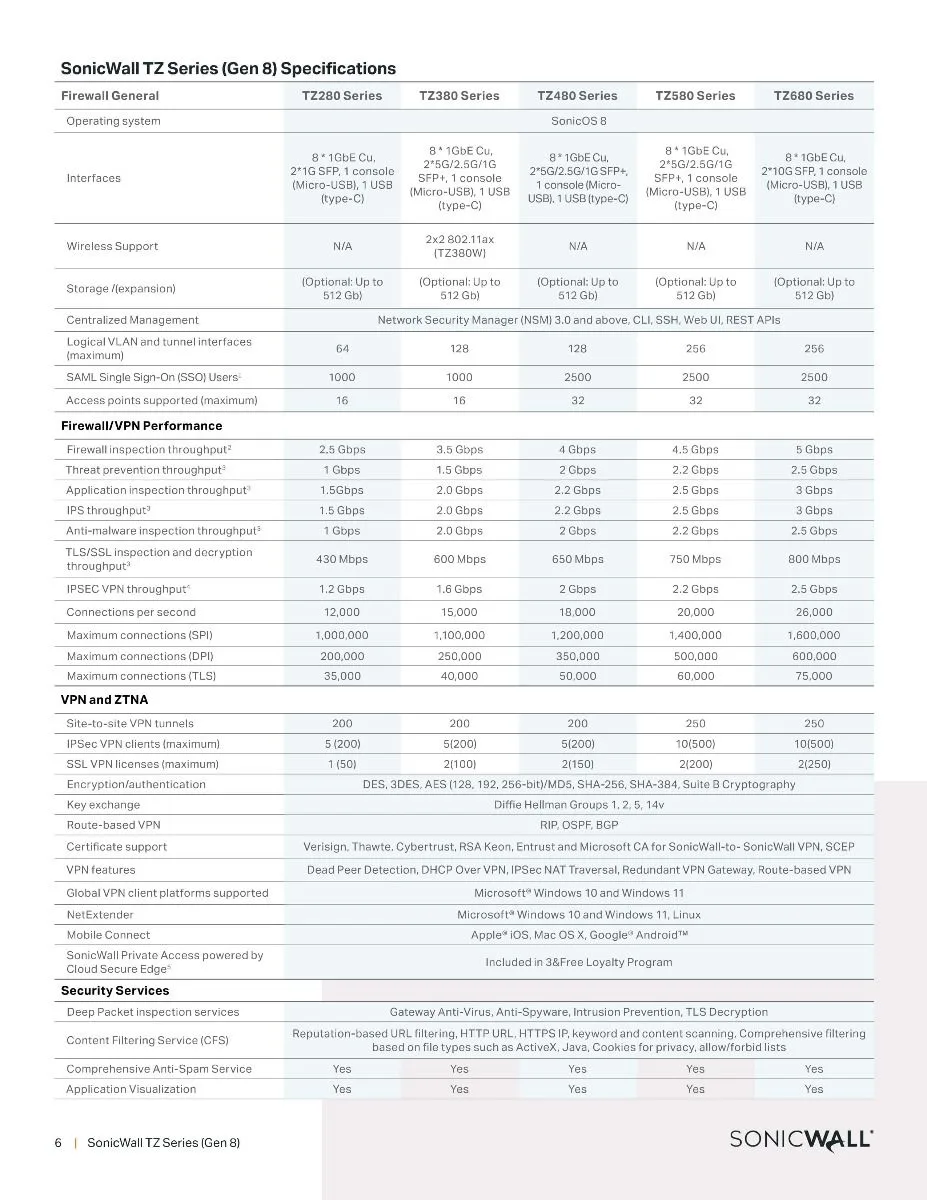

Specifications

BrandSONICWALL
SeriesTZ480
ModelTZ480 - Total Secure (1Y APSS)
Part Number03-SSC-6973
TypeWired
Form FactorDesktop
StandardsTCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
ProtocolsBGP, OSPF, RIPv1/v2, static routes, policy-based routing
SecurityDeep Packet inspection services: Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, TLS Decryption
Content Filtering Service (CFS): Reputation-based URL filtering, HTTP URL, HTTPS IP, keyword and content scanning, Comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists
Comprehensive Anti-Spam Service
Application Visualization
Application Control
Capture Advanced Threat Protection
Advanced DNS Filtering
System MemoryOptional: Up to 512 Gb
Ports8 x 1GbE RJ45, 2 x 5G/2.5G/1G SFP
VPNFirewall/VPN Performance
Firewall inspection throughput: 4 Gbps
Threat prevention throughput: 2 Gbps
Application inspection throughput: 2.2 Gbps
IPS throughput: 2.2 Gbps
Anti-malware inspection throughput: 2.0 Gbps
TLS/SSL inspection and decryption throughput: 650 Mbps
IPSEC VPN throughput: 2 Gbps
Connections per second: 18,000
Maximum connections (SPI): 1,200,000
Maximum connections (DPI): 350,000
Maximum connections (TLS): 50,000
VPN and ZTNA
Site-to-site VPN tunnels: 200
IPSec VPN clients: 5(200)
SSL VPN licenses (maximum): 2(150)
Encryption/authentication: AES (128, 192, 256-bit)
CertificationsIPv6
ComplianceFCC Class B, ICES Class B, CE (EMC, LVD, RoHS), UL, cUL, Mexico DGN Notice by UL, ANATEL, WEEE, REACH, SCIP, RCM, MIC Terminal, VCCI Class B, KCC/MSIP, BSMI, MTCTE/TEC, CB
Power Input100-240 VAC, 50-60Hz
Max Power Consumption13.77 W
FeaturesGeneral
Operating system: SonicOS 8

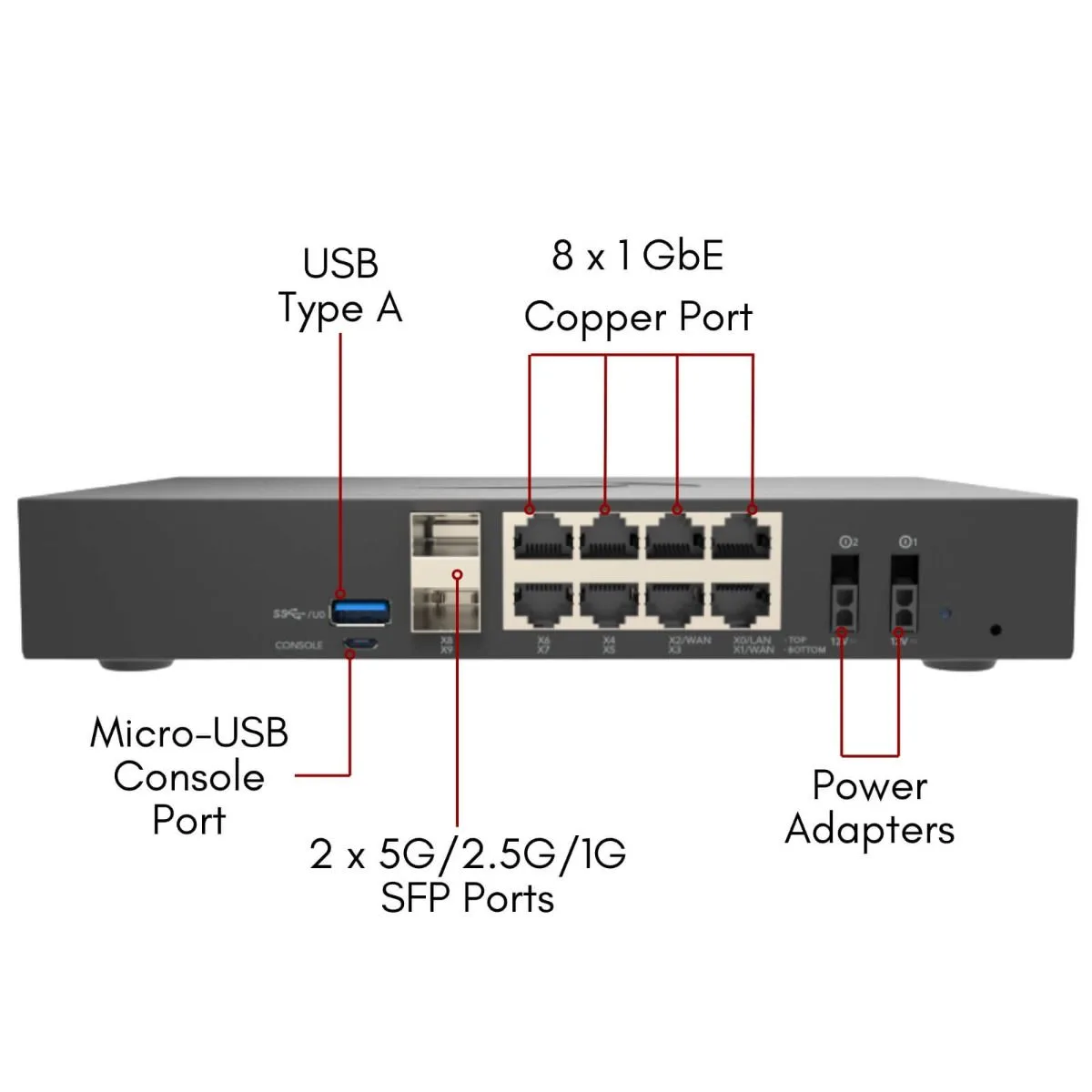

Interfaces: 8 * 1GbE Cu, 2 X 5G/2.5G/1G SFP, 1 console (Micro-USB), 1 USB (type-C)
Storage /(expansion): (Optional: Up to 512 Gb)
Centralized Management: Network Security Manager (NSM) 3.0 and above, CLI, SSH, Web UI, REST APIs
Logical VLAN and tunnel interfaces (maximum): 128
SAML Single Sign-On (SSO) Users: 2500
Access points supported (maximum): 32
Networking
IP address assignment: Static (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay
NAT modes: 1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transpare
Shipping weight1.77 kg
Package size366 × 218 × 69 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What comes in the box with the TZ480 and do I need to buy SFP modules separately?

The appliance includes the desktop unit with 8 x 1GbE RJ45 ports, 2 x 5G/2.5G/1G SFP cages, one Micro-USB console port and one USB-C port; SFP transceivers are not included and must be purchased separately for fibre links.

Which licence tier is bundled with part number 03-SSC-6973 and what does it cover?

The SKU ships with a 1-Year Advanced Protection Security Suite (APSS) that adds gateway anti-virus, anti-spyware, intrusion prevention, TLS decryption, reputation-based content filtering and cloud management via Network Security Manager.

What does the 4 Gbps firewall inspection throughput mean for my 2.5 Gbps WAN link?

The 4 Gbps inspection ceiling is well above a 2.5 Gbps circuit, so the TZ480 can scan all traffic at line rate without becoming a bottleneck.
