1U rack-mount security appliance with front ports

SonicWall

SonicWall NSa 4700 02-SSC-8986 firewall appliance

SKU CH-BD8C-8J6VP MPN 02-SSC-8986

A 1U rack-mount firewall appliance with six multi-gigabit SFP+ ports, twenty-four 1GbE copper ports and 128 GB storage expandable to 1 TB.

  • Firewall TypeFirewalls / Security Appliances
  • TypeWired
  • StandardTCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHC
  • Ports6 x 10G/5G/2.5G/1G (SFP+); 24 x 1GbE Cu 2 USB 3.0, 1 Console
  • SecuritySecurity services Deep Packet Inspection services: Gateway A
  • VPNVPN Site-to-site VPN tunnels: 4,000 IPSec VPN clients: 500 (

Hardware NSa 4700

Option High Availability

  • 1 RU rack form factor fits standard cabinets
  • 6 multi-rate SFP+ ports at 10G/5G/2.5G/1G
  • 24 1GbE copper ports for dense connectivity
  • Expandable storage slot supports up to 1TB
  • 4000 site-to-site VPN tunnels for branch links

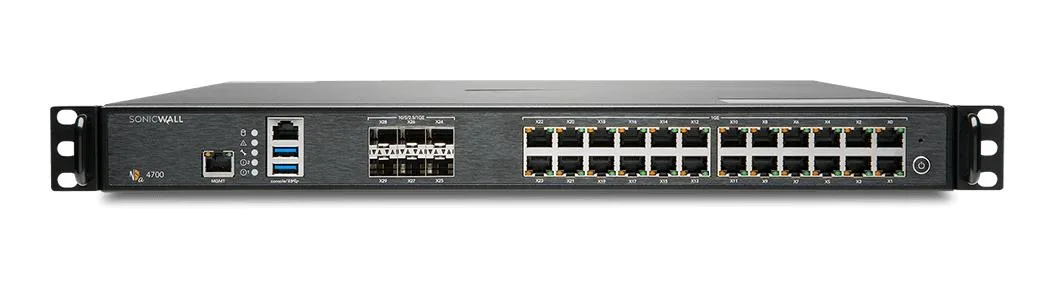

NSa 4700 1U security appliance

The SonicWall NSa 4700 is a 1U rack-mount network security appliance built for high-availability deployments. It runs SonicOS 7 and provides deep packet inspection, intrusion prevention, anti-malware and content filtering services. Six multi-gigabit SFP+ ports and twenty-four 1 GbE copper ports give flexible uplink and access connectivity.

Suited for mid-size enterprises needing HA

Organisations that require active/active or active/passive failover with dual power supplies will benefit from the built-in redundancy. Buyers who need integrated wireless controller functions beyond the 512 supported access points or who require a desktop form factor should consider other platforms.

4000 site-to-site VPN tunnels maximum

The appliance supports up to 4,000 IPSec site-to-site tunnels, with 500 concurrent IPSec VPN clients expandable to 3,000 and two base SSL VPN licenses expandable to 1,000. This tunnel capacity is the key figure for sizing secure branch connectivity.

Highlights

  • 1 RU rack form factor fits standard cabinets
  • 6 multi-rate SFP+ ports at 10G/5G/2.5G/1G
  • 24 1GbE copper ports for dense connectivity
  • Expandable storage slot supports up to 1TB
  • 4000 site-to-site VPN tunnels for branch links

Specifications

BrandSonicWall
ModelNSa 4700
Part Number02-SSC-8986
Firewall TypeFirewalls / Security Appliances
TypeWired
StandardTCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
Ports6 x 10G/5G/2.5G/1G (SFP+); 24 x 1GbE Cu 2 USB 3.0, 1 Console, 1 Mgmt. port
SecuritySecurity services
Deep Packet Inspection services: Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, DPI SSL
Content Filtering Service (CFS): HTTP URL, HTTPS IP, keyword and content scanning, Comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists
VPNVPN
Site-to-site VPN tunnels: 4,000
IPSec VPN clients: 500 (3000)
SSL VPN licenses (max): 2 (1000)
Encryption/Authentication: DES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography
Key exchange Diffie Hellman Groups: 1, 2, 5, 14v
Route-based: VPN RIP, OSPF, BGP
Certificate support: Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to-SonicWall VPN, SCEP
VPN features: Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN
Global VPN client platforms supported: Microsoft® Windows Vista 32/64-bit, Windows
OS SupportSonicOS 7
FeaturesFirewall
Storage: 128GB
Expansion Storage Expansion:Storage Expansion Slot (Up to 1TB)
Logical VLAN and tunnel interfaces (maximum): 512
SSO Users: 50,000
Access points supported (maximum): 512
Networking
IP address assignment: Static (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay
NAT modes: 1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode
Routing protocols: BGP4, OSPF, RIPv1/v2, static routes, policy-based routing
QoS: Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM)
Authentication: LDAP (
Dimensions3 x 46.5 x 4.5 (cm)
16.9 x 18.1 x 1.8 in
WeightWeight: 7.8 Kg
WEE Weight: 9.6 Kg
DisclaimerRegulatory
Regulatory model numbers: 1RK53-115
Major regulatory compliance: FCC Class A, CE (EMC, LVD, RoHS), C-Tick, VCCI Class A, MSIP/KCC Class A, UL, cUL, CB, Mexico CoC by UL, WEEE , REACH, ANATEL, BSMI
Shipping weight16.33 kg
Package size691 × 589 × 206 mm
