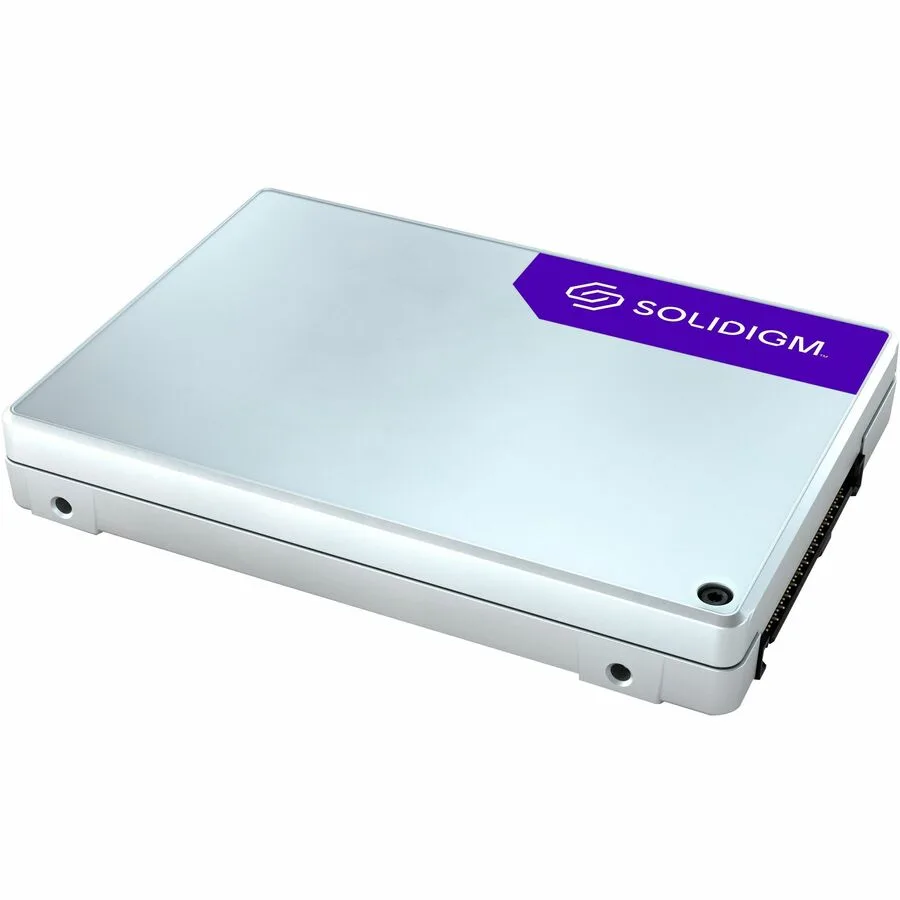

Rectangular silver U.2 15mm enterprise SSD with label showing 15.36TB capacity

Solidigm

Solidigm SSDPF2KX153T1OS D7-P5520 15.36TB U.2 15mm enterprise SSD

SKU CH-WBVM-QWYAB MPN SSDPF2KX153T1OS

15.36 TB U.2 15 mm enterprise SSD with PCIe 4.0 x4, 144L TLC 3D NAND, 7100 MB/s read, 3700 MB/s write, Opal security and 2,000,000-hour MTBF

  • Form FactorU.2 15mm
  • Capacity15.36TB
  • Memory Components144L TLC 3D NAND
  • InterfacePCI-Express 4.0
  • Max Sequential ReadUp to 7100 MBps
  • Max Sequential WriteUp to 3700 MBps

Options 15.36TB, U.2 15mm, OPAL

Show 2 more configurations
  • 36 TB capacity supports massive data sets
  • PCIe 4.0 x4 delivers up to 7100 MB/s read speed
  • 144-layer TLC 3D NAND enables 3700 MB/s write speed
  • 2 000 000 hour MTBF ensures long-term reliability
  • Opal security protects data at rest

Data-center capacity

The Solidigm D7-P5520 delivers 15.36TB in a U.2 15mm form factor built for read-intensive server workloads. It uses 144L TLC 3D NAND and a PCI-Express 4.0 x4 interface to serve high-capacity storage tiers.

Thermals and power

Enterprise U.2 drives are designed for forced-air chassis cooling rather than onboard fans. The 15mm height fits standard 2.5" hot-swap bays with adequate airflow. Power draw scales with the PCIe 4.0 x4 link and the 7100 MBps sequential read ceiling.

Endurance rating

A 2,000,000 hour MTBF and Opal security define the reliability envelope for always-on arrays. The drive withstands 1,000 G shock at .5 msec and 2.17 GRMS operating vibration. Buyers needing higher write endurance or a different form factor should evaluate other models.

Highlights

  • 36 TB capacity supports massive data sets
  • PCIe 4.0 x4 delivers up to 7100 MB/s read speed
  • 144-layer TLC 3D NAND enables 3700 MB/s write speed
  • 2 000 000 hour MTBF ensures long-term reliability
  • Opal security protects data at rest

Specifications

BrandSolidigm
SeriesD7-P5520
ModelD7-P5520
Form FactorU.2 15mm
Capacity15.36TB
Memory Components144L TLC 3D NAND
InterfacePCI-Express 4.0
Max Sequential ReadUp to 7100 MBps
Max Sequential WriteUp to 3700 MBps
MTBF2,000,000 hours
SecurityOpal
Max Shock Resistance1,000 G (Max) at 0.5 msec
Max Vibration ResistanceOperating: 2.17 GRMS (5 - 700 Hz) Max
Non-Operating: 3.13 GRMS (5 - 800 Hz) Max
Shipping weight0.17 kg
Package size432 × 313 × 140 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the U.2 15mm drive in a 2.5-inch bay and what step is often missed?

Mount the drive in a U.2 15mm backplane or carrier, connect the PCI-Express 4.0 cable, then enable the drive in the server BIOS or RAID controller before the OS will see it.

What maintenance or replacement will the 144L TLC 3D NAND need over its life?

The drive has no user-serviceable parts; plan replacement when the media reaches its rated endurance or when SMART health indicators show critical wear.

What limit appears first during sustained writes on this 15.36TB model?

Sequential write speed tops out at 3700 MBps; thermal throttling may engage before that ceiling under continuous heavy workloads.
