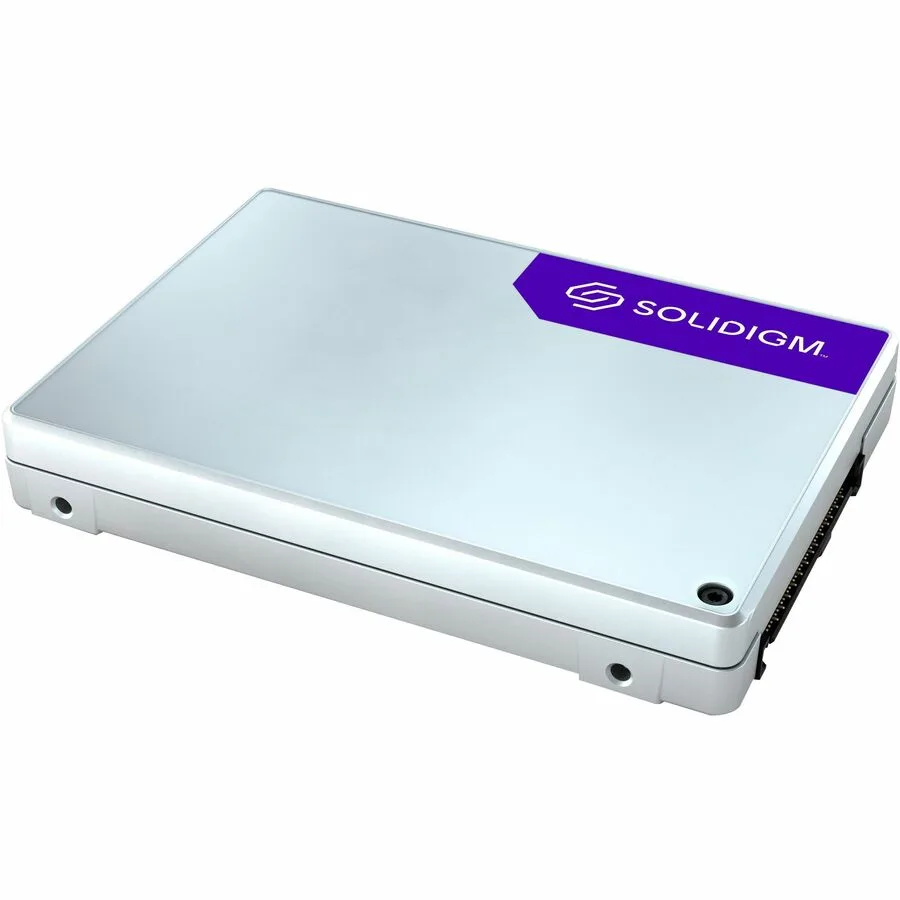

Rectangular 2.5 inch U.2 SSD with silver metal casing and label

Solidigm

Solidigm D7-P5520 1.92TB U.2 15mm enterprise SSD SSDPF2KX019T1M1

SKU CH-0RRR-B9FR4 MPN SSDPF2KX019T1M1

1.92 TB U.2 15 mm enterprise SSD with PCIe 4.0 x4, 6600 MB/s read and 4200 MB/s write

  • Form FactorU.2 15mm
  • Capacity1.92TB
  • Memory Components144L TLC 3D NAND
  • InterfacePCI-Express 4.0
  • Max Sequential ReadUp to 6600 MBps
  • Max Sequential WriteUp to 4200 MBps

Options 1.92TB, U.2 15mm, Non-OPAL

Show 2 more configurations
  • 92 TB capacity stores large datasets on a single drive
  • PCIe 4.0 interface delivers up to 6600 MB/s sequential read speed
  • 144-layer TLC 3D NAND enables up to 4200 MB/s sequential write throughput
  • 2,000,000-hour MTBF supports continuous operation in data-centre environments
  • 1,000 G shock resistance protects data during handling and deployment

Capacity and interface

The Solidigm D7-P5520 is a 1.92TB enterprise solid-state drive in a U.2 15mm form factor. It connects through a PCI-Express 4.0 x4 interface using 144L TLC 3D NAND. Sequential reads reach up to 6600 MBps and writes up to 4200 MBps.

Suitable workloads

This drive suits data-centre servers that need high endurance and consistent low-latency performance. It is not suited for desktop PCs or laptops that lack U.2 backplanes and PCIe 4.0 support. Buyers who need a smaller physical size or a different connector should look at other form factors.

Deciding specification

The U.2 15mm physical format is the single specification that determines whether this drive fits the target system. The host must provide a compatible U.2 bay with 15mm clearance and a PCIe 4.0 x4 link to use the drive at its rated speed.

Highlights

  • 92 TB capacity stores large datasets on a single drive
  • PCIe 4.0 interface delivers up to 6600 MB/s sequential read speed
  • 144-layer TLC 3D NAND enables up to 4200 MB/s sequential write throughput
  • 2,000,000-hour MTBF supports continuous operation in data-centre environments
  • 1,000 G shock resistance protects data during handling and deployment

Specifications

BrandSolidigm
SeriesD7-P5520
ModelD7-P5520
Form FactorU.2 15mm
Capacity1.92TB
Memory Components144L TLC 3D NAND
InterfacePCI-Express 4.0
Max Sequential ReadUp to 6600 MBps
Max Sequential WriteUp to 4200 MBps
MTBF2,000,000 hours
Max Shock Resistance1,000 G (Max) at 0.5 msec
Max Vibration ResistanceOperating: 2.17 GRMS (5 - 700 Hz) Max
Non-Operating: 3.13 GRMS (5 - 800 Hz) Max
Shipping weight0.45 kg
Package size203 × 152 × 127 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Which capacity and form factor of the D7-P5520 should I select for a 2.5-inch U.2 bay?

This model is the 1.92TB version in a U.2 15mm 2.5-inch form factor, matching bays that accept 15mm drives.

What do the 6600 MBps read and 4200 MBps write figures mean for my server workloads?

Those are maximum sequential speeds over PCIe 4.0 x4; real-world throughput depends on queue depth, block size and controller firmware.

Does the PCIe 4.0 x4 interface limit performance compared to newer standards?

The drive uses PCI-Express 4.0 x4, so peak bandwidth is capped at the 4.0 lane rate; it will not exceed that ceiling.
