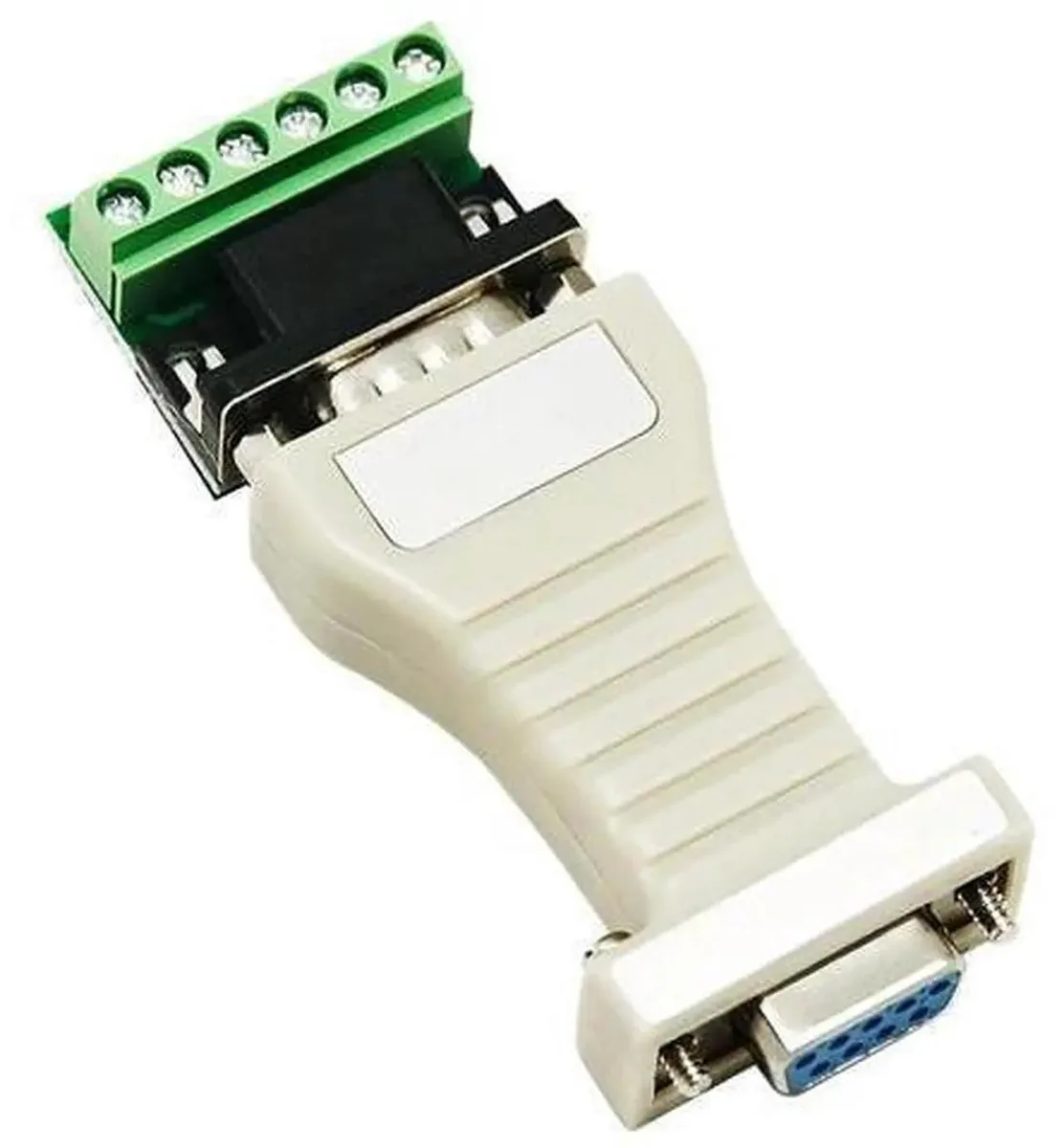

SMUGDESK Passive RS232 to RS422 FullDuplex Data Converter

Passive RS232 to RS422 Converter

This passive adapter performs bidirectional level conversion between RS232 and RS422 serial interfaces. It targets engineers and technicians integrating PLCs, measuring instruments or access-control units into existing serial infrastructure. The compact module installs directly onto the host port without extra cabling or driver installation. It suits field deployments where adding a power supply is impractical.

Interface Constraints and Signal Limits

The converter harvests operating power from the serial signal lines themselves, so reliable communication depends on sufficient voltage output from the connected host devices. RS422 differential signalling extends cable reach and improves electromagnetic immunity compared with single-ended RS232. Full-duplex operation allows simultaneous transmit and receive without latency loss. Serial cables are not supplied and high-voltage signals must be avoided to prevent permanent damage.

Build Quality and Daily Use

The lightweight plug-in form factor enables fast installation inside control cabinets or on test benches. No firmware configuration or software setup is required, reducing commissioning time for industrial debugging tasks. The passive design eliminates external power bricks and associated wiring, simplifying onsite deployment. Durability relies on the host port providing adequate signal levels for continuous operation.
