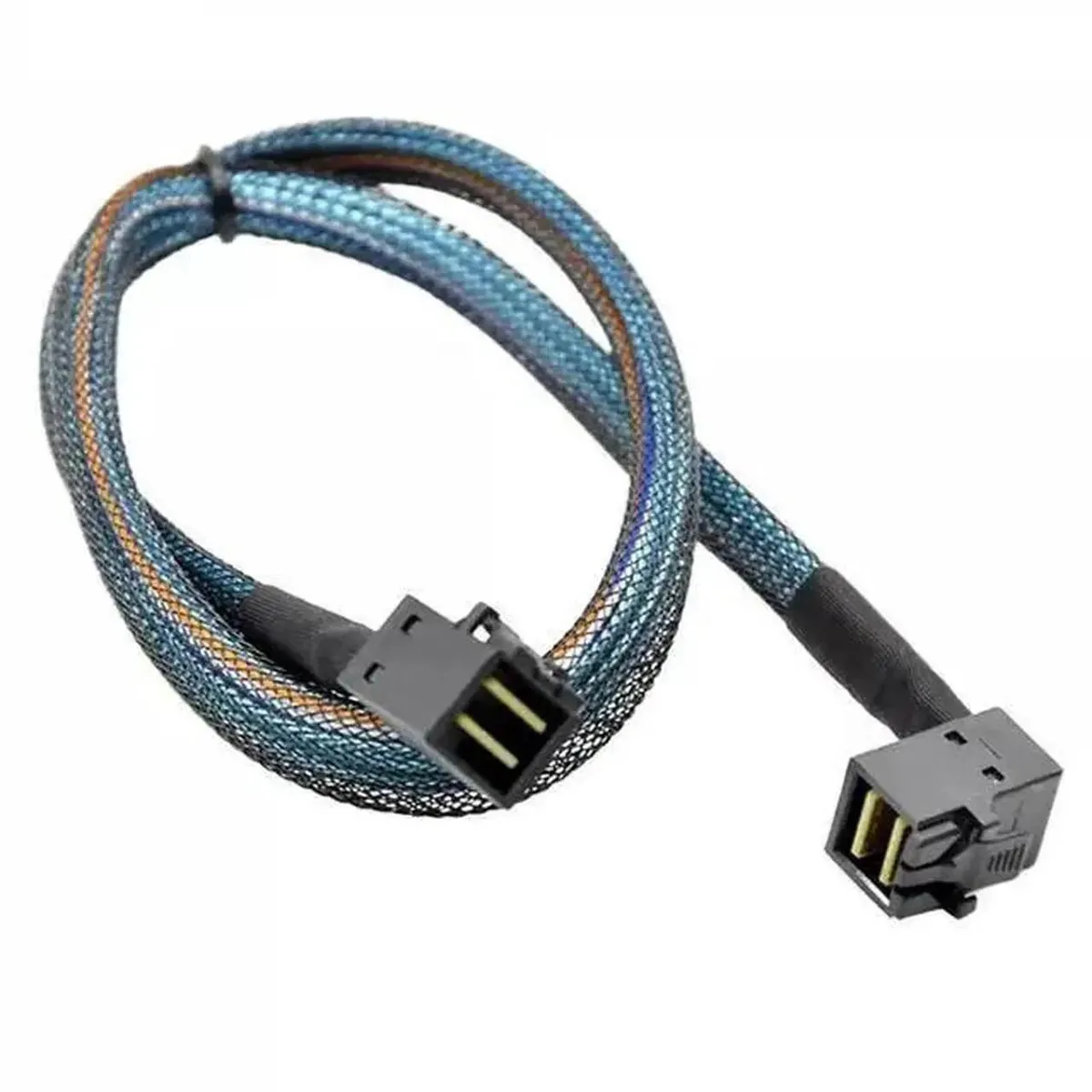

SMUGDESK Mini SAS HD SFF-8643 to 90° SFF-8643 Cable 50CM
A right-angle Mini SAS HD SFF-8643 cable that routes neatly in tight server chassis while shielding signals for stable RAID and NAS operation
- 90° right-angle connector prevents sharp bends in tight server chassis
- SFF-8643 to SFF-8643 direct link for RAID controller and backplane interconnection
- 50 cm length keeps internal wiring tidy and airflow clear
- Shielded construction reduces electromagnetic interference for stable high-speed SAS transmission
- Built for 24/7 operation in servers, disk arrays, NAS and RAID controllers
Right-angle SFF-8643 cable for tight server builds
This 50-centimetre Mini SAS HD cable connects a straight SFF-8643 port to a 90-degree SFF-8643 port. It is designed for server, RAID and NAS chassis where straight plugs would press against drive cages or side panels. The right-angle end removes the need for sharp bends that can damage insulation over time. Shielded construction supports stable high-speed SAS transmission under continuous load.
Replaces awkward straight cables in cramped bays
The 90-degree connector solves routing problems in narrow drive bays and between stacked expansion cards. It is worth fitting when a straight plug would force the cable into a tight radius or block airflow through the chassis. The 50-centimetre length keeps internal wiring tidy without leaving coils that trap heat. Builders who need a longer run or a different connector pitch will need another solution.
Fits RAID controller to backplane links
Connect a RAID controller or HBA directly to a drive backplane or storage expansion module using the SFF-8643 interface on both ends. The shielded cable reduces electromagnetic interference in dense 24/7 environments. Verify that both devices use SFF-8643 Mini SAS HD ports; this cable does not mate with SFF-8087 or other SAS interfaces without an adapter.
Highlights
- 90° right-angle connector prevents sharp bends in tight server chassis
- SFF-8643 to SFF-8643 direct link for RAID controller and backplane interconnection
- 50 cm length keeps internal wiring tidy and airflow clear
- Shielded construction reduces electromagnetic interference for stable high-speed SAS transmission
- Built for 24/7 operation in servers, disk arrays, NAS and RAID controllers
Specifications
No published specifications for this item yet.
Questions about this item
What clearance does the 90-degree SFF-8643 connector need behind the port?
The right-angle plug sits flush against the port, so only the cable thickness projects rearward; allow space for the bend radius.
Which step is often missed when seating the SFF-8643 plugs into a RAID controller and backplane?
Push each connector straight in until the latch clicks; the right-angle end must be aligned before applying force to avoid bending the pins.
When should this 50 cm shielded cable be replaced in a 24/7 server?
Replace it if the latch tabs break, the jacket shows kinks or cuts, or intermittent link errors appear on the SAS controller logs.
