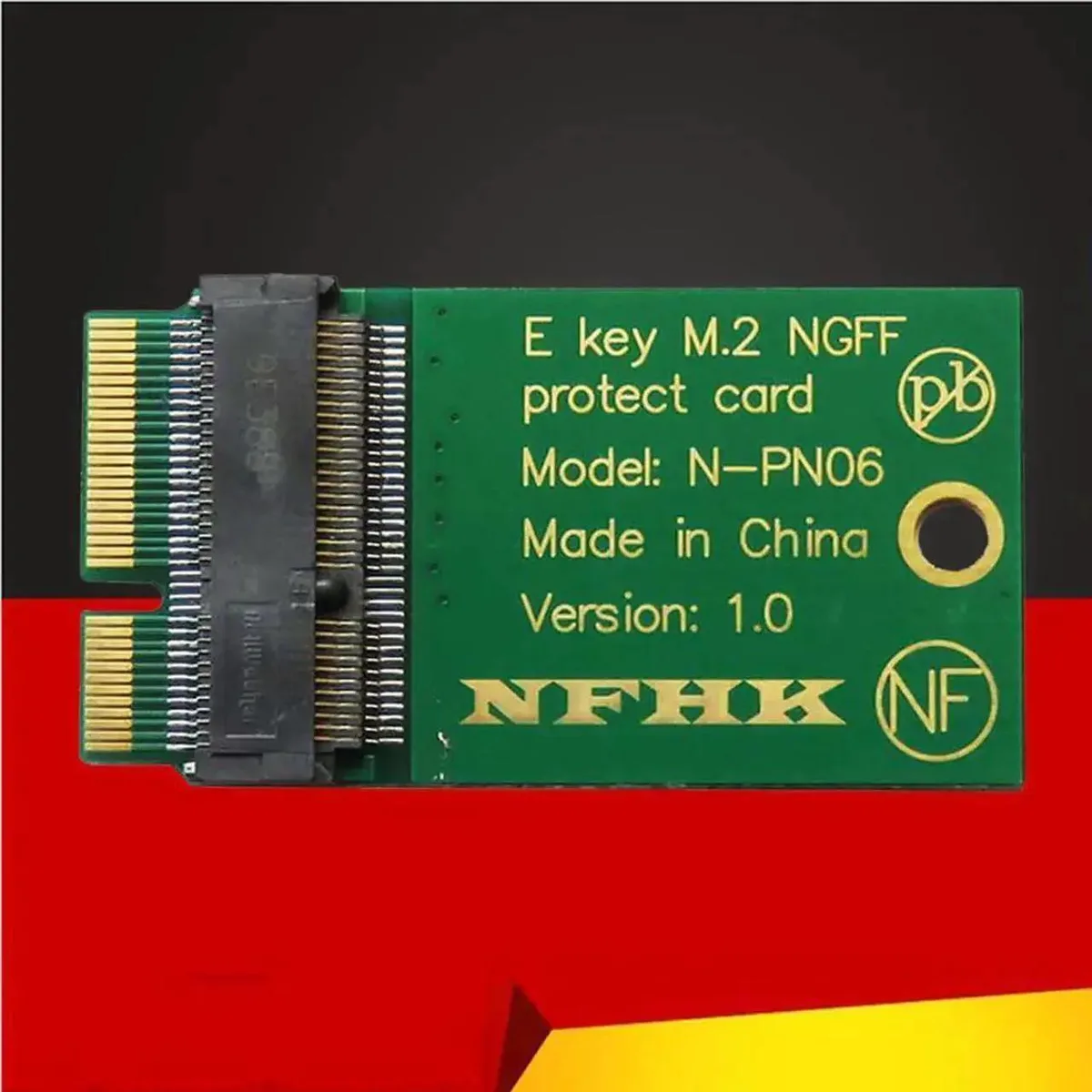

Green compact PCB riser card with gold edge connector and M.2 2230 slot

SMUGDESK

SMUGDESK M.2 A+E / E Key Test Adapter 2230

SKU CH-71Y5-DDWB4

Converts an M.2 A+E or E-key slot into an external test interface for 2230 WiFi and Bluetooth modules, protecting the motherboard connector from wear during repeated testing

  • Converts M.2 A+E slot to external test interface for quick module swaps
  • Protects motherboard M.2 slot from wear during repeated wireless card testing
  • Standard NGFF A+E/E key design fits 2230 size WiFi and Bluetooth combo cards
  • Compact PCB maintains signal integrity with antenna pads for external antenna debugging
  • Compatible with Windows macOS and Linux for lab verification and batch inspection

M.2 A+E / E Key Test Adapter 2230

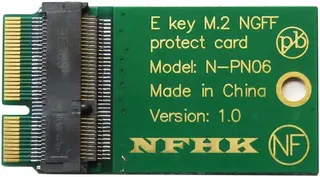

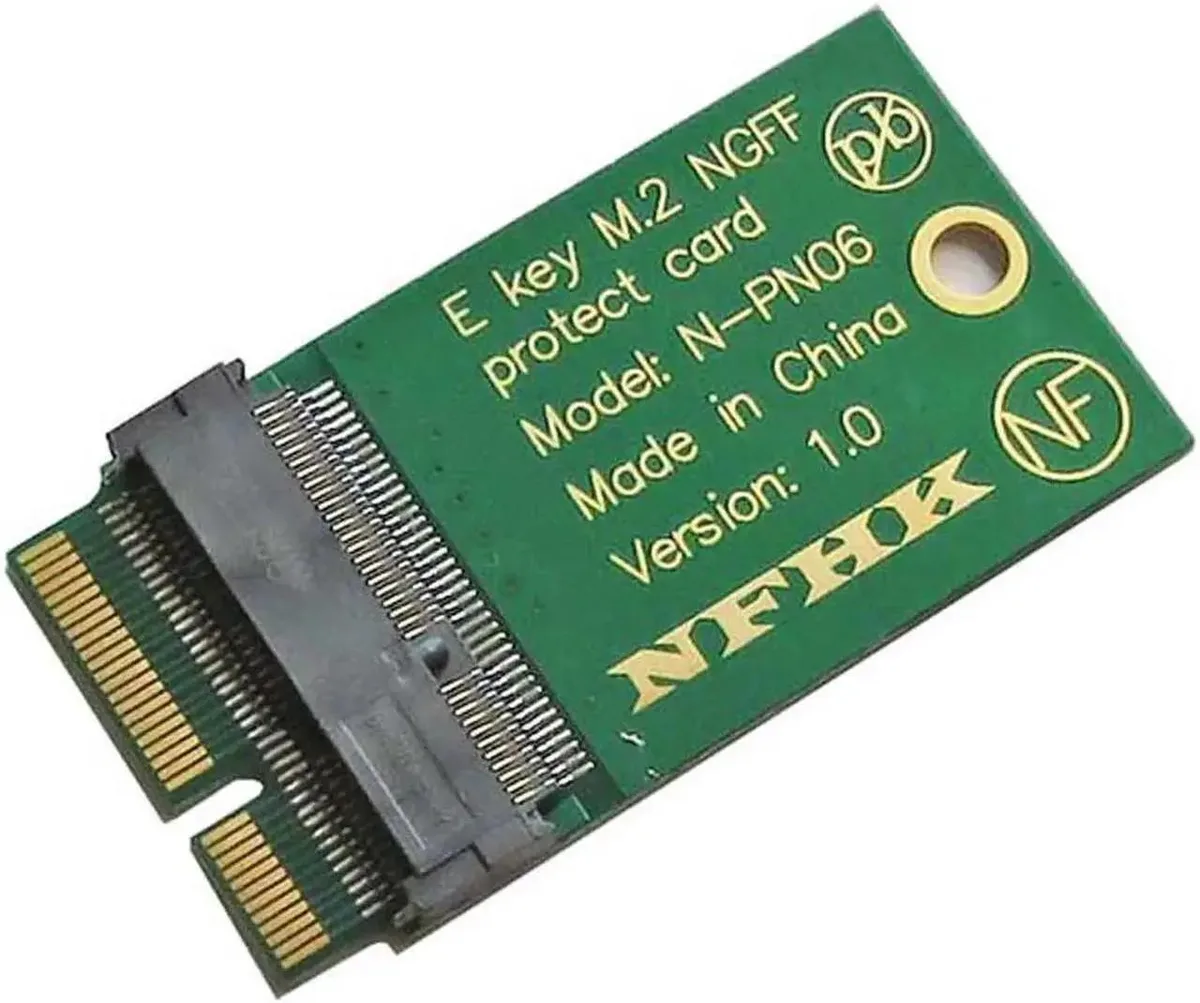

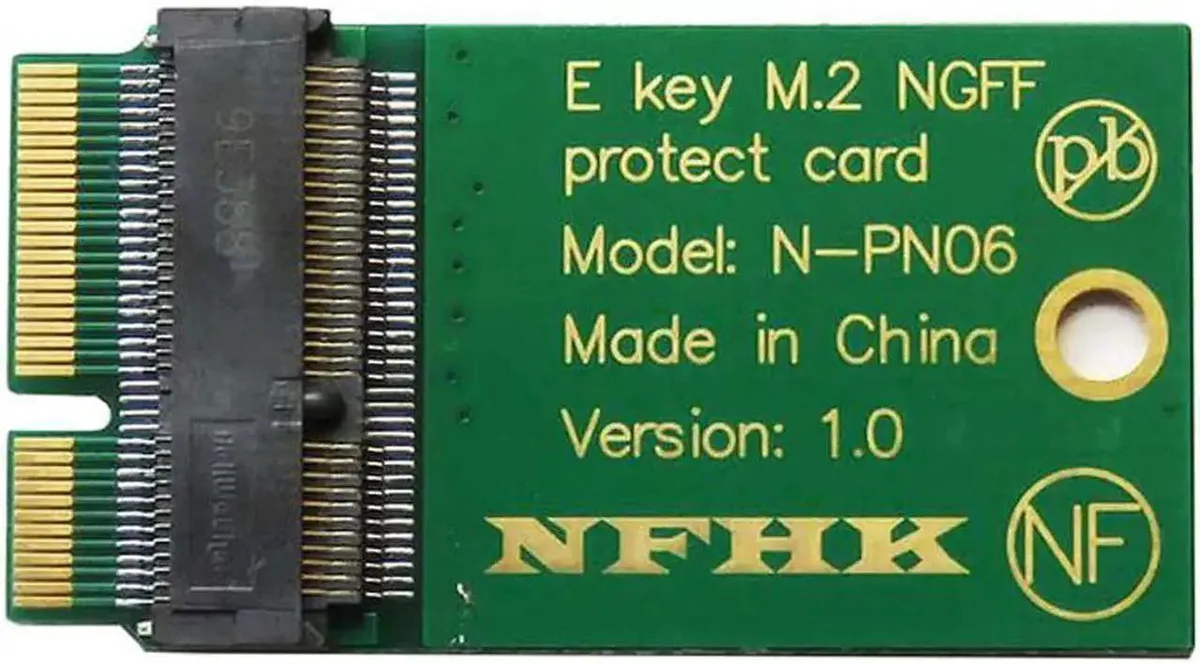

This SMUGDESK adapter converts an onboard M.2 A+E or E key slot into an external test bench interface. It is intended for engineers, technicians and hobbyists who need to swap Wi-Fi and Bluetooth modules repeatedly without stressing the motherboard connector. The card accepts standard 2230 size combo modules from Intel, Broadcom, Realtek and similar vendors.

Tool-free module swaps with solder pads for antennas

The compact PCB plugs directly into the motherboard slot and presents a fresh edge connector for the wireless card. No screws or brackets are required, so modules can be inserted and removed in seconds. Reserved antenna solder pads allow an external antenna to be attached during signal debugging. The board uses standard NGFF A+E/E key pinout and routing to avoid wireless attenuation.

Verify slot key and module size before ordering

Confirm that your motherboard provides an M.2 A+E or E key slot; B key, M key or other keyings will not fit mechanically or electrically. Ensure the wireless module you plan to test is a 2230 form factor, as longer or shorter cards are not supported. The adapter is compatible with Windows, macOS and Linux hosts, but the host system must already recognise the M.2 interface for the card to function.

Highlights

  • Converts M.2 A+E slot to external test interface for quick module swaps
  • Protects motherboard M.2 slot from wear during repeated wireless card testing
  • Standard NGFF A+E/E key design fits 2230 size WiFi and Bluetooth combo cards
  • Compact PCB maintains signal integrity with antenna pads for external antenna debugging
  • Compatible with Windows macOS and Linux for lab verification and batch inspection

Specifications

No published specifications for this item yet.

Questions about this item

How do I verify the adapter is functioning correctly after connecting my 2230 WiFi module?

The system should detect the wireless module normally in Device Manager or lspci and maintain stable signal strength without attenuation during testing.

What comes in the package and what extra items are required?

The test adapter board is supplied; you must provide the M.2 2230 WiFi/Bluetooth module and any external antennas for the reserved solder pads.

Which version of this adapter should I choose for a standard 2230 wireless card?

This single A+E/E key model fits all common 2230 size M.2 WiFi plus Bluetooth combo cards from Intel, Broadcom and Realtek.
