Black rectangular box with four HDMI inputs, two outputs, optical and 3.5mm audio ports, IR sensor and front buttons

SMUGDESK

SMUGDESK 4×2 HDMI Matrix Switch 4K@60Hz HDR10 HDCP2.2 EDID IR Remote 2×SPDIF 2×3.5mm Audio Extractor OZJ1

SKU CH-0GFD-DSRQB

Routes four HDMI sources to two independent displays at 4K 60 Hz with HDR10, plus dual SPDIF and 3.5 mm audio extraction

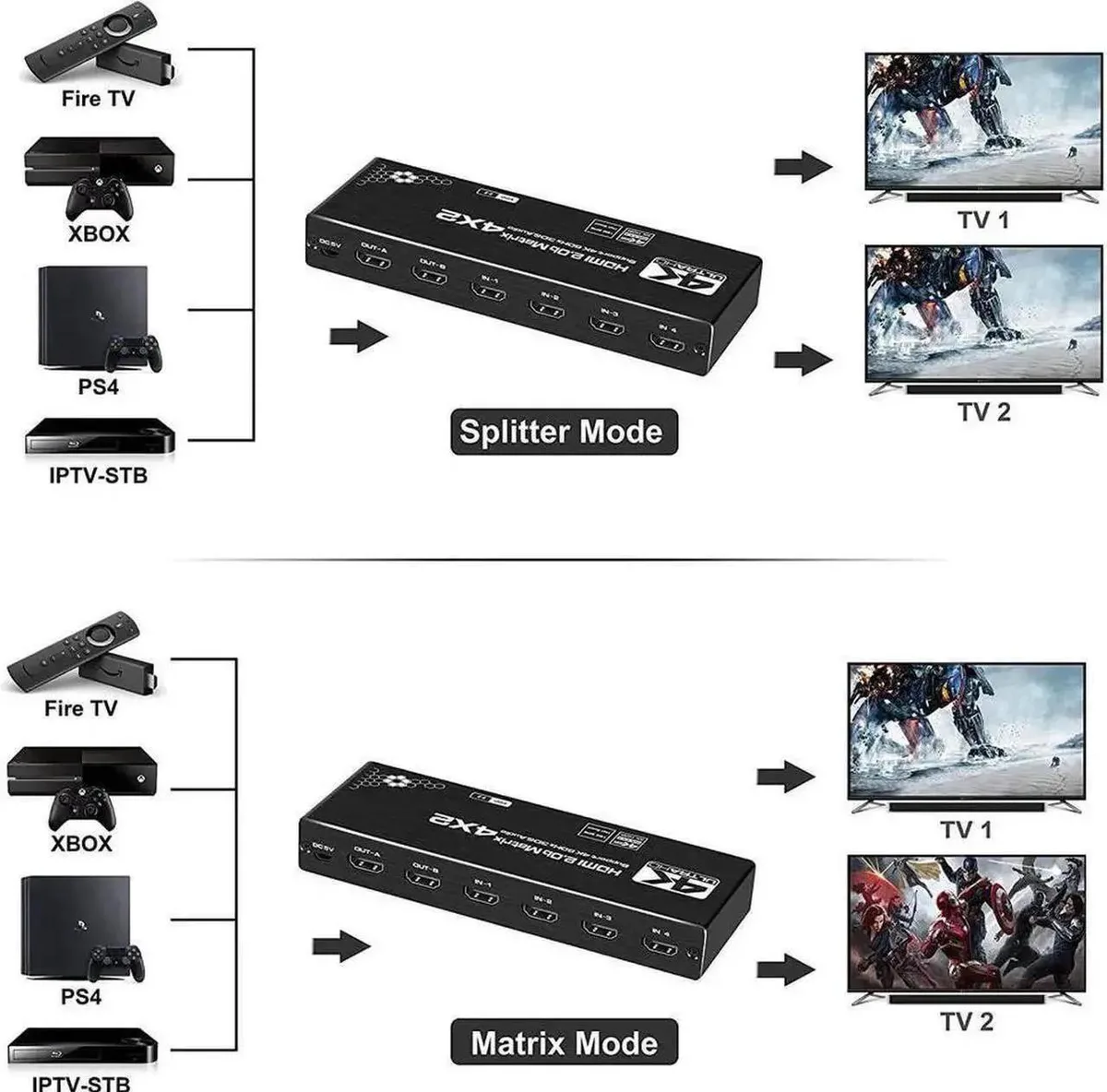

  • Route any of 4 sources to 2 independent displays
  • 4K@60Hz HDR10 with HDCP2.2 for protected content
  • Extract audio separately via dual SPDIF and 3.5mm ports

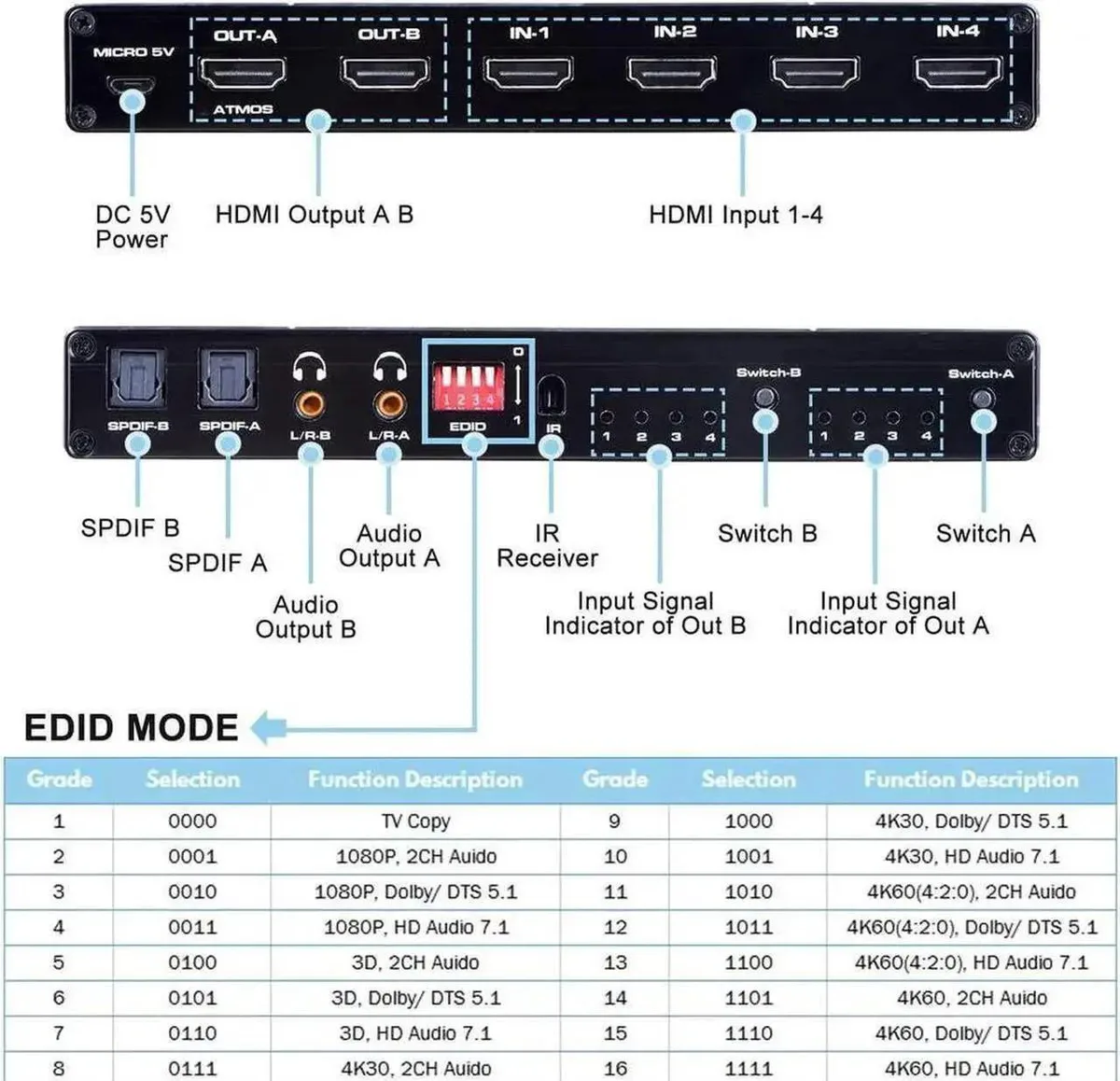

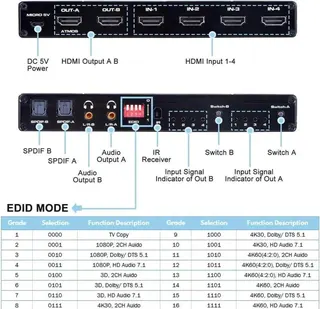

  • Built-in EDID management resolves resolution mismatches
  • IR remote and front-panel buttons for instant switching

4×2 HDMI Matrix Switch 4K@60Hz

The SMUGDESK OZJ1 is a 4×2 HDMI matrix switch that routes any of four sources to two independent displays at up to 4K resolution and 60 Hz refresh rate. It supports HDR10 and HDCP 2.2 while remaining backward compatible with 1080P and 3D video. No drivers are required for operation.

Suitable setups and limitations

This unit suits installations needing simultaneous split or mirror output from consoles, laptops, Blu-ray players or TV boxes to two screens or projectors. It is not for users who require more than two independent output zones or who need to distribute signals to more than four source devices. Audio extraction is limited to the provided optical and analogue ports.

18 Gbps HDMI 2.0 bandwidth

The switch uses an HDMI 2.0 18 Gbps signalling path that determines whether 4K@60Hz HDR10 content passes without compression or fallback. If the source or display cannot operate within this bandwidth the matrix will not deliver the full specification.

Highlights

  • Route any of 4 sources to 2 independent displays
  • 4K@60Hz HDR10 with HDCP2.2 for protected content
  • Extract audio separately via dual SPDIF and 3.5mm ports
  • Built-in EDID management resolves resolution mismatches
  • IR remote and front-panel buttons for instant switching

Specifications

No published specifications for this item yet.

Questions about this item

How do I connect the four HDMI sources and two displays to the OZJ1 matrix switch?

Connect up to four source devices to the HDMI input ports and two displays to the HDMI output ports. Use the IR remote or front-panel buttons to route any input to either output independently. The step often missed is setting the EDID mode first if a display shows no signal or wrong resolution.

What audio connections might need attention after the initial setup?

The unit provides two SPDIF optical and two 3.5mm stereo ports that extract audio from the HDMI streams. Check these cables periodically for firm seating, especially if the system is moved or vibration occurs, to avoid intermittent sound.

What bandwidth limit applies when running 4K HDR content continuously?

The HDMI 2.0 18Gbps path carries 4K at 60Hz with HDR10 and HDCP 2.2. Sustained 4K60 HDR streams stay within this ceiling, so the first limit encountered is the 18Gbps link rate itself.
