Black rectangular HDMI matrix switch with front panel buttons and multiple rear ports

SMA

SMA 4x2 HDMI Matrix Switch 4K@60Hz Black

SKU CH-S2N0-0Y1M8

Connects four HDMI sources to two displays with independent 4K 60Hz switching, optical and 3.5mm audio extraction, and IR remote control

  • TypeHDMI Switchers
  • ColorBlack
  • Ports4
  • MatrixYes
  • AudioYes
  • SpecificationsThis 4K HDMI Matrix 4 in 2 out, can be freely switched 4 inp
  • Switch 4 sources across 2 displays independently
  • Supports 4K@60Hz 18Gbps with HDCP2.2
  • Extract audio via optical coaxial or 3.5mm
  • IR remote and front button for source control
  • Compact 9.25x6.69x2.32in unit weighs 1.43lb

4x2 HDMI Matrix Switch

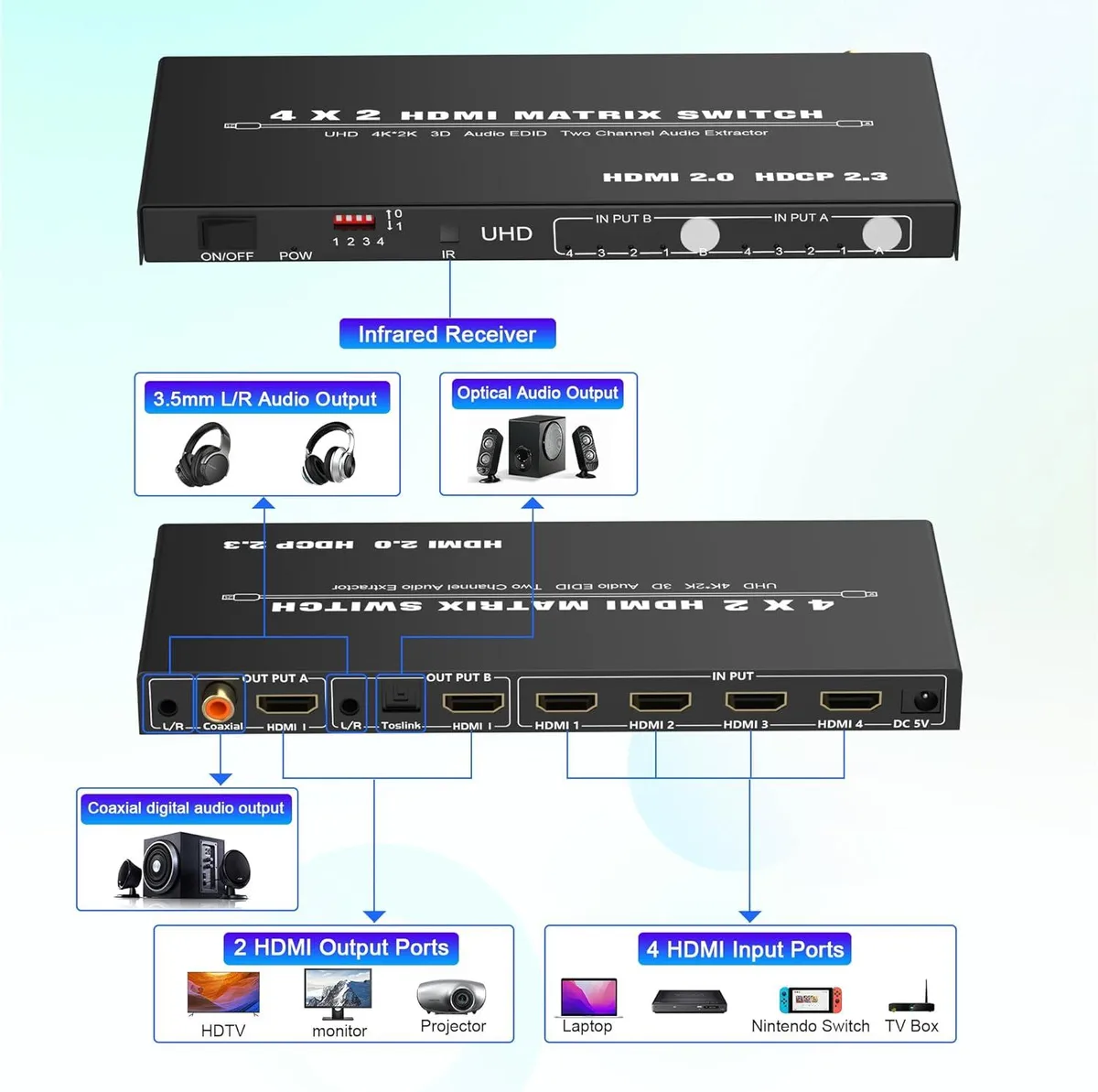

The SMA 4x2 HDMI Matrix Switch routes four HDMI sources to two independent displays or projectors at up to 4K@60Hz. It supports HDMI 2.0 and HDCP 2.2 with 18Gbps bandwidth for high-resolution video. Audio can be extracted from either output via optical, coaxial or 3.5mm connections for external sound systems.

Suited for multi-source AV setups

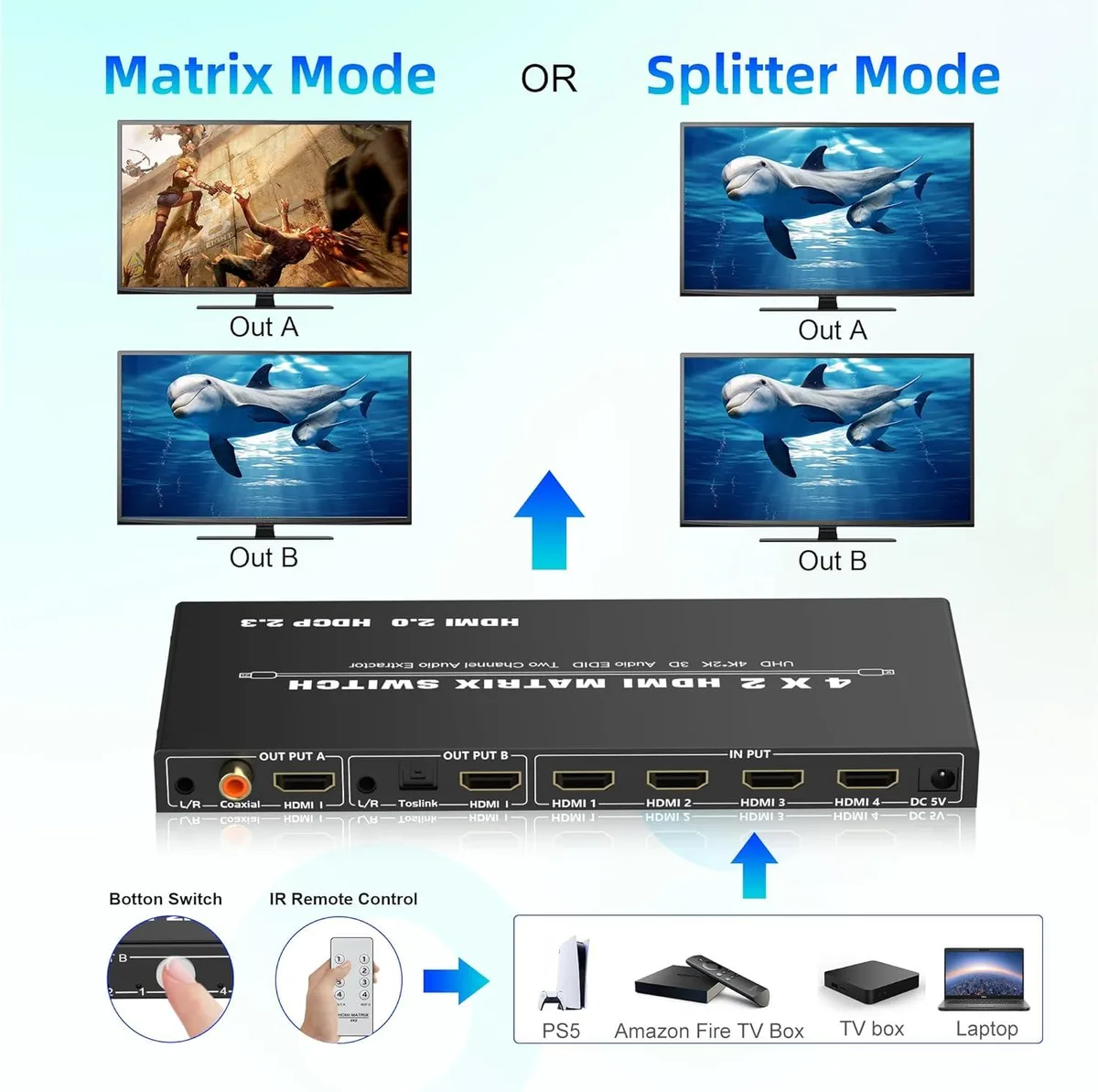

Home-theatre owners and presenters who need to share four devices across two screens will benefit from matrix and splitter modes. IR remote and front-panel buttons provide quick source selection. Buyers requiring more than two simultaneous display zones or additional HDMI outputs should consider a larger matrix.

Straightforward desktop installation

Connect sources, displays and the included 5V power adapter; the unit fits on a shelf at 9.25 x 6.69 x 2.32 inches. EDID management and automatic equalisation handle most handshake issues. Long cable runs beyond the spec may cause signal drop-out, so keep HDMI leads within recommended lengths.

Highlights

  • Switch 4 sources across 2 displays independently
  • Supports 4K@60Hz 18Gbps with HDCP2.2
  • Extract audio via optical coaxial or 3.5mm
  • IR remote and front button for source control
  • Compact 9.25x6.69x2.32in unit weighs 1.43lb

Specifications

TypeHDMI Switchers
ColorBlack
Ports4
MatrixYes
AudioYes
SpecificationsThis 4K HDMI Matrix 4 in 2 out, can be freely switched 4 input signals on 2 high-definition monitors or projectors, any output port can be through optical fiber, coaxial digital or 3.5mm stereo headphones to achieve independent output of audio.
Features4 In 2 Out HDMI Matrix
The HDMI 2.0 Matrix 4x2 can connect 4 high definition sources and 2 display outports with audio optical or stereo simultaneously. It can easily switch or split 4 definition video sources into 2 displays or projectors. The Optical and stereo audio output can extract the audio signal from output A or B.
UHD Resolution 4K@60hz
This 4X2 HDMI Matrix uses the latest HDMI 2.0 chip, supports HDCP 2.2, resolution max up to 4K 60Hz, also support 4K 30Hz, 1080P 120Hz, 1080P 60Hz, 1080P 30Hz etc, support 3D, HDR 10. Transmission up to 18Gbps.
2 Optical Audio & 2 L/R Audio
Dimensions9.25 x 6.69 x 2.32 inches
Weight1.43 pounds
Package Quantity1
Package Contents1*4K 60Hz HDMI Matrix Splitter, 1*IR remote control, 1*5V power adapter, 1*User Manual

Questions about this item

Do I need HDMI cables for the four source devices and two displays?

Yes, the unit provides four HDMI inputs and two HDMI outputs; you must supply cables for each connected source and display.

Will my 1080P 60Hz monitor work alongside a 4K 60Hz screen on the two outputs?

The matrix is backward compatible with 1080P 60Hz and 1080P 120Hz, so each output can run at its native resolution independently.

How can I verify audio extraction is active on the optical or 3.5 mm ports?

Play a Dolby TrueHD or DTS-HD track; sound from the SPDIF or headphone jack confirms the extractor is passing 7.1-channel LPCM or bitstream audio.
