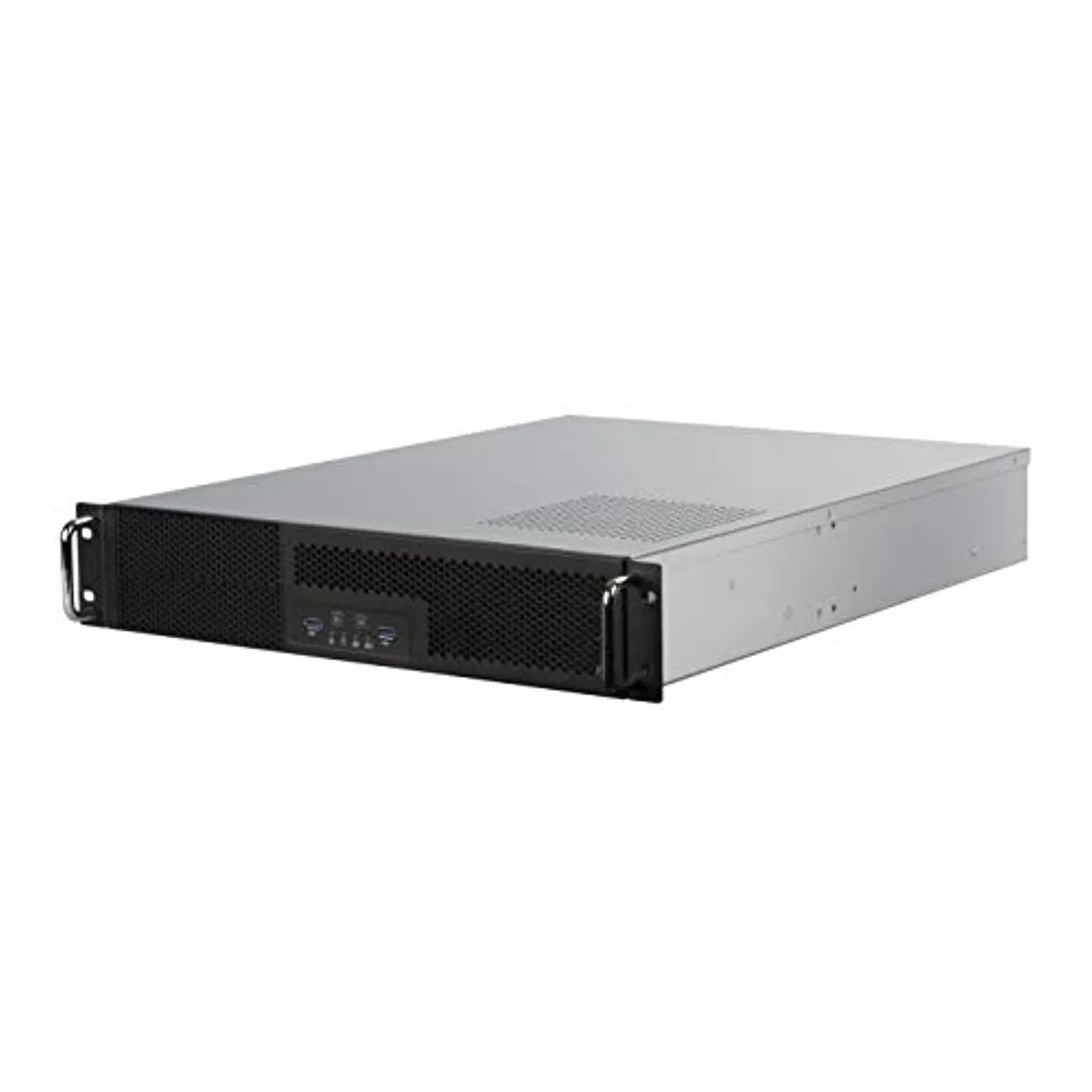

Silver metal 2U rackmount server chassis with dual 5.25 inch front bays and two USB ports

Silverstone Technology

Silverstone Technology RM23-502 2U server chassis

SKU CH-20AP-HSRGC MPN RM23-502

A 2U rackmount chassis holding two 5.25" bays, five 3.5" drives and one 2.5" SSD with front USB 3.1 Gen1 ports

  • TypeMicro ATX
  • Fits standard ATX boards up to 12 x 9.6 inches
  • Holds five 3.5 inch drives plus one 2.5 inch SSD
  • Two 5.25 inch bays for optical or accessory drives
  • Three 80 mm front fans and one 60 mm rear fan included
  • Front USB 3.1 Gen 1 ports deliver 5 Gbps speed

2U rackmount chassis for storage servers

The Silverstone RM23-502 is a 2U server chassis designed for ATX motherboards up to 12 by 9.6 inches. It provides dual external 5.25 inch bays and internal space for five 3.5 inch hard drives plus one 2.5 inch SSD. Seven low-profile expansion slots support add-in cards such as RAID controllers or network adapters. Front USB 3.1 Gen1 ports give 5Gbps connectivity for peripherals or maintenance drives.

Thermals noise and power

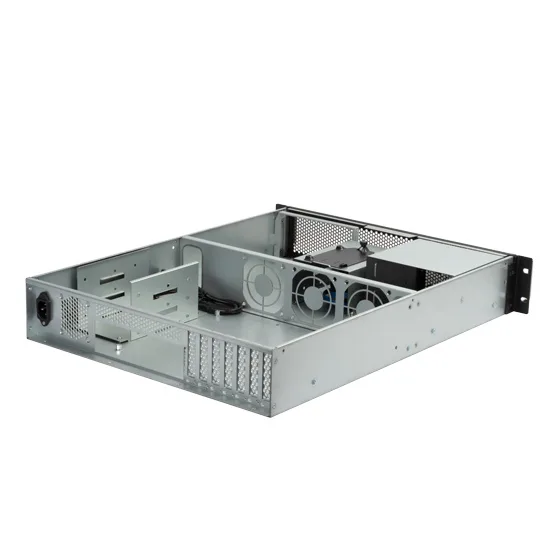

Cooling is handled by a bracket that accepts up to three 80mm by 38mm fans at the front and a single 60mm rear fan. The chassis supports standard ATX power supplies up to 180mm deep, allowing a wide choice of units. CPU cooler height is limited to 65mm, so low-profile coolers are required. Metal thickness is 1mm, which keeps weight down while maintaining rigidity for rack mounting.

Upgrade path and fit

This chassis replaces older 2U cases that lack front USB 3.1 Gen1 ports or sufficient 3.5 inch drive density. It suits builders moving from tower workstations to rack density without sacrificing ATX motherboard support. The reserved rail holes accept optional sliding rails for easier service access. It is not suited for full-height expansion cards or CPU coolers taller than 65mm.

Highlights

  • Fits standard ATX boards up to 12 x 9.6 inches
  • Holds five 3.5 inch drives plus one 2.5 inch SSD
  • Two 5.25 inch bays for optical or accessory drives
  • Three 80 mm front fans and one 60 mm rear fan included
  • Front USB 3.1 Gen 1 ports deliver 5 Gbps speed

Specifications

TypeMicro ATX
Shipping weight10.43 kg
Package size711 × 584 × 203 mm

Questions about this item

How do I mount the RM23-502 in a rack and which rail kit fits the reserved holes?

The chassis has reserved mounting holes for sliding rails; the compatible rail kit is the RMS03-26, sold separately, and installs using those holes.

Which fans will need replacement first and what are their exact sizes?

The front bracket holds up to three 80mm x 38mm fans and the rear uses one 60mm fan; these are the only cooling fans that will require replacement over time.

What is the maximum CPU cooler height the 2U height allows before clearance becomes an issue?

The chassis limits CPU cooler height to 65mm; any cooler taller than that will not fit within the 2U form factor.
