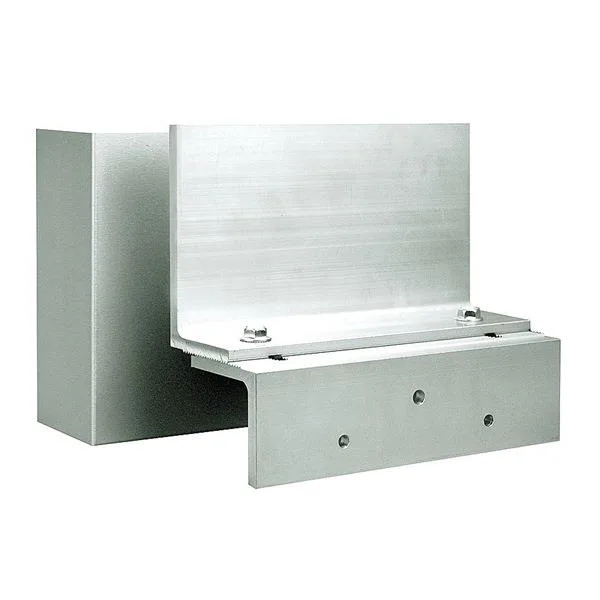

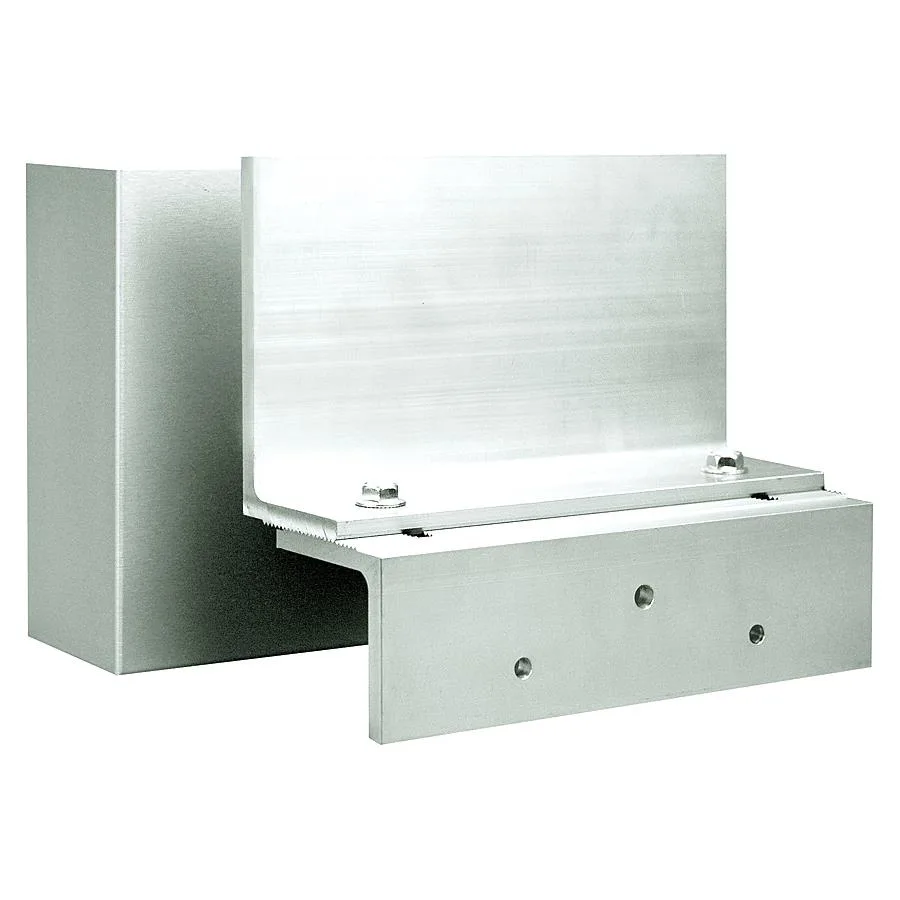

Clear metal Z-bracket mounting kit for M32 and M62 magnetic locks, 8.5 inch length, includes dress cover

SECURITRON MAGNALOCK CORPORATION

SECURITRON MAGNALOCK CORPORATION ZA-32/62CL surveillance accessory

SKU CH-GTQG-BVWWP MPN ZA-32/62CL

Adjustable Z-bracket for M32 and M62 Magnalocks on in-swing doors, providing 31.75 mm lateral movement and 57.15 mm to 88.9 mm mounting range with clear dress cover

  • TypeZ Brackets for Magnetic Locks
  • Adjustable lateral movement of 31.75 mm for flexible door alignment
  • Compatible with M32 and M62 Magnalock models for inswing installations
  • Lifetime MagnaCare replacement warranty covers the bracket
  • Oversized dress cover included for a finished appearance
  • Weighs 4.1 lbs and measures 215.9 mm overall length

Adjustable Z Bracket for M32 and M62 Locks

The ZA-32/62CL provides adjustable mounting for Securitron Magnalock M32 and M62 magnetic locks on in-swing doors. It delivers 31.75mm of lateral movement to suit various opening sizes and allows precision positioning between 57.15mm and 88.9mm from the door or header. The unit weighs 4.1 lbs and measures 215.9mm overall length.

Build Quality and Daily Installation

Constructed for high strength across varied installation configurations, the bracket includes an oversized dress cover for a finished appearance. It is designed specifically for face-mounted F Series Magnalocks, ensuring compatibility with existing Securitron hardware. The clear finish maintains a clean aesthetic on the door frame.

Lifetime Replacement Warranty Coverage

The product carries a MagnaCare lifetime replacement warranty with no-fault, no-questions-asked terms. This covers the bracket itself for the duration of ownership. Separate bracket versions exist for the M82 series Magnalocks, so this model does not fit those larger locks.

Highlights

  • Adjustable lateral movement of 31.75 mm for flexible door alignment
  • Compatible with M32 and M62 Magnalock models for inswing installations
  • Lifetime MagnaCare replacement warranty covers the bracket
  • Oversized dress cover included for a finished appearance
  • Weighs 4.1 lbs and measures 215.9 mm overall length

Specifications

BrandSECURITRON MAGNALOCK CORPORATION
ModelZA-32/62CL
TypeZ Brackets for Magnetic Locks
Shipping weight0.45 kg
Package size25 × 25 × 25 mm

Questions about this item

Which magnetic locks is the ZA-32/62CL bracket compatible with?

It fits the M32 and M62 series Magnalocks with the F face-mount option.

What door-to-header distance range does the bracket cover?

Adjustable from 57.15 mm to 88.9 mm to suit most in-swing openings.

How is the bracket secured during installation?

Mount the bracket to the header, slide the lock into the channels, then tighten the adjustment bolts to lock the 31.75 mm lateral travel.
