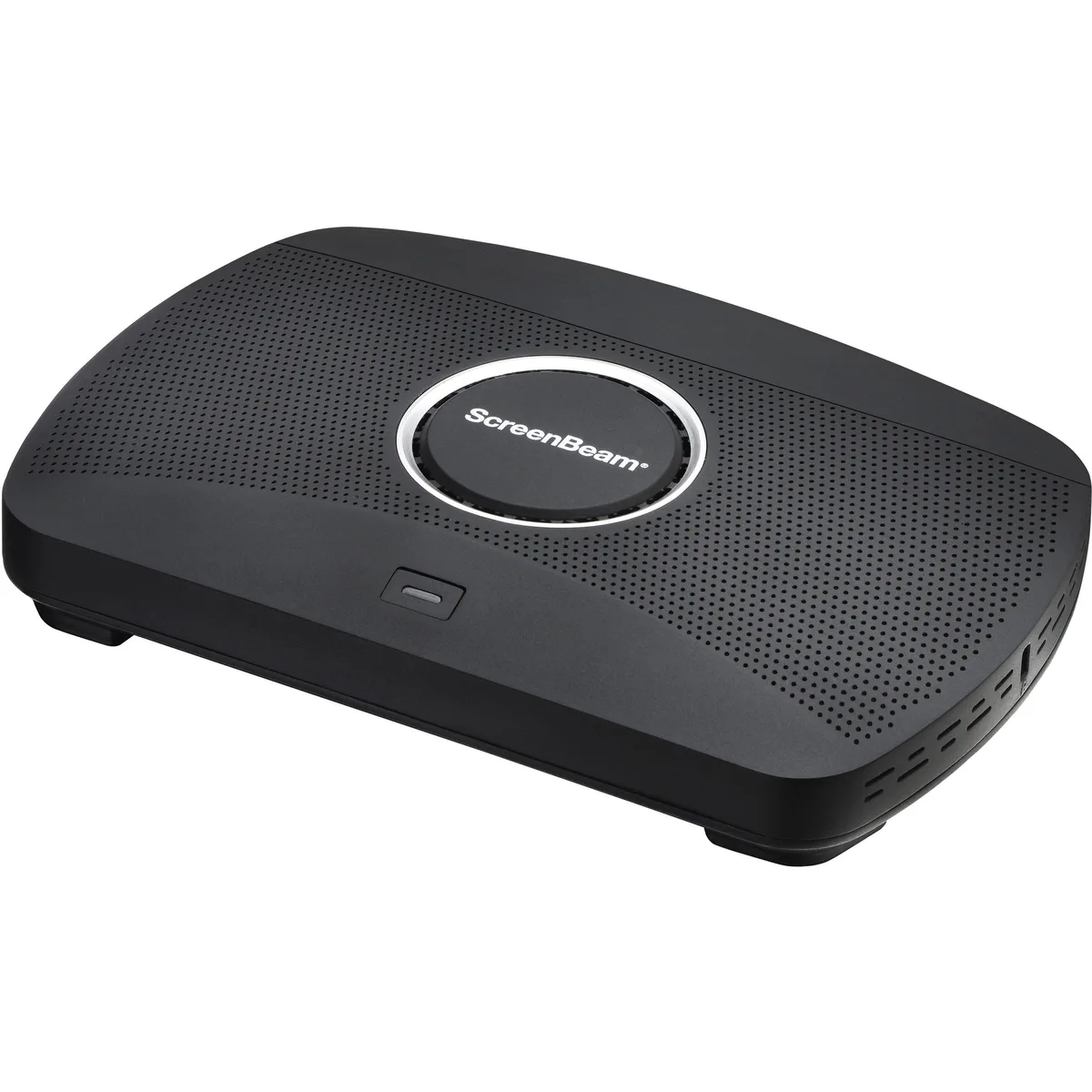

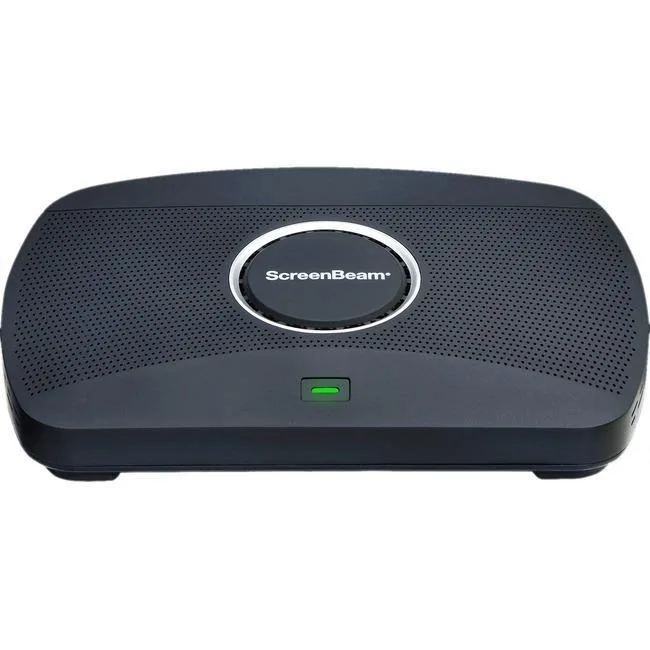

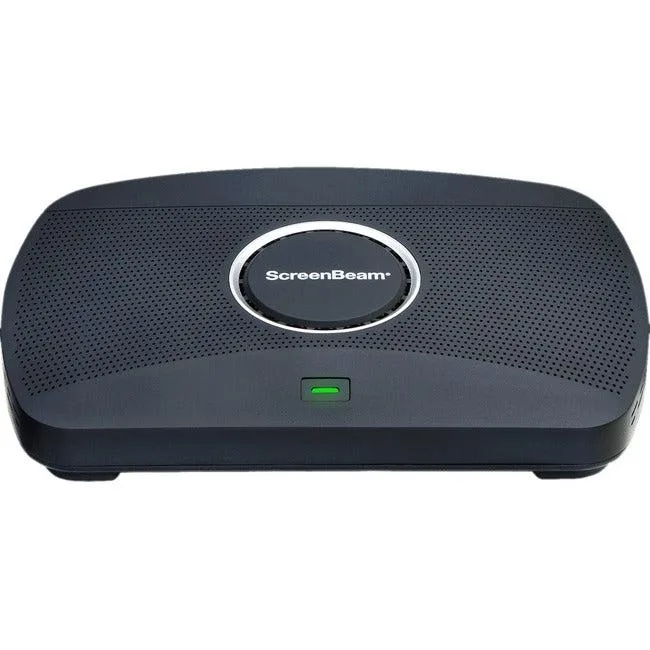

Screenbeam Inc. SBWD1100P 4K Wireless Presentation System
A 4K wireless presentation receiver that connects Windows, macOS, iOS and Chromebook devices without apps or dongles, includes HDMI in/out, USB ports and Central Management Enterprise software
- SpecificationsResolution: Up to 4K@30Hz Ethernet: 10/100/1000-BASE-T RJ-45
- Interface1 x HDMI Input 1 x HDMI Output 2 x USB 2.0 Host Type-A 1 x U
- Video FormatH.264 compression
- AudioLCPM 2.0
- Mac CompatibleYes
- Operating Systems SupportedMiracast P2P wireless display requires certified device with
- Wireless 4K sharing at up to 30Hz for cable-free presentations
- App-free Miracast and local Wi-Fi modes let guests connect instantly
- Gigabit Ethernet plus dual-band 802.11ac MIMO for stable network integration
- HDMI in and out with USB ports enable UC system and signage flexibility
- Central Management Enterprise software included for browser-based fleet administration
Enterprise Wireless Presentation
The ScreenBeam 1100 Plus is a 4K wireless presentation system built for conference rooms and huddle spaces. It lets users share and annotate content from Windows, macOS, iOS or Chromebook devices without installing apps or using dongles. The receiver integrates directly with a UC system via HDMI and includes Central Management Enterprise software for browser-based monitoring and role-based access across multiple sites. It suits IT teams deploying standardised collaboration hardware at scale.
4K30 Miracast and Network Limits
Wireless sharing tops out at 4K resolution at 30Hz using H.264 compression. Miracast P2P requires Windows 10 build 1607 or later, or Android 4.2 or later, while network-based wireless display needs Windows 10 build 1709 or later. The dual-band wireless radio uses 802.11ac with 3x3 MIMO for local mode and 2x2 MIMO for network bridge mode. Wired LAN is limited to 10/100/1000-BASE-T speeds. Audio output is LCPM 2.0 over HDMI or the 3.5mm jack.
HDMI USB and Rack Ready Build
The chassis provides one HDMI input, one HDMI output, two USB 2.0 Type-A ports, one USB 3.0 Type-A port, a 3.5mm analogue audio output and a DC power jack. This port selection supports connecting a room display, a UC codec, peripherals and wired audio without extra adapters. The compact form factor fits standard AV rack shelves or under-display mounting. Buyers needing more than one HDMI input or additional USB ports for complex room layouts should look elsewhere.
Highlights
- Wireless 4K sharing at up to 30Hz for cable-free presentations
- App-free Miracast and local Wi-Fi modes let guests connect instantly
- Gigabit Ethernet plus dual-band 802.11ac MIMO for stable network integration
- HDMI in and out with USB ports enable UC system and signage flexibility
- Central Management Enterprise software included for browser-based fleet administration
Specifications
| Brand | ScreenBeam |
|---|---|
| Model | 1100 Plus (SBWD1100P) |
| Specifications | Resolution: Up to 4K@30Hz Ethernet: 10/100/1000-BASE-T RJ-45 LAN Wireless: Miracast and Local Wi-Fi Mode: 802.11ac dual-band 3x3 MIMO Network Bridge: 802.11ac dual-band 2x2 MIMO Authentication WPA-PSK (TKIP) Protocol: WPA2-PSK (AES) PEAP-MSCHAP V2 EAP-TLS Content Protection: HDCP 2.x Power: Input: 12VDC, 3A Consumption: 8.4W (typical), 36W (peak) Dimensions: 8.66 x 5.66 x 1.47 inch (220 x 144 x 37.5 mm) Operating temperature: 0º - 40º C (32º - 104º F) Storage temperature: -20º - 85º C (-4º - 185º F) Operating humidity: 20 - 80% non-condensing Storage humidity: 10 - 90% non-condensing |
| Interface | 1 x HDMI Input 1 x HDMI Output 2 x USB 2.0 Host Type-A 1 x USB 3.0 Host Type-A 1 x Analog 3.5mm audio output 1 x DC Power Jack |
| Video Format | H.264 compression |
| Audio | LCPM 2.0 |
| Mac Compatible | Yes |
| Operating Systems Supported | Miracast P2P wireless display requires certified device with either: Windows 10 build 1607 (and later) Android 4.2 (and later) Wireless display over network requires device with either: Windows 10 build 1709 (and later) Windows 7 (and later) macOS 10.10 (and later) iOS 11 (and later) Chrome OS 74.0.3729.159 (and later) |
| Features | Flexible deployment options reduce complexity and lower capital costs No apps to install and maintain, or dongles or cables required Integrate ScreenBeam wireless display with a UC system Single device for both wired and wireless connections Multi-Network Support Ghost Inking removes any wireless inking latency Ghost Inkingremoves any wireless inking latency Digital Signage for employee and guest communications Multi-View allows up to four client devices to share content on-screen Quick Switch Mode to switch between presenters without disconnecting Multi-user and role-based central m |
| Shipping weight | 1.02 kg |
| Package size | 287 × 175 × 84 mm |
Questions about this item
Should I pick the 1100 Plus model or look for another version with different inputs?
This unit provides one HDMI input, one HDMI output, two USB 2.0 ports, one USB 3.0 port and a 3.5 mm audio jack, so choose it when that mix of wired connections matches your room display and peripherals.
What does the 4K@30Hz rating mean when I connect a laptop in a meeting room?
The receiver can output up to 4K resolution at 30 frames per second, so a 4K screen will show the presenter's desktop at that refresh rate; higher frame rates are not supported.
How does the 802.11ac dual-band 3x3 MIMO wireless link cap real-world screen sharing?
The Miracast and local Wi-Fi mode uses 802.11ac dual-band 3x3 MIMO, which sets the maximum throughput between the presenter device and the receiver.
