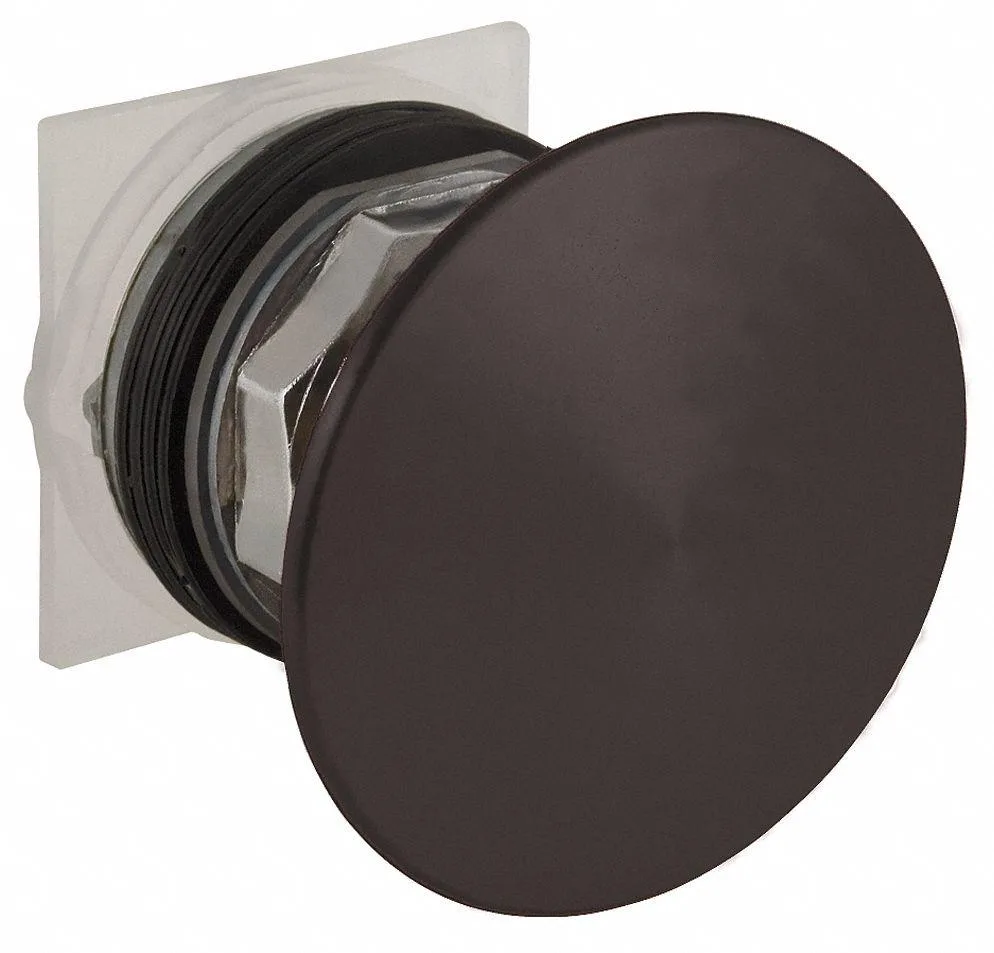

Schneider Electric 30mm black mushroom head push button operator with metal construction

Schneider Electric

Schneider Electric 9001KR25BM 30mm Black Push Button

SKU CH-K0YX-BWHR0

A 30 mm black mushroom-head push button with momentary action, metal construction and IP66 sealing for industrial control panels

  • TypeLight Switch
  • Size/Dimensions30mm
  • Color/FinishBlack
  • Color MappingBlack
  • Momentary action gives precise control
  • 30 mm mushroom head fits standard panels
  • Metal construction resists impact and wear
  • IP66 rating protects against dust and water jets
  • Certified to IEC 60947 and UL 508 standards

30 mm Mushroom-Head Push Button

The Schneider Electric 9001KR25BM is a black 30 mm mushroom-head push button designed for industrial control panels and machine interfaces. Its momentary action suits start, stop or emergency functions where a large, tactile operator is required. Metal head, bezel and base construction provide mechanical durability in harsh environments.

Replaces Worn or Smaller Operators

The unit fits standard 30 mm panel cut-outs and upgrades from smaller flush buttons when operators need faster, gloved-hand actuation. NEMA 1, 2, 3, 3R, 4, 6, 12, 13 and IP66 ratings mean the switch withstands water, dust, oil and outdoor exposure that would defeat lesser-sealed alternatives. Compliance with IEC 60947-5-1, UL 508 and CSA C22.2 No. 14 supports use in globally certified panels.

Sealed Metal Construction Holds Up Under

Metal-on-metal bearing surfaces resist wear from repeated cycling, while the IP66 and NEMA 4/6/13 seals keep contaminants out during wash-down or outdoor duty. The momentary mechanism returns positively after each press without sticking, even after prolonged vibration per IEC 60068-2-6 and shock per IEC 60068-2-27. Not suited for applications requiring maintained positions or illuminated feedback.

Highlights

  • Momentary action gives precise control
  • 30 mm mushroom head fits standard panels
  • Metal construction resists impact and wear
  • IP66 rating protects against dust and water jets
  • Certified to IEC 60947 and UL 508 standards

Specifications

TypeLight Switch
BrandSCHNEIDER ELECTRIC
Size/Dimensions30mm
Color/FinishBlack
Color MappingBlack

Questions about this item

What panel cut-out diameter does the 30 mm mushroom head push button require?

The operator fits a standard 30 mm panel cut-out; the 60 mm mushroom head sits on the front of the panel once the mounting nut is tightened.

Which step is often missed when wiring the contacts on this momentary push button?

Installers sometimes forget to secure the contact block to the operator body with the locking lever before tightening the panel nut, leaving the switch electrically open.

How do I know when the IP66 seal on this metal bezel push button needs replacement?

Inspect the gasket for cracking or compression set; if water ingress appears behind the panel or the button action feels gritty, replace the seal to restore the IP66 rating.
