SANNCE 4CH 1080P HDMI DVR Surveillance Security System No HDD

4-Channel 1080N DVR for CCTV Installations

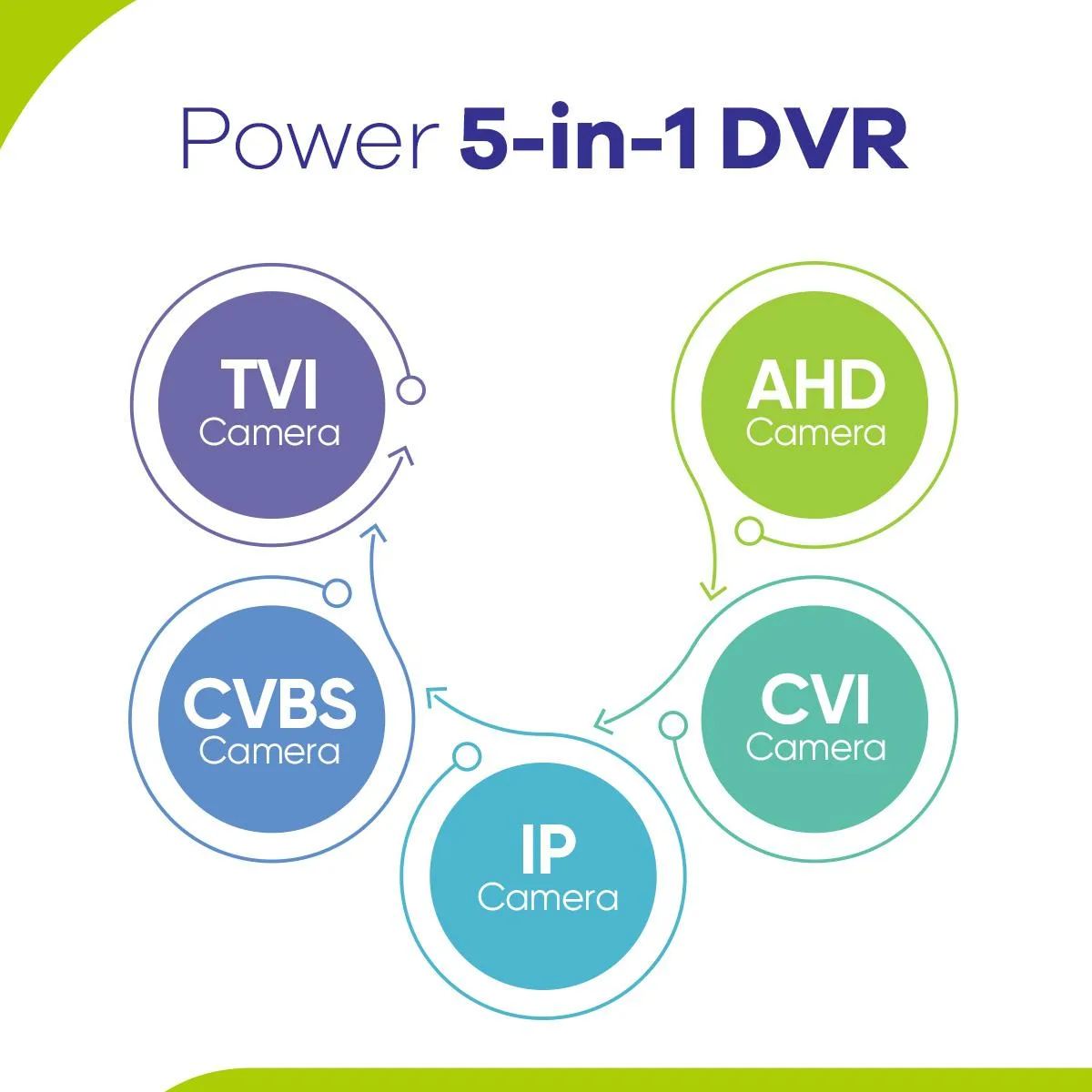

This four-channel digital video recorder handles 1080N encoding at 15 frames per second across analogue and IP cameras. It accepts AHD, TVI, CVI, CVBS and IP video inputs through four BNC ports. The unit ships without a hard drive, so installers must supply a SATA drive up to 8 TB. Mobile apps for iOS and Android deliver push notifications when human motion is detected.

HDMI and VGA Outputs Plus Ethernet for Integration

Simultaneous HDMI and VGA ports both output up to 1080P for local monitoring on two displays. A 10/100 Mbps RJ45 port connects the recorder to a router for remote viewing and ARSP access. The box requires a 12 V 2 A power supply and operates from 0 to 55 °C with 10 to 90 % RH. One SATA bay frees the builder to choose capacity while the compact 255 × 236 × 44 mm chassis fits standard cabinets.

Records Four Channels with 8 TB Ceiling

In analogue mode the DVR plays back four channels of 1080N footage stored on a single SATA drive. Hybrid mode adds two 1080P IP streams while pure IP mode supports up to eight 1080P or four 5 MP cameras. Recording schedules, motion triggers and manual capture write to the drive using H.264+ compression for longer retention. Buyers needing more than eight IP channels or drives larger than 8 TB must choose a different recorder.
