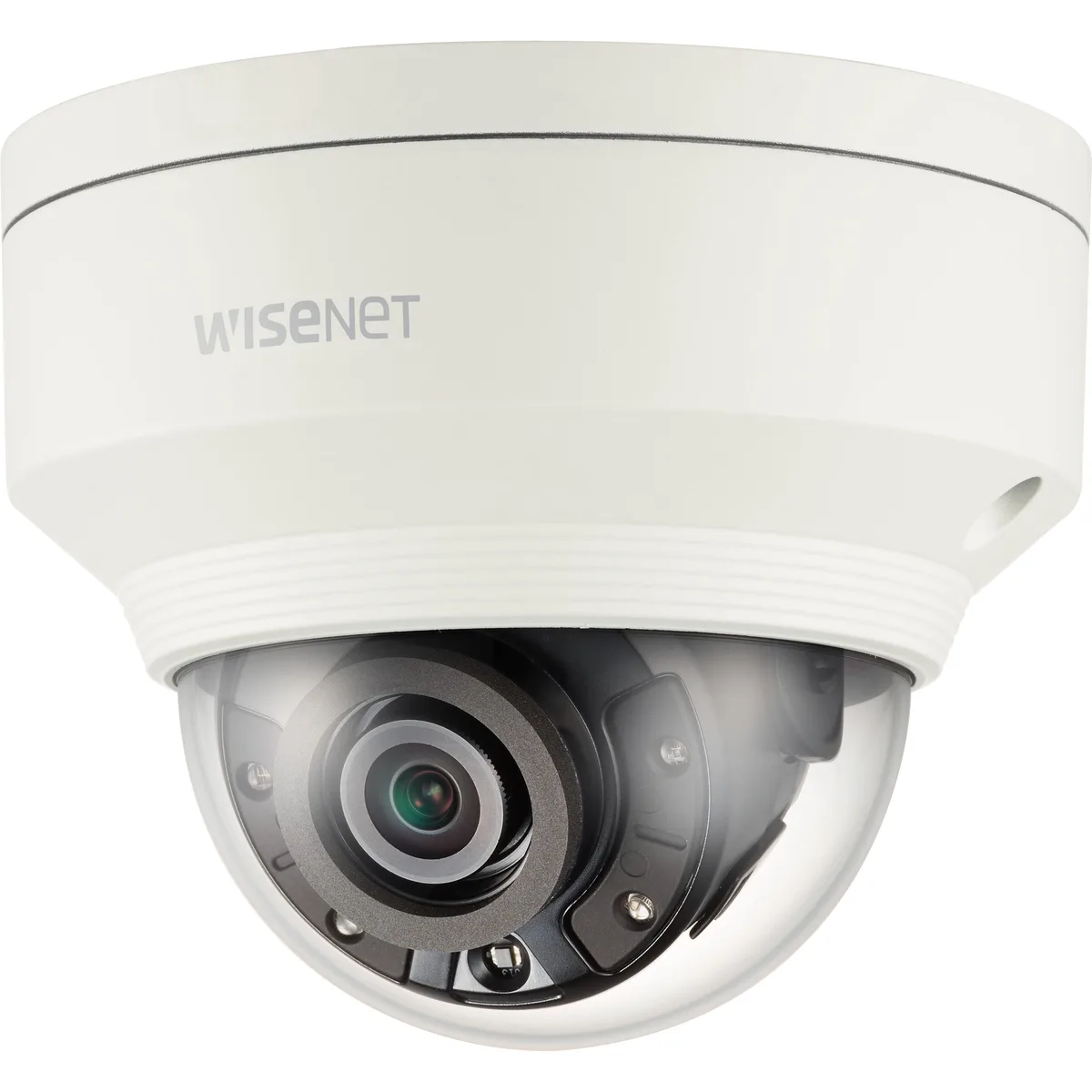

White dome security camera with fixed lens and IR LEDs

SAMSUNG

SAMSUNG XNV-8020R 5MP 3.7mm 98ft IR Dome Analog Camera

SKU CH-EDWM-6DYD4 MPN XNV-8020R

5 megapixel outdoor dome camera with 3.7 mm fixed lens and 98 foot infrared night vision

  • TypeDome Camera
  • Connection TypeRJ-45 (10/100BASE-T),
  • Video Capture ResolutionCVBS : 1.0 Vpp / 75 composite, 720 x 480(N), 720 x 576(P), f
  • Clear 5MP video at 30 fps with 2560 x 1920 resolution
  • Night vision up to 98 ft using high-powered IR LEDs
  • H.265 and H.264 compression plus WiseStream II saves bandwidth
  • Vandal-resistant IP67 and IK10 housing suits outdoor mounting
  • USB port and 120dB WDR simplify setup and handle tough lighting

Outdoor 5 MP dome camera

The Samsung XNV-8020R is a 5 megapixel network dome camera built for outdoor surveillance. It captures 2560 x 1920 video at 30 fps using a CMOS sensor and a 3.7 mm fixed lens. Infrared LEDs provide night vision to 98.43 ft. The housing meets IP67 and IK10 ratings for weather and vandal resistance.

Suits perimeter and entry-point monitoring

Installers who need a single fixed-view camera with strong low-light reach and dual SD card slots will find it fits. Buyers who want motorised zoom, varifocal lens adjustment or multi-sensor panoramic coverage should look at something else.

3.7 mm fixed focal length

The 3.7 mm lens gives a 97.5 ° horizontal field of view with no optical zoom. If the site requires a narrower or wider angle, a different fixed lens or a varifocal model is required.

Highlights

  • Clear 5MP video at 30 fps with 2560 x 1920 resolution
  • Night vision up to 98 ft using high-powered IR LEDs
  • H.265 and H.264 compression plus WiseStream II saves bandwidth
  • Vandal-resistant IP67 and IK10 housing suits outdoor mounting
  • USB port and 120dB WDR simplify setup and handle tough lighting

Specifications

BrandHanwha Techwin
ModelXNV-8020R
Part NumberXNV-8020R
TypeDome Camera
Connection TypeRJ-45 (10/100BASE-T),
Video Capture ResolutionCVBS : 1.0 Vpp / 75 composite, 720 x 480(N), 720 x 576(P), for installation USB : micro USB type B, 1280 x 720 for installation
Shipping weight0.99 kg
Package size165 × 159 × 133 mm

Questions about this item

Does the Samsung XNV-8020R include mounting hardware or must brackets be purchased separately?

The camera supports wall, parapet, pole and corner mounting; brackets for the chosen method are sold separately.

Should I choose the 3.7 mm fixed lens or a varifocal option for a 97.5° field of view?

This model has a 3.7 mm fixed focal lens providing a 97.5° horizontal angle; no varifocal version is offered for this part number.

What does the 98 ft infrared range mean for night monitoring in a real installation?

High-power IR LEDs illuminate up to 98 ft (98.43 ft quoted) in darkness, with true day/night switching and defog detection to maintain contrast.
