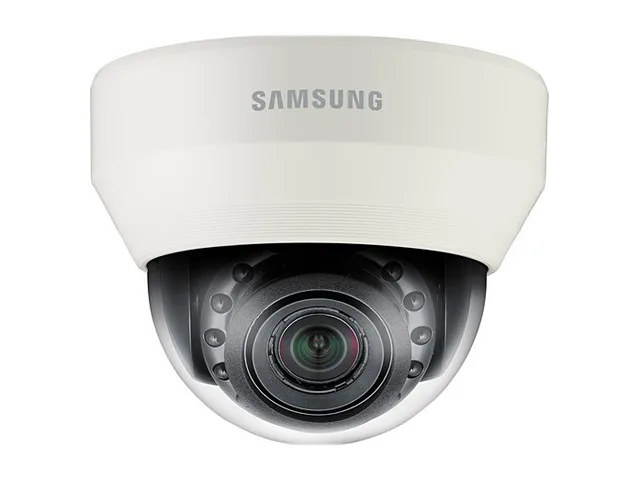

White dome network camera with motorised varifocal lens and IR LEDs

SAMSUNG

SAMSUNG SND-6084R 2MP Full HD IR dome network camera

SKU CH-6WE2-29T2M MPN SND-6084R

A 2-megapixel Full HD network dome camera with a motorised 2.8× varifocal lens, built-in IR LEDs for 0-lux imaging and PoE power

  • Network CameraYes
  • TypeDome Camera
  • Connection TypeRJ45
  • Networking ProtocolTCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HT
  • Sensor & Detector1/2.8" PS Exmor 2.38 M CMOS
  • Video Capture Resolution1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768
  • Sharp 1920 x 1080 Full HD video captures every detail
  • 8x motorized varifocal lens adjusts the view remotely
  • IR LEDs provide clear footage in total darkness
  • H.264 and MJPEG dual codec enables flexible streaming
  • PoE and 12 VDC power simplify installation

Product identity

The Samsung SND-6084R is a 2-megapixel Full HD network dome camera built for professional surveillance. It captures 1920 x 1080 video at up to 60 frames per second using a 1/2.8-inch PS Exmor CMOS sensor. A 3 to 8.5 mm motorized varifocal lens with DC auto iris simplifies installation and remote focus adjustment.

Who this suits and who it does not

Installers needing PoE-powered dome cameras with dual H.264 and MJPEG streaming will find the feature set complete. The 12 VDC or IEEE 802.3af power options and 100 dB WDR at 30 fps cover demanding lighting scenes. Buyers requiring more than 2 megapixels of resolution or a different form factor such as a bullet or PTZ unit should consider other models.

Deciding specification

The motorized 2.8x varifocal lens covering 3 to 8.5 mm focal lengths is the specification that determines fit. It enables remote zoom and focus changes without opening the housing, which is critical for sites where camera positions are finalised after mounting. If a fixed focal length or manual lens is acceptable, a simpler camera may suffice.

Highlights

  • Sharp 1920 x 1080 Full HD video captures every detail
  • 8x motorized varifocal lens adjusts the view remotely
  • IR LEDs provide clear footage in total darkness
  • H.264 and MJPEG dual codec enables flexible streaming
  • PoE and 12 VDC power simplify installation

Specifications

BrandSAMSUNG
ModelSND-6084R
Network CameraYes
TypeDome Camera
Connection TypeRJ45
Networking ProtocolTCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Sensor & Detector1/2.8" PS Exmor 2.38 M CMOS
Video Capture Resolution1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
Frame RateH.264: maximum 60 fps at all resolutions
MJPEG:
1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768: maximum 15 fps
800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180: maximum 30 fps
Lens Type3 to 8.5 mm (2.8x) motorized varifocal
DC auto iris
Board-in type
SecurityHTTPS (SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1x authentication
PowerInput Voltage/Current: 12 VDC, PoE (IEEE802.3af)
Power Consumption: Maximum 9 W
FeaturesMax. 2M (1920 x 1080) resolution
16 : 9 Full HD (1080p) resolution support
3 ~ 8.5mm (2.8x) motorized varifocal lens
H.264, MJPEG dual codec, Multiple streaming
Audio / Face / Motion detection
Simple Focus, True Day&Night (ICR)
UPnP, Defog
SD/SDHC/SDXC memory slot
Multi-crop streaming, PoE
Bi-directional audio support, IR LED (12ea)
Shipping weight0.91 kg
Package size51 × 51 × 51 mm

Questions about this item

How is the motorized varifocal lens focused during installation and what step is often missed?

Use the Simple Focus feature over the network to adjust the 3 to 8.5 mm lens remotely; the step often missed is saving the focus position in the camera menu so it persists after a reboot.

What maintenance will the IR LEDs and the SD card slot need over time?

The 12 built-in IR LEDs are solid-state and require no replacement; the SD/SDHC/SDXC slot only needs a card swap if storage fills or a card fails.

What limit appears first when the camera runs continuously at maximum load?

The 9 W power ceiling is reached first; at 12 VDC or PoE the camera draws up to 9 W when streaming 1920 x 1080 at 60 fps with IR on.
