Black rectangular ATX power supply with 140mm fan and modular cable sockets

SAMA

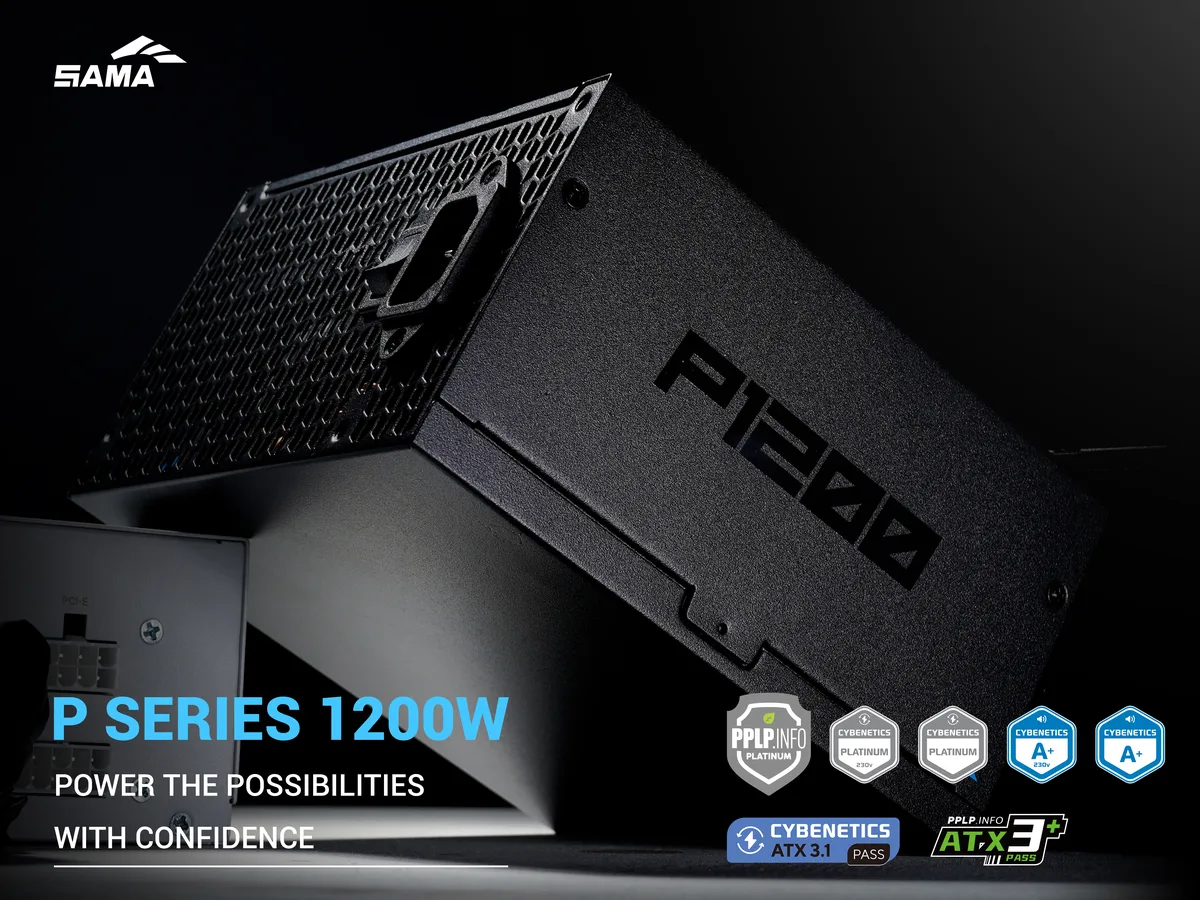

SAMA XPH1200-AP 1200W ATX 3.1 power supply

SKU CH-ND3X-QSV1F MPN XPH1200-AP

Fully modular 1200 W ATX 3.1 power supply with Cybenetics Platinum efficiency, native 12V-2x6 PCIe 5.1 connector, 140 mm FDB fan, and 100% Japanese capacitors

  • TypeATX 3.1 Compatible
  • Maximum Power1200 W
  • ModularYes
  • Fans1 x 140 mm
  • PFCActive
  • Main Connector24Pin

Option P1200W Black

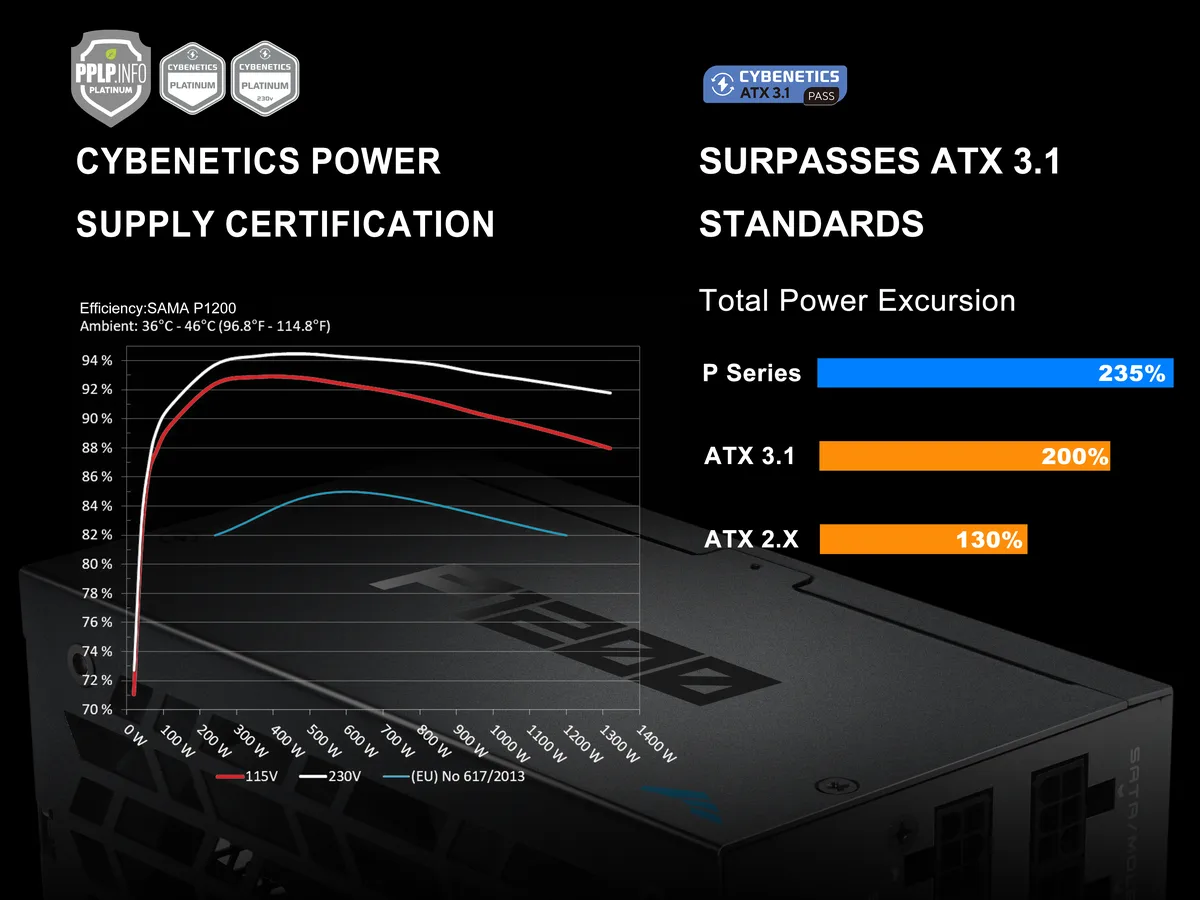

  • Cybenetics Platinum efficiency reaches 92 percent under typical loads

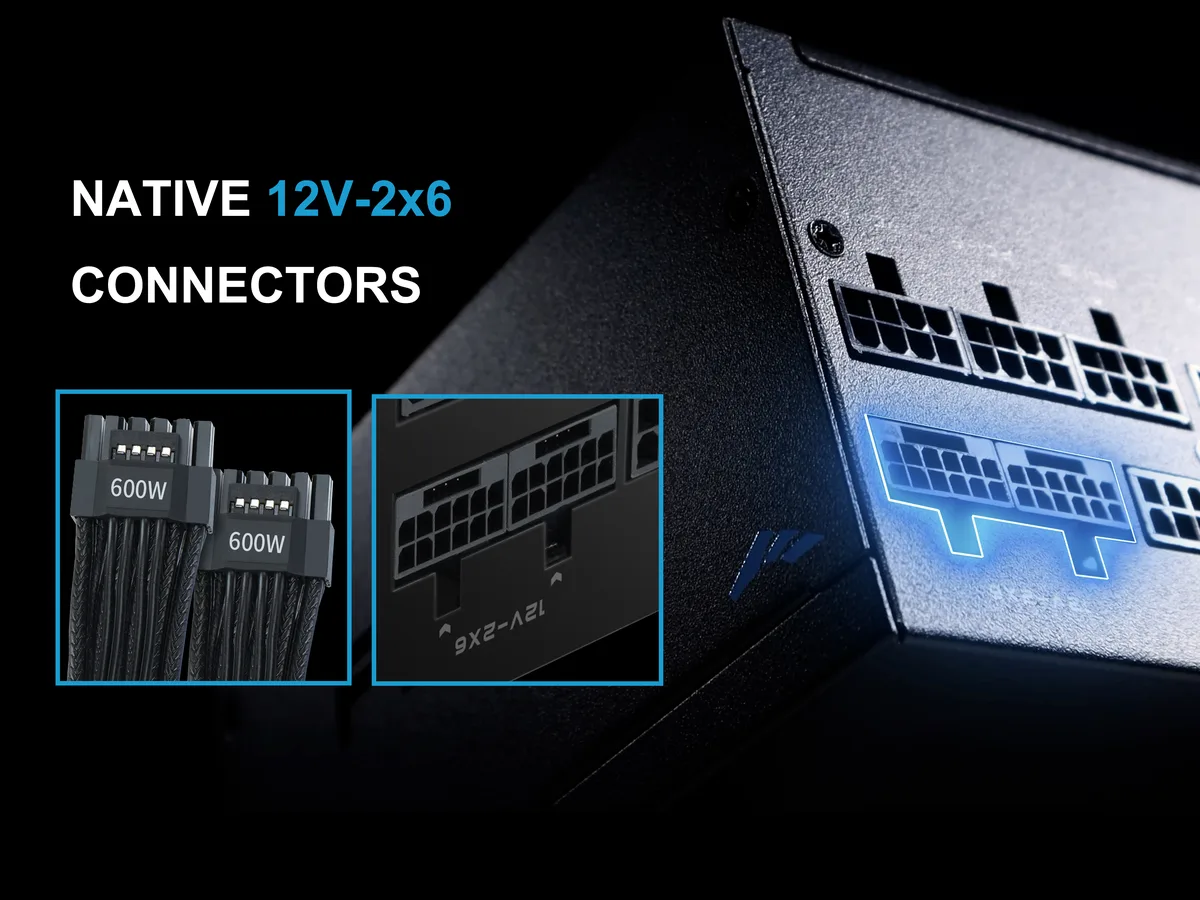

  • Native 12V-2x6 PCIe 5.1 connector supplies 600W without adapters
  • Fully modular cabling keeps the build clean and flexible

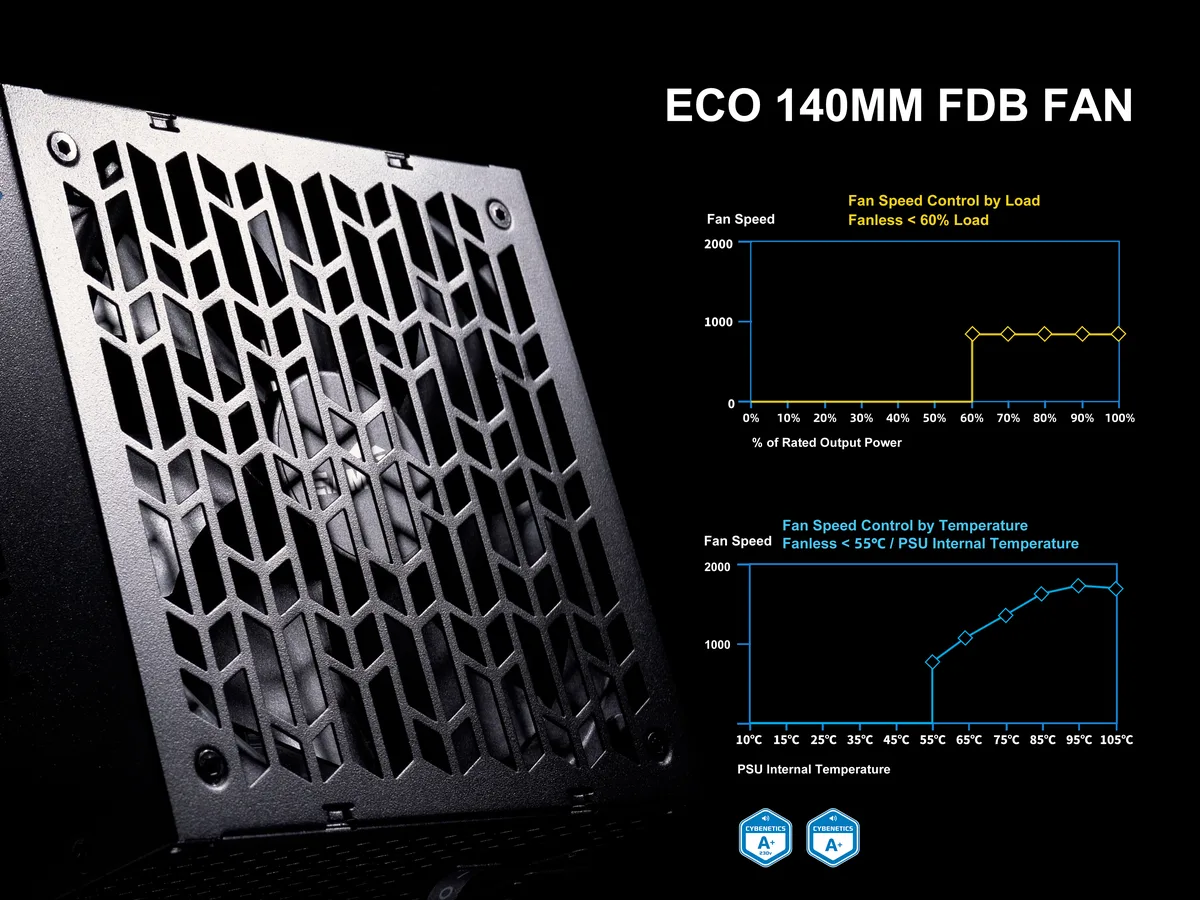

  • 140mm FDB fan runs silent below 60 percent load and 55°C
  • 100 percent Japanese capacitors ensure stable power delivery and durability

Purpose-Built Power

The SAMA XPH1200-AP is a 1200W ATX 3.1 power supply built for high-end gaming PCs and workstations that demand stable, efficient delivery. Its fully modular design keeps cable routing clean in any chassis.

The Deciding Spec

Cybenetics Platinum certification guarantees 92% or higher efficiency at typical loads, while the native 12V-2x6 PCIe 5.1 connector supplies up to 600W to modern graphics cards without adapters.

Fit and Limits

Ideal for builders running RTX 40 or 50 series GPUs who need compact 150mm depth and a 140mm FDB fan that stops below 60% load or 55°C. Systems requiring more than 1200W or lacking ATX 3.1 support should consider other options.

Highlights

  • Cybenetics Platinum efficiency reaches 92 percent under typical loads
  • Native 12V-2x6 PCIe 5.1 connector supplies 600W without adapters
  • Fully modular cabling keeps the build clean and flexible
  • 140mm FDB fan runs silent below 60 percent load and 55°C
  • 100 percent Japanese capacitors ensure stable power delivery and durability

Specifications

BrandSAMA
ModelXPH1200-AP
SeriesP-Series
Part NumberP1200-BKPFF001-US
TypeATX 3.1 Compatible
Maximum Power1200 W
ModularYes
Fans1 x 140 mm
PFCActive
Main Connector24Pin
+12V Rails2
PCI-Express Connector3 x 6+2-Pin
SATA Power Connector3
Hold-up Time> 16 ms @ 100% load
Efficiency> 90%
Energy-EfficientCybenetics Certified
Over Voltage ProtectionYes
Overload ProtectionYes
Input Voltage100 - 240 V
Output1200W
MTBF>100,000 Hours
Connectors1 x 24 pin ATX
ColorBlack
Max PSU Length150 mm

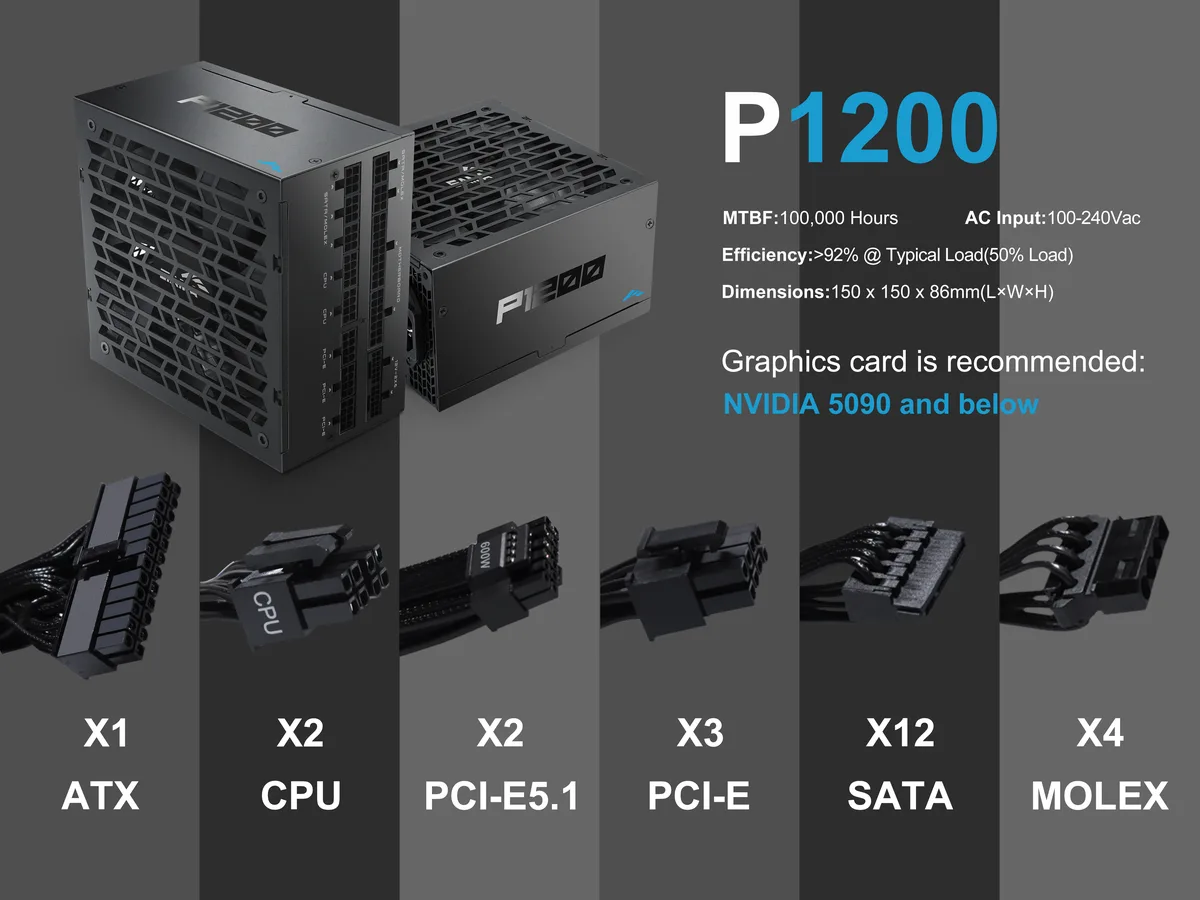

Cable Spec1x MB ATX 24Pin 600mm
2x CPU (4+4)Pin 700mm
3x PCI-E (6+2)Pin 600mm
2x 12V-2x6 (12+4)Pin 600mm
3x (SATA+SATA+SATA+SATA) 450+150+150+150mm
1x (Molex+Molex+Molex+Molex) 450+150+150+150mm
Top Fans Size140mm
Top Fans Bearing TypeFluid Dynamic Bearing
Shipping weight3.29 kg
Package size318 × 198 × 127 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the 1200 W rating actually deliver in a real build?

The unit supplies a continuous 1200 W across two +12 V rails with hold-up time above 16 ms at full load, and Cybenetics Platinum certification confirms 92 % or higher efficiency under typical loads.

How does the ATX 3.1 and PCIe 5.1 interface limit GPU power?

The native 12V-2x6 connector is rated for 600 W, so a single RTX 40 or 50 series card can draw up to that limit without adapters.

What clearance does the 140 mm FDB fan need inside the case?

The power supply is 150 mm deep and the fan spins down completely below 60 % load or 55 °C, so it fits compact cases while staying silent at low loads.
