White fully modular ATX power supply with 140mm fan

SAMA

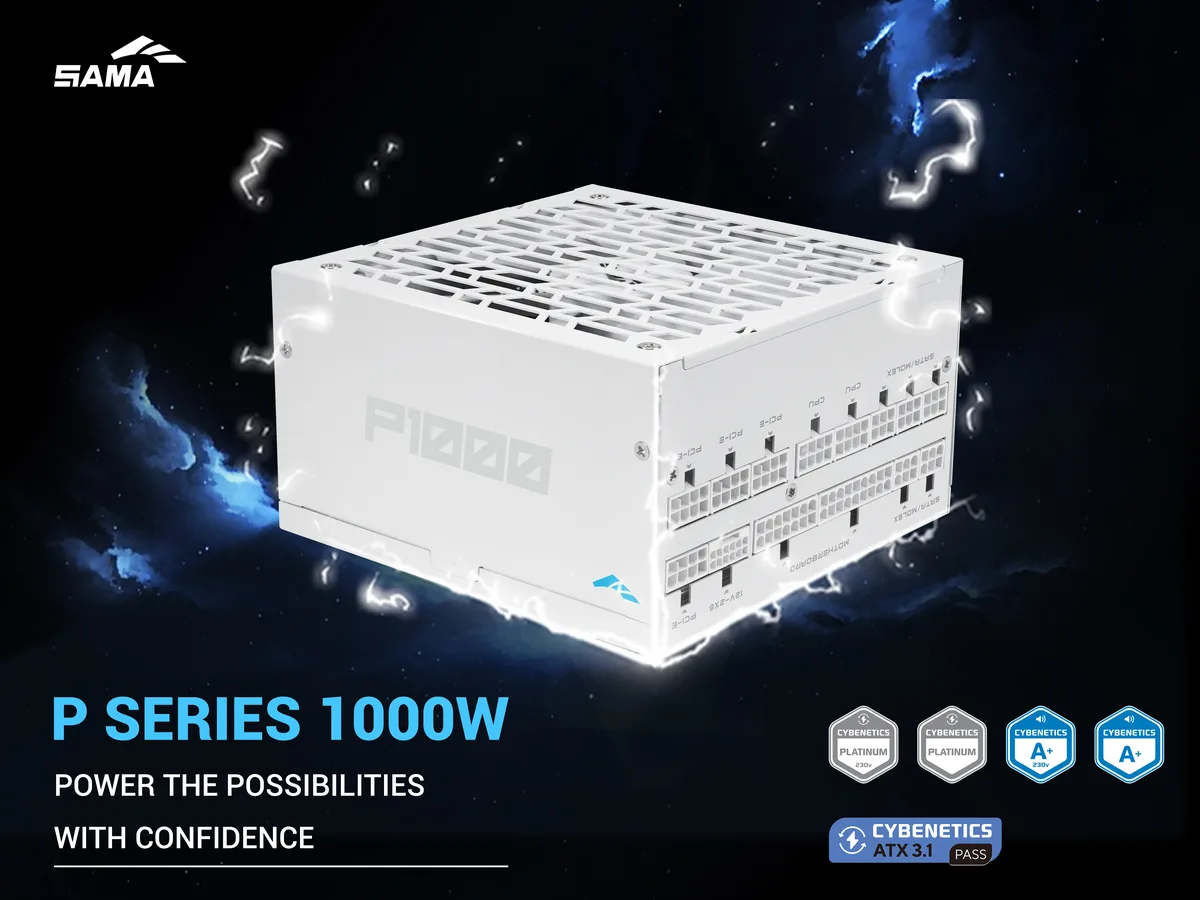

SAMA XPH1000-AP 1000W ATX 3.1 power supply

SKU CH-YQPT-BTAKW MPN XPH1000-AP

Fully modular 1000 W ATX 3.1 power supply with Cybenetics Platinum efficiency, native 12V-2x6 PCIe 5.1 connector, 140 mm FDB fan and 100 % Japanese capacitors

  • TypeATX 3.1 Compatible
  • Maximum Power1000 W
  • ModularYes
  • Fans1 x 140 mm
  • PFCActive
  • Main Connector24Pin

Option P1000W White

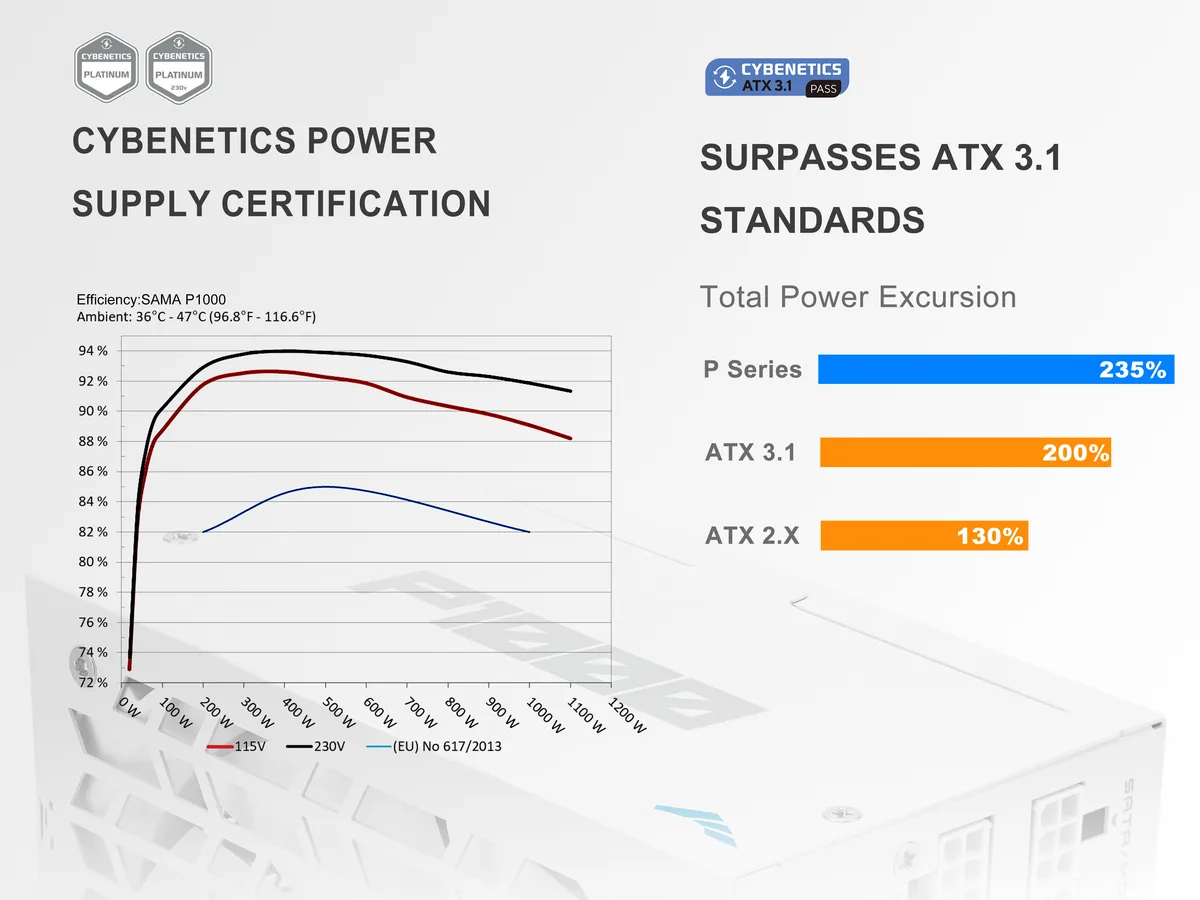

  • Cybenetics Platinum efficiency reaches 92% under typical loads

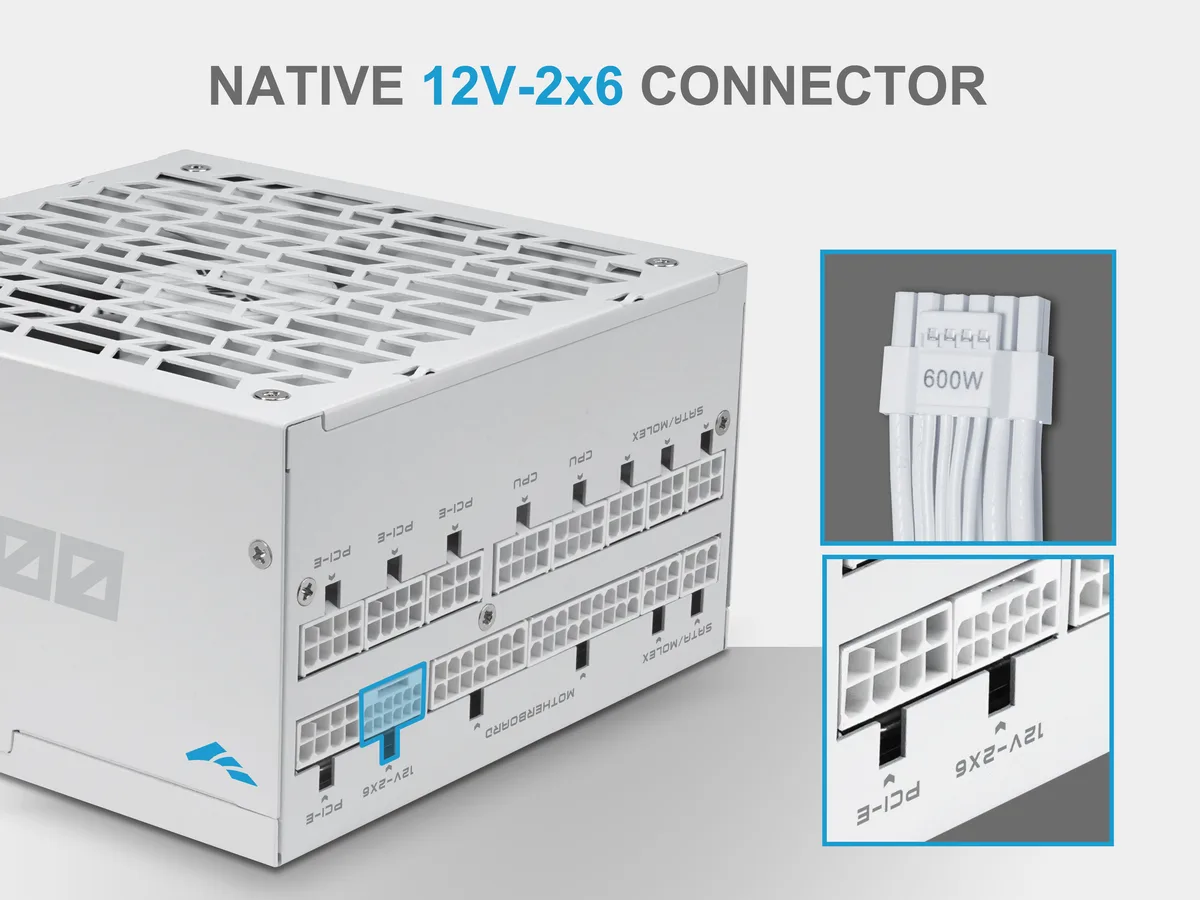

  • ATX 3.1 and PCIe 5.1 ready with native 12V-2x6 connector delivering 600W
  • Fully modular cables simplify builds and improve airflow
  • 100% Japanese capacitors ensure stable power delivery and long-term reliability

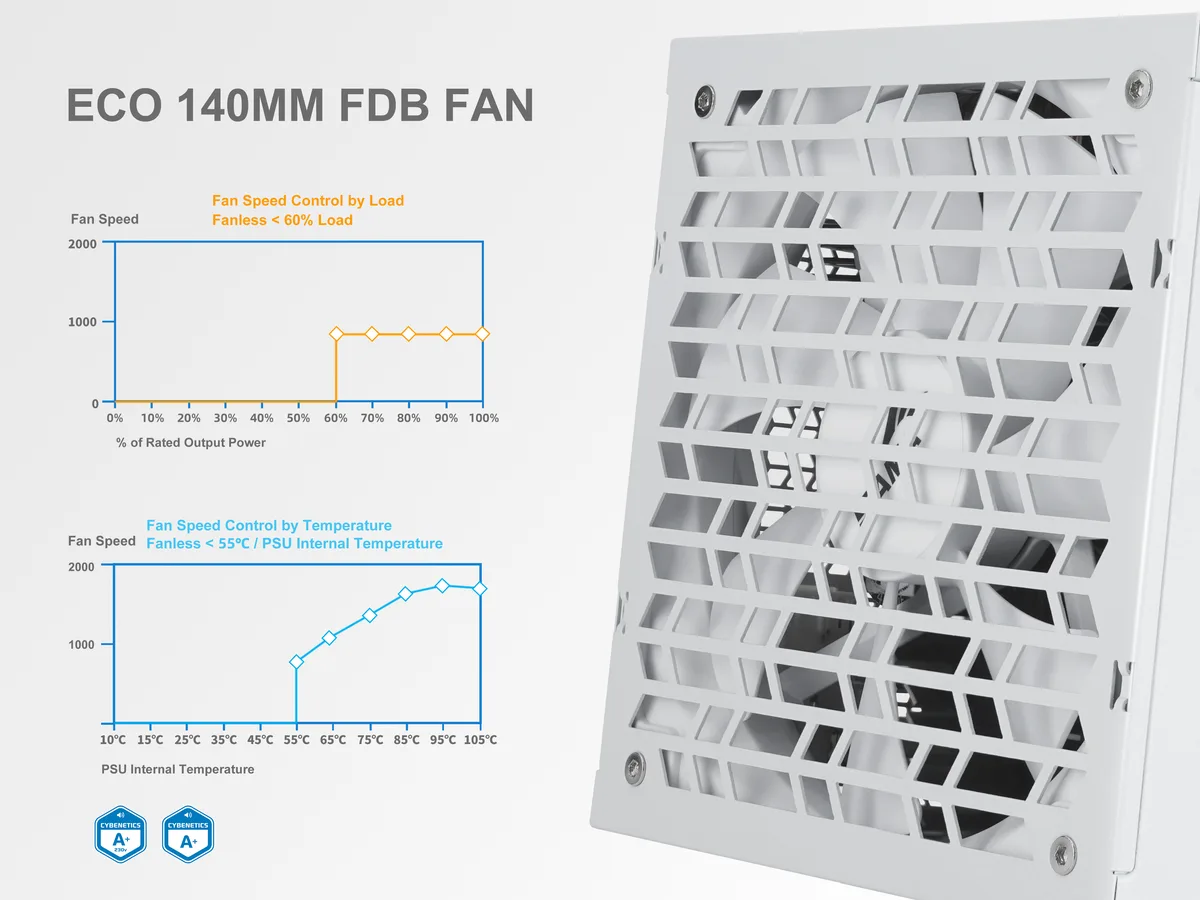

  • 140mm FDB fan runs silent below 60% load or 55°C

Built for high-output builds

This 1000W ATX 3.1 unit targets gaming PCs and workstations that need stable, high-wattage delivery. Cybenetics Platinum certification confirms 92% or higher efficiency under typical loads. A single +12V rail and fully modular cabling simplify routing in compact or full-size chassis.

Check connector count and case depth

Verify your graphics card uses the native 12V-2x6 PCIe 5.1 connector for up to 600W without adapters. The supply provides three 6+2-pin PCIe connectors and two SATA power plugs. Ensure the 150mm depth fits your case and that the 140mm fan clearance is adequate.

Suits RTX 40 and 50 series owners needing 1000W

The 12V-2x6 connector matches current high-end GPUs and the fanless mode activates below 60% load or 55°C. Builds requiring more than 1000W or different connector layouts should consider other capacities.

Highlights

  • Cybenetics Platinum efficiency reaches 92% under typical loads
  • ATX 3.1 and PCIe 5.1 ready with native 12V-2x6 connector delivering 600W
  • Fully modular cables simplify builds and improve airflow
  • 100% Japanese capacitors ensure stable power delivery and long-term reliability
  • 140mm FDB fan runs silent below 60% load or 55°C

Specifications

BrandSAMA
ModelXPH1000-AP
SeriesP-Series
Part NumberP1000-WHPFF001-US
TypeATX 3.1 Compatible
Maximum Power1000 W
ModularYes
Fans1 x 140 mm
PFCActive
Main Connector24Pin
+12V RailsSingle
PCI-Express Connector3 x 6+2-Pin
SATA Power Connector2
Hold-up Time> 16 ms @ 100% load
Efficiency> 90%
Energy-EfficientCybenetics Certified
Over Voltage ProtectionYes
Overload ProtectionYes
Input Voltage100 - 240 V
Output1000W
MTBF>100,000 Hours
Connectors1 x 24 pin ATX
ColorWhite
Max PSU Length150 mm

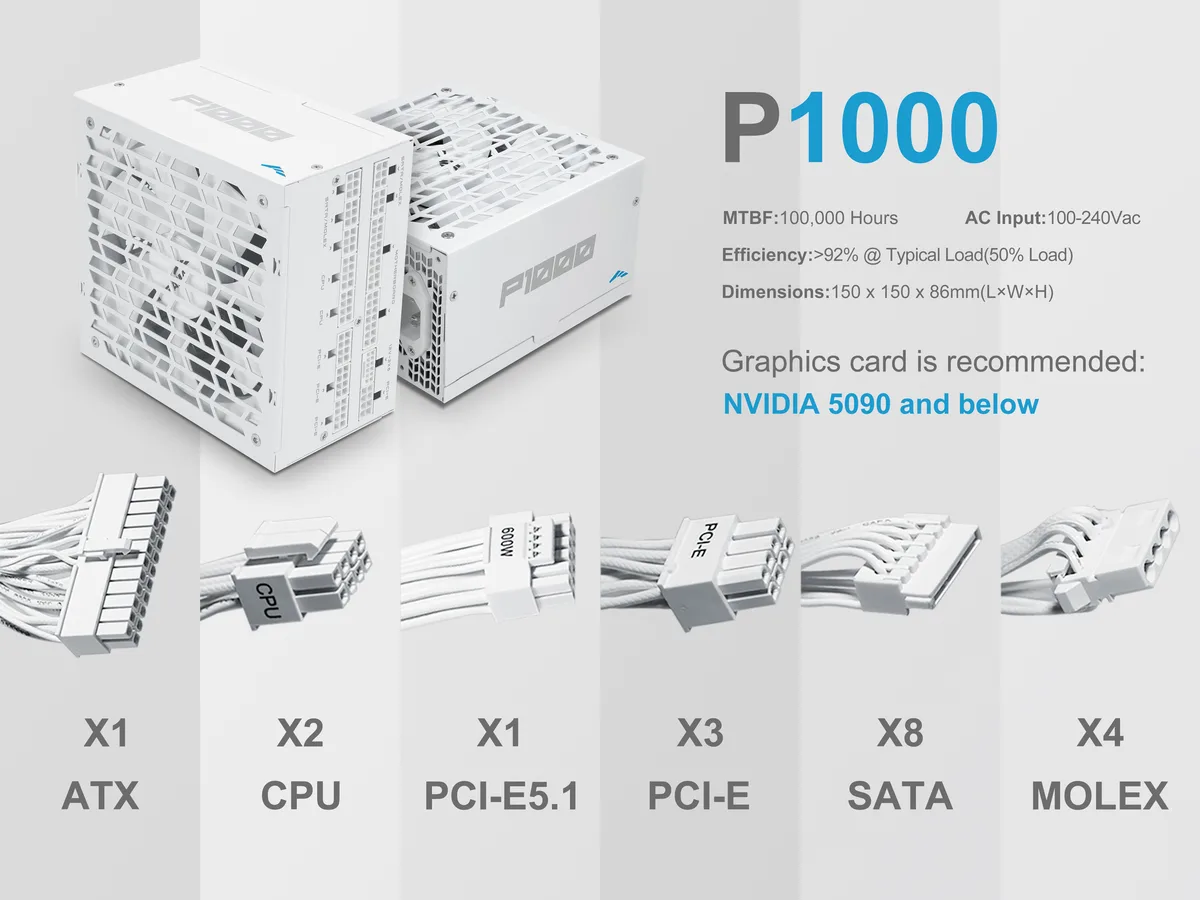

Cable Spec1x MB ATX 24Pin 600mm
2x CPU (4+4)Pin 700mm
3x PCI-E (6+2)Pin 600mm
1x 12V-2x6 (12+4)Pin 600mm
2x (SATA+SATA+SATA+SATA) 450+150+150+150mm
1x (Molex+Molex+Molex+Molex) 450+150+150+150mm
Top Fans Size140mm
Top Fans Bearing TypeFluid Dynamic Bearing
Shipping weight3.06 kg
Package size318 × 198 × 127 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What cables are included in the box and what must I buy separately?

The fully modular unit ships with the 24-pin ATX, a native 12V-2x6 PCIe 5.1 connector for 600 W GPU power, three 6+2-pin PCIe cables and two SATA power cables. No other cables are included.

Which version should I choose for a high-end GPU build?

The single 1000 W white model carries Cybenetics Platinum certification at 92 % efficiency, ATX 3.1 compliance, 100 % Japanese capacitors and a 140 mm FDB fan with semi-passive mode below 60 % load.

What does the 1000 W rating mean once the PSU is installed in my PC?

It delivers a continuous 1000 W on a single +12 V rail, handles transient spikes up to 235 % of rated load and maintains hold-up time above 16 ms at full load.
