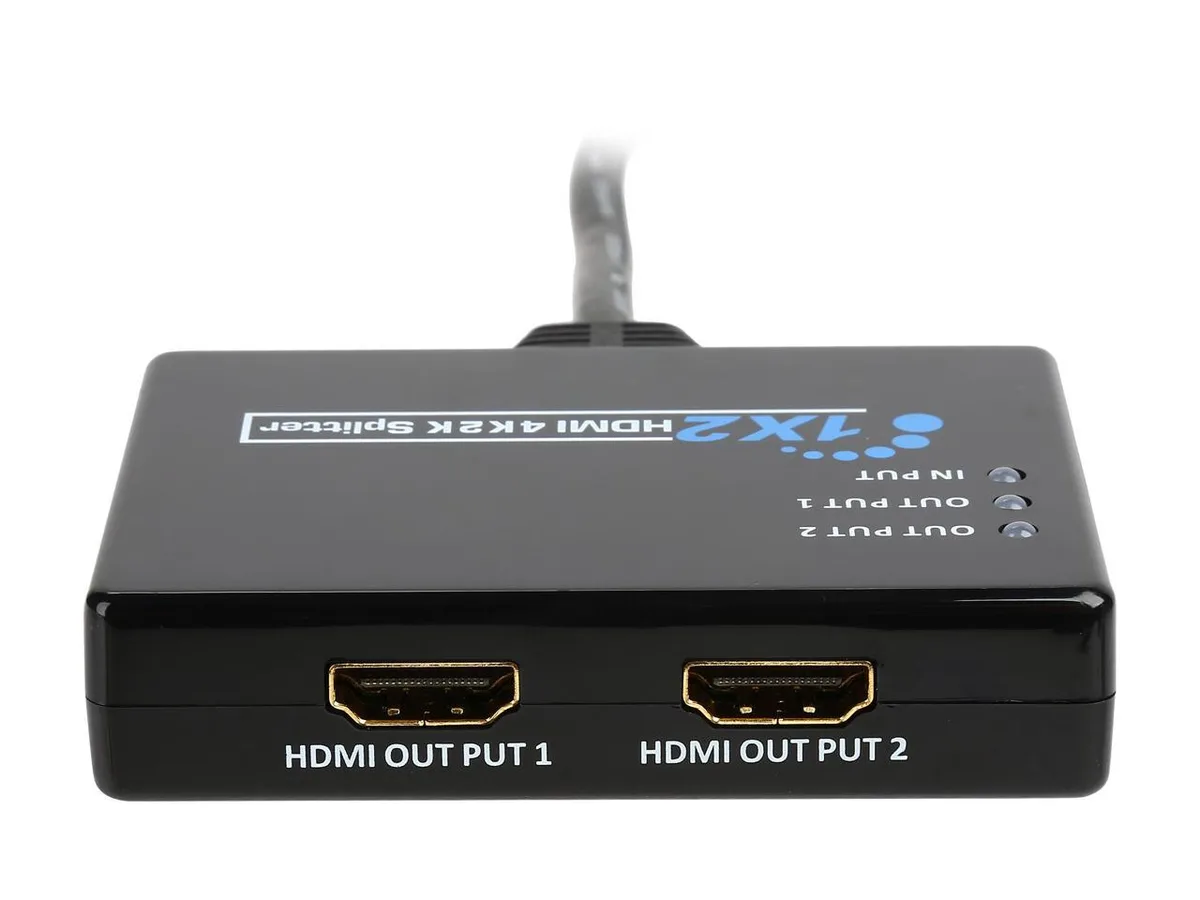

Compact black HDMI splitter with short 20-inch pigtail cable and two output ports

sakose

sakose HMSP102KT 1x2 HDMI Splitter 20in Pigtail 4K2K 3D

SKU CH-ANFT-WFT0A

A 1x2 HDMI amplifier splitter with a 20-inch pigtail that duplicates 4K2K 2D video at 30Hz and 3D at 1080p 60Hz while supporting DSD and HBR audio formats

  • TypeHDMI Splitters
  • Ports2
  • Specificationscompliant with HDCP Rev 1.3 Specification Wide Frequency Ran
  • FeaturesPlug & Play; no need of setting. Integrated HDCP decryption/
  • Splits one HDMI source to two displays via 20-inch pigtail
  • Delivers 4K2K video at 30 Hz and 3D up to 1080p at 60 Hz
  • HDCP 1.3 compliant for protected content playback
  • Supports standard, DSD and high-bit-rate audio formats
  • Plug-and-play operation with no configuration required

1x2 HDMI Splitter with 20in Pigtail

This 1x2 HDMI amplifier splitter distributes a single source signal to two displays. The 20-inch pigtail cable connects directly to the source device without an extra lead. It is suited for installers who need a compact distribution point for digital signage or home theatre setups.

HDMI 2D up to 4Kx2K@30Hz and 3D up to 1080P/3D@60Hz

The splitter handles 2D video signals up to 4Kx2K resolution at 30 Hz and 3D content up to 1080P at 60 Hz. Its operating frequency range spans 25 MHz to 300 MHz, which defines the maximum bandwidth available for the connected displays. HDCP 1.3 compliance allows protected content to pass through when both source and sinks support the same revision.

HDCP 1.3 compliance for protected content playback

The built-in HDCP decryption and encryption engines implement revision 1.3, which is the single specification that determines whether encrypted sources such as streaming boxes or Blu-ray players will output video through this splitter. If the source requires a later HDCP version, the signal will not display.

Highlights

  • Splits one HDMI source to two displays via 20-inch pigtail
  • Delivers 4K2K video at 30 Hz and 3D up to 1080p at 60 Hz
  • HDCP 1.3 compliant for protected content playback
  • Supports standard, DSD and high-bit-rate audio formats
  • Plug-and-play operation with no configuration required

Specifications

BrandBYTECC
ModelHMSP102KT
TypeHDMI Splitters
Ports2
Specificationscompliant with HDCP Rev 1.3 Specification Wide Frequency Range: 25MHz - 300MHz Support HDMI® 2D video up to 4Kx2K@30Hz and 3D up to 1080P/3D@60Hz
FeaturesPlug & Play; no need of setting. Integrated HDCP decryption/encryption engines which are Support Standard Audio, DSD Audio and HD (HBR) Audio. Cascaded: Large distribution achieved by cascading the HDMI Amplifier Splitter. HDMI pass-through HDCP pass-through Full 3D

Questions about this item

Should I pick the 20-inch pigtail version or a different length?

This model comes with a fixed 20-inch pigtail cable; no other length options are offered for this SKU.

What does the 4K2K label mean for my actual display?

It supports 2D video up to 4Kx2K at 30 Hz and 3D content up to 1080P at 60 Hz.

Which HDMI standard and HDCP version limit what I can pass through?

The splitter operates from 25 MHz to 300 MHz and complies with HDCP 1.3, capping protected content to those specifications.
