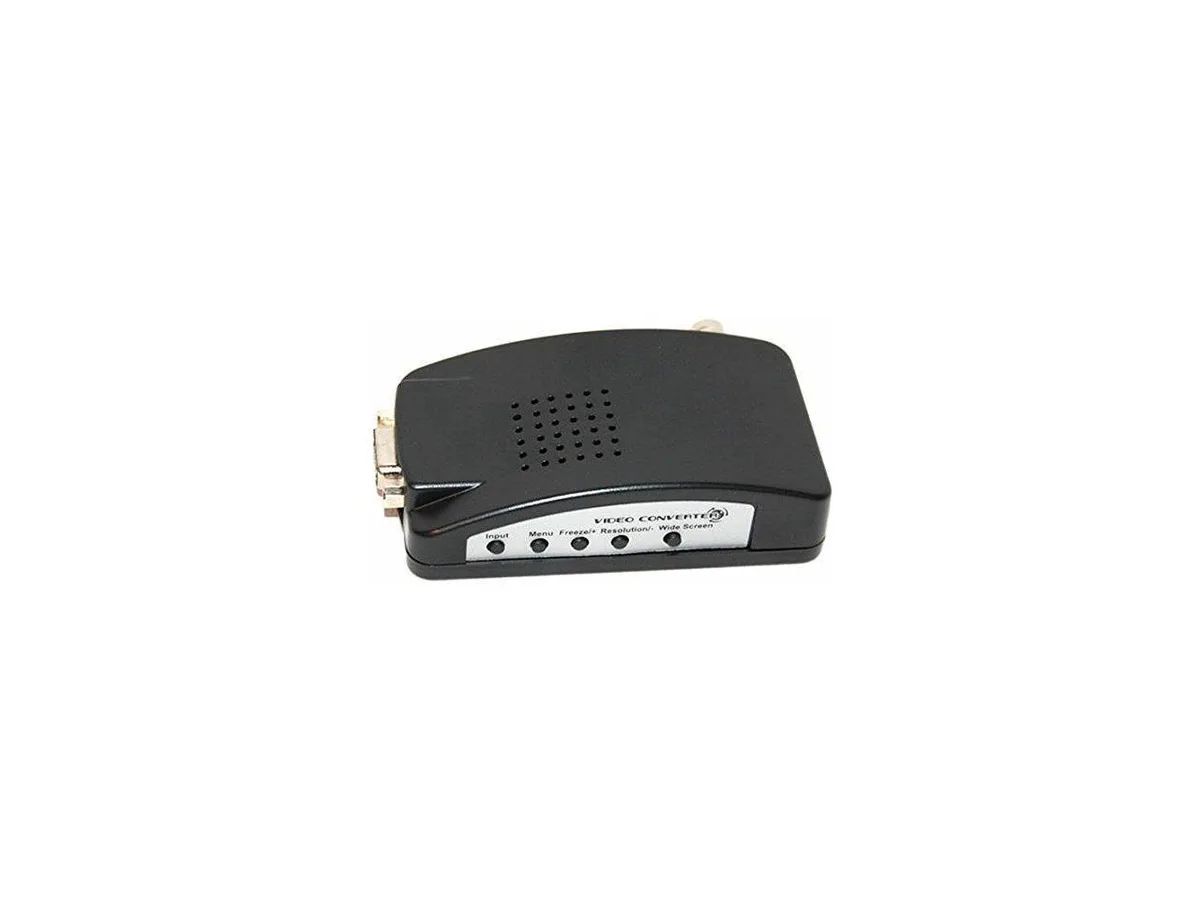

Compact black box with BNC, S-Video and VGA ports

sakose

sakose HM104 BNC Composite S-Video VGA Converter Wide Screen

SKU CH-TVPE-N98P3

Converts BNC composite, S-Video and VGA sources to VGA output with wide-screen 16:9 and 16:10 support up to 1680 x 1050 resolution

  • Convert BNC composite to VGA for legacy security gear
  • Switch between BNC, S-Video and VGA inputs on one screen
  • Supports wide-screen 16:9 and 16:10 LCD monitors
  • Adjustable colour, hue, contrast and saturation settings auto-saved
  • Compact 3.9 x 2.4 x 1 inch plug-and-play unit

BNC and S-Video to VGA converter

The sakose HM104 accepts composite BNC, S-Video and VGA inputs and switches between them to drive a single VGA monitor. It is aimed at installers who need to view surveillance DVRs, security cameras or quad processors on a standard VGA or SVGA display. Plug-and-play operation requires no driver installation.

Supported resolutions up to 1680 x 1050

The converter handles PAL and NTSC sources and scales them to a choice of output modes including 800 x 600 at 60 Hz or 75 Hz, 1024 x 768 at 60 Hz, 1280 x 720 at 60 Hz, 1440 x 900 at 60 Hz, 1600 x 900 at 60 Hz and 1680 x 1050 at 60 Hz. Wide-screen 16:9 and 16:10 LCDs are supported. Composite and S-Video inputs are limited to 1680 x 1050 maximum resolution.

Passive cooling in a compact enclosure

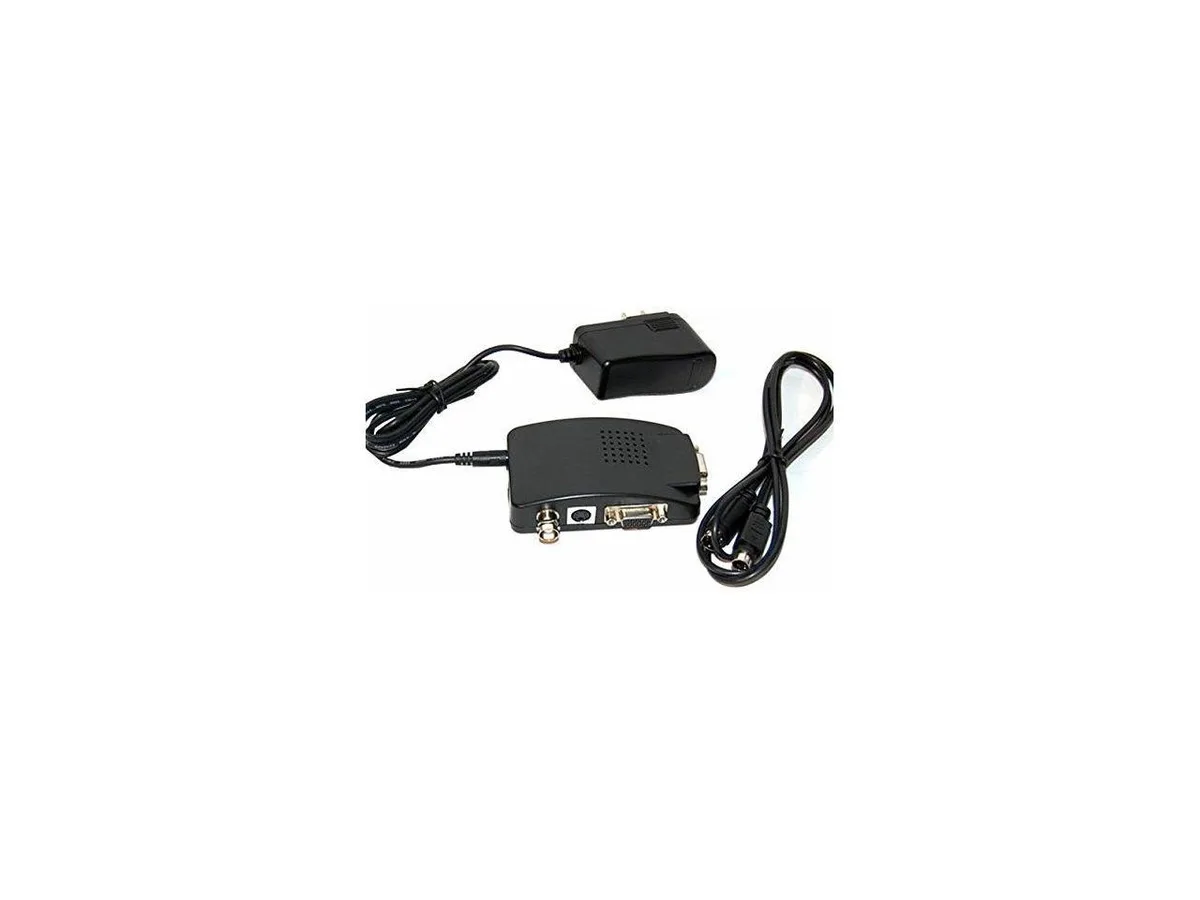

The unit measures 3.9 by 2.4 by 1 inches and uses a fanless design, so it adds no audible noise to a monitoring station. Power draw is low enough for the supplied adapter. Adjustable lightness, hue, contrast, saturation and colour settings are retained after power-off.

Highlights

  • Convert BNC composite to VGA for legacy security gear
  • Switch between BNC, S-Video and VGA inputs on one screen
  • Supports wide-screen 16:9 and 16:10 LCD monitors
  • Adjustable colour, hue, contrast and saturation settings auto-saved
  • Compact 3.9 x 2.4 x 1 inch plug-and-play unit

Specifications

BrandSAKOSE

Questions about this item

Will my existing VGA monitor show the 1680 x 1050 picture from a BNC camera clearly?

Yes, the converter supports 1680 x 1050 at 60 Hz on wide-screen 16:9 and 16:10 LCDs, so a VGA monitor with that native resolution will display the BNC signal at full detail.

How can I confirm the unit is converting the BNC feed correctly after I plug it in?

Use the front input-select switch to choose the BNC source; a stable picture at one of the listed resolutions — for example 1280 x 720 at 60 Hz — plus adjustable brightness, contrast and colour that auto-save on power-off confirms correct operation.

Does the box include the BNC and VGA cables I need, or must I buy them separately?

The package contains only the HM104 converter itself; you will need to supply a BNC cable for the composite or S-Video source and a standard VGA cable for the monitor connection.
