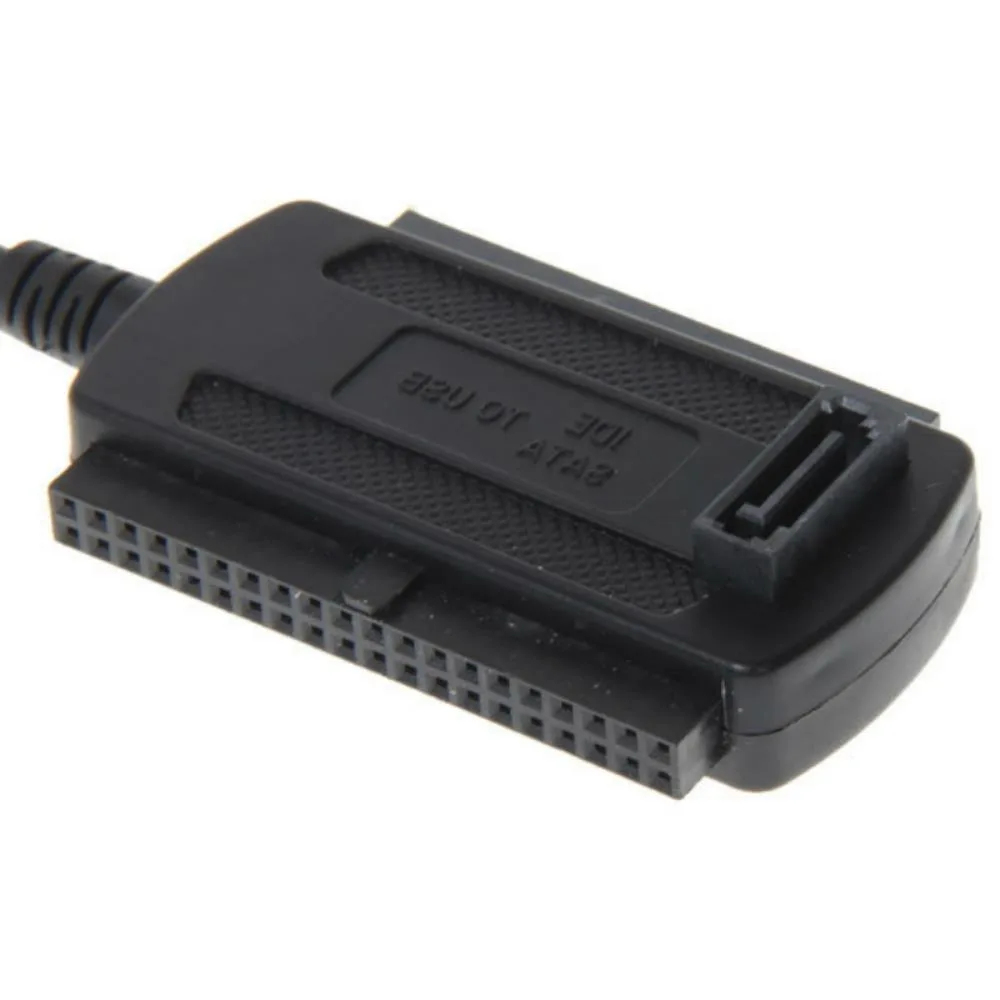

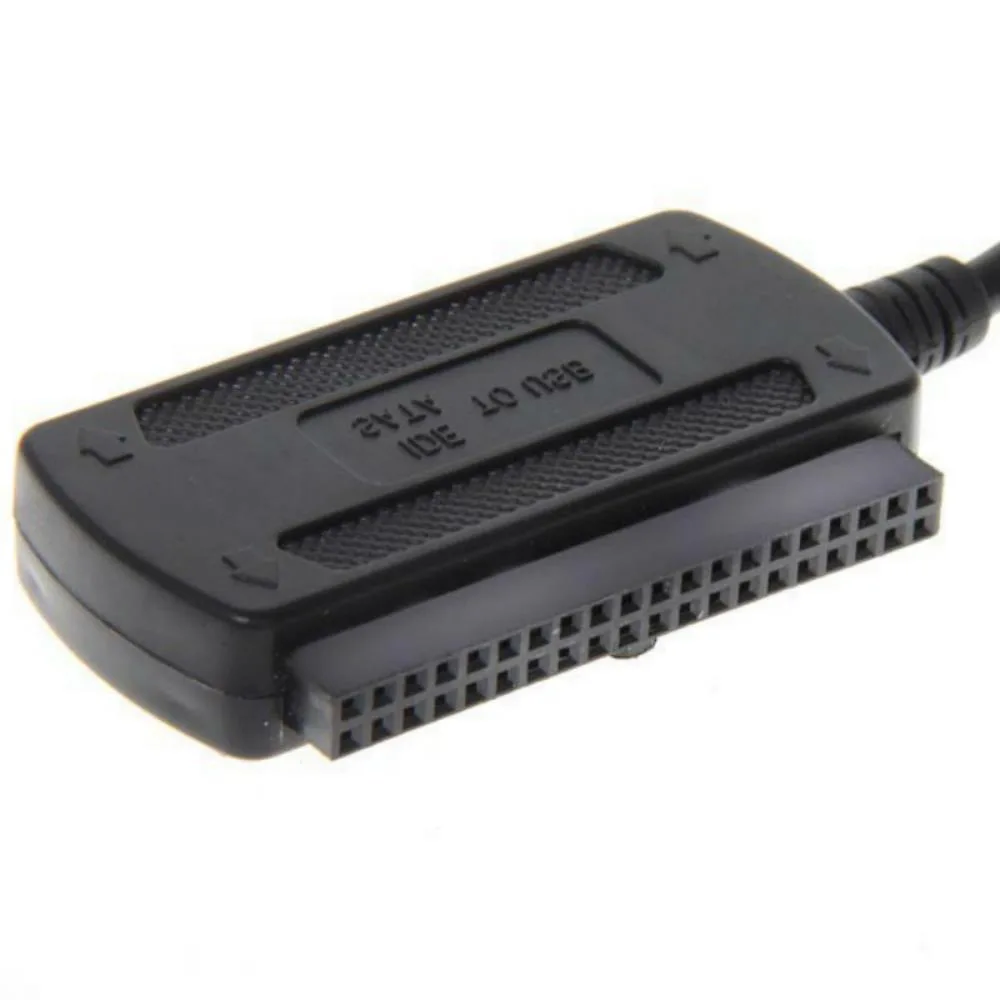

USB 2.0 to SATA IDE converter adapter cable with three connectors

Ruth's sister

Ruth's sister USB 2.0 to SATA IDE converter adapter cable international power cord

SKU CH-KCTF-76VCE

Connects 2.5 and 3.5 inch SATA or IDE drives via USB 2.0 with 480 Mb/s transfer and external AC power input 90v-264v

  • Connect 2.5" and 3.5" drives via USB 2.0
  • Transfer data at up to 480 Mb/s
  • Plug-and-play with USB 2.0 and 1.1
  • Three connectors: 44-pin, 40-pin and SATA
  • External AC power input 90 V to 264 V

USB 2.0 to SATA IDE adapter cable

This cable connects 2.5 inch and 3.5 inch SATA or IDE hard drives to a computer through a USB 2.0 port. It suits users who need to access data from older internal drives without installing them inside a case. The adapter supports both 44 pin and 40 pin IDE connectors plus a SATA connector for broad drive compatibility.

Upgrades from internal drive bays

The adapter replaces the need for a spare drive bay or a dedicated dock when you only occasionally retrieve files from legacy drives. It is worth using when you have a 2.5 inch laptop drive or a 3.5 inch desktop drive that still spins but has no internal port available. The external AC power input handles 90v to 264v so the drive receives adequate power for sustained transfers.

Limited by USB 2.0 bandwidth

The interface caps throughput at 480 megabits per second so large image clones or bulk video copies will take longer than on a native SATA link. The 52X write speed rating applies only to optical media and does not reflect hard drive performance. Drives requiring more current than the USB port can deliver will not spin up without the separate AC supply.

Highlights

  • Connect 2.5" and 3.5" drives via USB 2.0
  • Transfer data at up to 480 Mb/s
  • Plug-and-play with USB 2.0 and 1.1
  • Three connectors: 44-pin, 40-pin and SATA
  • External AC power input 90 V to 264 V

Specifications

No published specifications for this item yet.

Questions about this item

What drive connectors does the adapter cable provide for 2.5-inch and 3.5-inch drives?

The cable includes a 44-pin IDE connector for 2.5-inch drives, a 40-pin IDE connector for 3.5-inch drives and optical devices, and a SATA connector for SATA drives.

How is the adapter powered, and what voltage range does the external supply need?

Connect the USB cable to the computer, attach the drive to the appropriate IDE or SATA connector, then plug an external AC power supply rated for 90v-264v into the adapter to power the drive.

What is the maximum data transfer rate supported by the USB 2.0 interface?

The USB 2.0 interface supports a high-speed data transfer rate up to 480Mb/s and is backward compatible with USB 1.1.
